Rear lights and mirrors wiring diagrams needed?

2012 MAZDA 3
271,000 MILES • 2.0L • 4 CYL • 2WD • MANUAL
Avatar
JOEPONTIAC
  • MEMBER
  • 13 POSTS
Hi,

I need an electrical diagram for one project this summer in my 2012 Mazda 3.
Diagram for:
1) Rear lights (the back of the car).
2) Rear viewer mirrors (heated and turn signal lights).
Thank you
Jun 7, 2024 at 4:12 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,579 POSTS

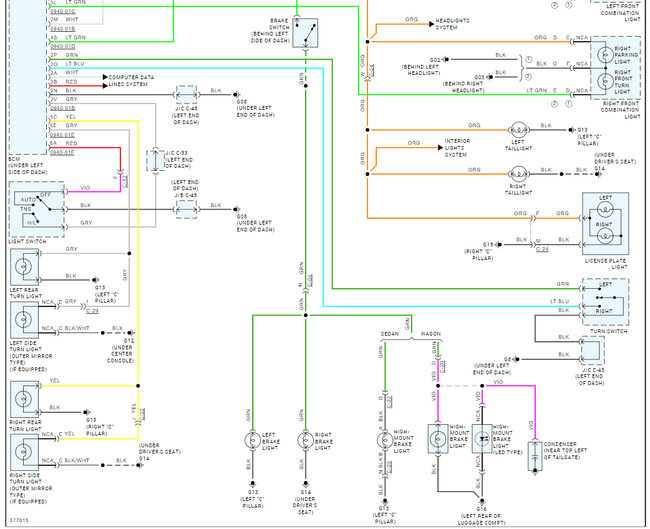

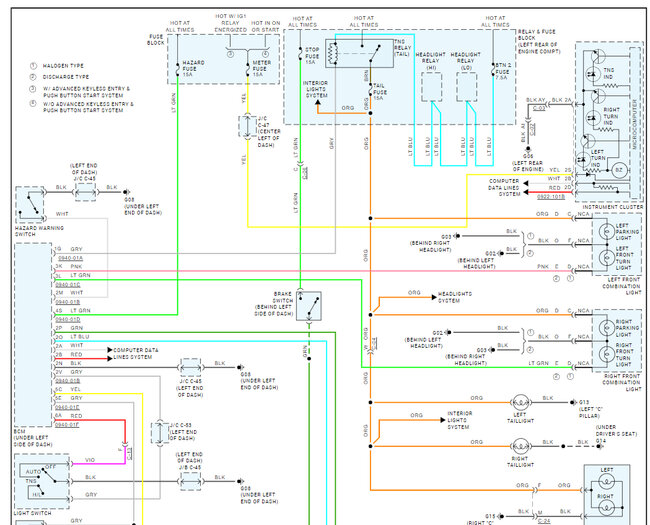

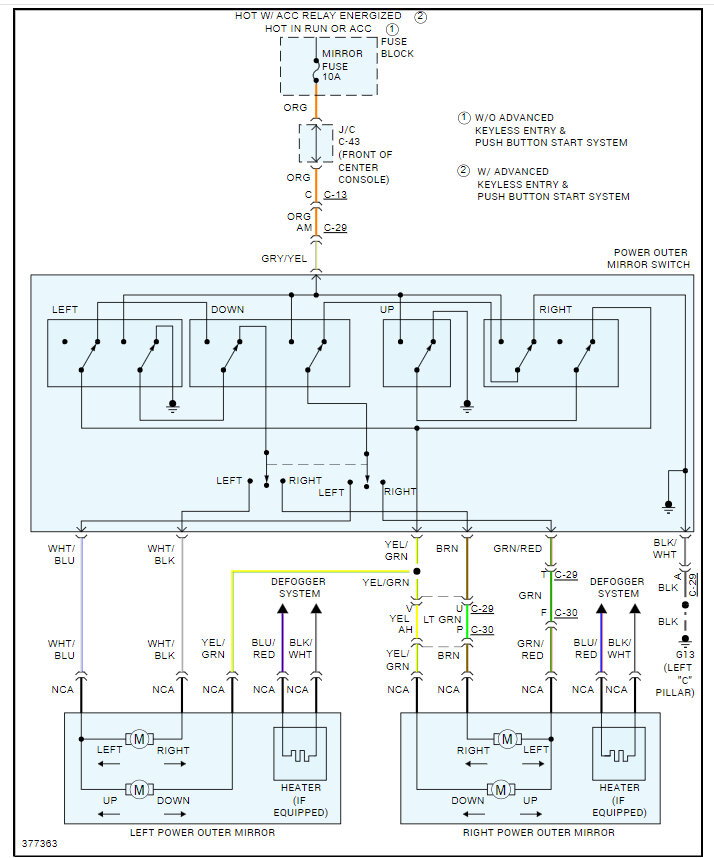

Sure, here are the wiring diagrams for the rear tail and brake lights and the side view mirrors, I am not sure what you mean by the heated rear mirror with turn signals? Can you please clarify? Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jun 8, 2024 at 5:00 AM
Avatar
JOEPONTIAC
  • MEMBER
  • 13 POSTS
Hi,

Thank you very much.
It’s all what I need.
Jun 15, 2024 at 4:22 AM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,579 POSTS
You are welcome. Please let us know what happens.
Jun 16, 2024 at 3:21 AM
