Can I get a radio wiring diagram?

Tiny
TRAV CONNER
  • MEMBER
  • 2011 RAM 1500
  • 5.7L
  • V8
  • TURBO
  • 4WD
  • AUTOMATIC
  • 77,000 MILES
Have the premium Alpine system and need the wiring diagram for the radio.
Friday, July 22nd, 2022 AT 11:00 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,629 POSTS

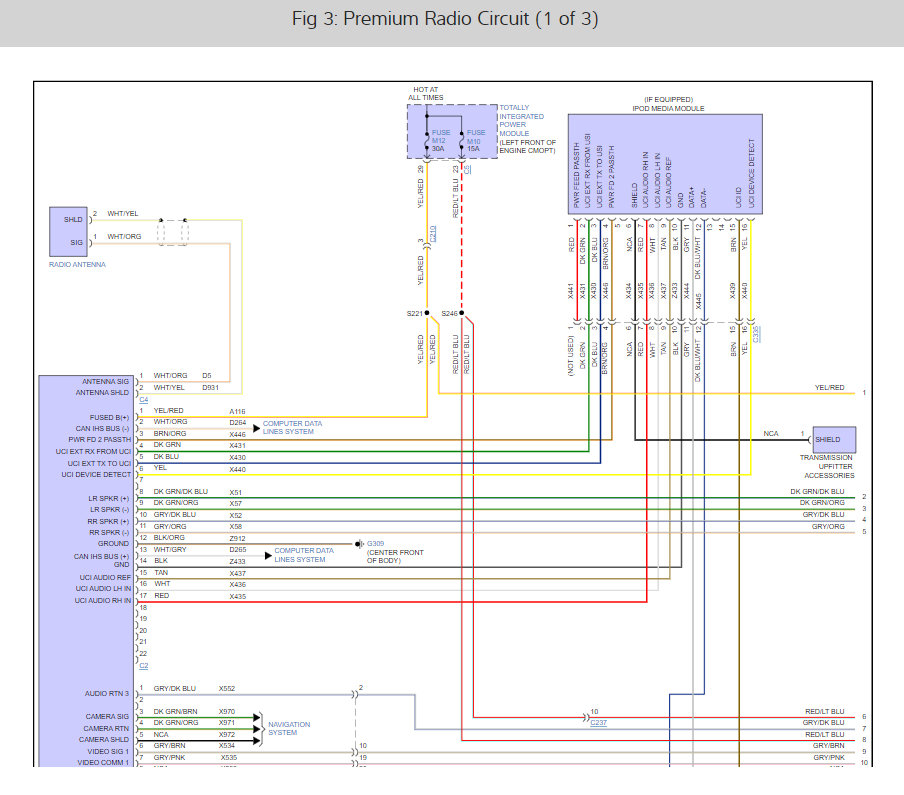

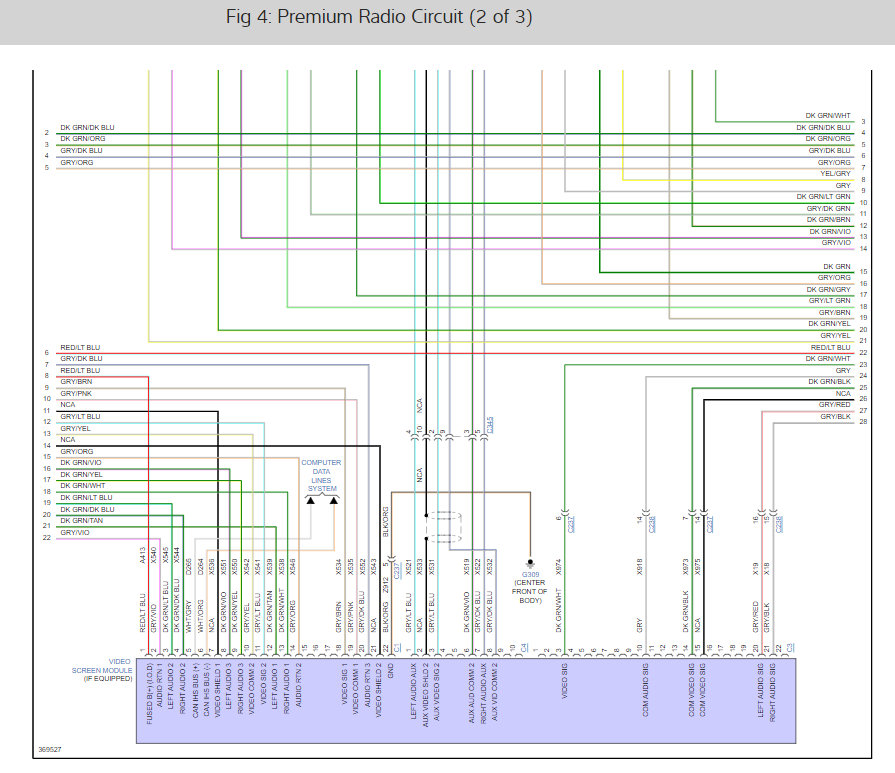

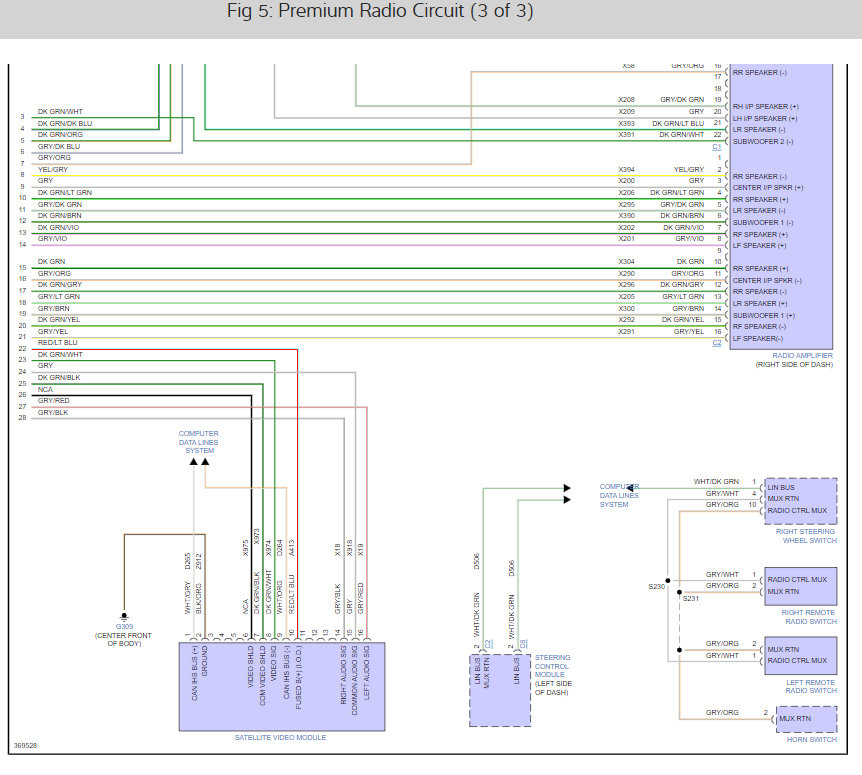

Here is a guide to help you test the wiring connections with the wiring diagrams for the premium radio in the diagrams below.

https://www.2carpros.com/articles/how-to-check-wiring

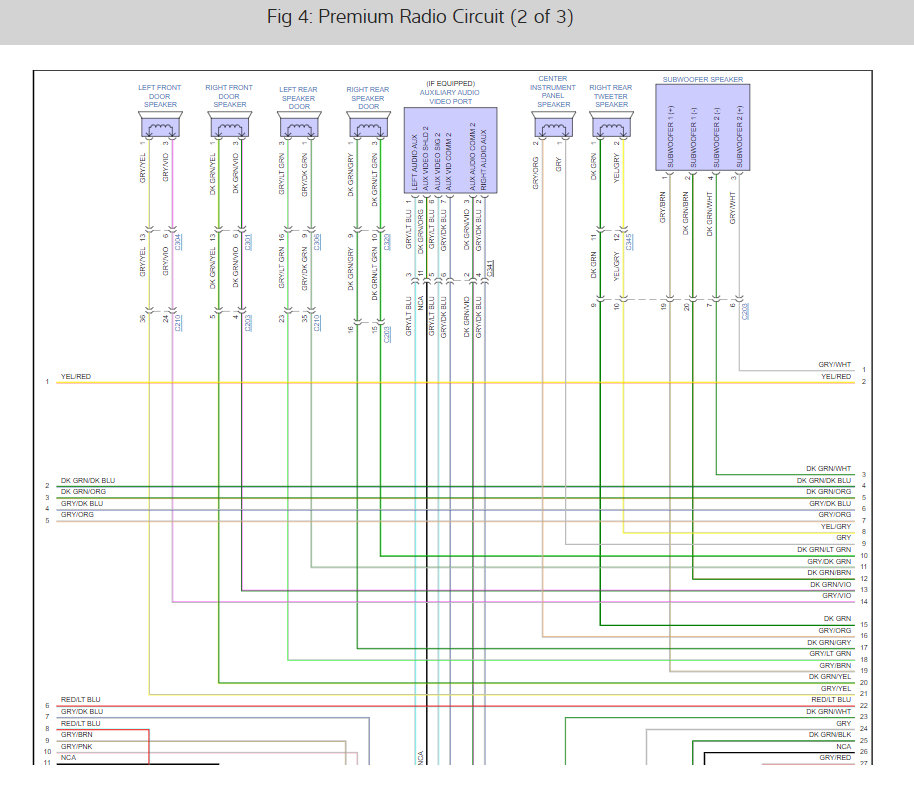

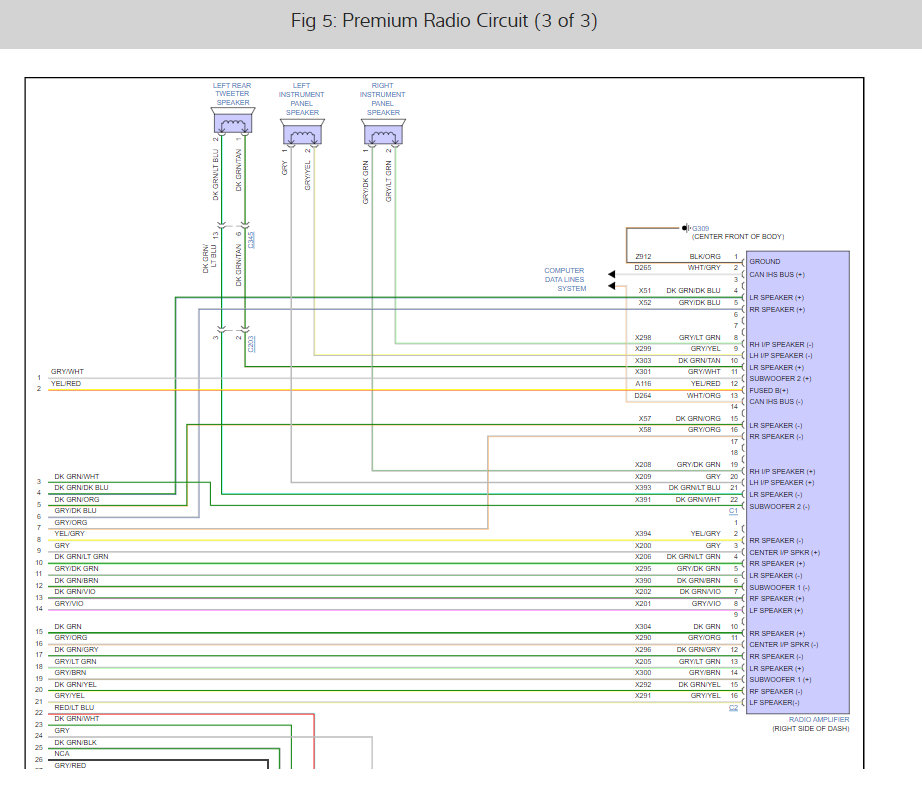

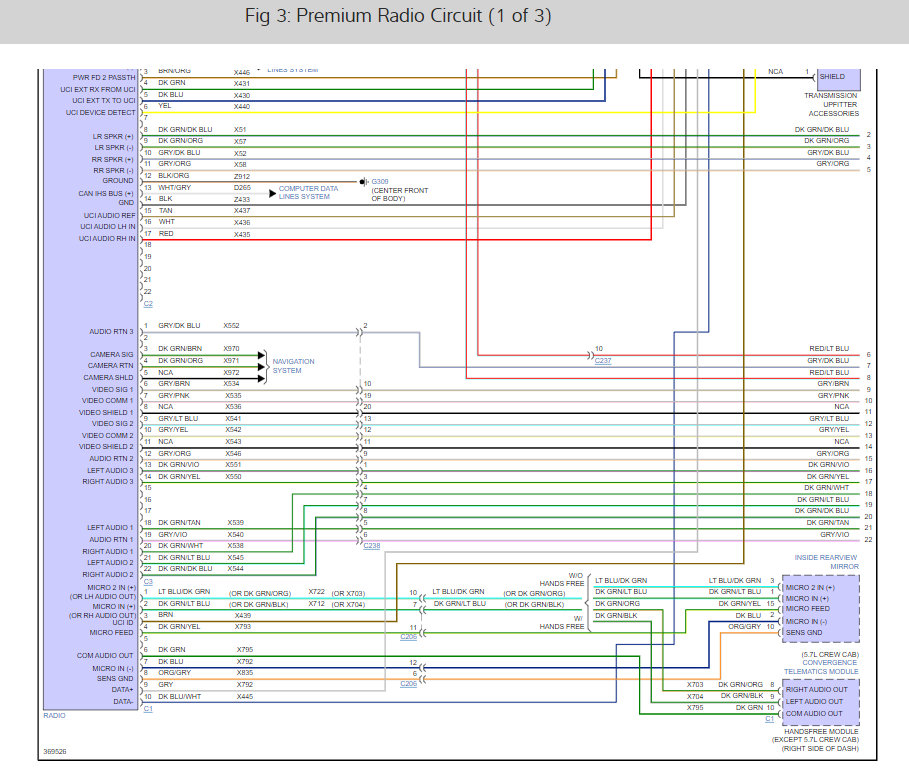

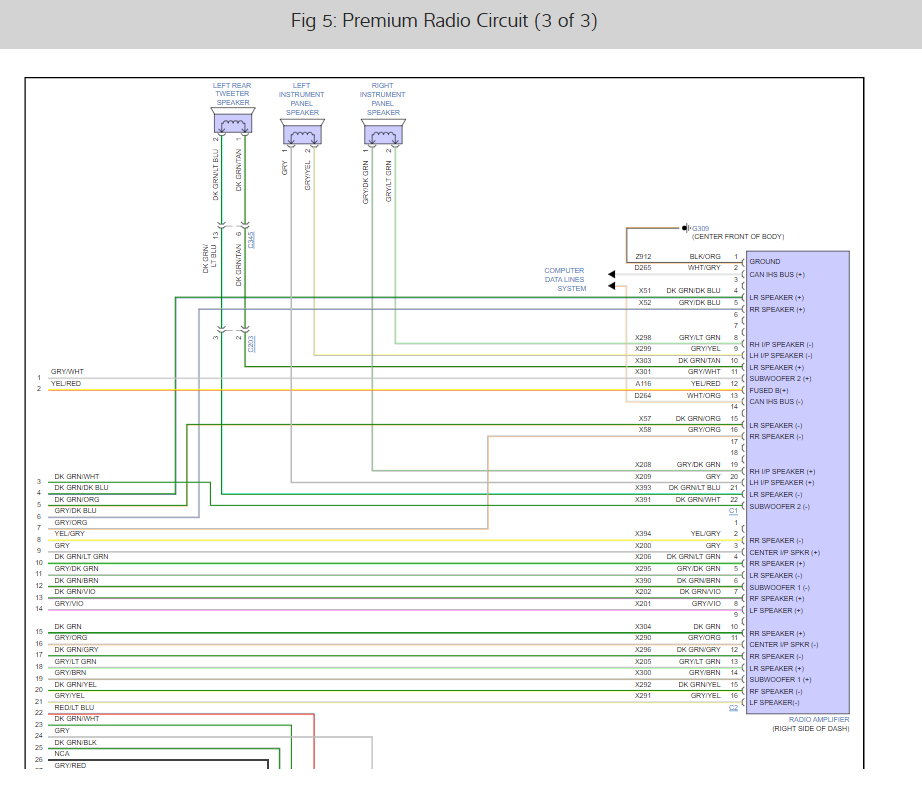

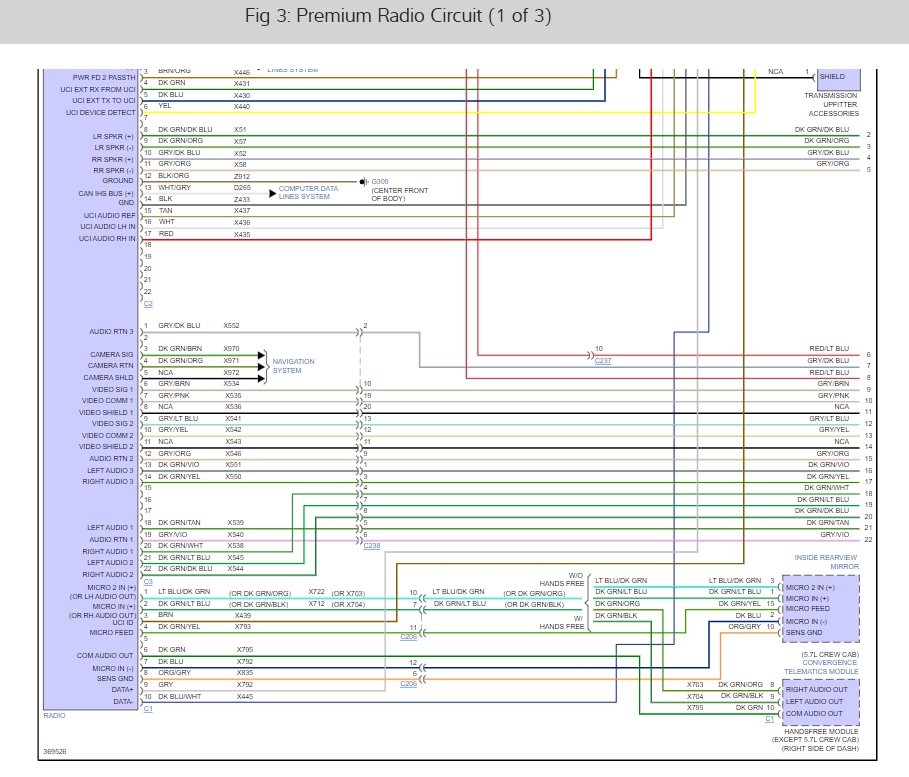

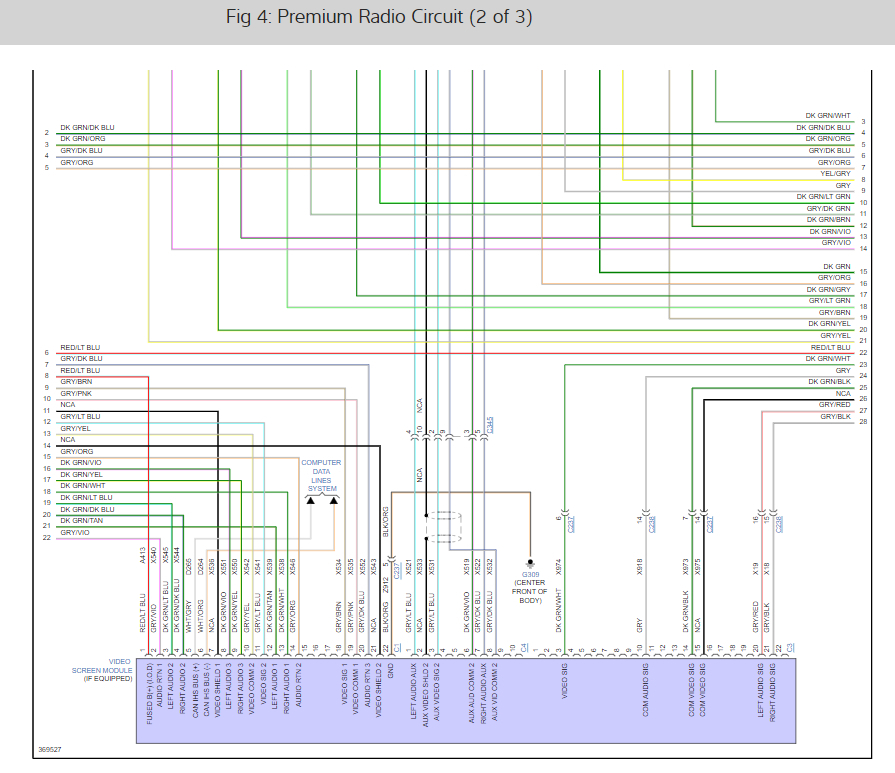

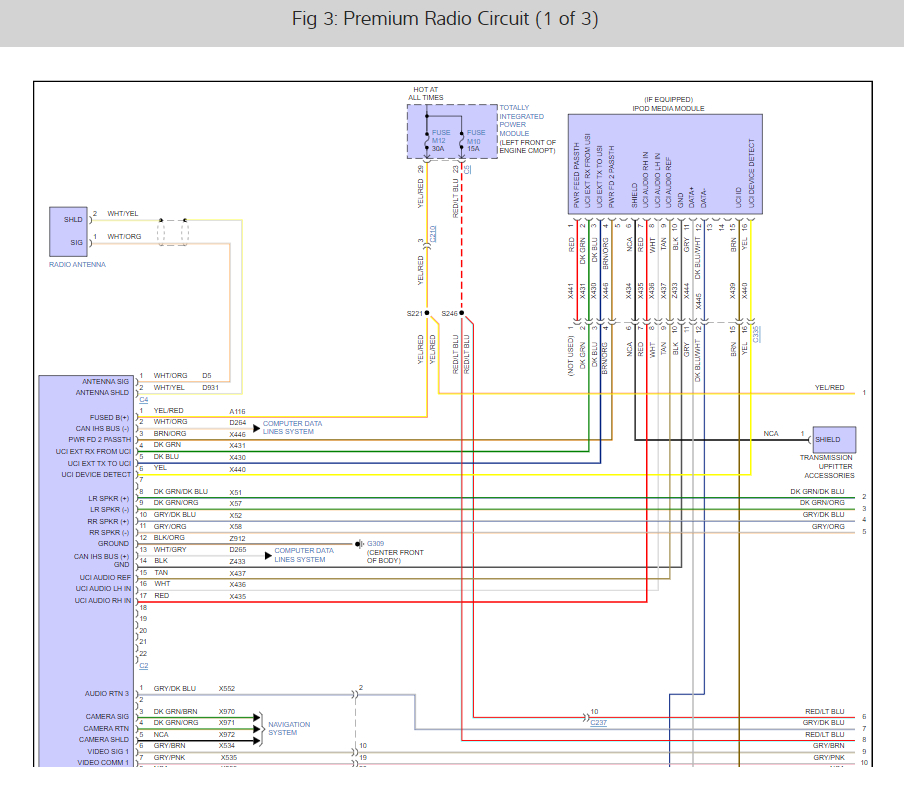

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
