Car keeps popping a fuse to the radio. Want to follow the wire and check for any grounding issues.
Jan 7, 2021 at 1:14 PM
Radio wiring I want to follow the wires
2001 LEXUS ES 300
BEAU BROWN
- MEMBER
- 1 POST
Advertisement
DANNY L
- ✓ASE Certified Mechanic
- 5,648 POSTS
Hello, I'm Danny.
Here is the information you requested. Here is a tutorial for you to view on how to test electrical wiring:
https://www.2carpros.com/articles/how-to-check-wiring

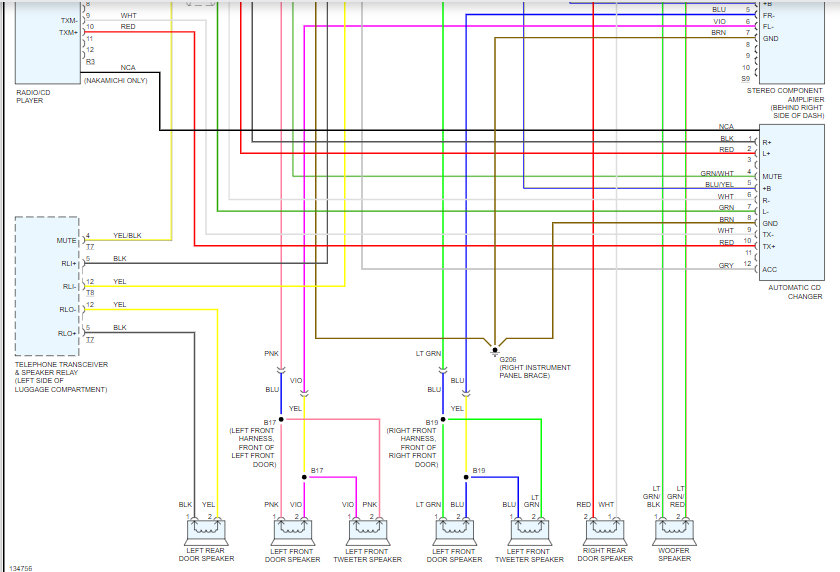

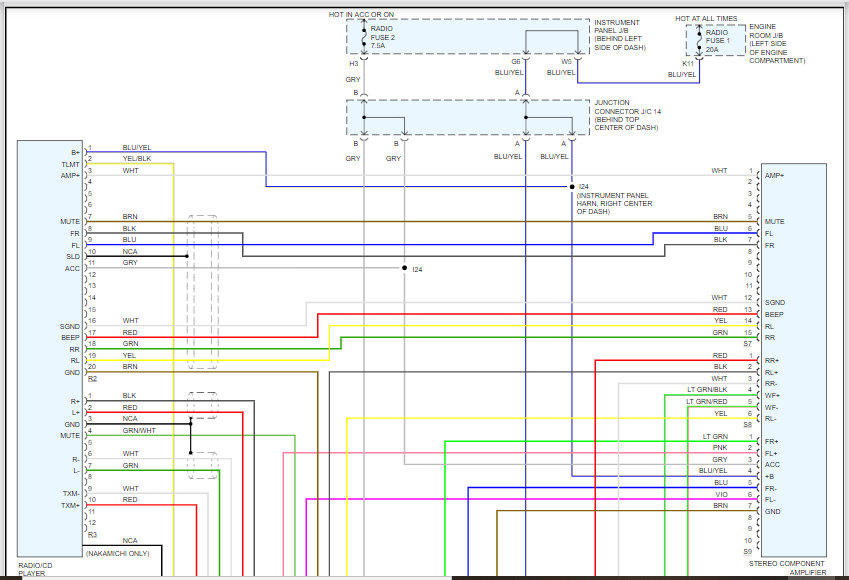

I've attached the radio wiring diagram below for your car. I've cut the picture in half so you can view larger. Hope this helps and thanks for using 2CarPros.
Here is the information you requested. Here is a tutorial for you to view on how to test electrical wiring:
https://www.2carpros.com/articles/how-to-check-wiring
I've attached the radio wiring diagram below for your car. I've cut the picture in half so you can view larger. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
