I need help figuring out what cords go to which exactly because I'm confused. I'm trying to install a pioneer DEH-150.
Oct 23, 2019 at 2:53 PM
Radio installation
1994 VOLKSWAGEN PASSAT
EMILLION
- MEMBER
- 3 POSTS
Advertisement
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Welcome to 2CarPros.
Which wires are you referring to? Is it the vehicle wiring or something on the stereo?
Let me know.
Joe
Which wires are you referring to? Is it the vehicle wiring or something on the stereo?
Let me know.
Joe
Oct 24, 2019 at 7:01 PM
Hi,
The vehicle wiring.
Thanks
The vehicle wiring.
Thanks
Oct 24, 2019 at 7:41 PM
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Welcome back:

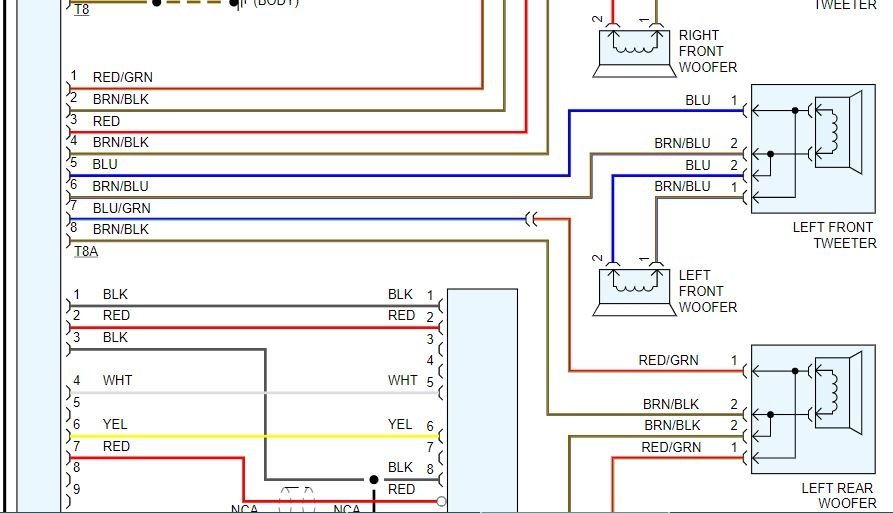

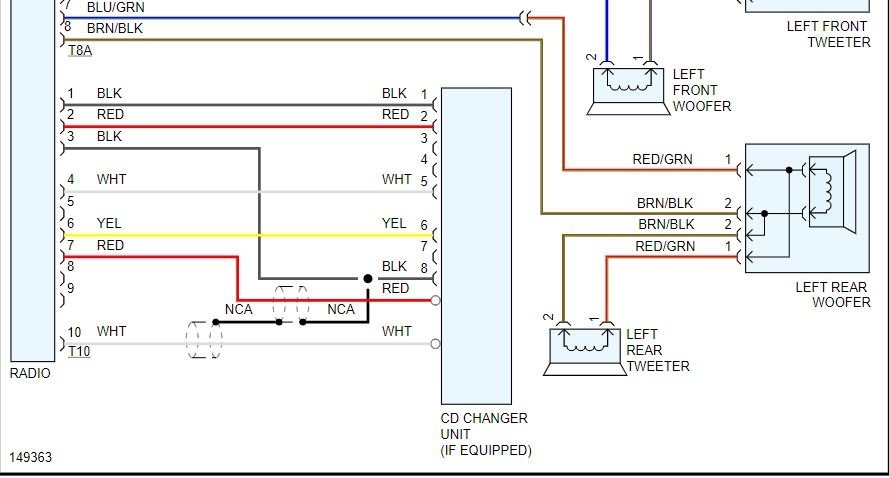

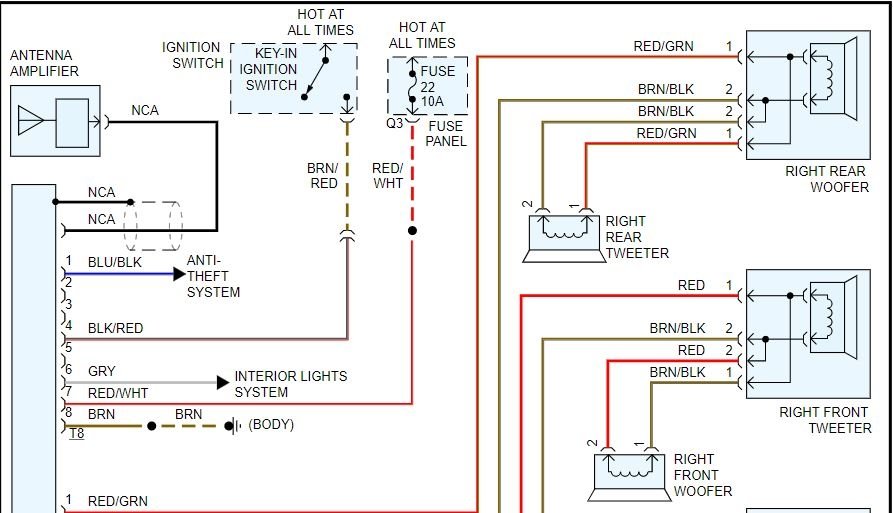

I attached the entire schematic for this vehicle. I had to break it into 3 parts so you could read it. I overlapped them so you could follow them.
Let me know if this helps.
Take care,
Joe
I attached the entire schematic for this vehicle. I had to break it into 3 parts so you could read it. I overlapped them so you could follow them.
Let me know if this helps.
Take care,
Joe
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Oct 24, 2019 at 8:56 PM
Hi,
I don't understand this. do you think you can simplify it for me?
Thanks
I don't understand this. do you think you can simplify it for me?
Thanks
Oct 24, 2019 at 9:00 PM
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Welcome back:
If you let me know specifically what you need, I will try to break it down. The pictures I attached show all the wiring for this vehicle's radio/stereo system. If you look closely, it identifies speaker wiring, power supplies, and so on.
Joe
If you let me know specifically what you need, I will try to break it down. The pictures I attached show all the wiring for this vehicle's radio/stereo system. If you look closely, it identifies speaker wiring, power supplies, and so on.
Joe
Oct 24, 2019 at 9:03 PM
