Radio head unit wiring colors diagram

BENJAMIN V FREEMAN

MEMBER
2001 FORD TRANSIT
70,000 MILES

What do the colors correspond to? Can you provide wiring diagrams and tips on testing voltage?

Monday, August 14th, 2017 AT 2:53 PM

1 Reply

DANNY L

MECHANIC
5,648 POSTS

Hello, I'm Danny.

Here is the information you requested. This is a tutorial for you on how to test wiring:

https://www.2carpros.com/articles/how-to-check-wiring

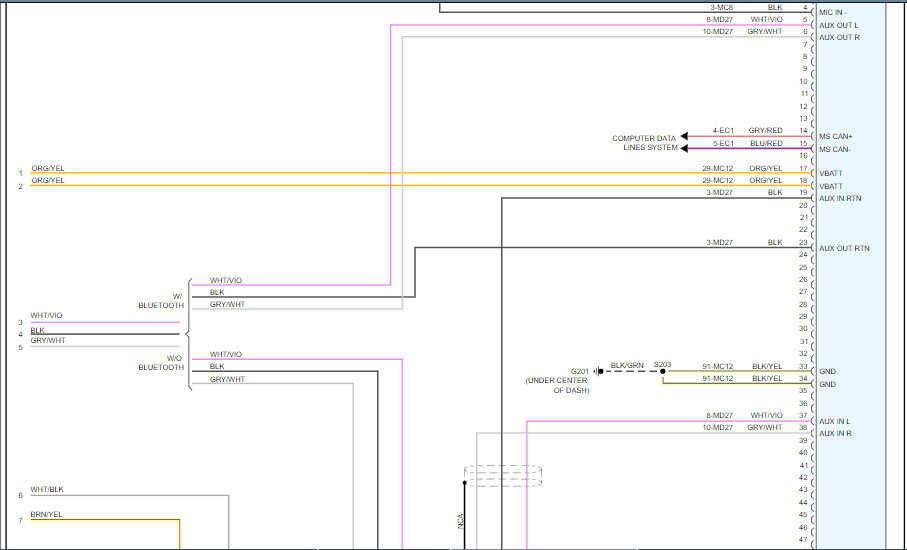

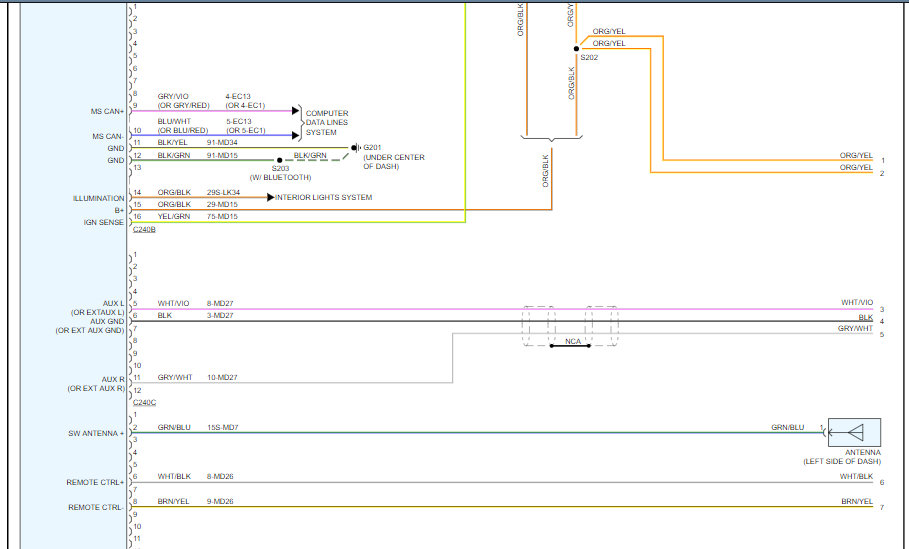

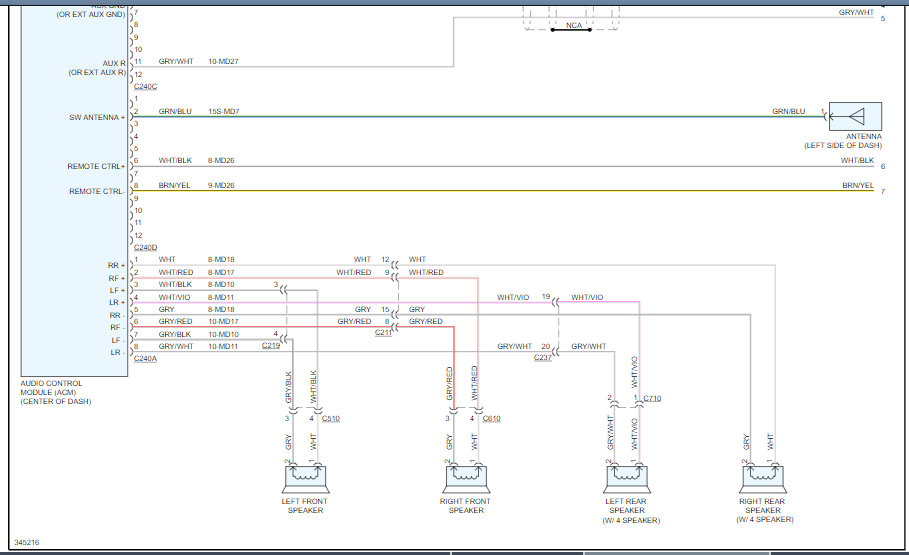

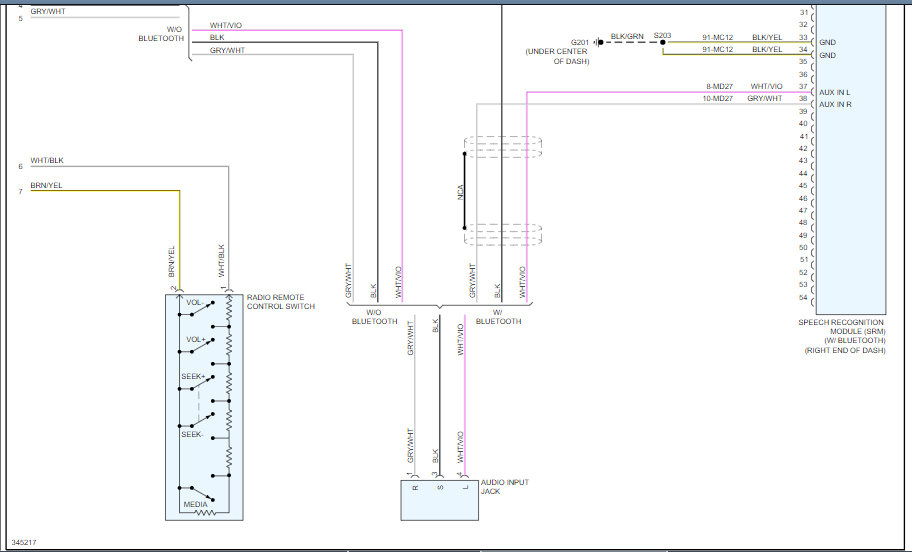

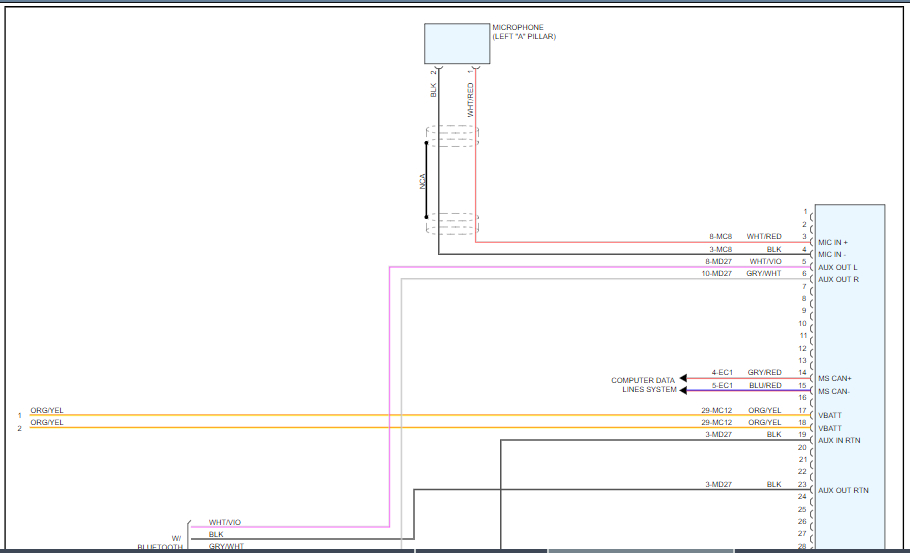

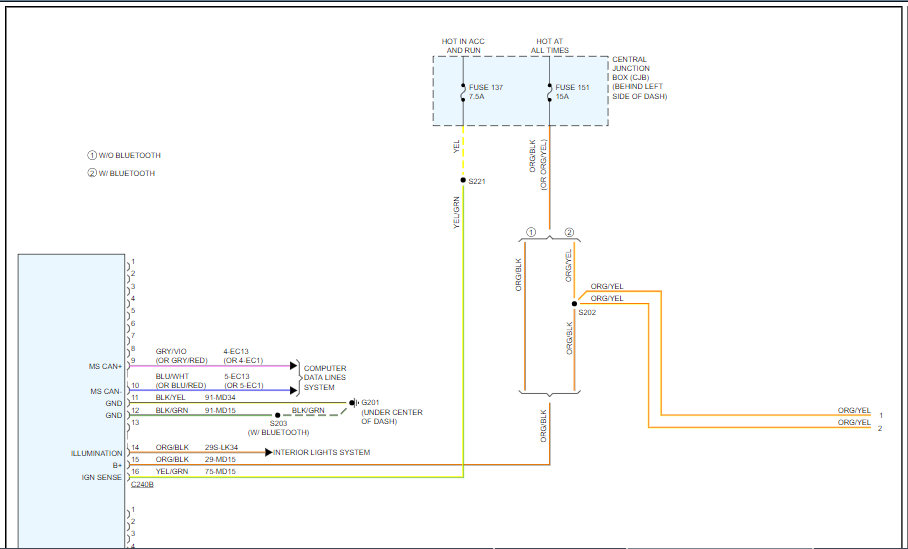

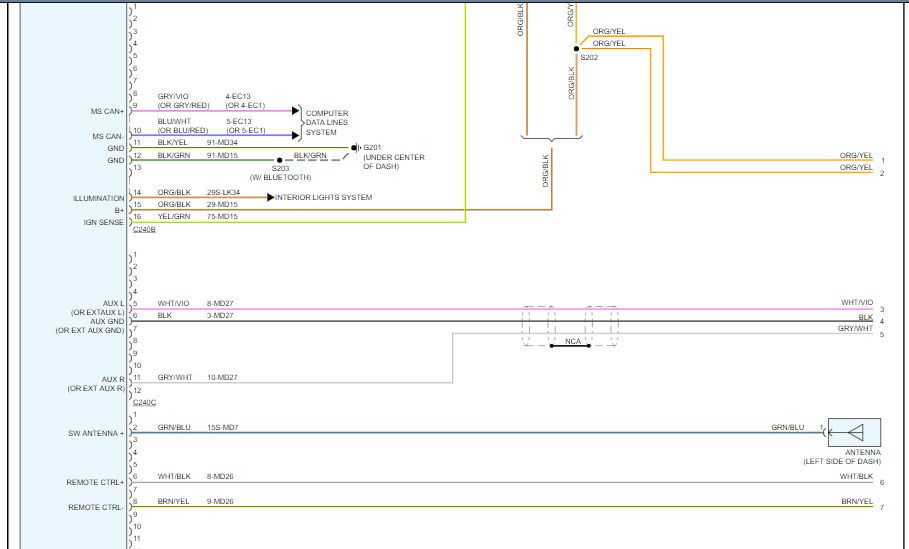

I've attached the radio wiring diagram below for your Transit. I've cut the picture into 3 pieces each so you can view larger. Hope this helps and thanks for using 2CarPros.

Images (Click to make bigger)
