radio wiring diagram needed

2004 FORD FREESTAR
700,000 MILES • 0.5L • V6 • 2WD • AUTOMATIC
Avatar
DARRELBURGER02
  • MEMBER
  • 1 POST
I cannot find a link or picture of the normal color diagram for the radio wire color van. I have found something different each time I have looked. I would like a picture of the normal color diagram for the radio.
Jun 9, 2018 at 5:58 AM
Advertisement
Avatar
KASEKENNY
  • ✓ASE Certified Mechanic
  • 18,907 POSTS
  • ASE Certified Mechanic
I am attaching the info required but here are a couple guides that will help with this type of testing if needed:

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/how-to-check-a-car-fuse

https://www.2carpros.com/articles/how-to-use-a-voltmeter

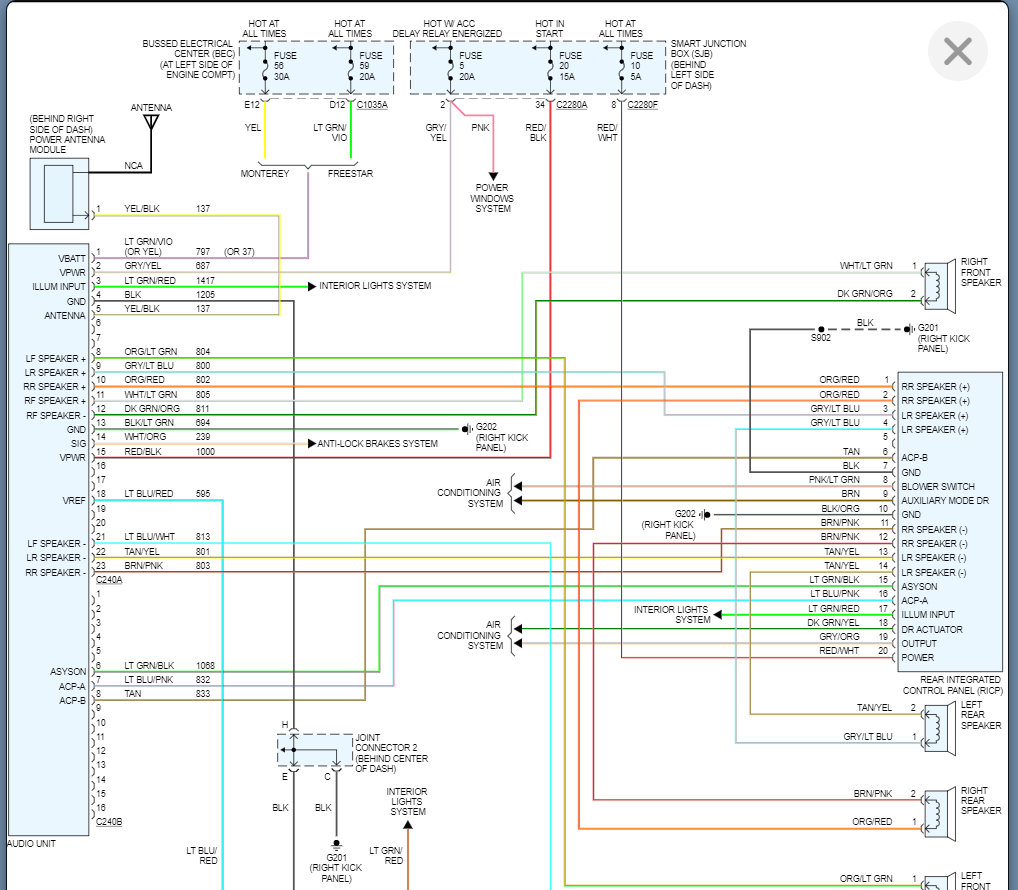

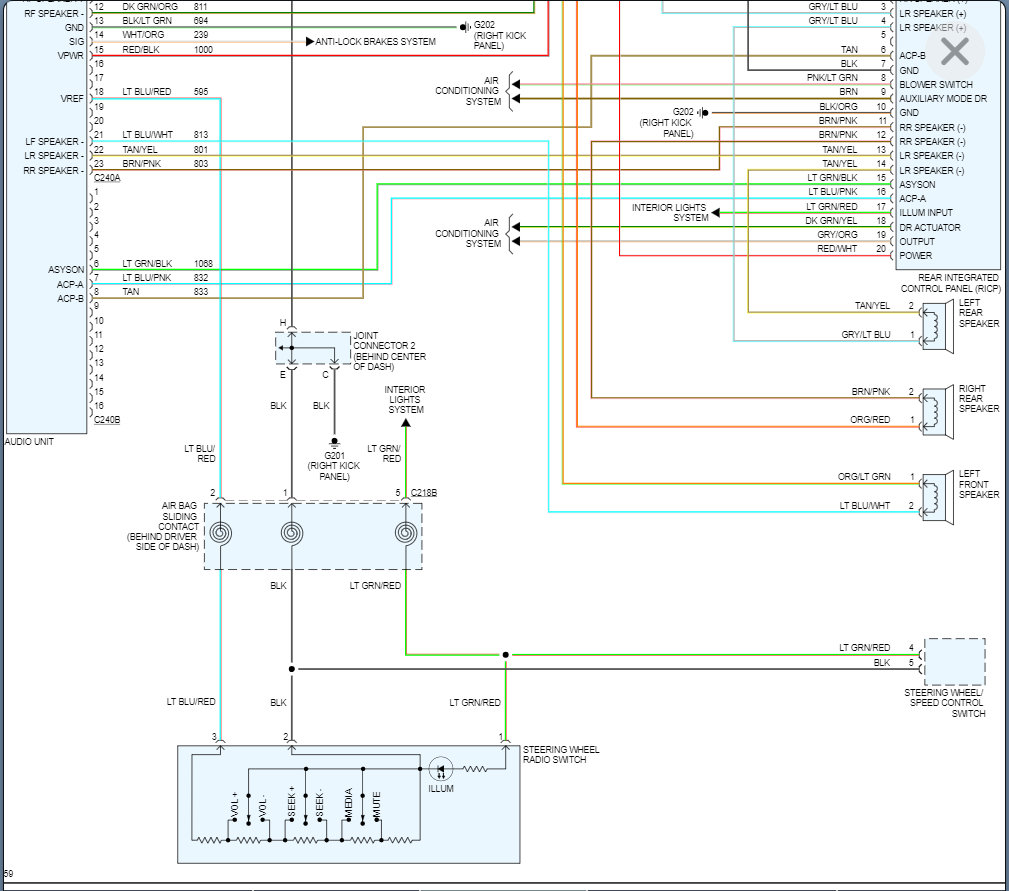

Below you will find the wiring diagrams for this vehicle as requested.

Please run through this and let us know what other info is needed.

Thanks for using 2CarPros.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
