I’m trying to hard wire an aftermarket radio but can’t find an accurate wiring diagram.
Sep 4, 2022 at 12:51 AM
Can I get an accurate wiring diagram for the stereo?
2008 FORD TAURUS
SAINTLYOAK
- MEMBER
- 2 POSTS
Advertisement
CARADIODOC
- ✓ASE Certified Mechanic
- 34,321 POSTS

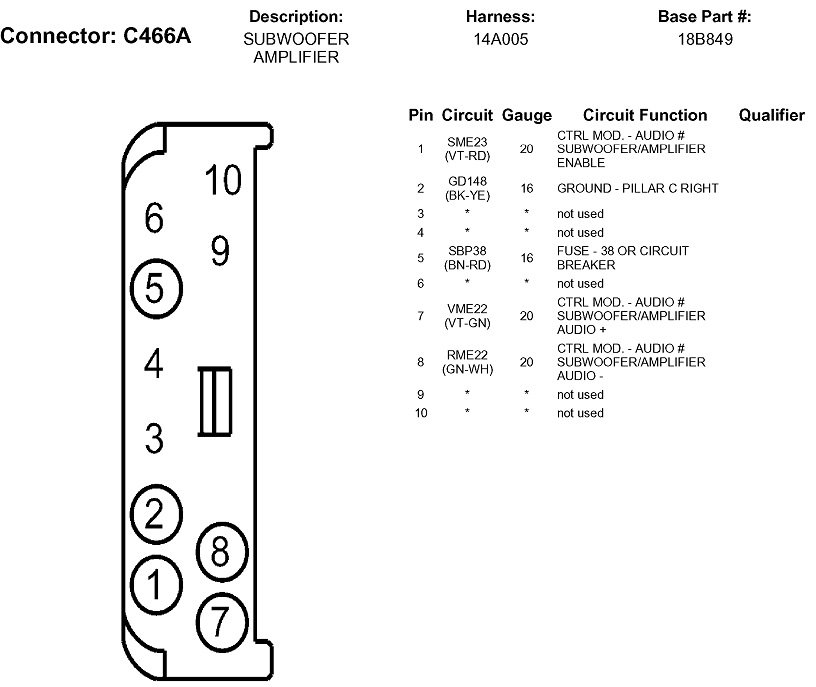

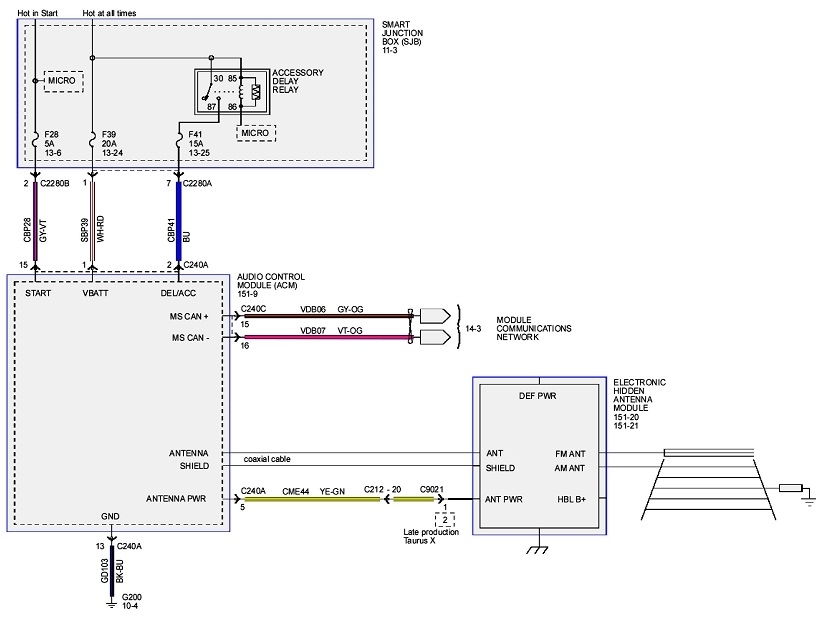

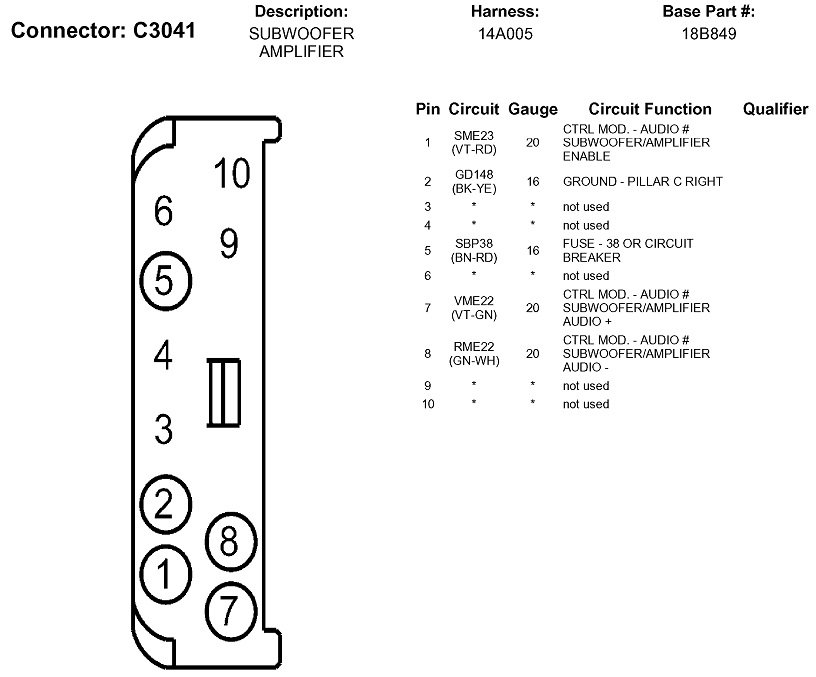

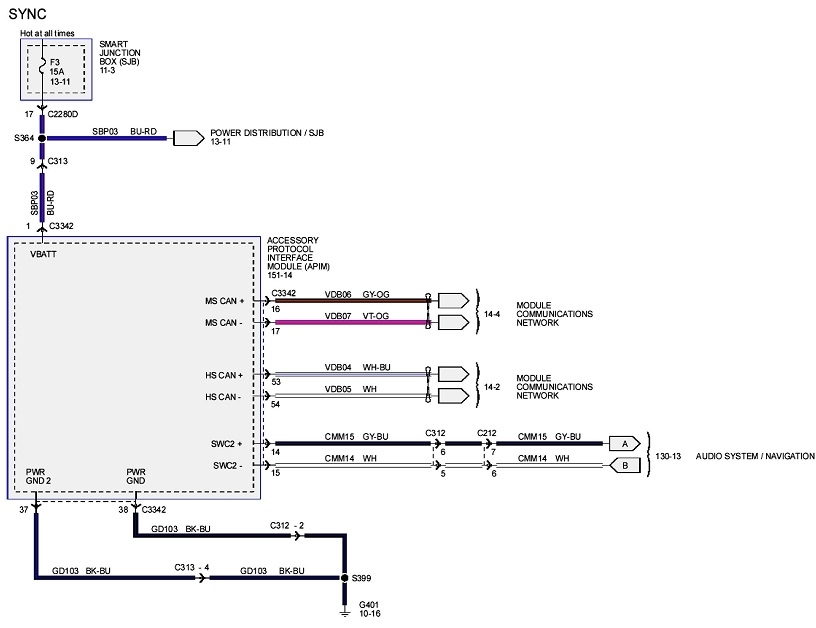

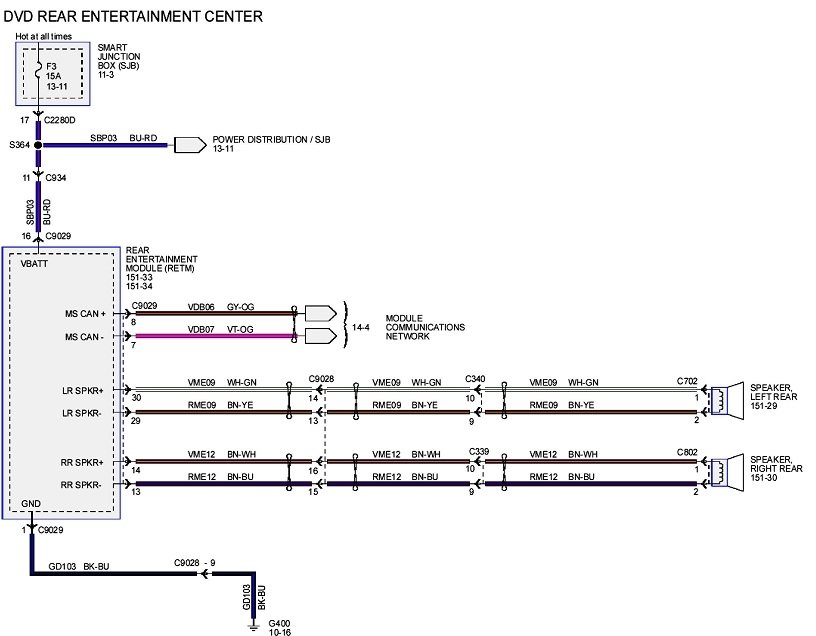

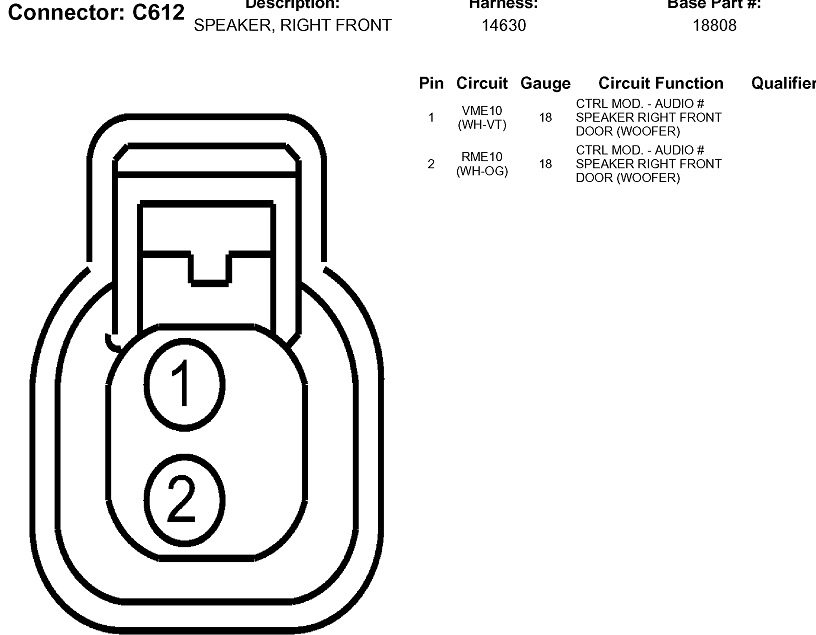

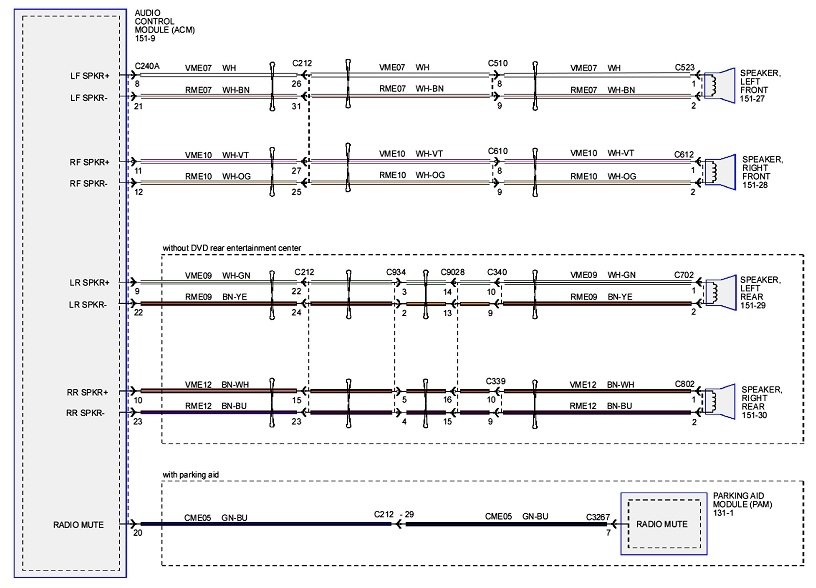

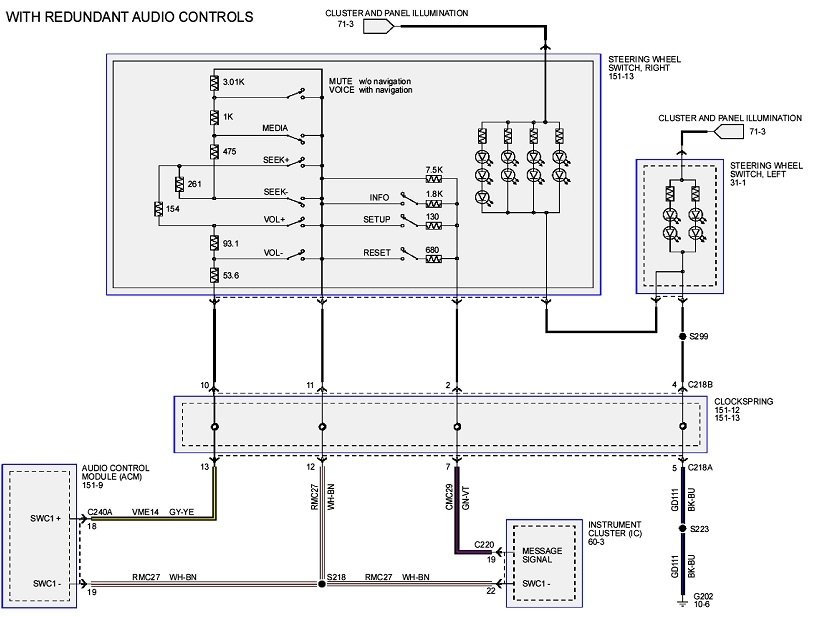

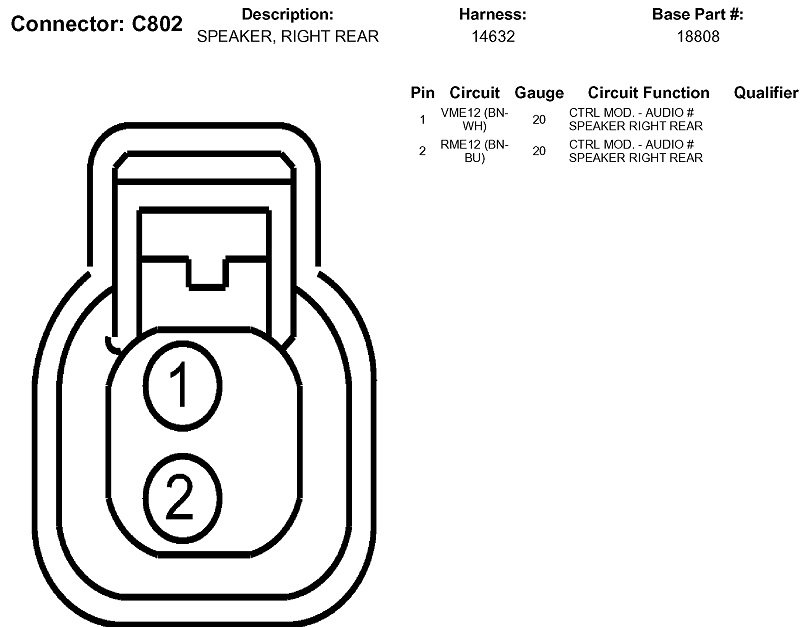

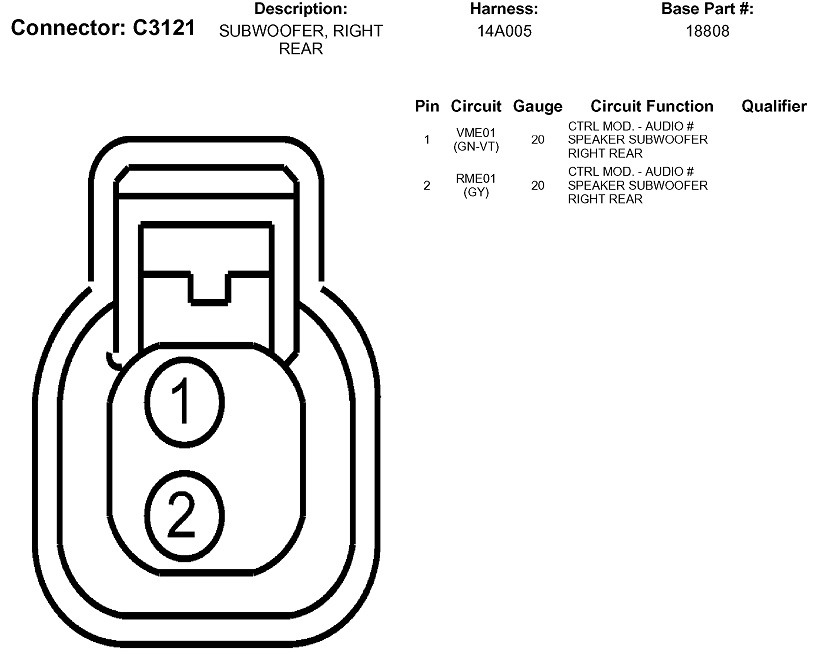

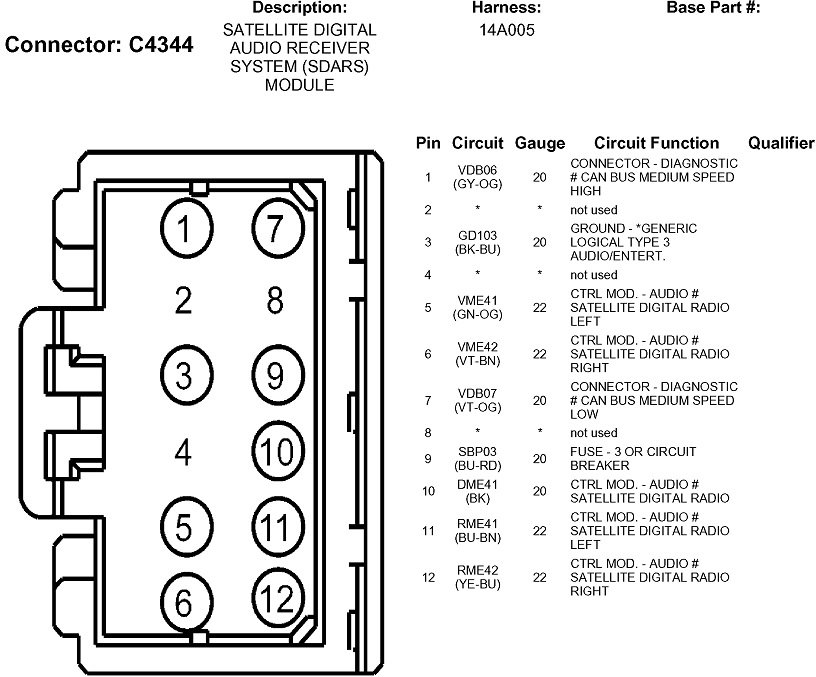

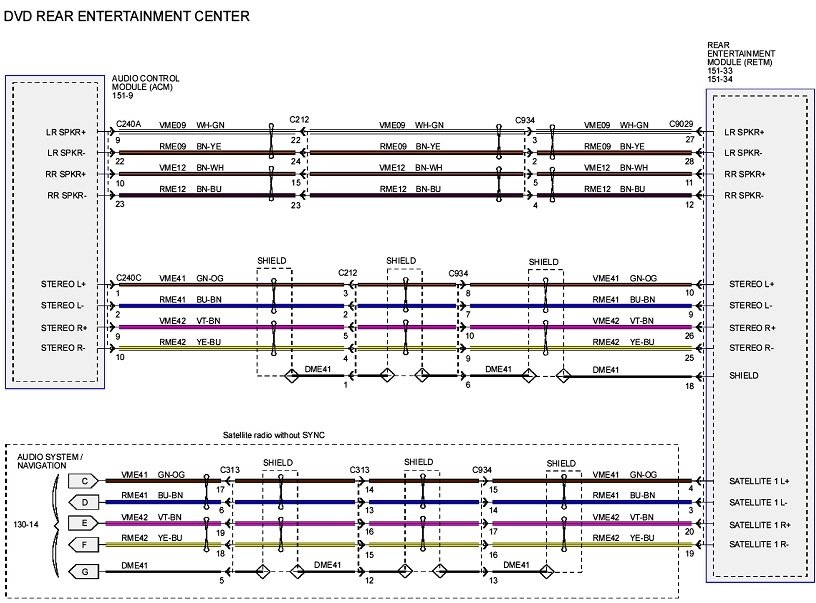

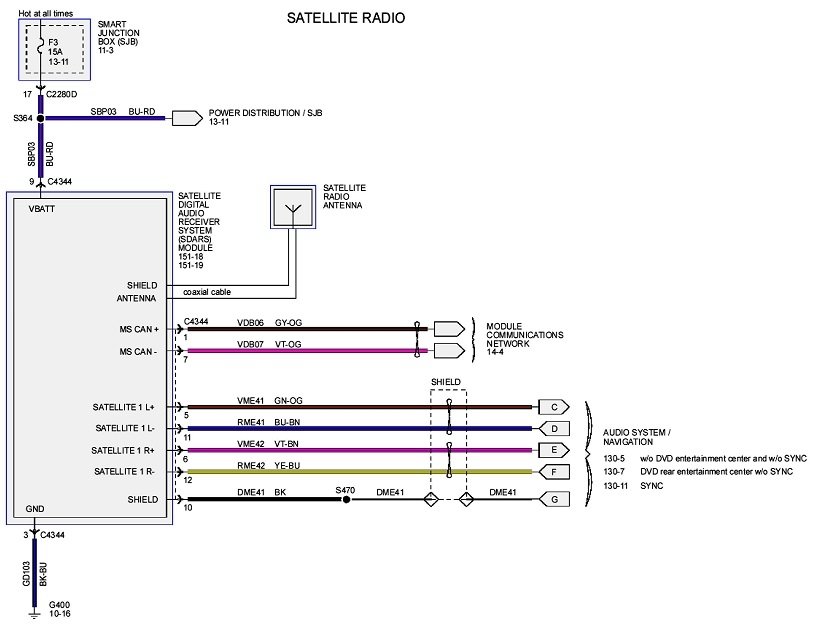

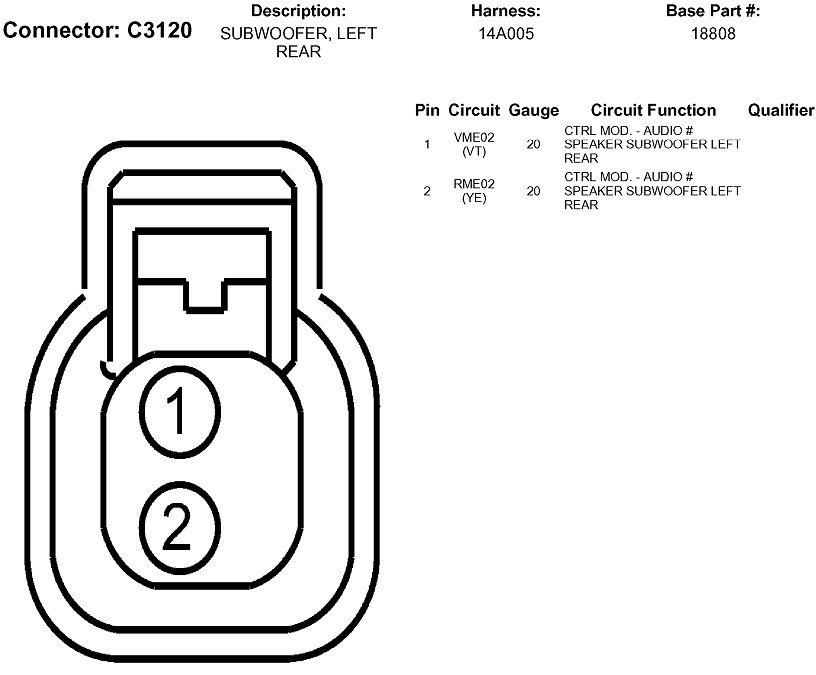

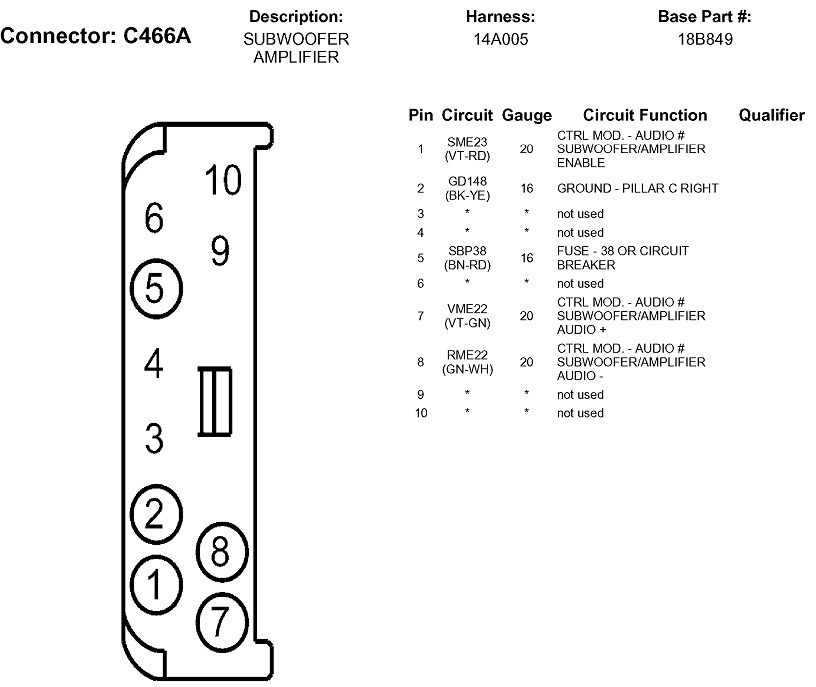

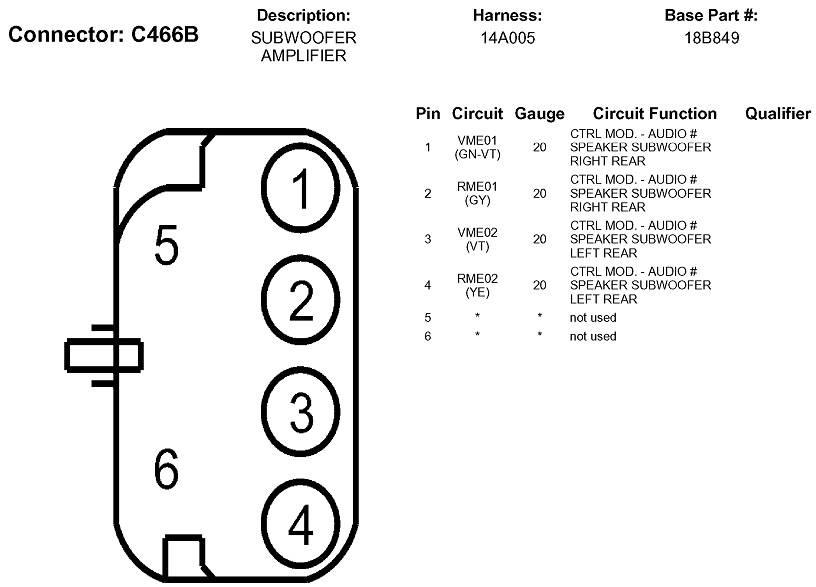

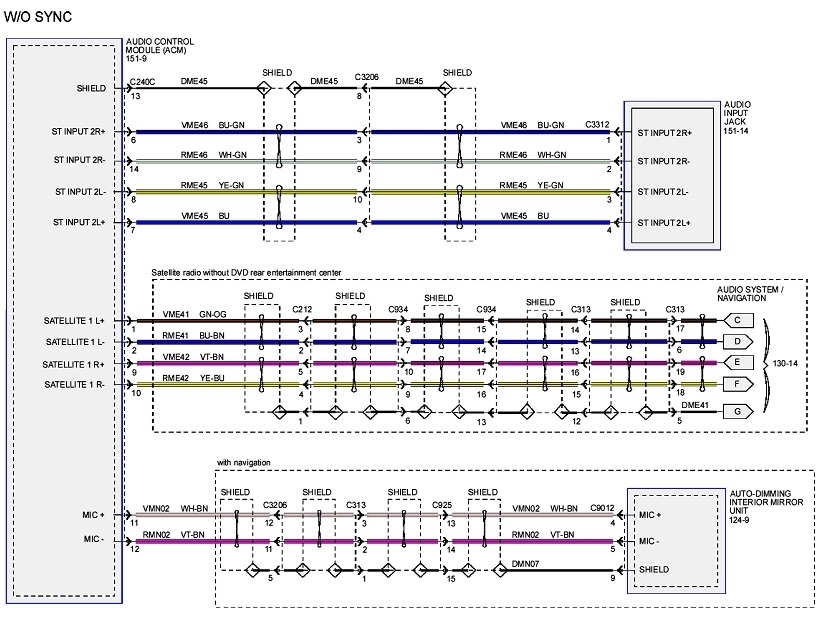

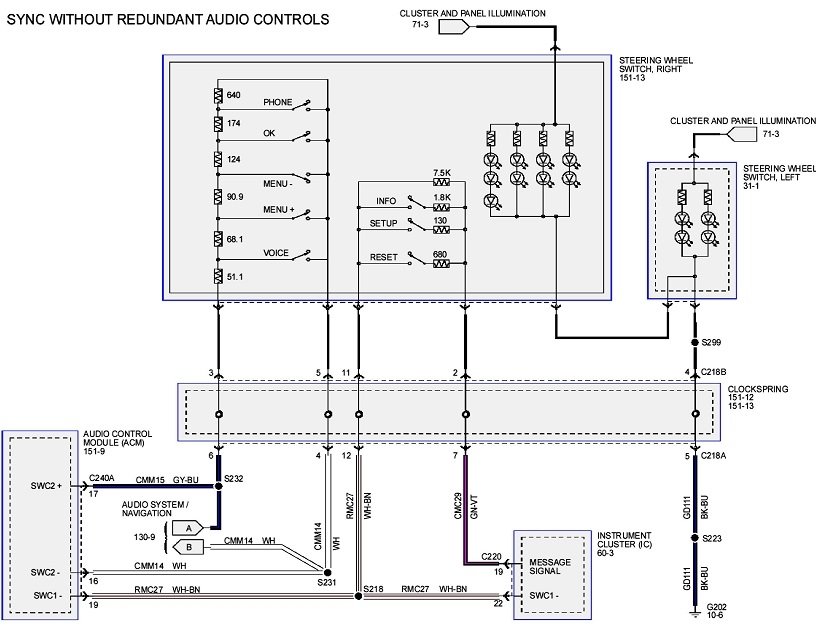

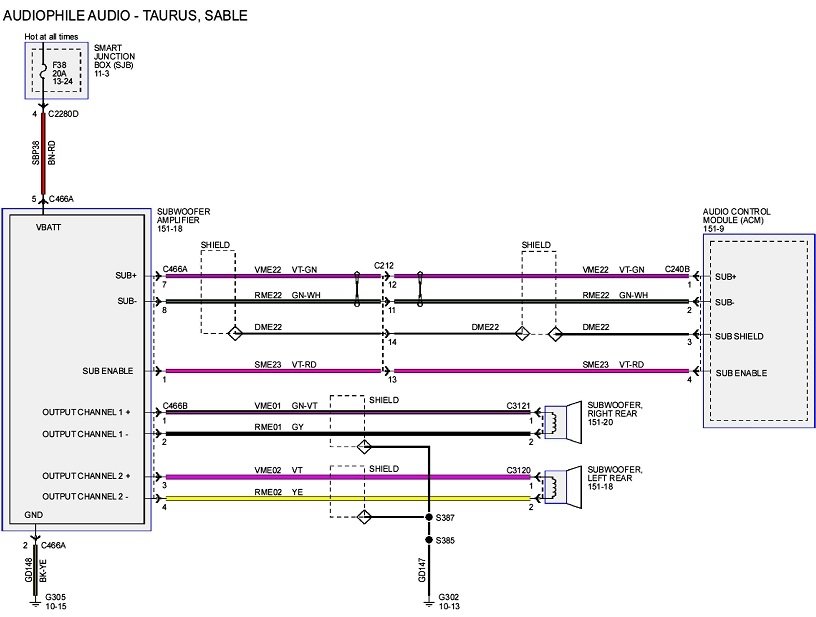

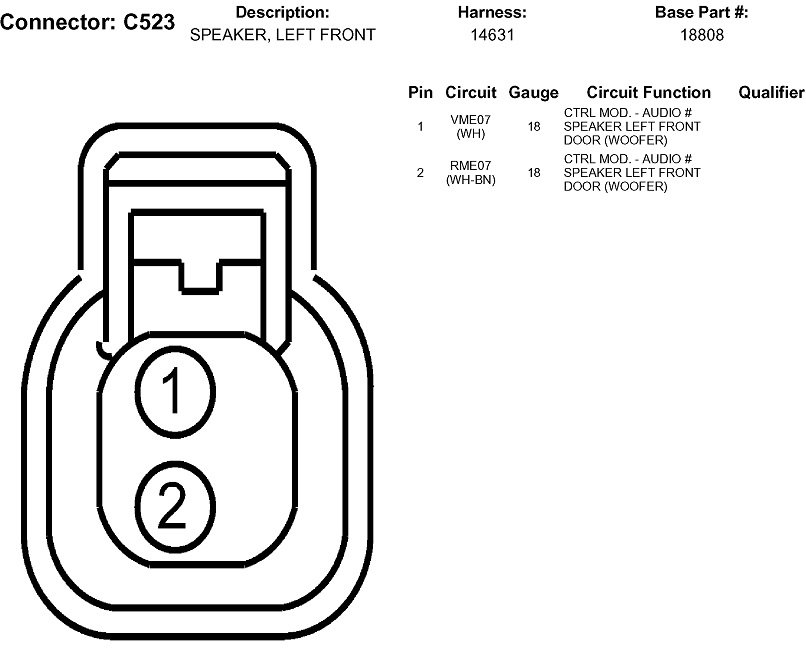

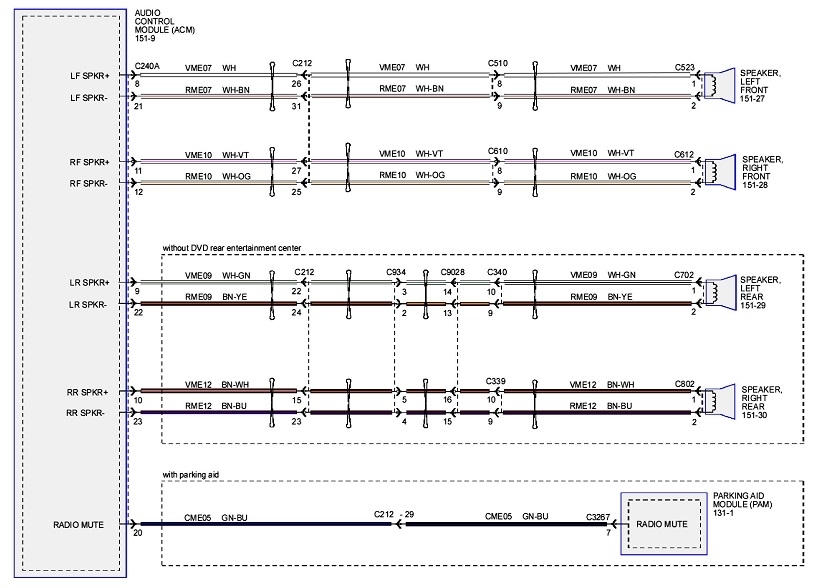

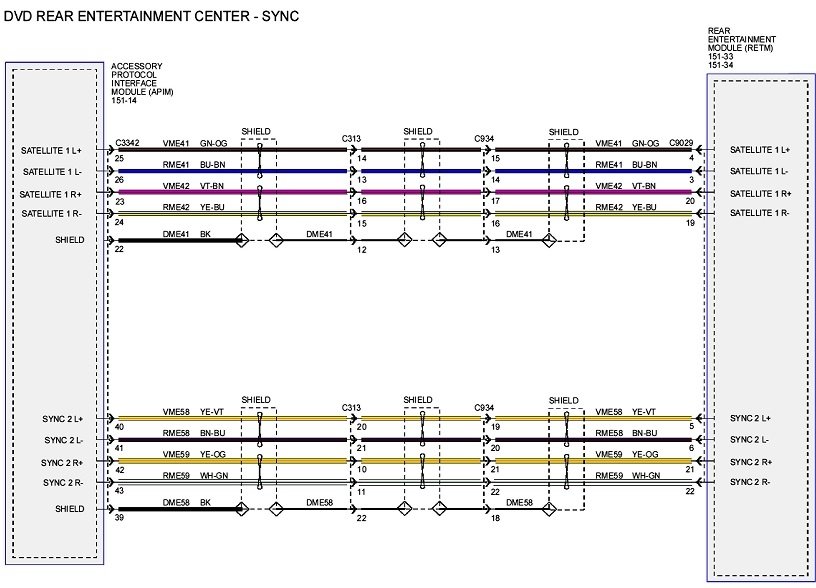

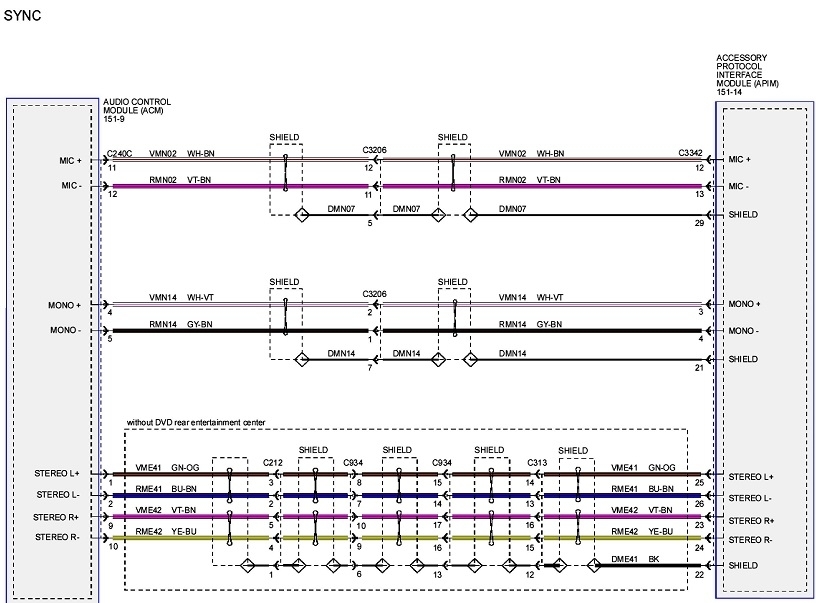

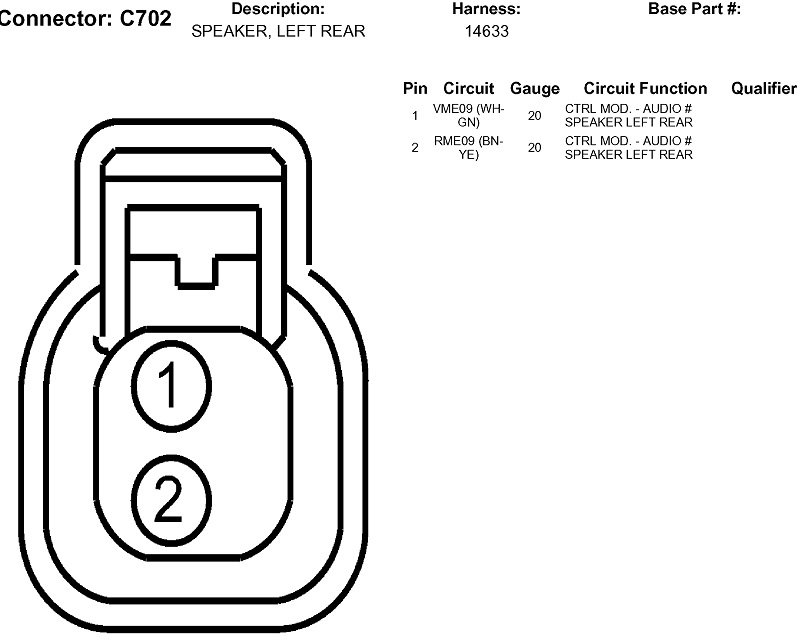

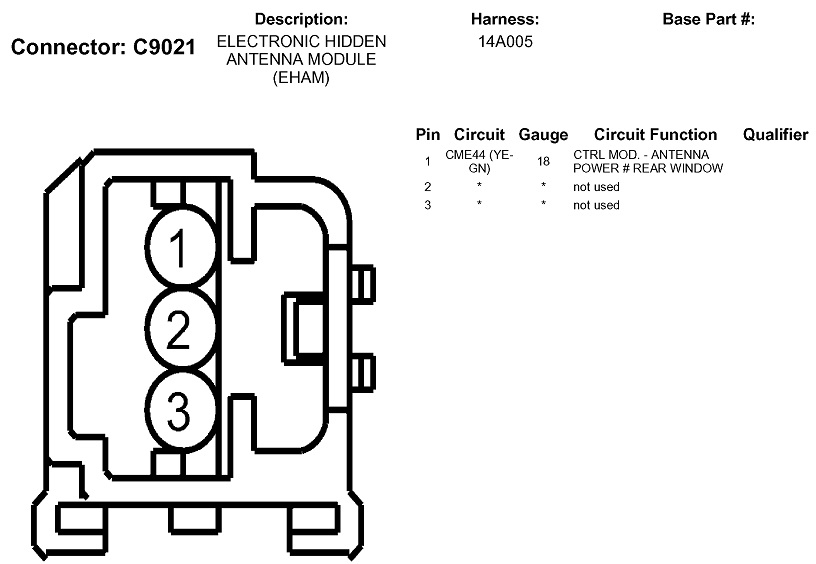

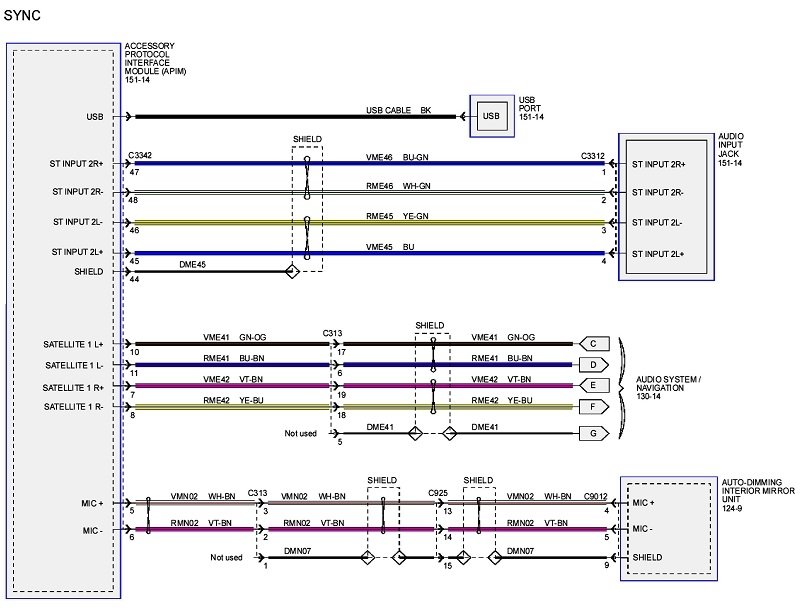

I included the connector views with wire colors. If you find any diagram hard to read, you can copy and paste them into a typing program such as MS Word, then resize them, or I can cut them into smaller pieces and expand them for you.
