Can I get a power steering hose diagram?

2003 CHEVROLET EXPRESS
15,000 MILES • 6.0L • V8 • 2WD • AUTOMATIC
Avatar
DIGIOVANNI
  • MEMBER
  • 1 POST
Don’t know where hoses go? Power steering hose diagram?
Nov 17, 2022 at 9:33 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic

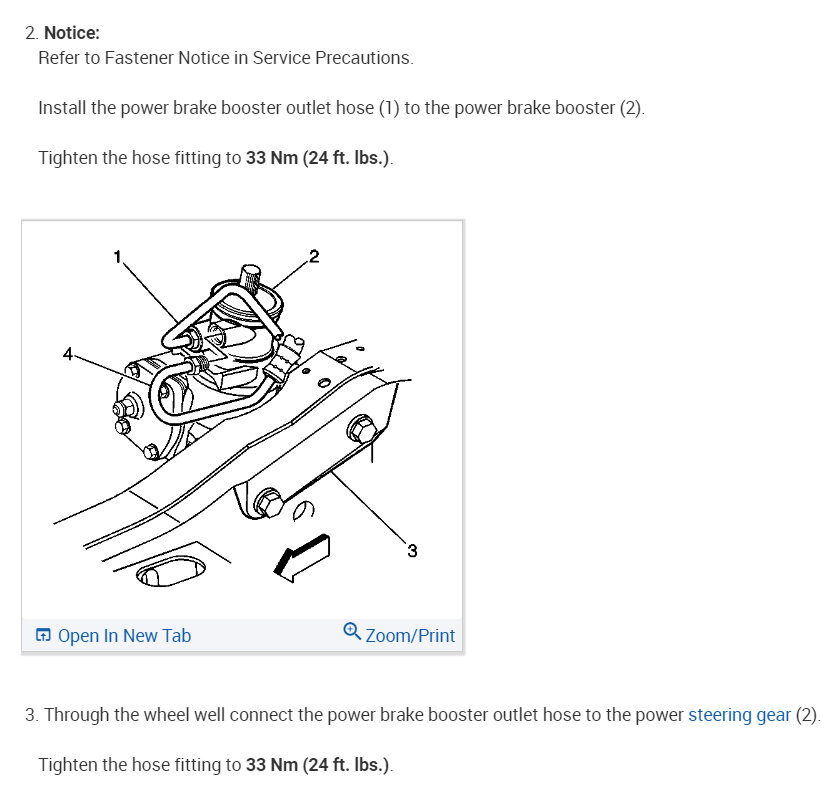

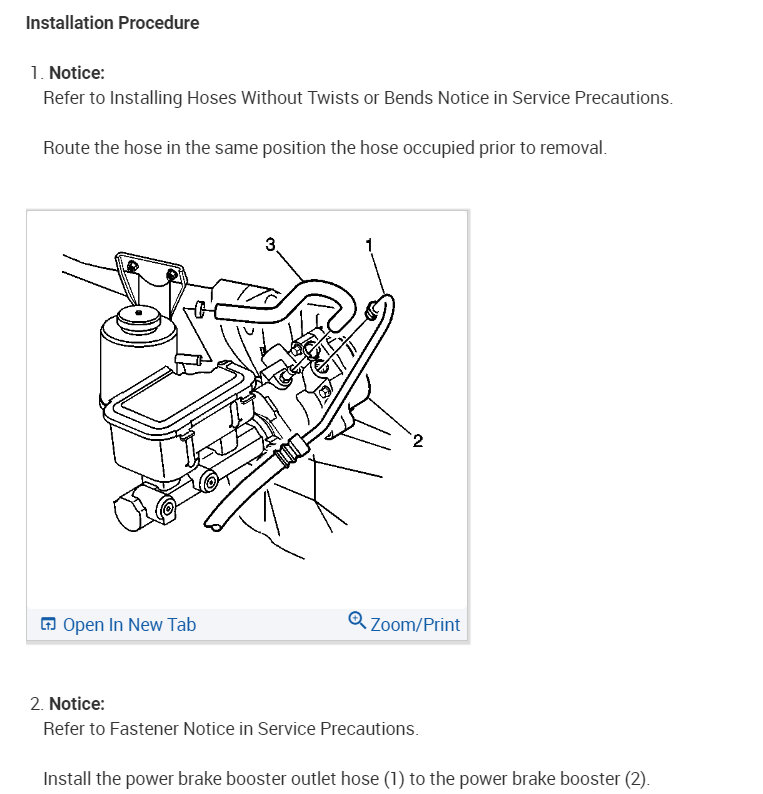

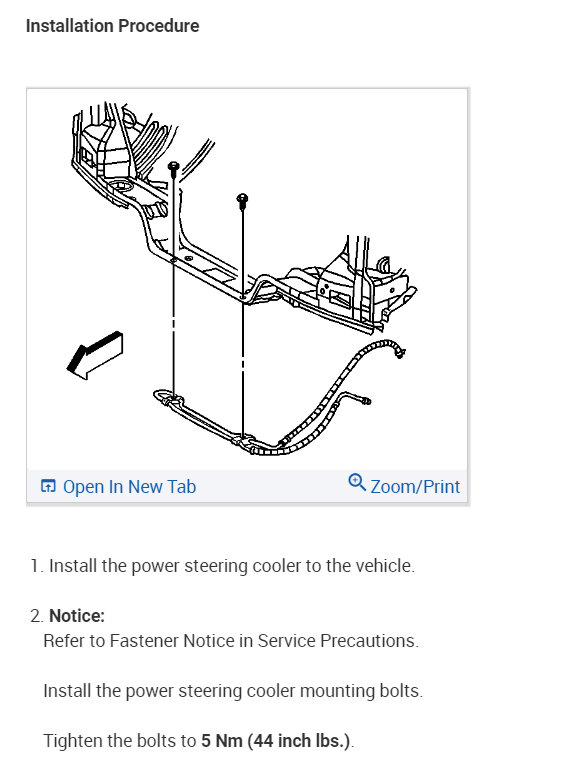

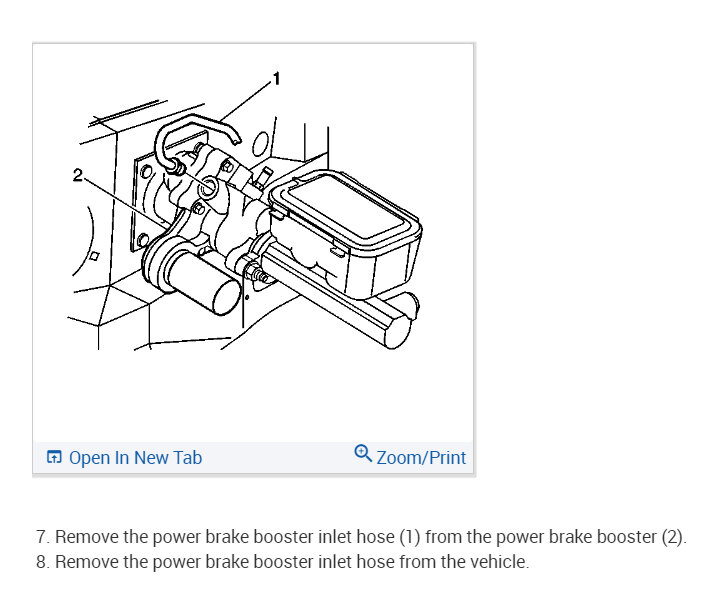

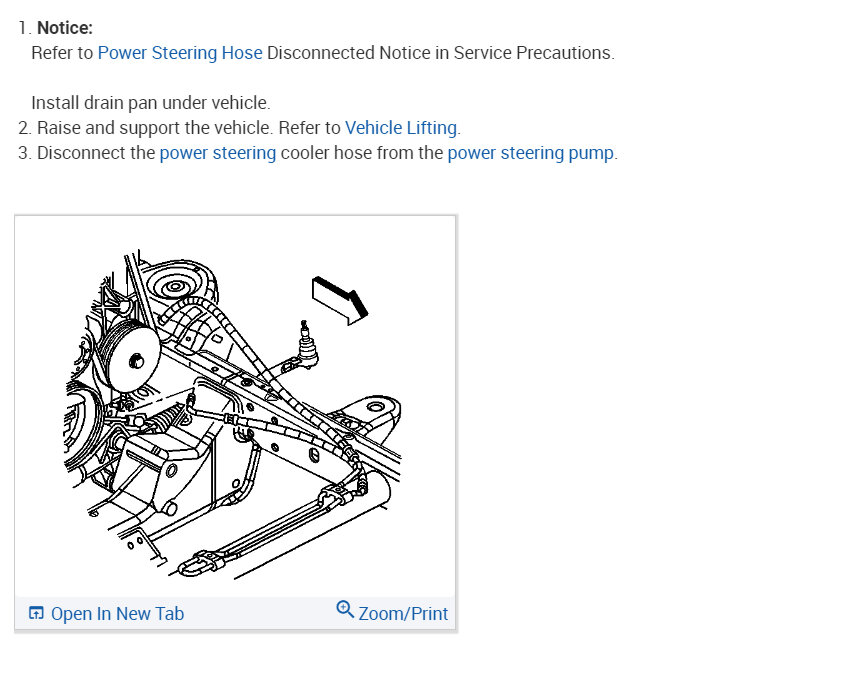

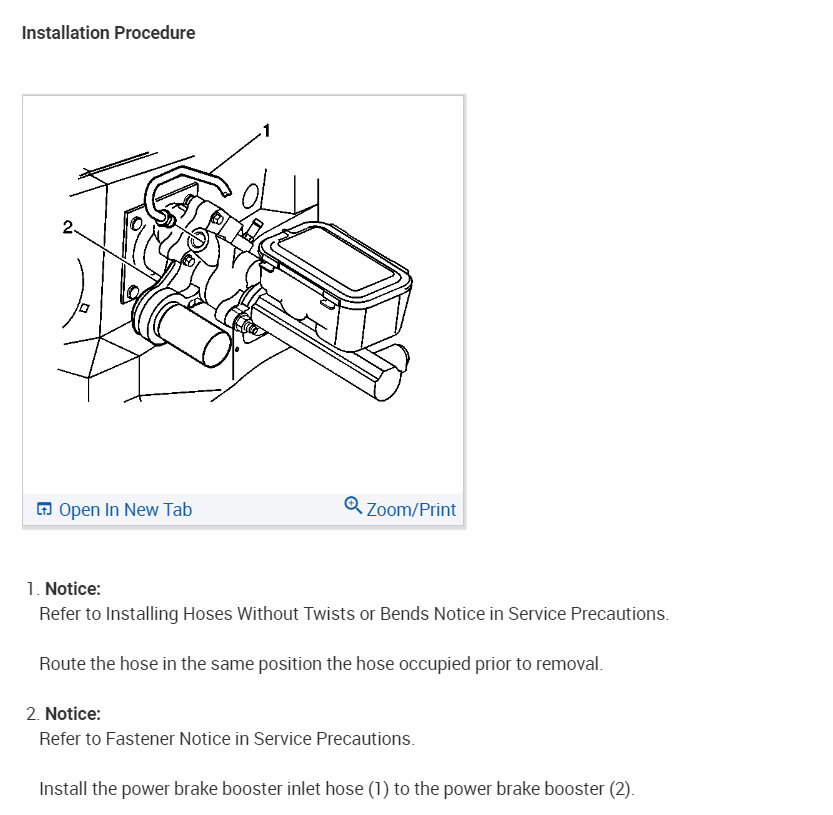

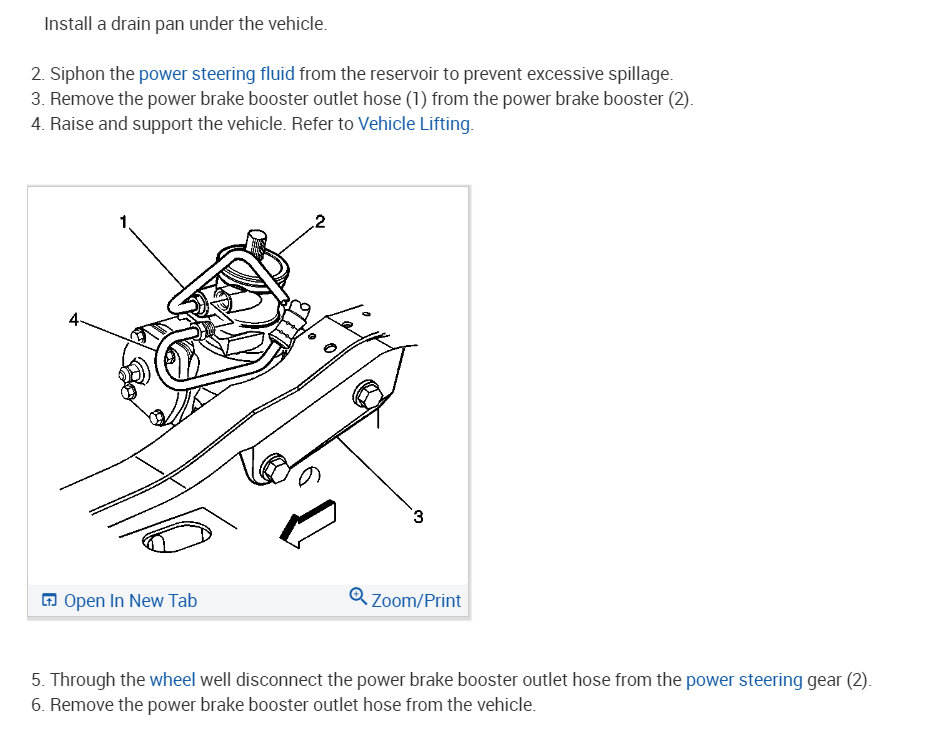

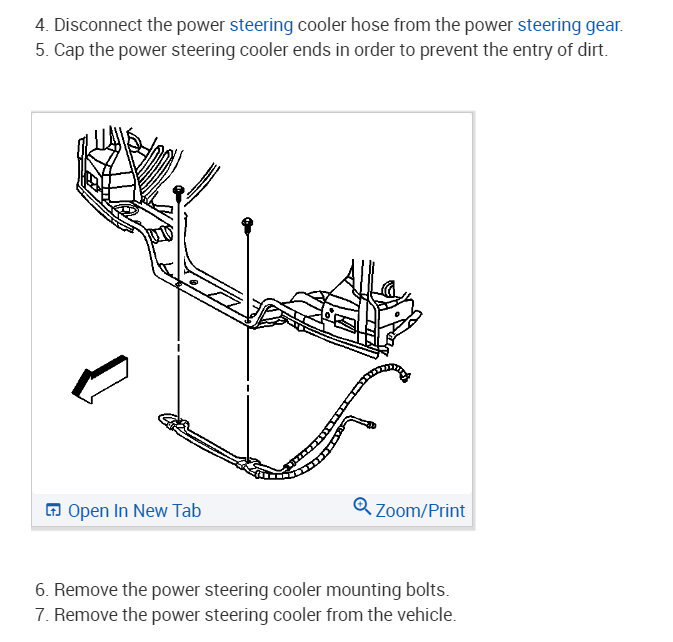

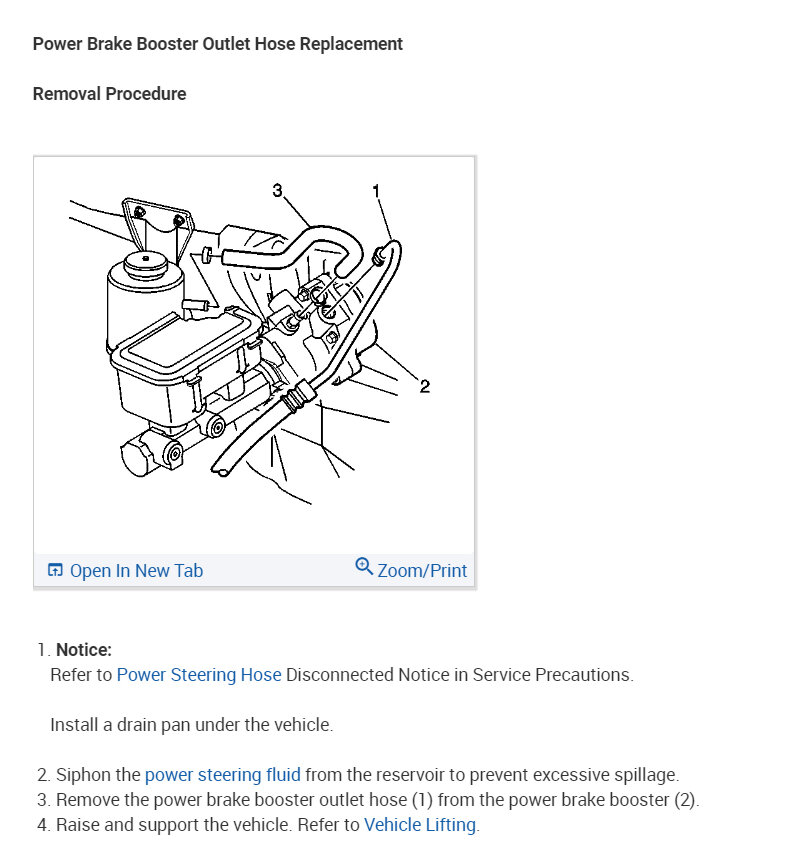

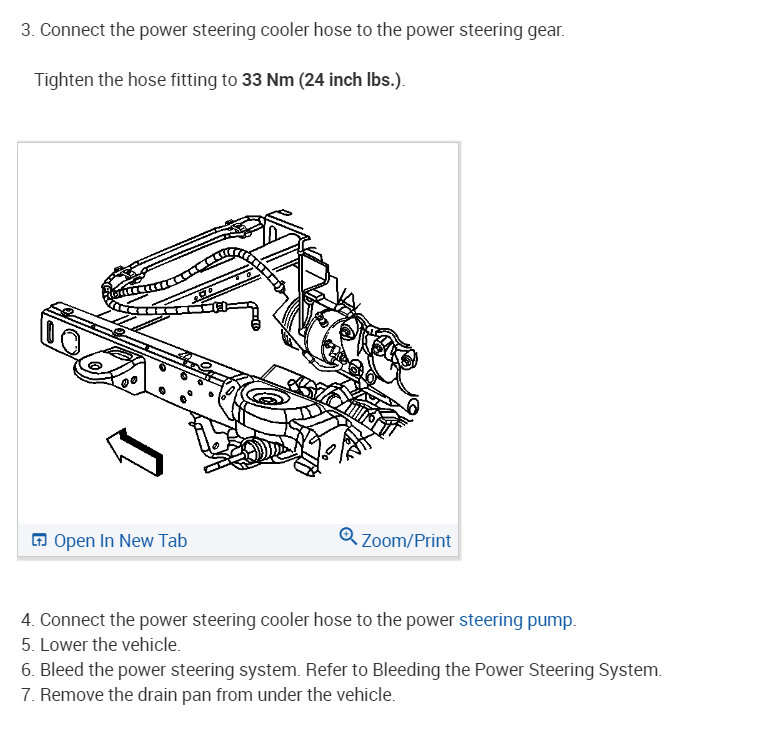

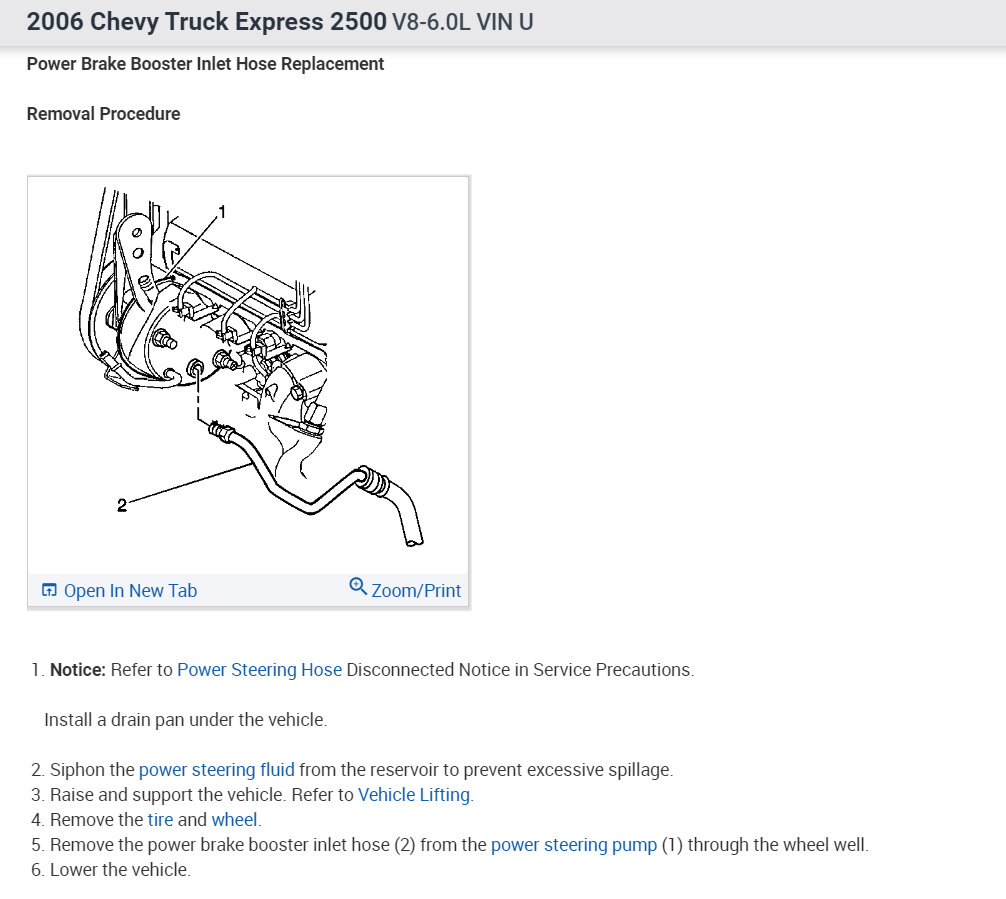

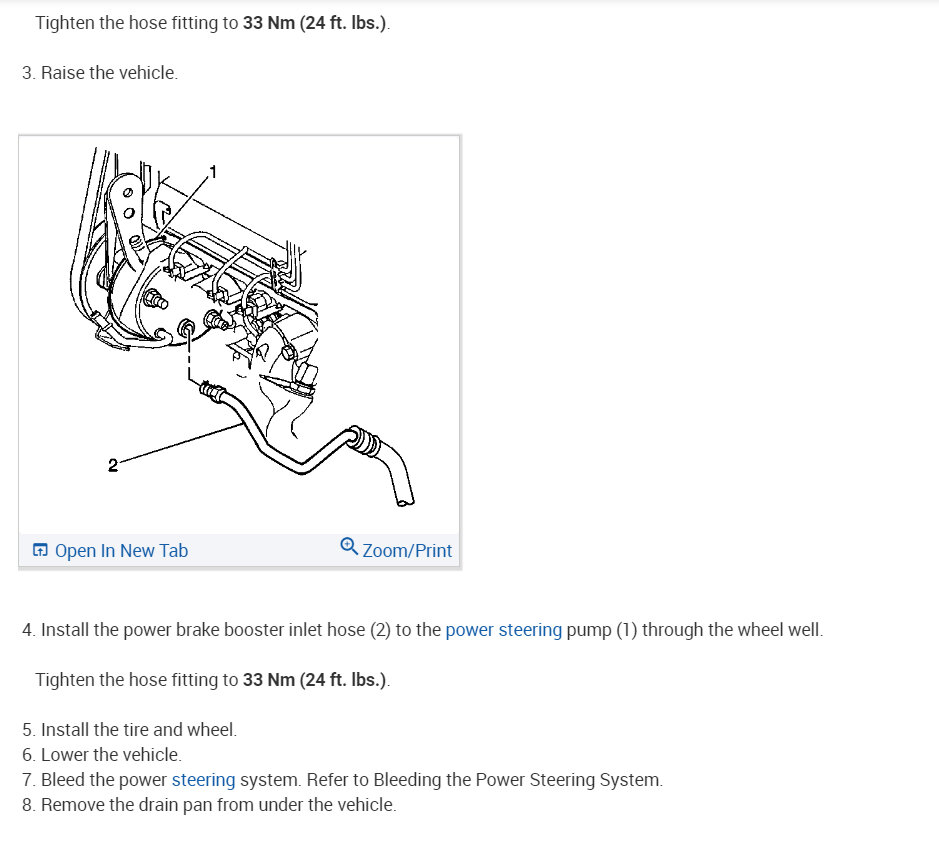

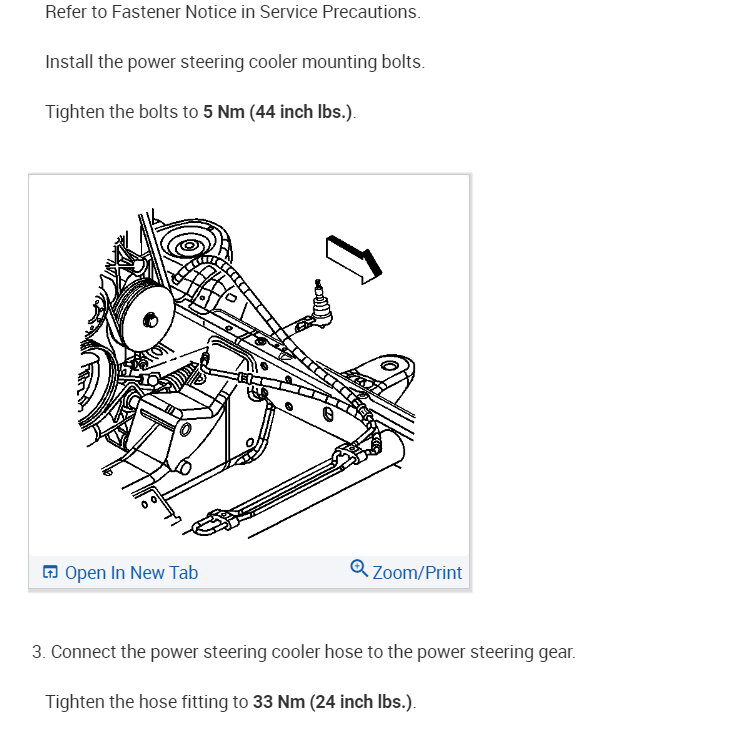

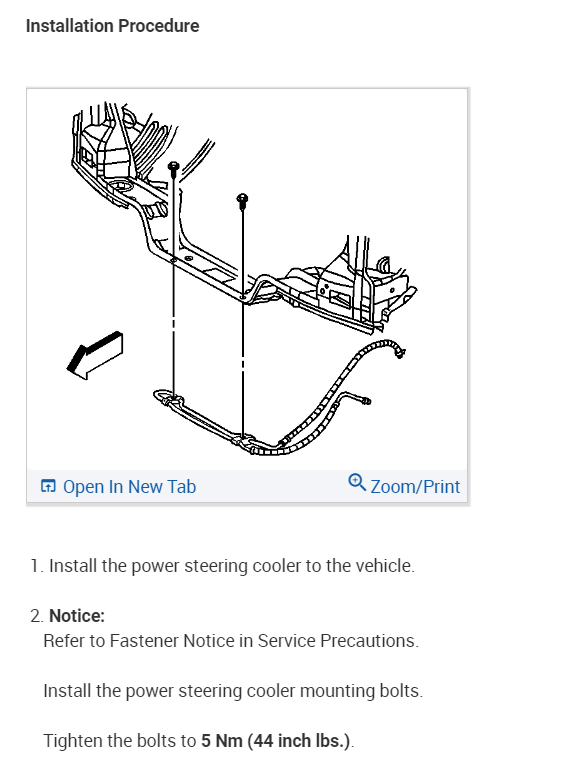

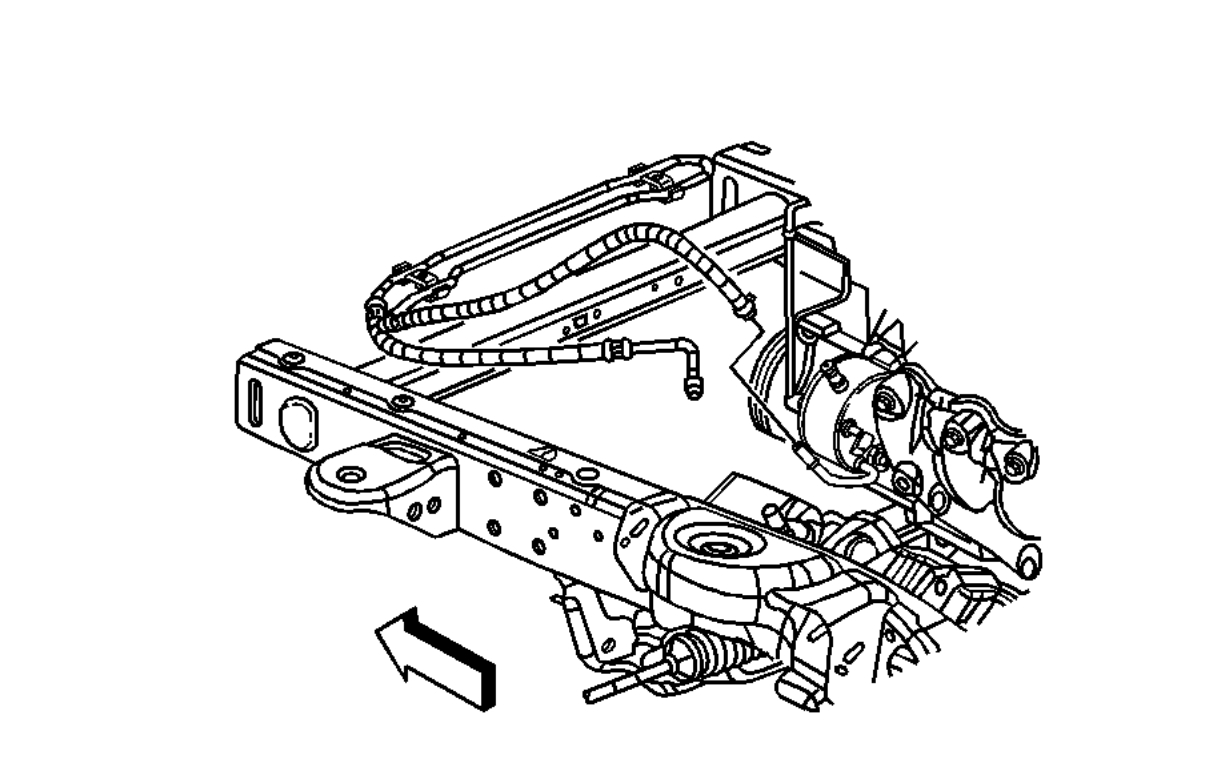

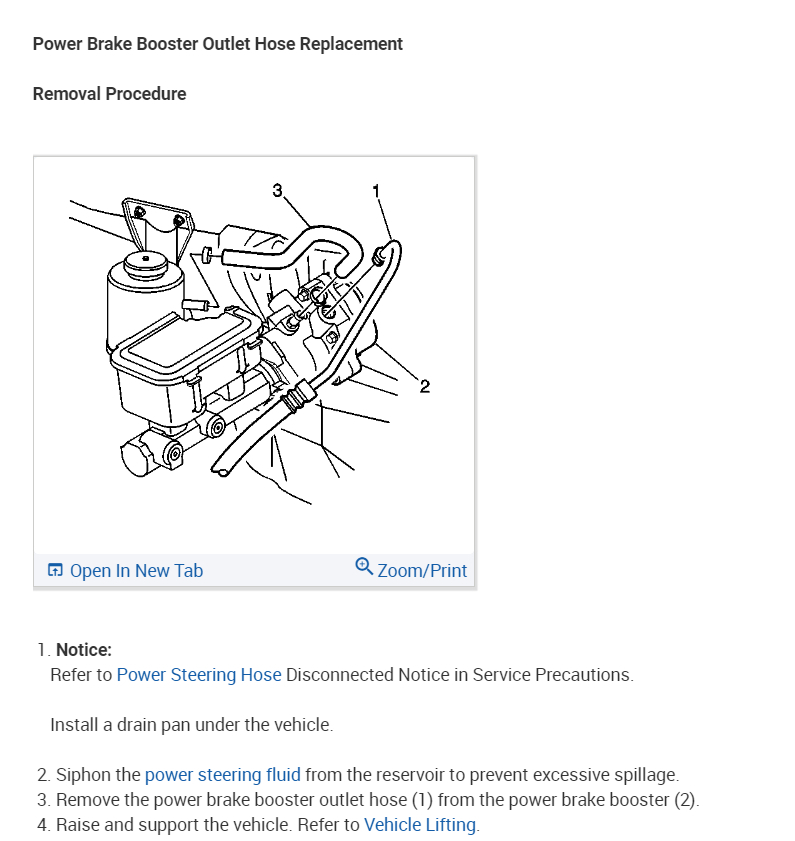

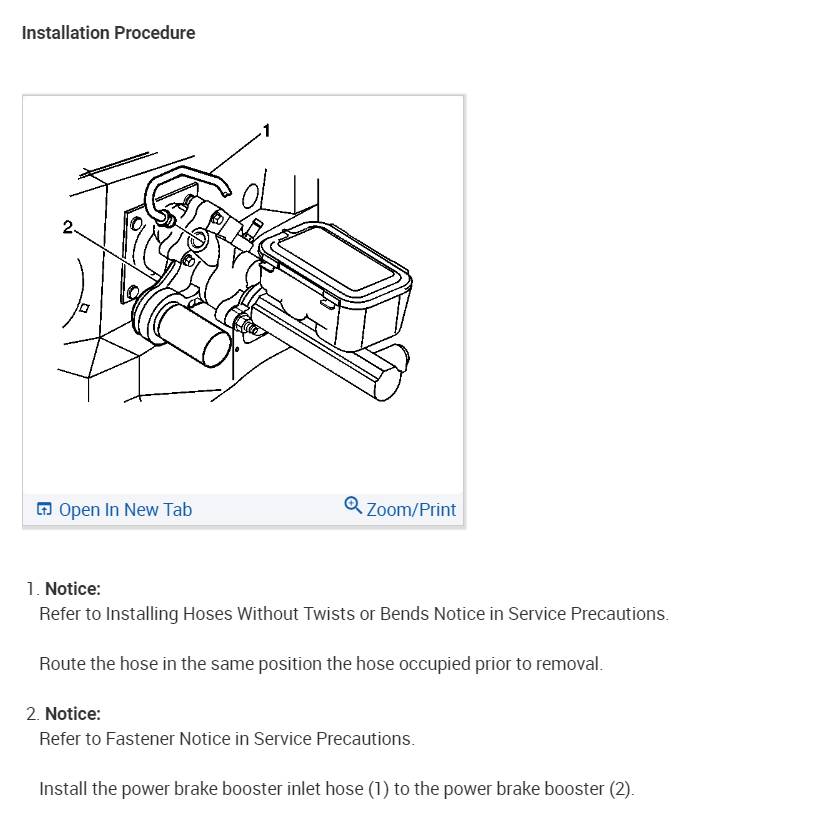

I have found the diagrams of how the power steering hoses are replaced which I have included in the images below. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
