Looking for a fuse box map diagram?

Tiny
CHELL1002
  • MEMBER
  • 2000 PLYMOUTH VOYAGER
I am looking for a fuse box map diagram for my 2000 voyager. Need for under dash as well as one in engine compartment. The covers are missing so I dont have the diagram. I also don't have the owners manual. I purchased a haynes book, but its not in there either.
SPONSORED LINKS
Thursday, May 21st, 2009 AT 12:37 PM

5 Replies

Tiny
JDL
  • MECHANIC
  • 16,098 POSTS

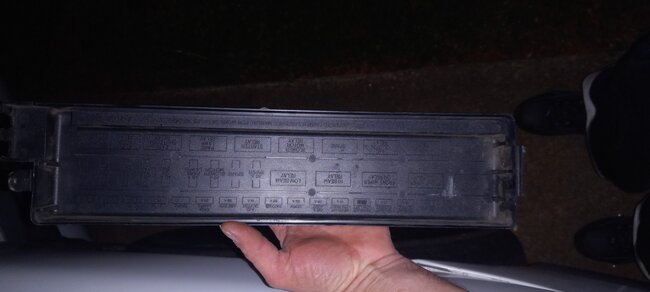

Hello, I came across this, not sure how accurate, you need to double check. I zoomed in trying to make it readable, this guide can help you test the fuses.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

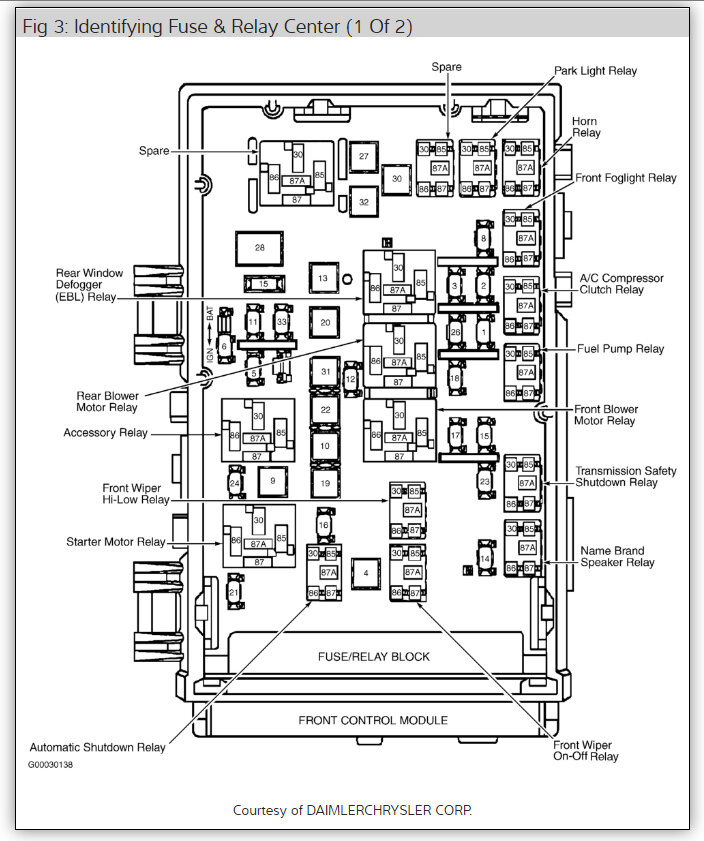

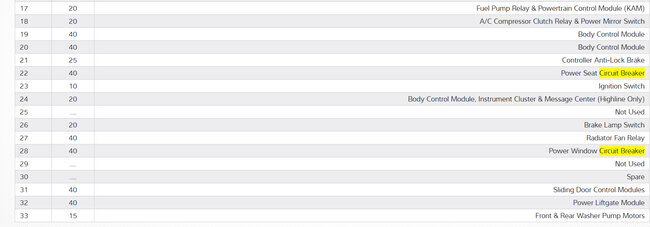

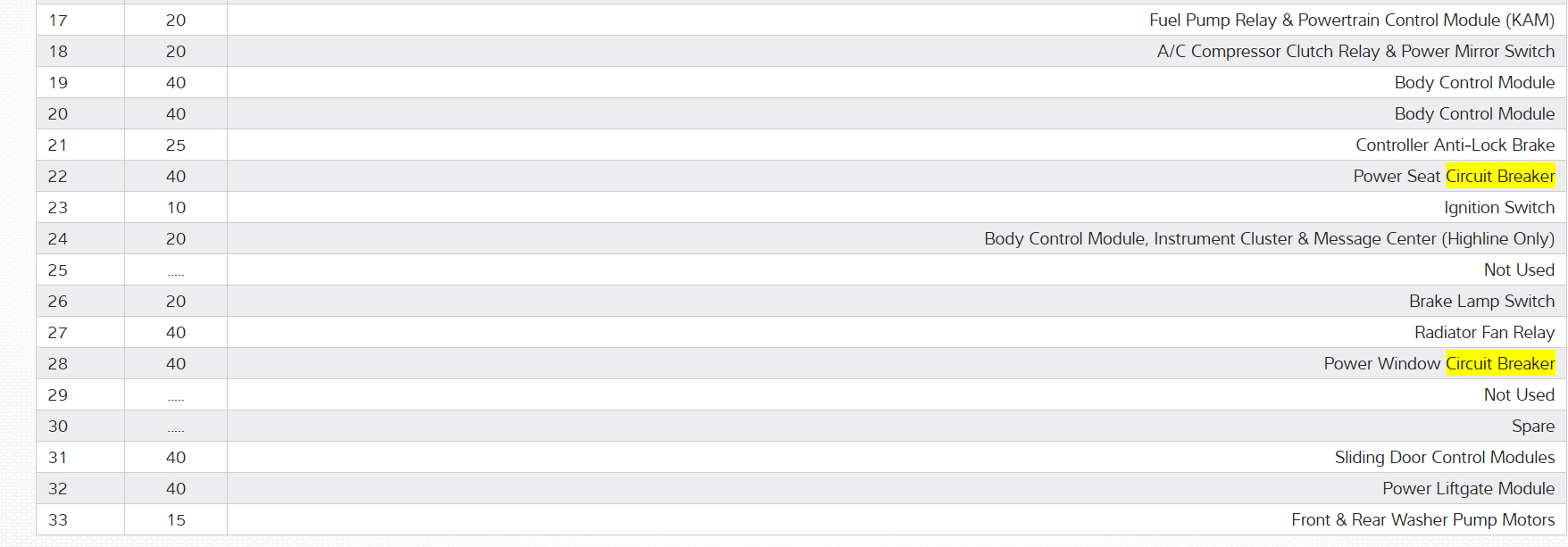

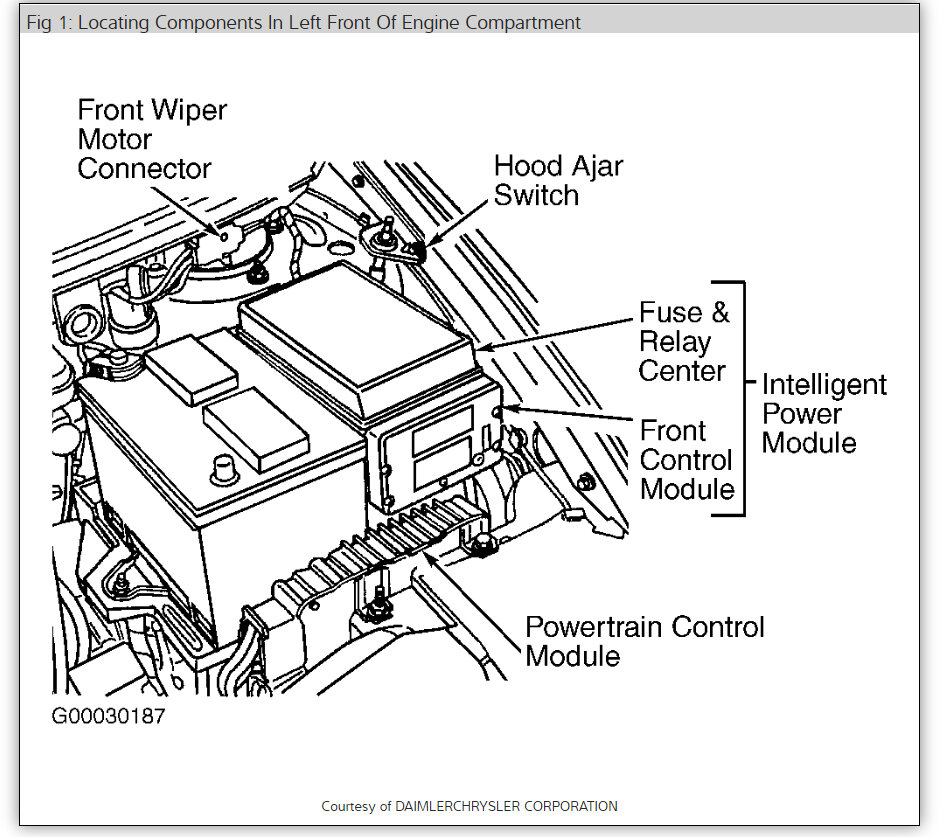

Check out the images (Below). Please let us know what happens.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, May 21st, 2009 AT 12:59 PM
Tiny
CHELL1002
  • MEMBER
  • 2 POSTS

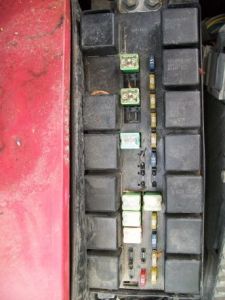

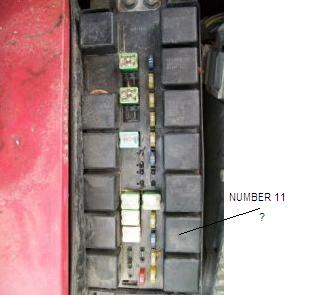

Cant really read it, but it looks to be different then mine. I also need to know what relay 11 is for.


https://www.2carpros.com/forum/automotive_pictures/358913_013_smaller_1.jpg

Was this
answer
helpful?
Yes
No
+1
Thursday, May 21st, 2009 AT 1:14 PM
Tiny
JDL
  • MECHANIC
  • 16,098 POSTS
Sorry, I can't find a label for that picture.


https://www.2carpros.com/forum/automotive_pictures/170934_power_distribution_center_1.jpg

Was this
answer
helpful?
Yes
No
Thursday, May 21st, 2009 AT 3:12 PM
Tiny
TWEET69
  • MEMBER
  • 1 POST

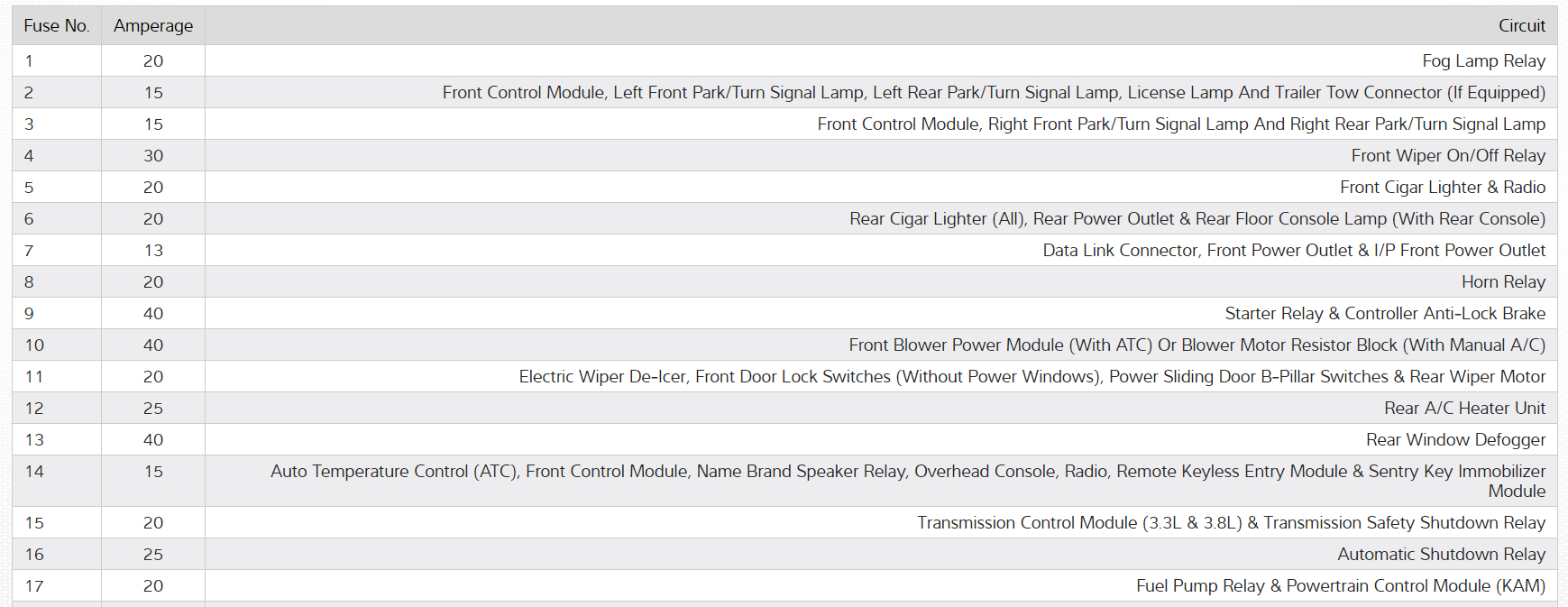

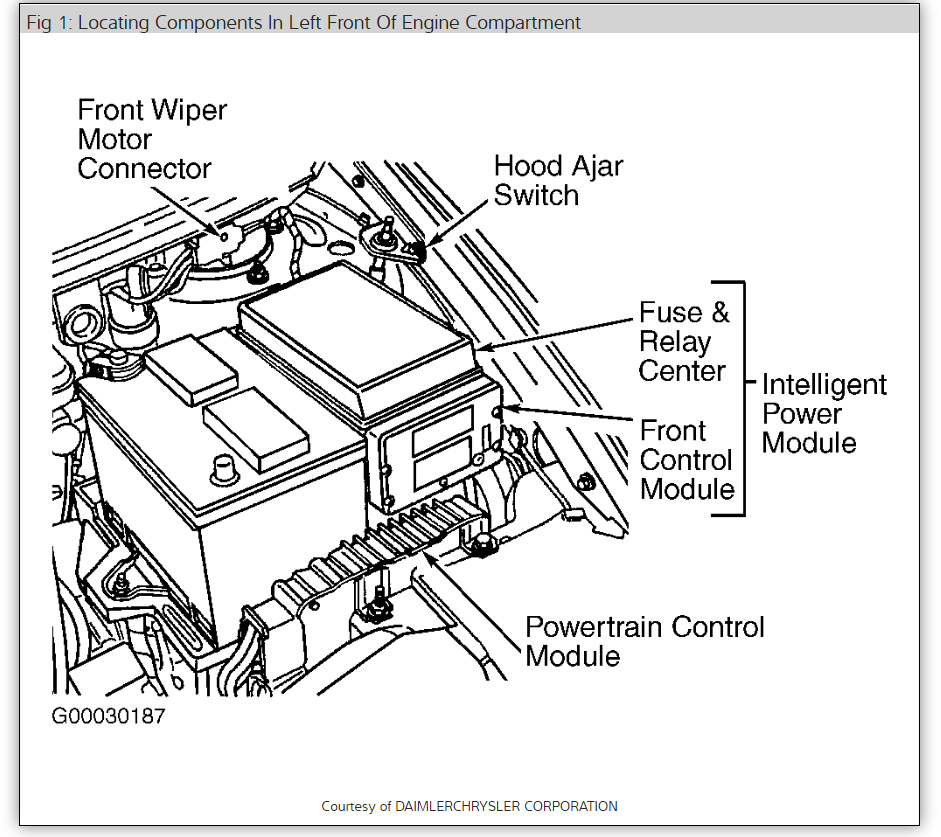

Hope this helps.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Wednesday, April 5th, 2023 AT 10:48 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
Excellent addition to this thread! Please feel free to use 2CarPros anytime!
