Vacuum hose diagrams please

Tiny
NASHGIBILL1
  • MEMBER
  • 1996 PLYMOUTH VOYAGER
  • 4 CYL
  • FWD
  • AUTOMATIC
  • 129,000 MILES
A vacuum hose is unattached. It is causing the engine to die when it is idling. Where does the hose attach?
Thursday, September 17th, 2009 AT 7:40 PM

7 Replies

Tiny
BMRFIXIT
  • MECHANIC
  • 19,053 POSTS

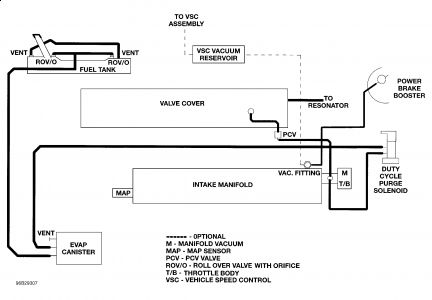

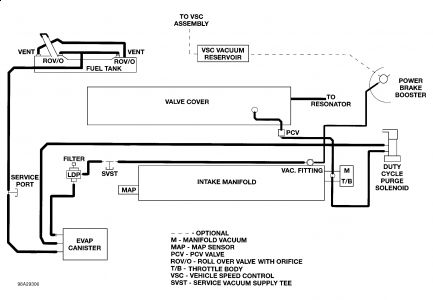

https://www.2carpros.com/forum/automotive_pictures/99387_Graphic1_508.jpg



https://www.2carpros.com/forum/automotive_pictures/99387_Graphic2_247.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, September 17th, 2009 AT 7:59 PM
Tiny
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
  • 1995 PLYMOUTH VOYAGER
  • 172,000 MILES
I need a diagram for the vacuum lines om a '95 Plymouth Voyager 4cyl. 2.5 ltr
Was this
answer
helpful?
Yes
No
-1
Monday, November 30th, 2020 AT 5:03 PM (Merged)
Tiny
CARADIODOC
  • MECHANIC
  • 33,916 POSTS
Look for an emissions sticker under the hood first. That will have the correct one for your application. If it's missing, your best bet is get a copy of the manufacturer's service manual through the dealer.

I can try to handle a few of the specific items. I have a '95 Grand Caravan, but it has a 3.3L engine.
Was this
answer
helpful?
Yes
No
Monday, November 30th, 2020 AT 5:03 PM (Merged)
Tiny
BOATTRASH1959
  • MEMBER
  • 1 POST
  • 1994 PLYMOUTH VOYAGER
Our vacuum hoses have dry rotted and fallen apart. I need a diagram so I can replace them.
Was this
answer
helpful?
Yes
No
Monday, November 30th, 2020 AT 5:03 PM (Merged)
Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS

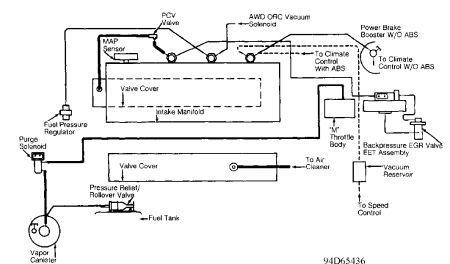

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.


https://www.2carpros.com/forum/automotive_pictures/62217_33_3.jpg

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+1
Monday, November 30th, 2020 AT 5:03 PM (Merged)
Tiny
SHANTORN
  • MEMBER
  • 1 POST
  • 1990 PLYMOUTH VOYAGER
  • 268,000 MILES
While replacing my valve cover gasket several vacuum lines broke and or fell appart and I am looking for a picture of where each line hooks back up. I have a cluster of 4 lines that come from the passenger side of the van and they all need replaced. Any guidance would be great as the local Dodge dealer told me that they have no pictures or diagrams to help me.
Thank you for your time,
Shane
Was this
answer
helpful?
Yes
No
Monday, November 30th, 2020 AT 5:04 PM (Merged)
Tiny
SEANGRANT00
  • MECHANIC
  • 334 POSTS

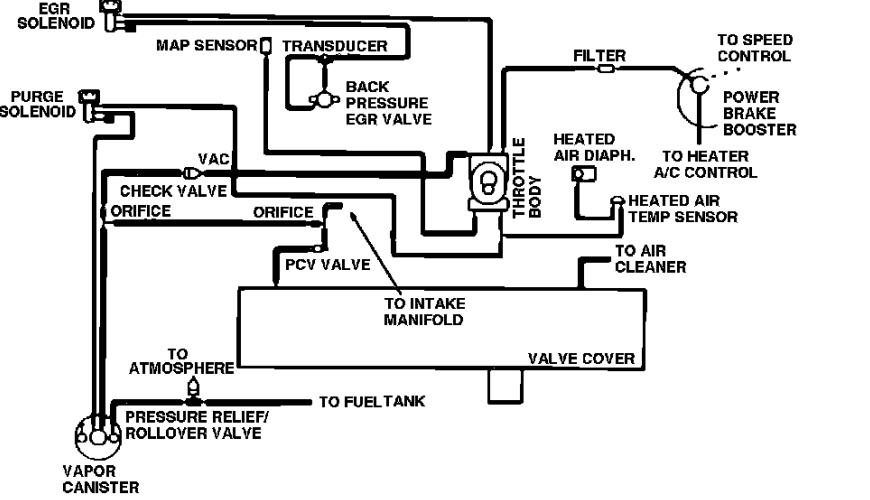

Here is the correct one. Let me know if you need anything else.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Monday, November 30th, 2020 AT 5:04 PM (Merged)
