Air Conditioning problem
1995 Plymouth Voyager 4 cyl Front Wheel Drive Automatic

the van doesnt have any belt diagrams and the ac belt is gone ive purchased a new belt not realy sure how the new one goes on. any advice would be greatly appriciated.
May 26, 2010 at 12:34 PM
Advertisement
Avatar
INTERNETMECHANIC
  • ✓ASE Certified Mechanic
  • 700 POSTS
  • ASE Certified Mechanic

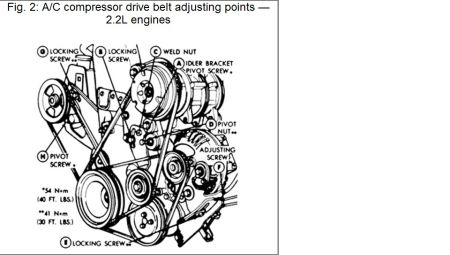

I found this belt routing diagram. Note the engine litre size. If the diagram doesn't match your vehicle, ignore.


https://images.2carpros.com/forum/automotive_pictures/512072_voyager_belt_routing_1.jpg

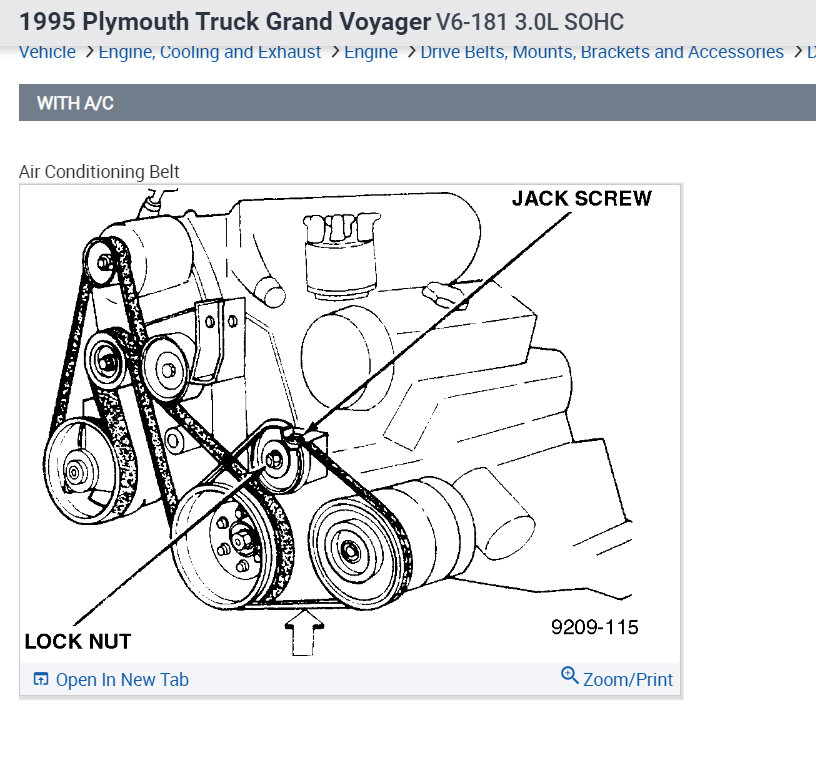

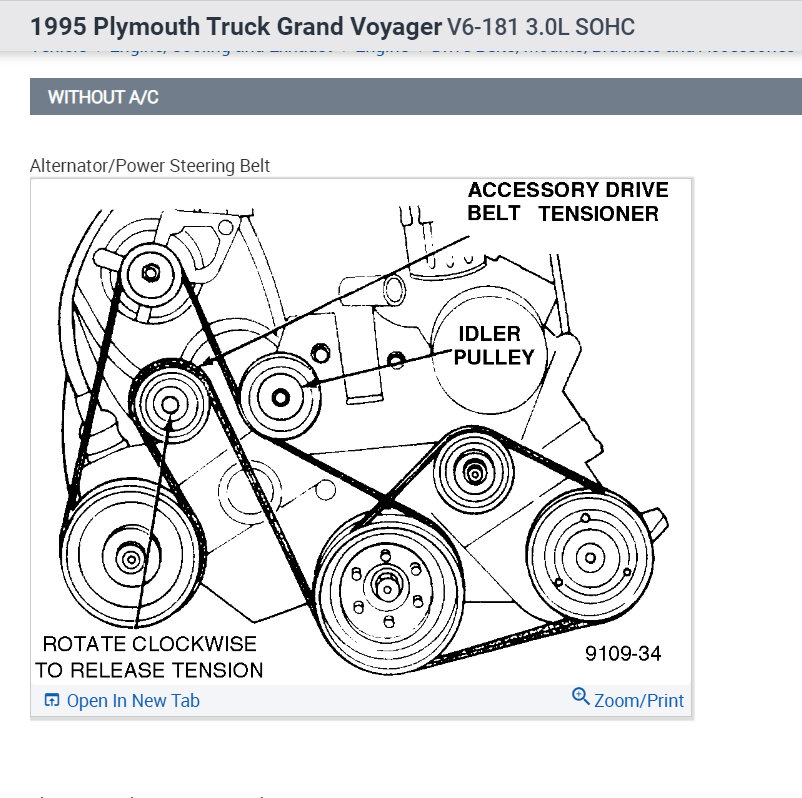

Check the v6 belt diagrams below
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
May 26, 2010 at 12:53 PM
