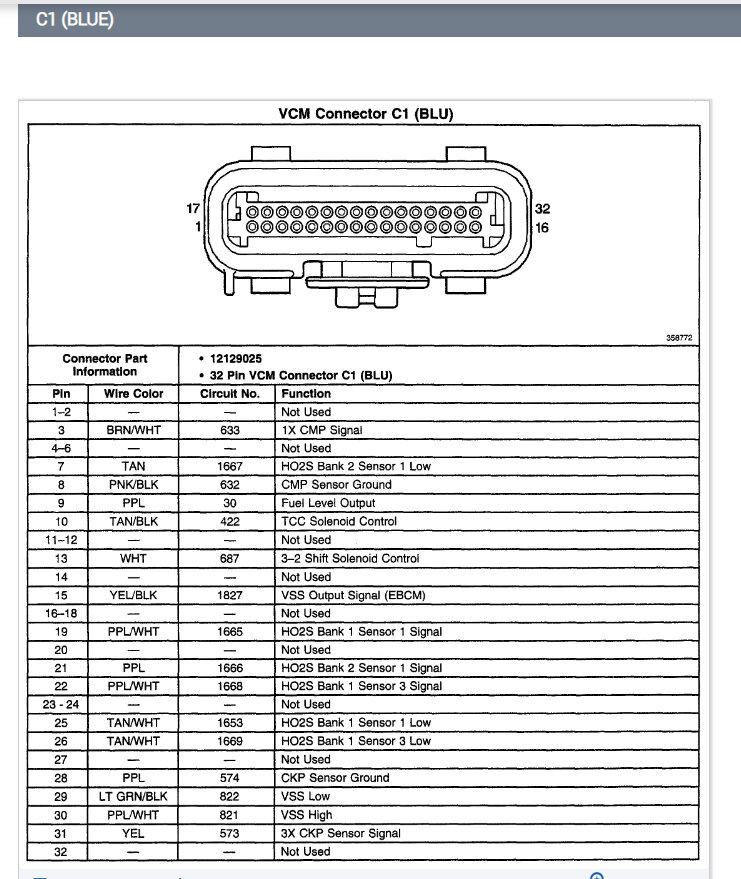

In need of pinouts for PCM connectors C1 blue and C2 black.
Thank you
Thank you
Apr 12, 2023 at 10:00 AM
PCM Pinout needed?
1998 CHEVROLET S-10
RANDOM USER
- MEMBER
- 7 POSTS
Advertisement

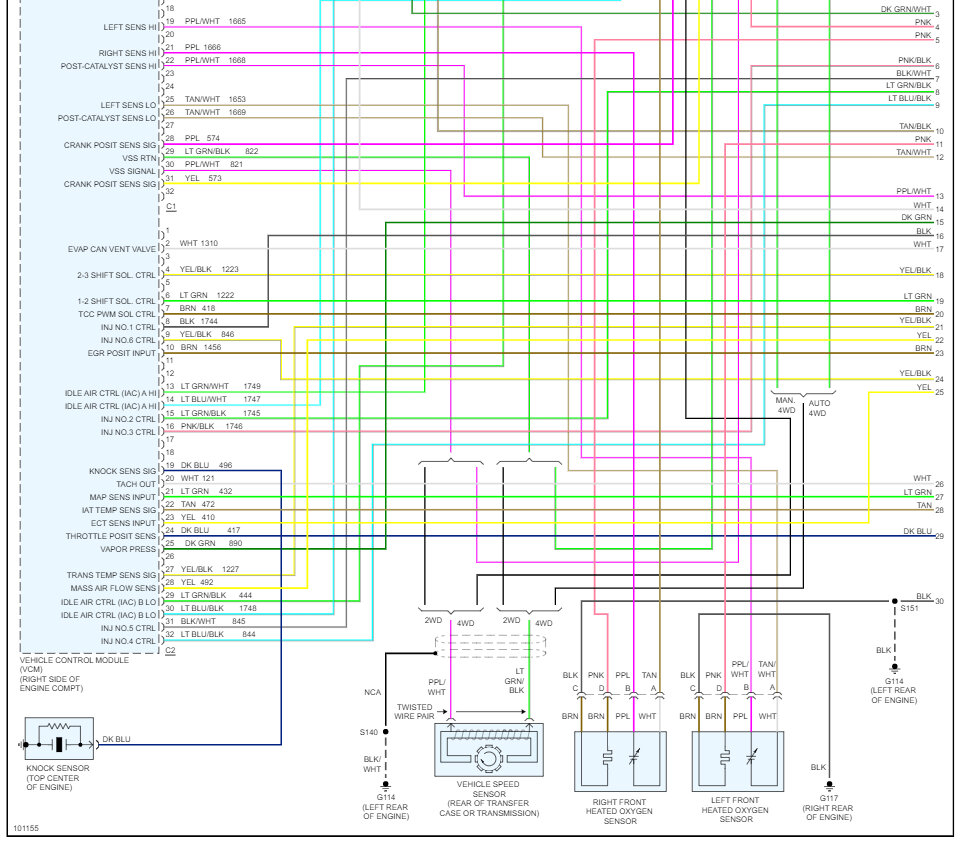

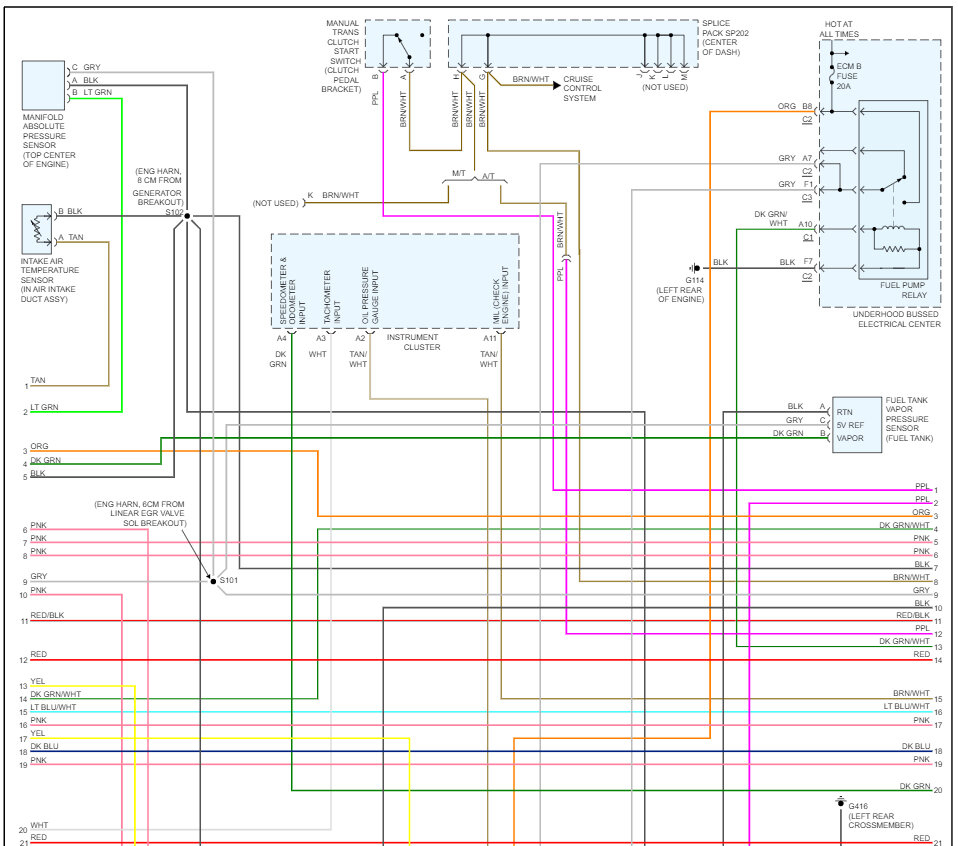

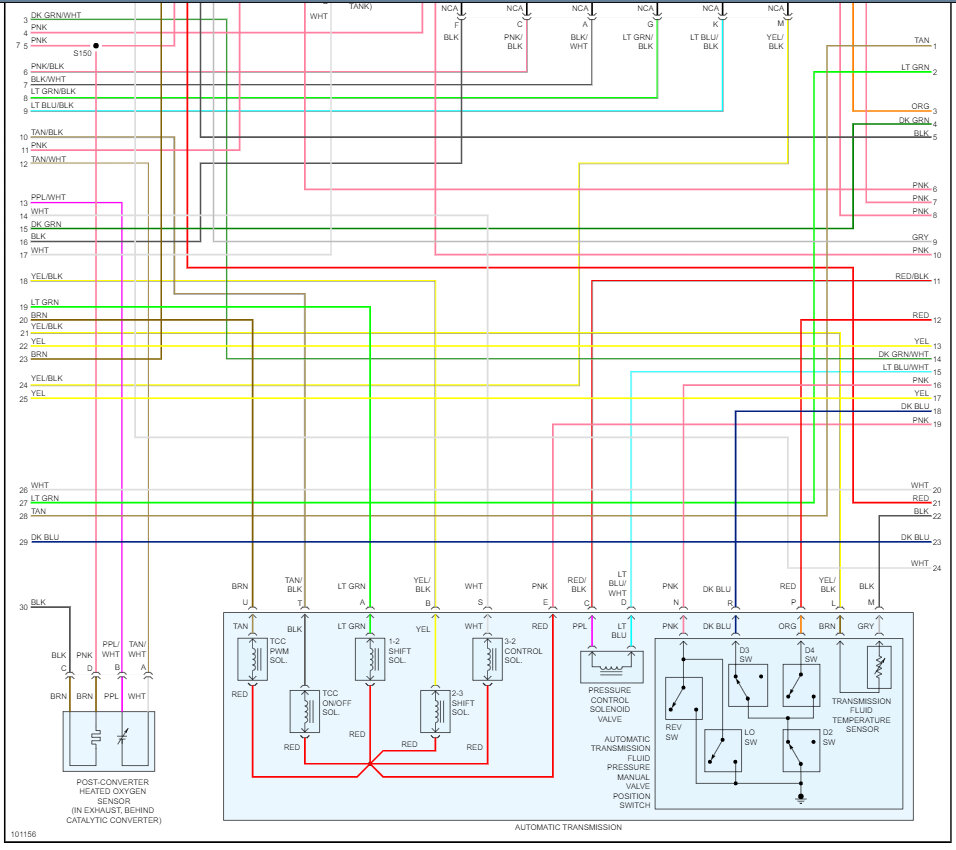

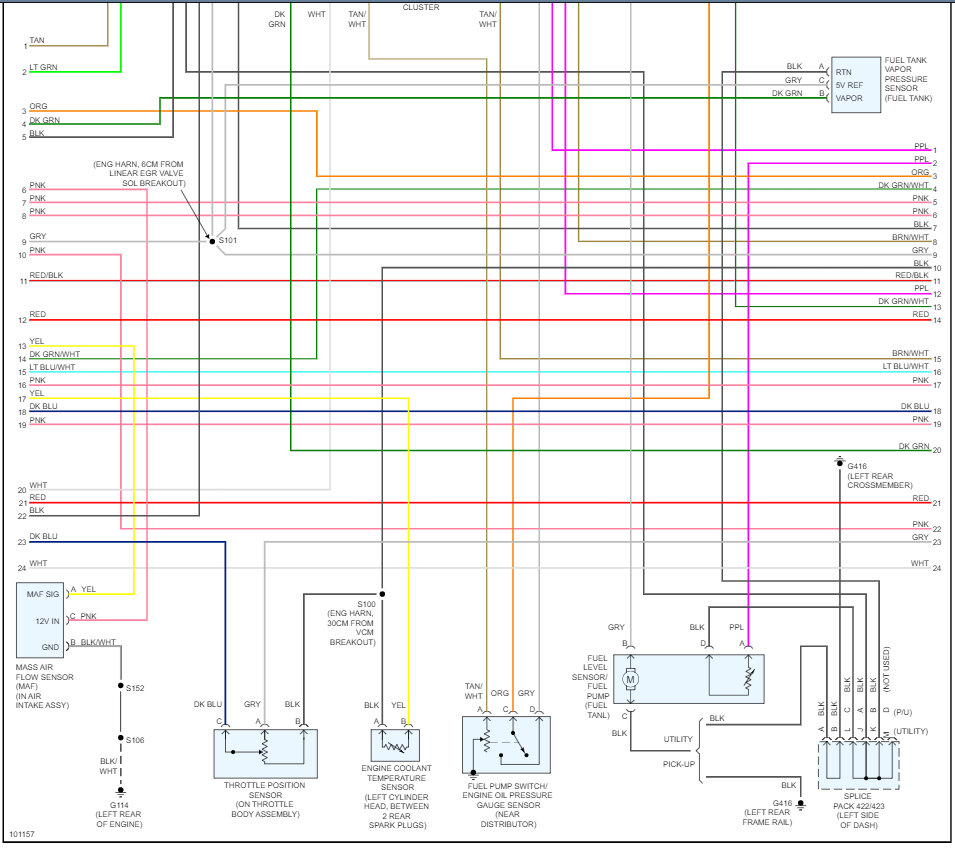

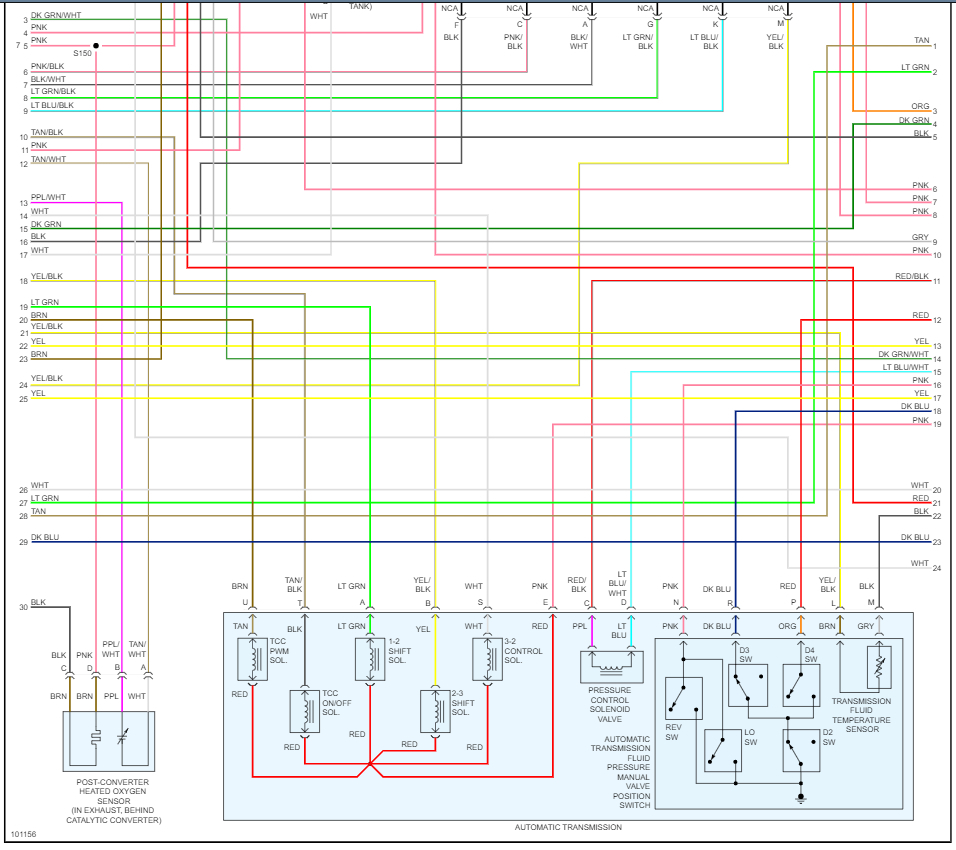

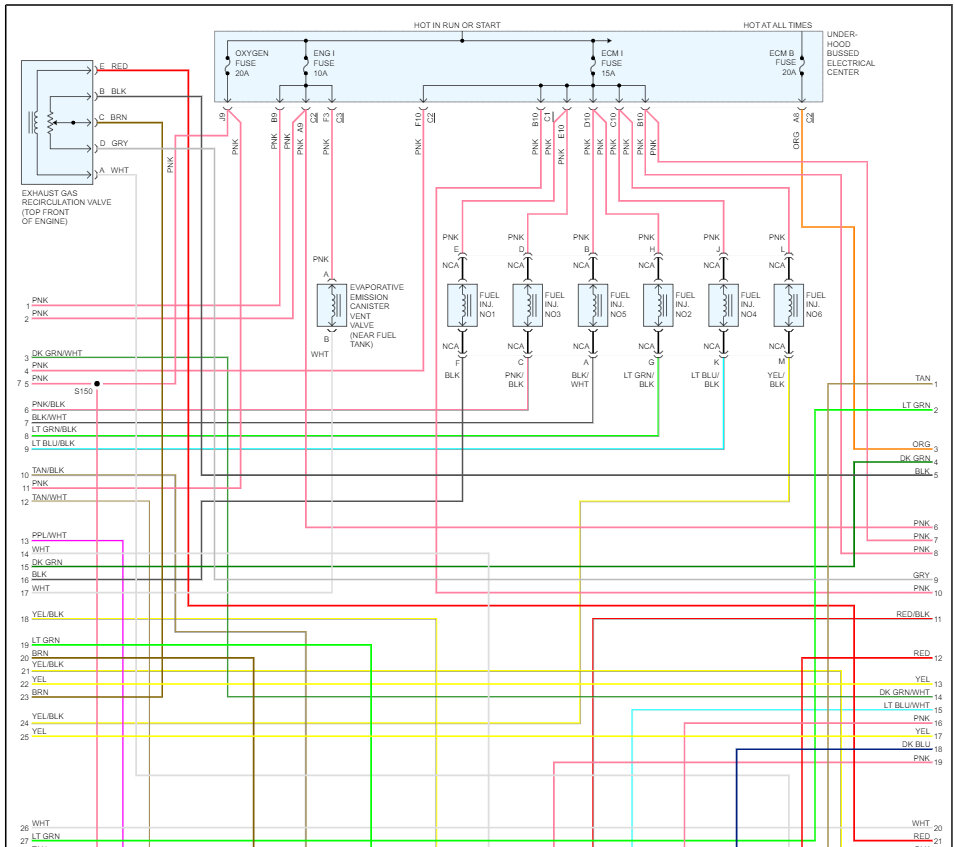

Here are the PCM wiring diagrams and the pinouts for the connectors you have requested. I have also included a guide to help you run some tests on the connections.
https://www.2carpros.com/articles/how-to-check-wiring

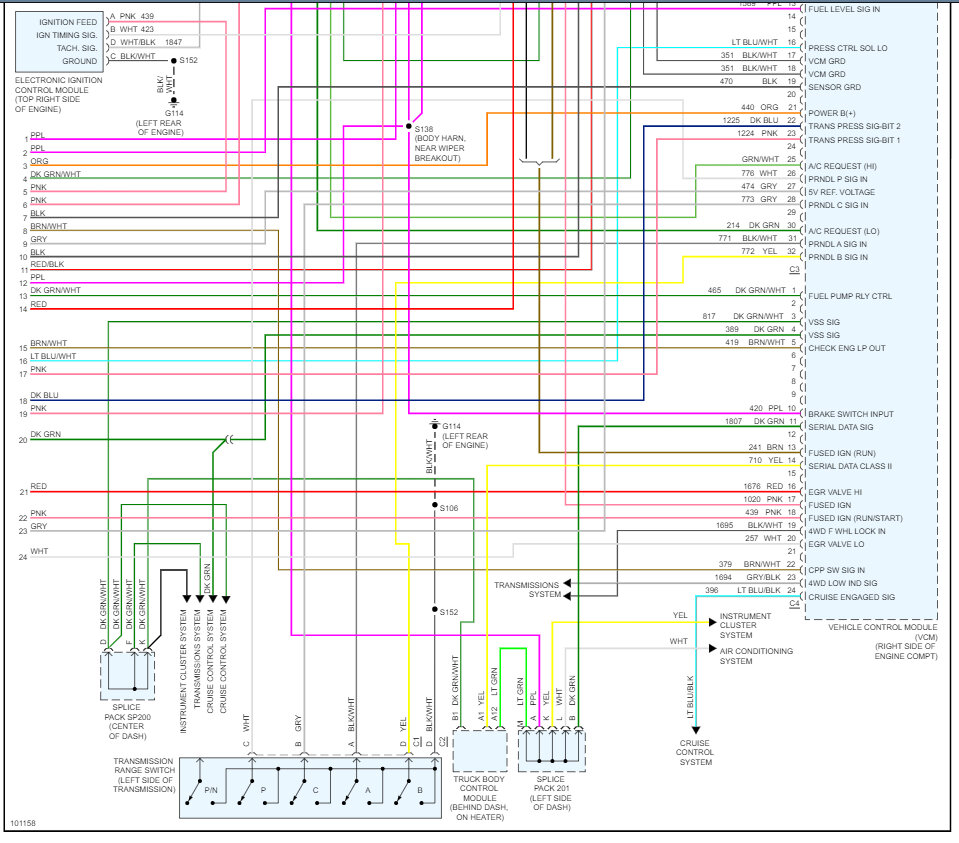

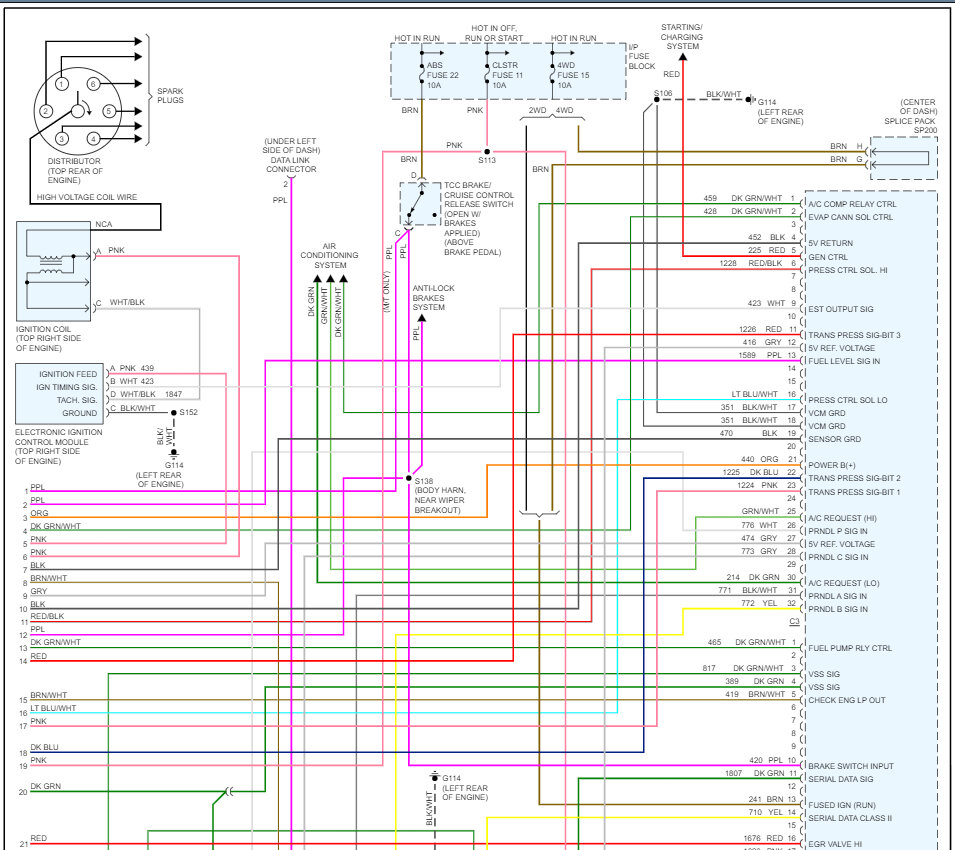

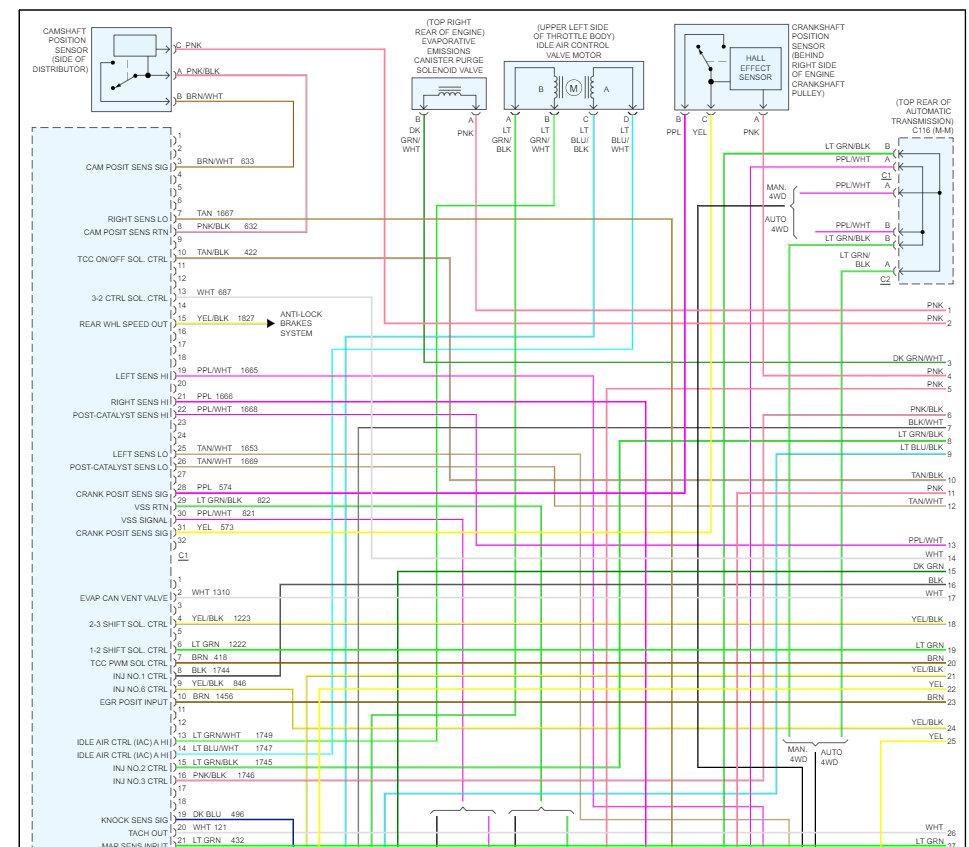

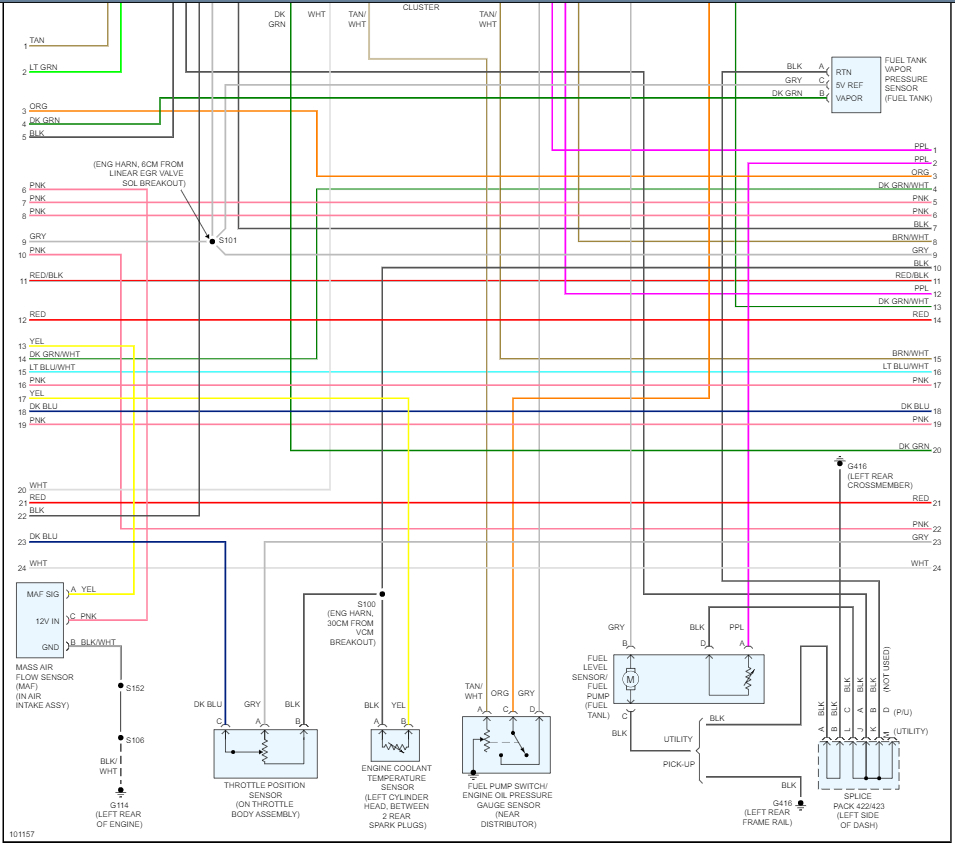

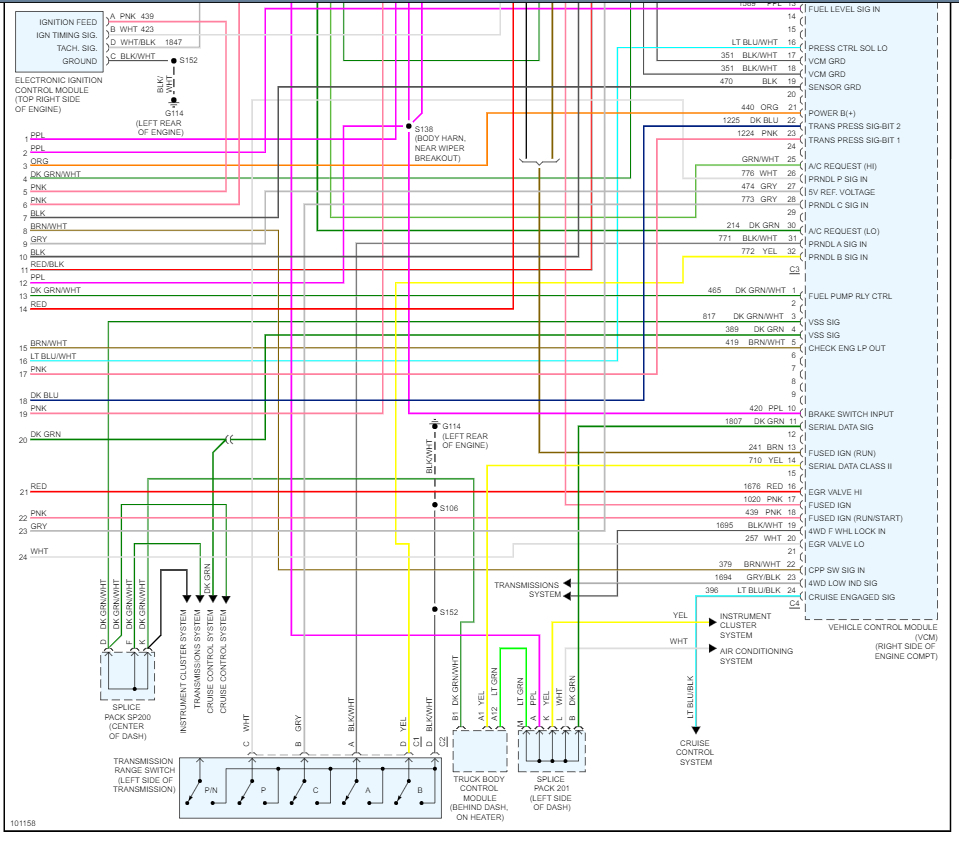

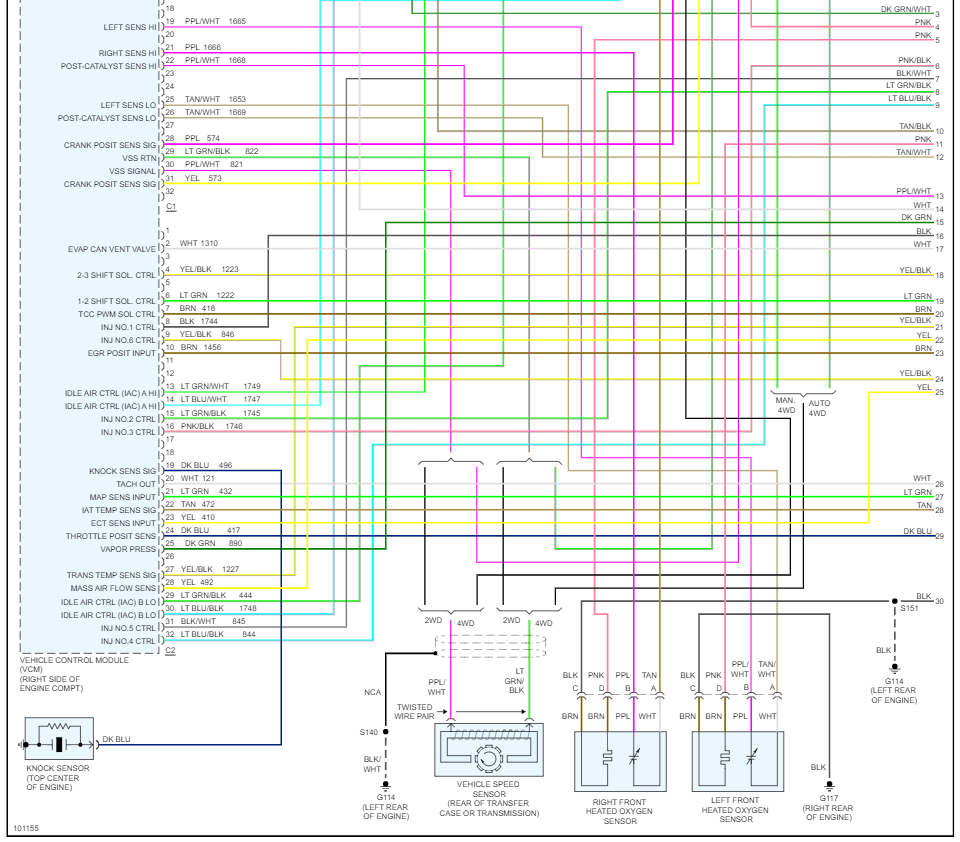

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Apr 13, 2023 at 4:07 AM

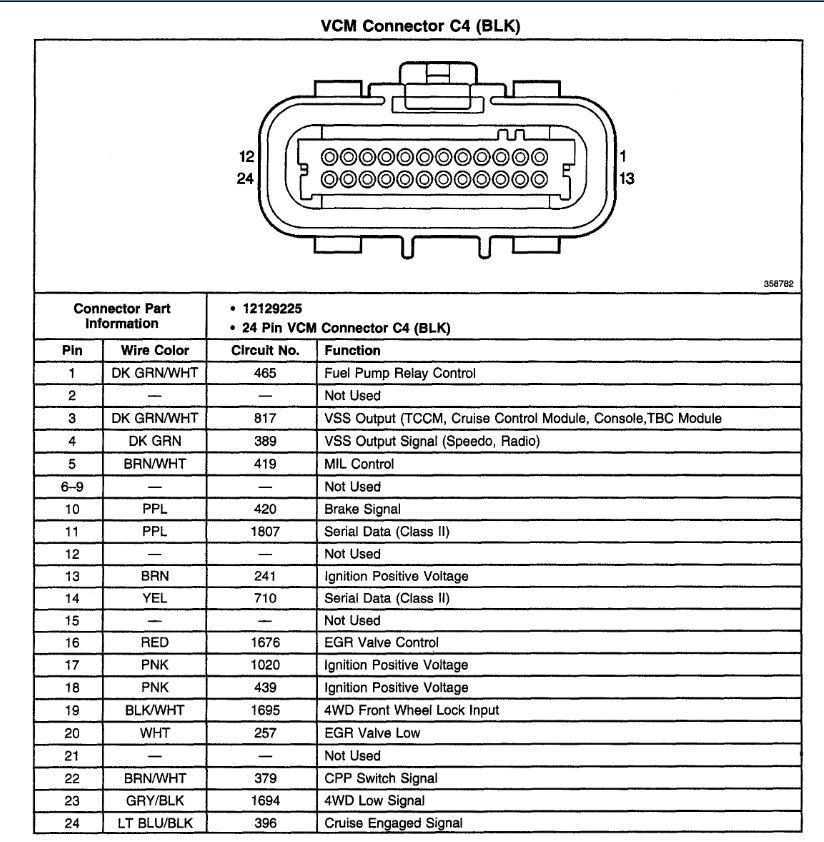

Just looking for the 2 80-pin PCM connector pinouts. The VCM connectors provided do not match the connectors on the vehicle.
Apr 13, 2023 at 9:16 AM
This is what they show. What is not right about them? Can you upload an image?
