Can I get the PCM pinout diagram?

Tiny
JUDGMENT
  • MEMBER
  • 2010 DODGE GRAND CARAVAN
  • 3.3L
  • V6
  • 2WD
  • AUTOMATIC
  • 200,000 MILES
C1 (black) pin out diagram.
Wednesday, August 21st, 2024 AT 3:09 PM

3 Replies

Tiny
AL514
  • MECHANIC
  • 4,677 POSTS
Hello, you only need C1 pinout? This is for 3.3L Flex Fuel vehicle? Just want to make sure thats correct.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, August 22nd, 2024 AT 9:33 AM
Tiny
AL514
  • MECHANIC
  • 4,677 POSTS

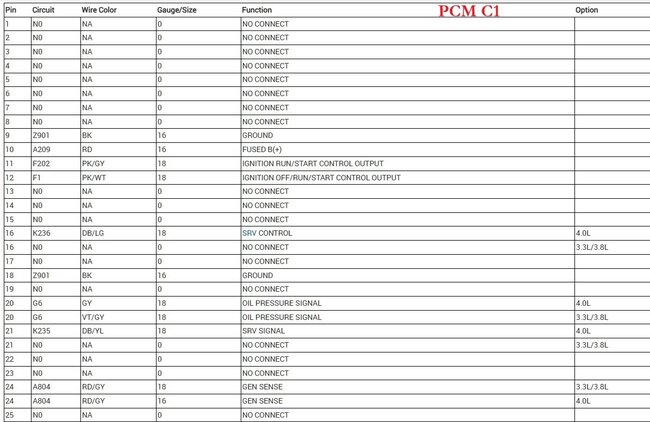

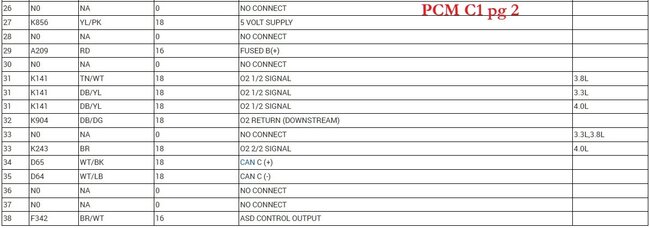

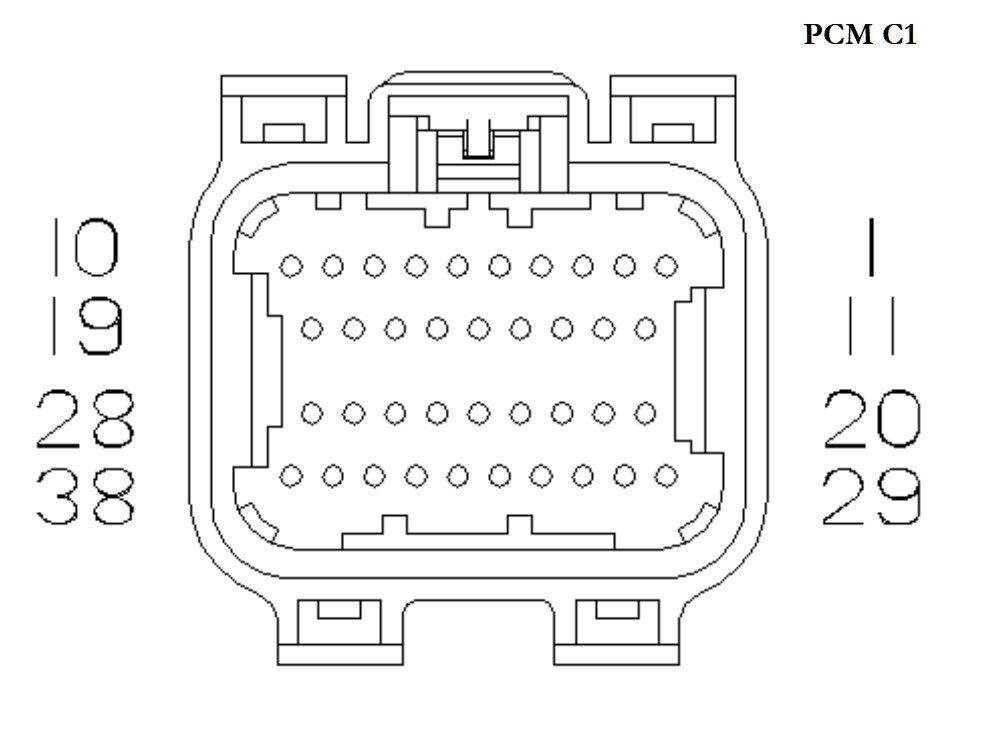

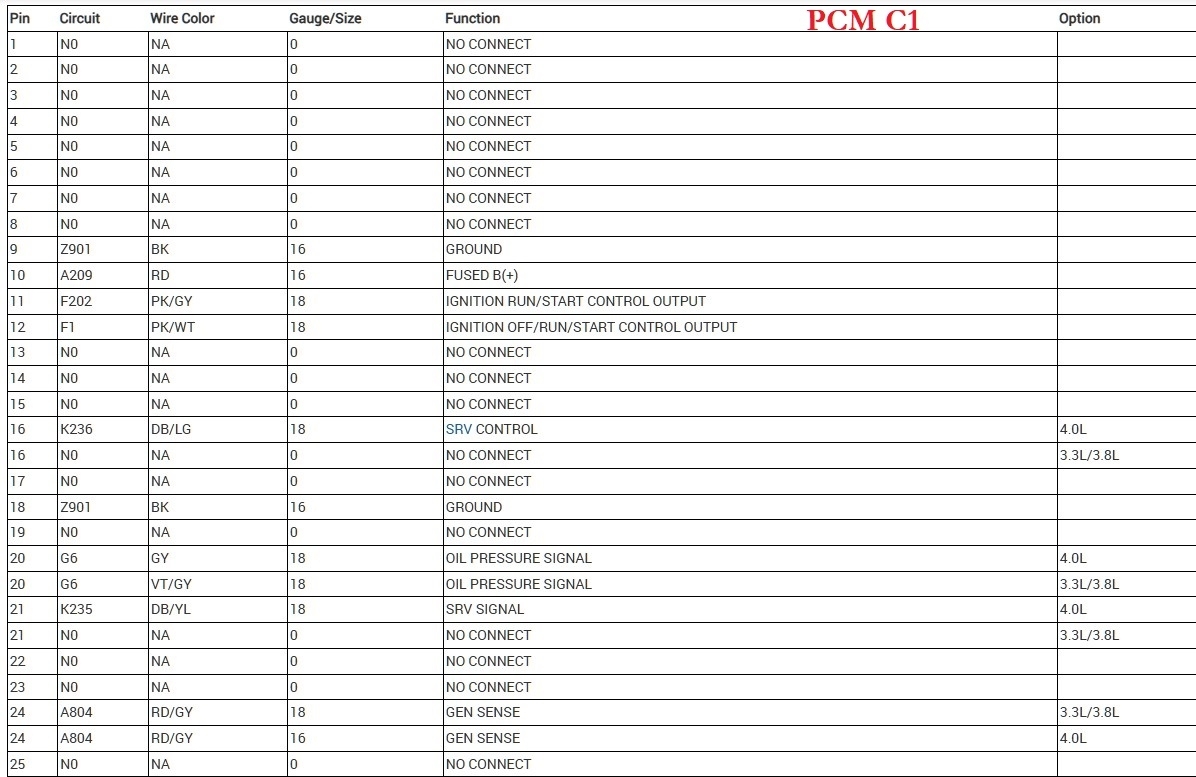

This is for the C1, I'll post the rest just in case you need them.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Thursday, August 22nd, 2024 AT 9:37 AM
Tiny
AL514
  • MECHANIC
  • 4,677 POSTS

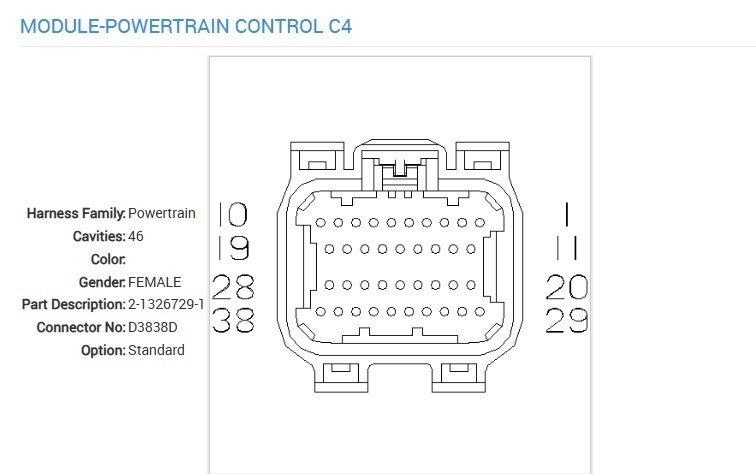

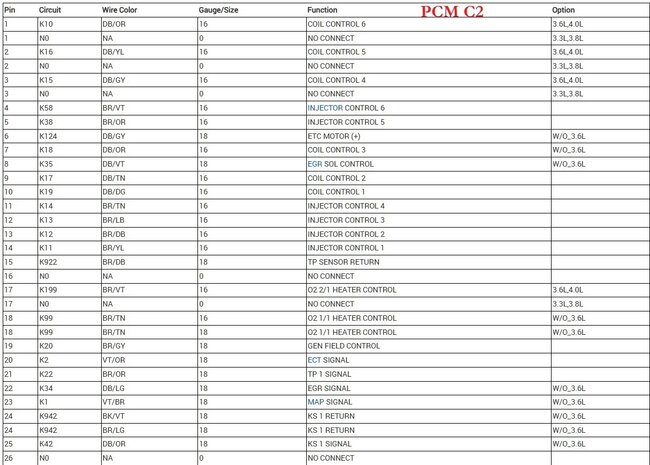

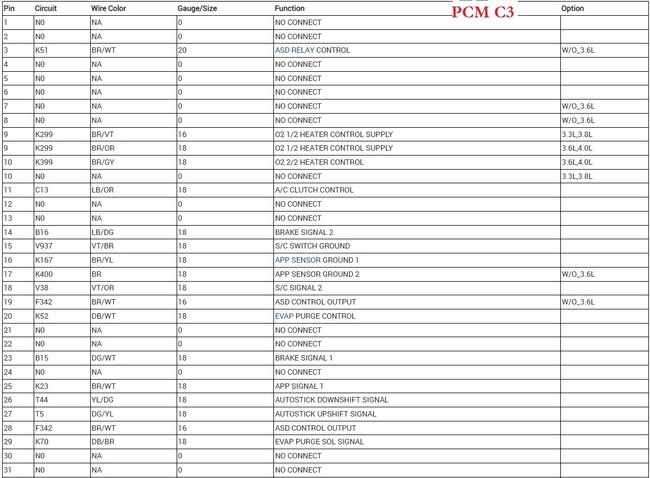

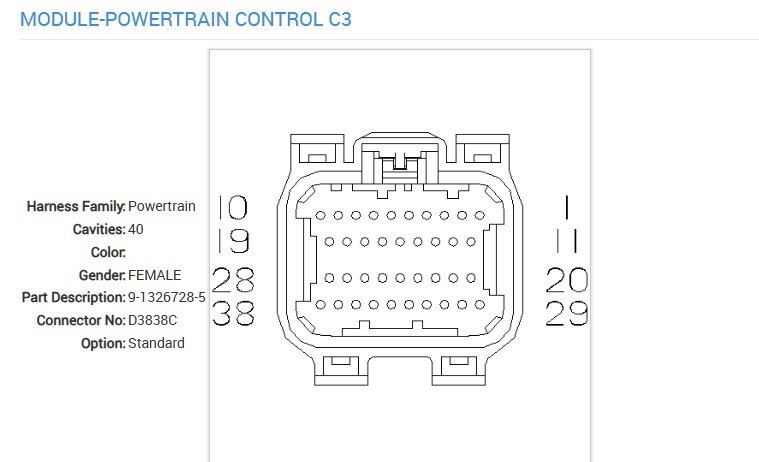

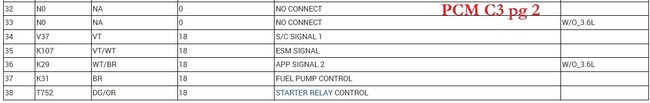

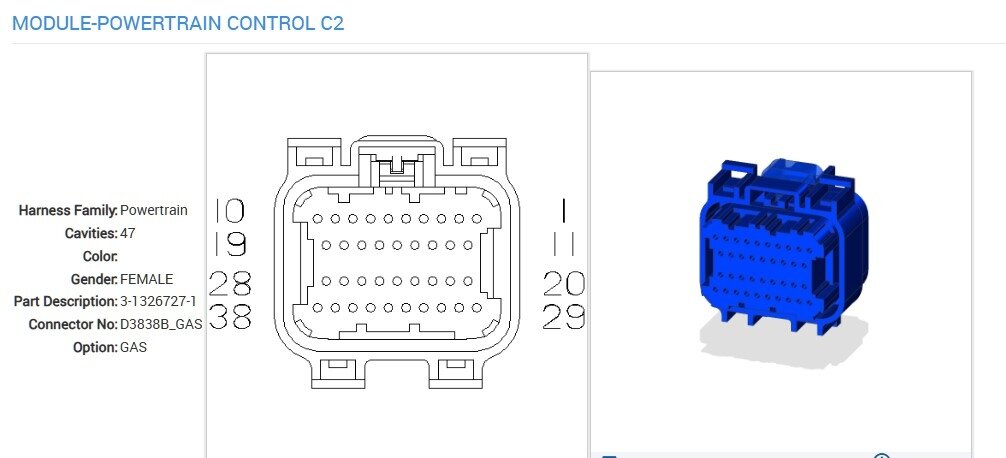

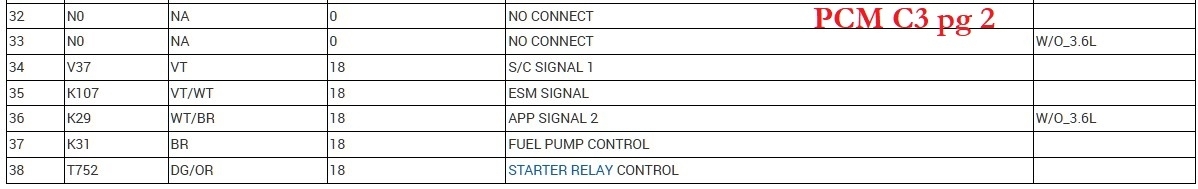

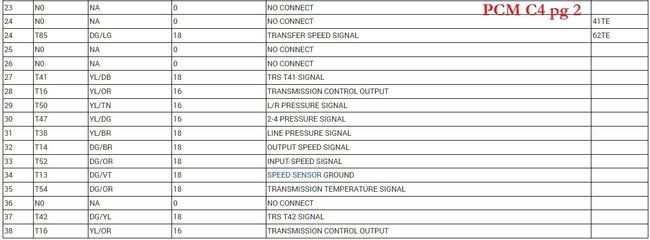

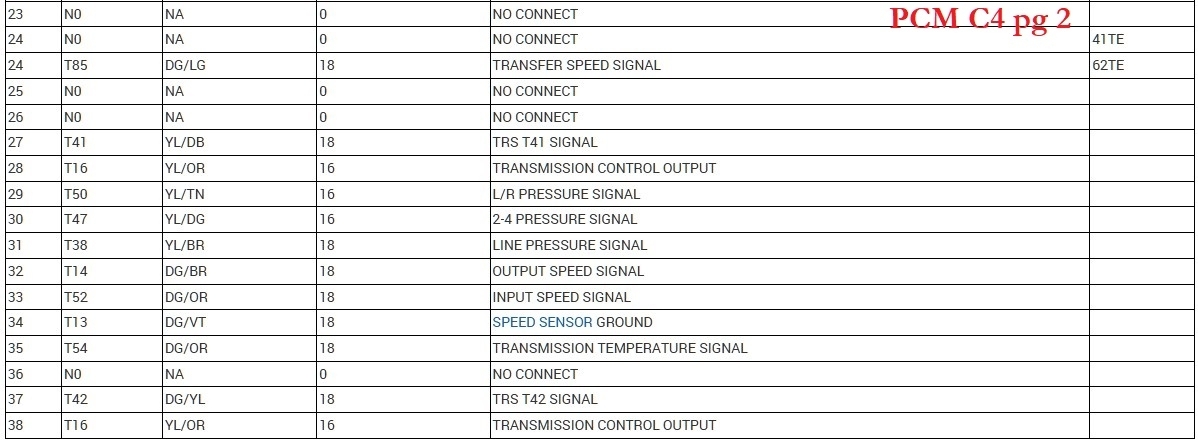

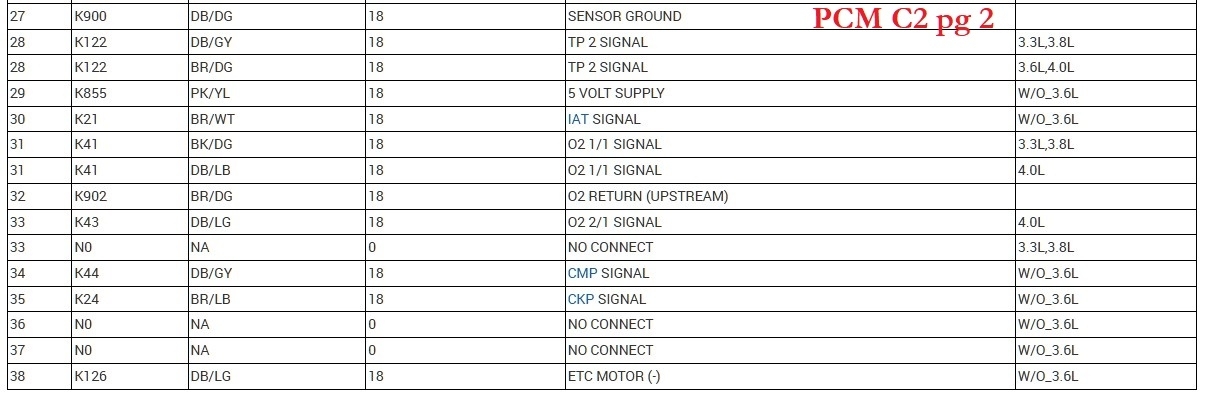

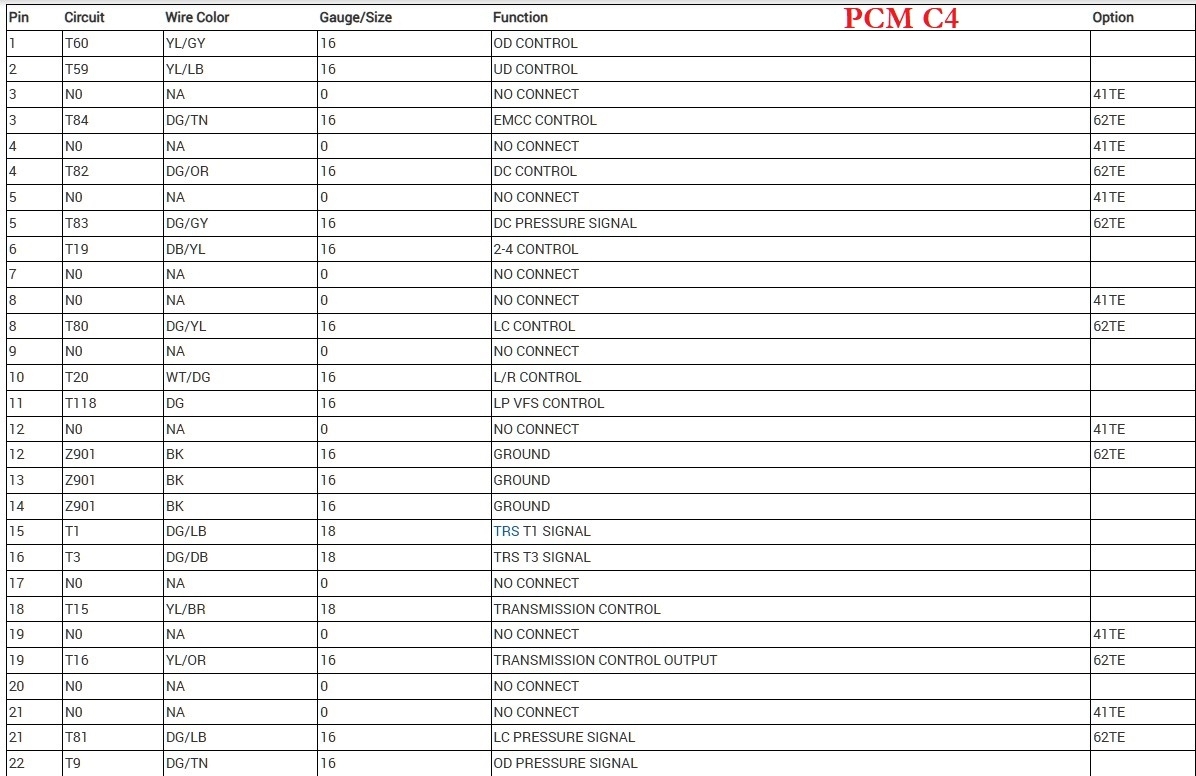

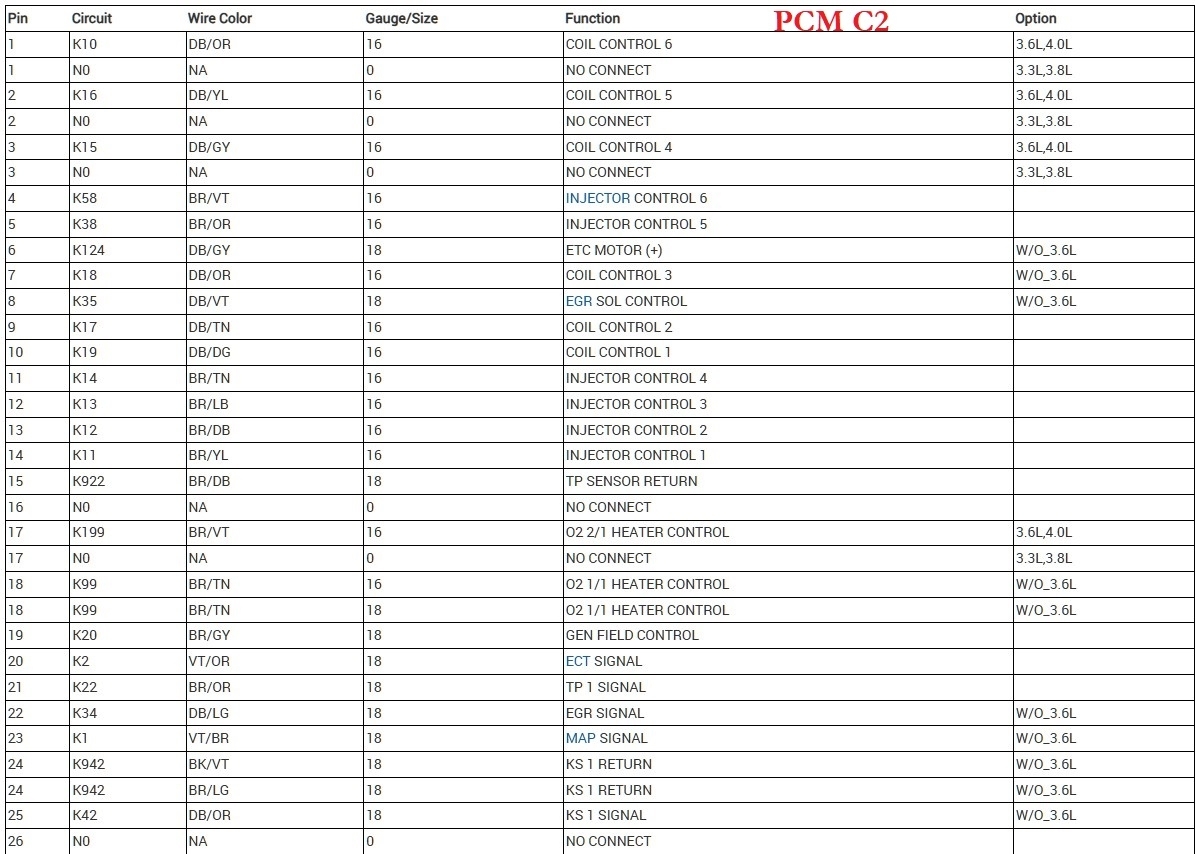

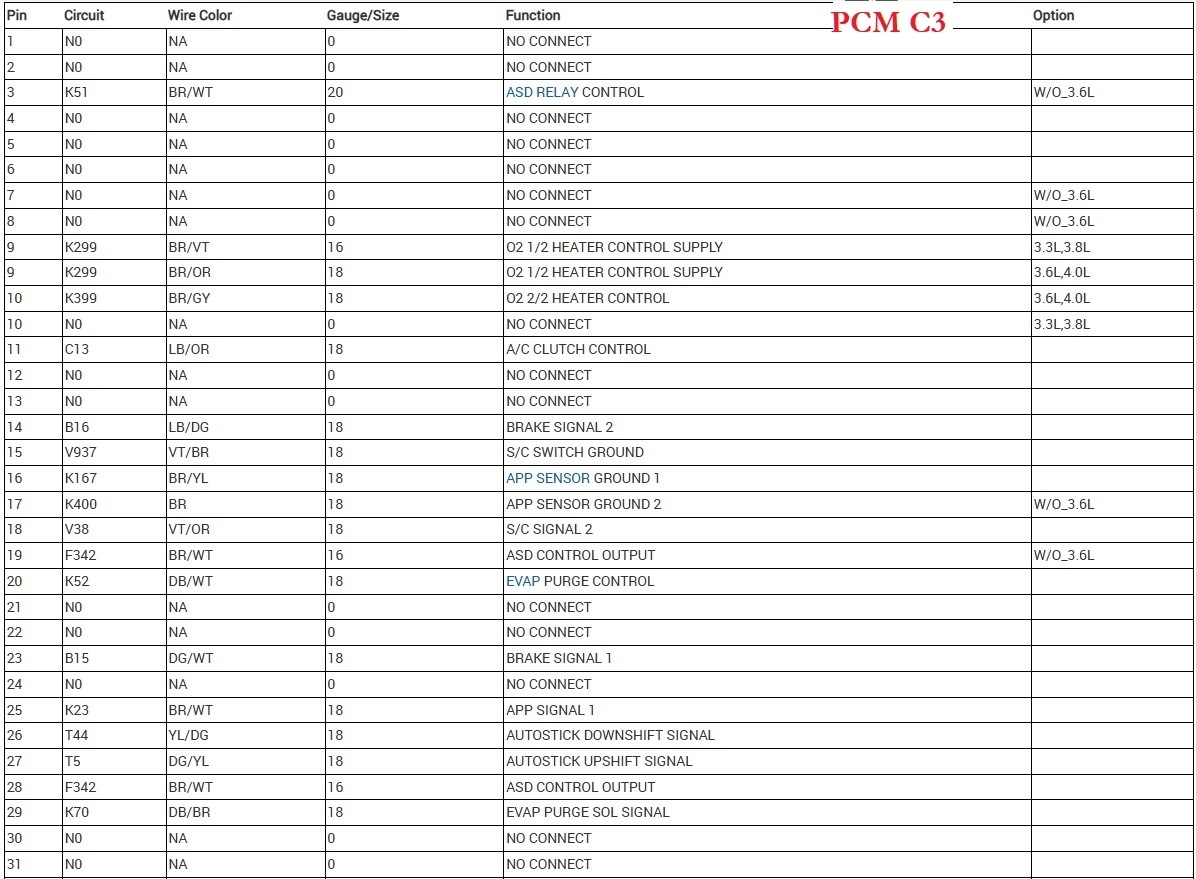

Here are the rest of the PCM connector pinouts, C2, C3, C4.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Thursday, August 22nd, 2024 AT 9:50 AM

Please login or register to post a reply.
