PCM pinout?

2004 CADILLAC CTS-V
172,345 MILES • 4.7L • V8 • 2WD • AUTOMATIC
Avatar
CBIZZLE
  • MEMBER
  • 1 POST
I'm looking for a PCM pinout for 2004 Cadillac CTS Northstar V8 cable drive vin 0
Aug 2, 2025 at 2:22 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

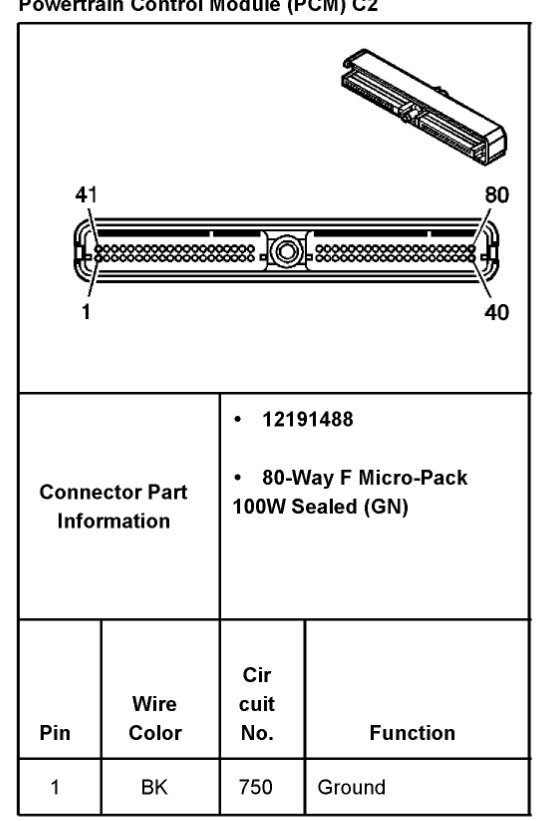

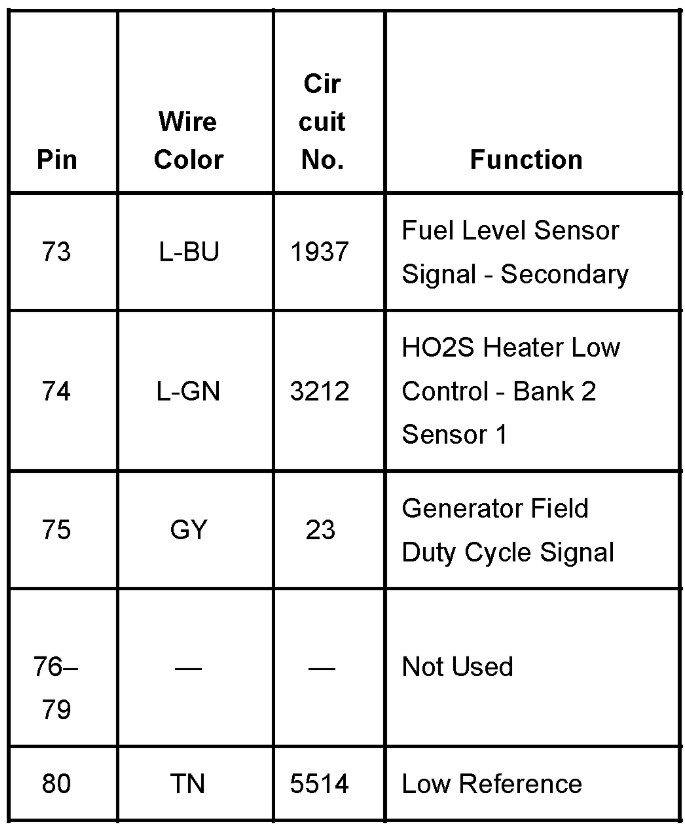

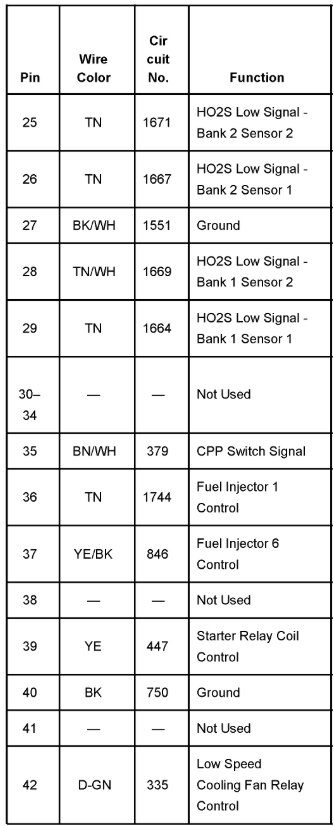

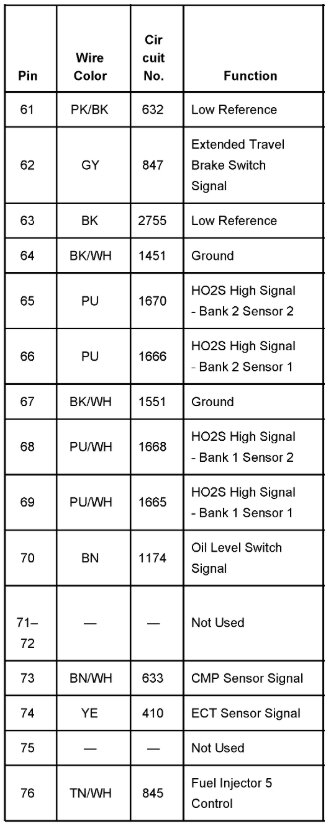

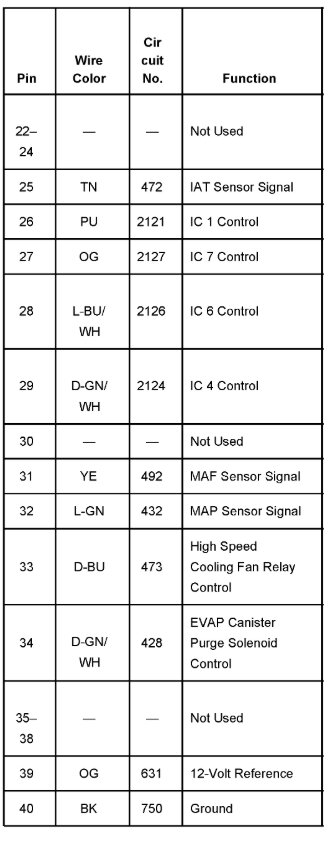

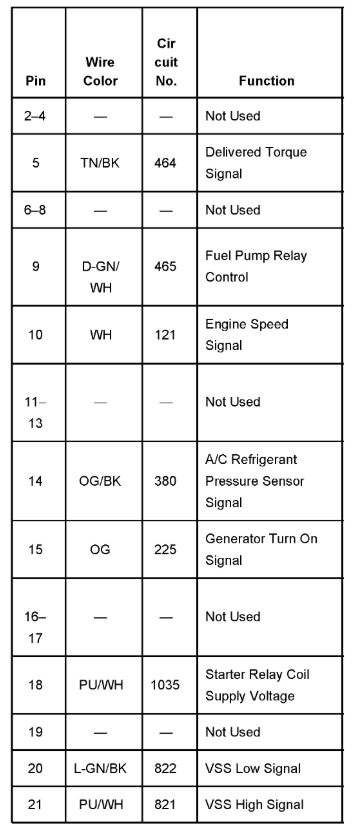

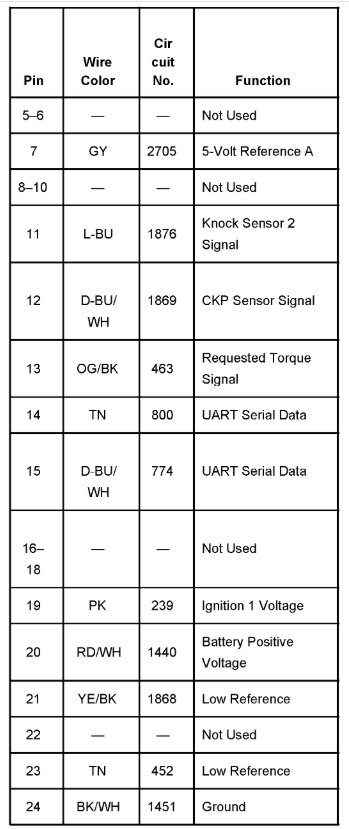

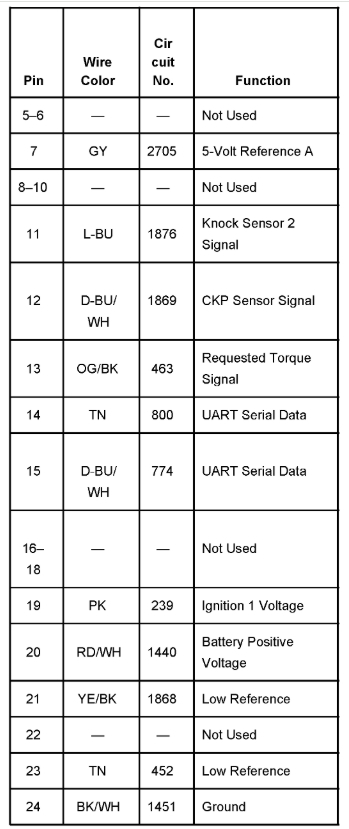

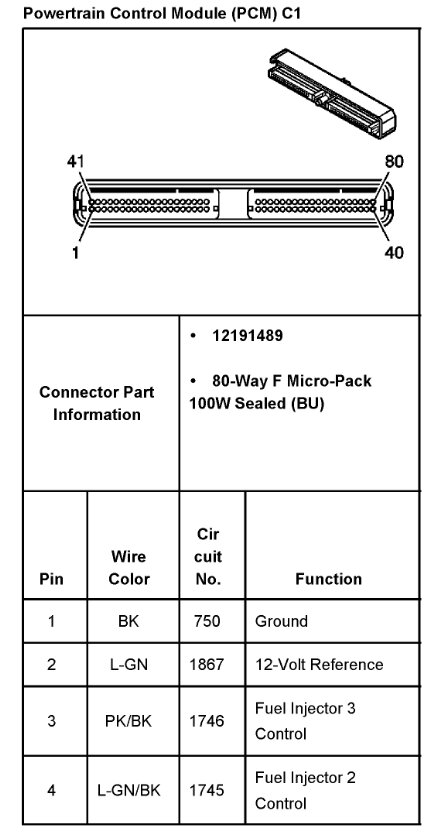

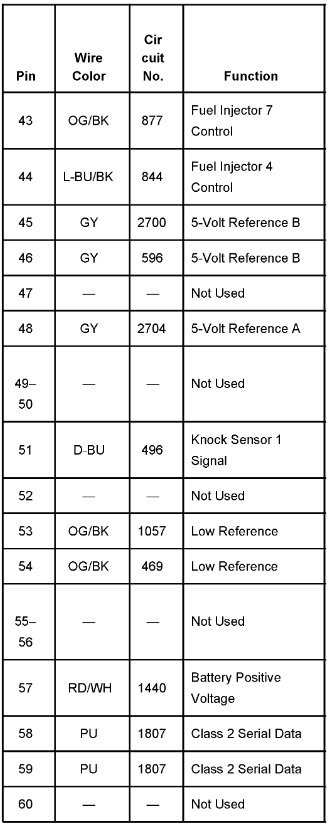

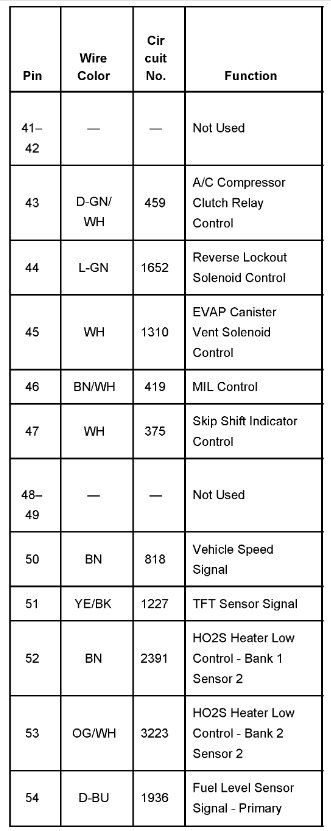

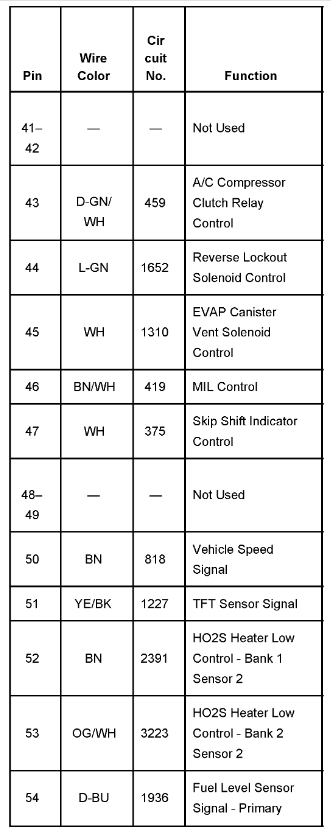

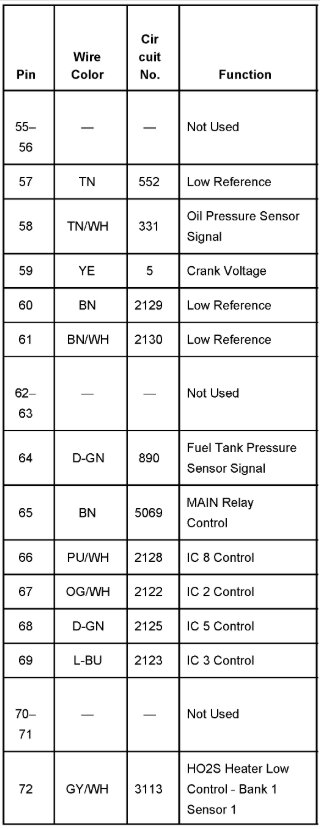

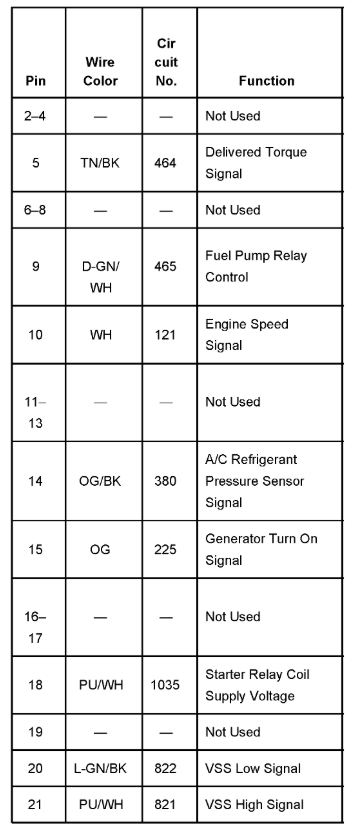

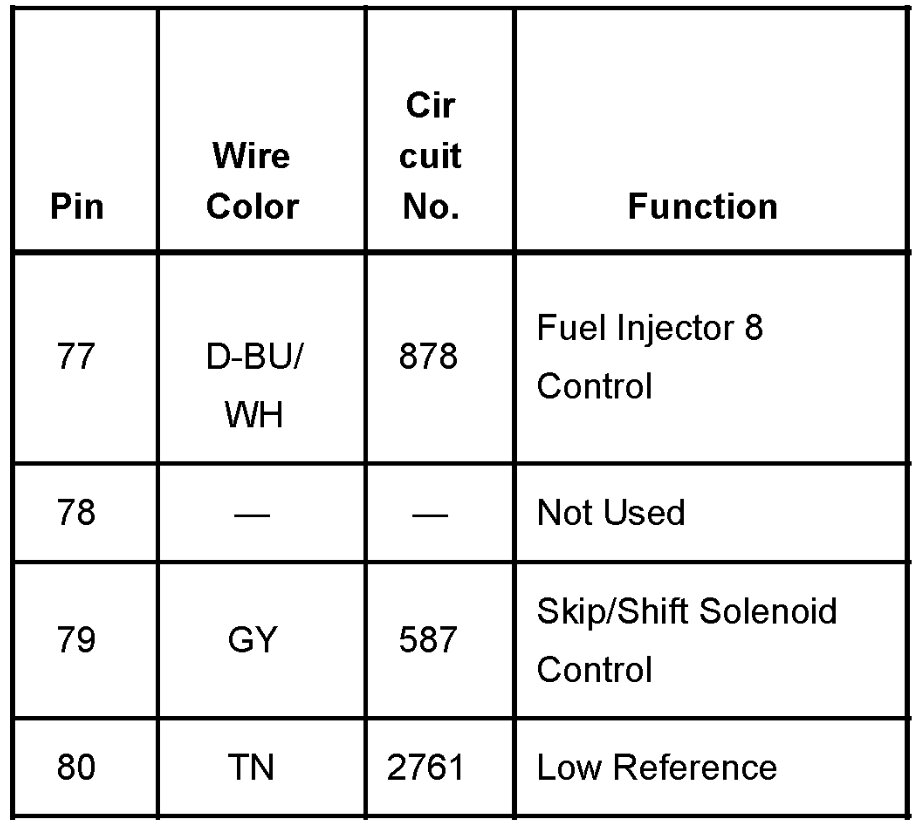

Hello, here are the pin outs for the PCM, Also this guide can help you test the connections if you need it.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Let us know if you need anything else.
