PCM connector diagram

Tiny
MIKEBIDA
  • MEMBER
  • 1997 OLDSMOBILE AURORA
  • 4.0L
  • V8
  • FWD
  • AUTOMATIC
  • 90,000 MILES
Hi, I have the c1 connector diagram you have posted. Can you supply me with the c2 connector diagram? Thanks, mikebida
Wednesday, October 11th, 2017 AT 6:36 PM

2 Replies

Tiny
STEVE W.
  • MECHANIC
  • 13,579 POSTS

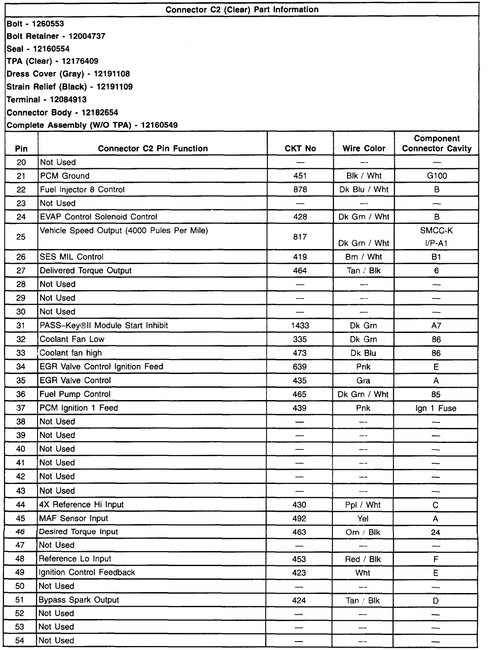

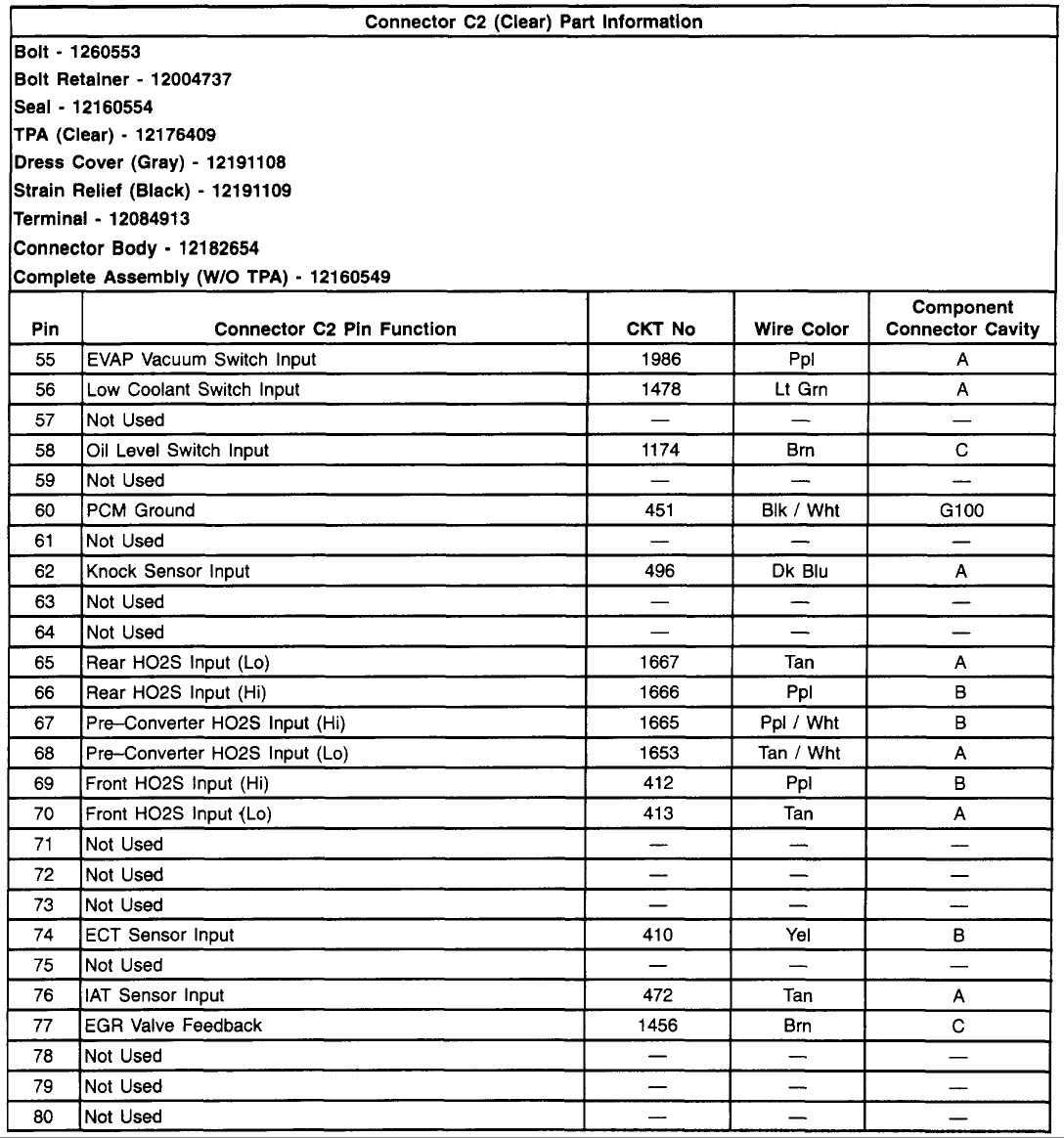

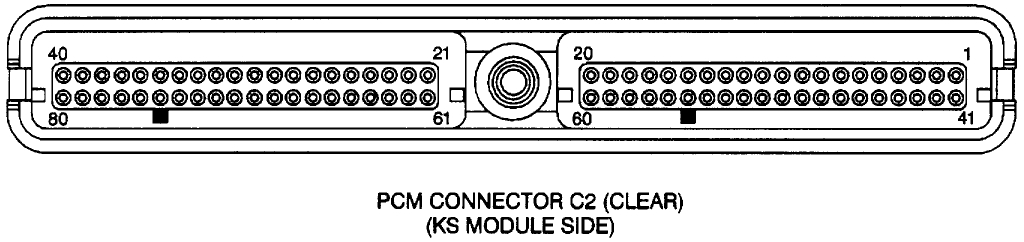

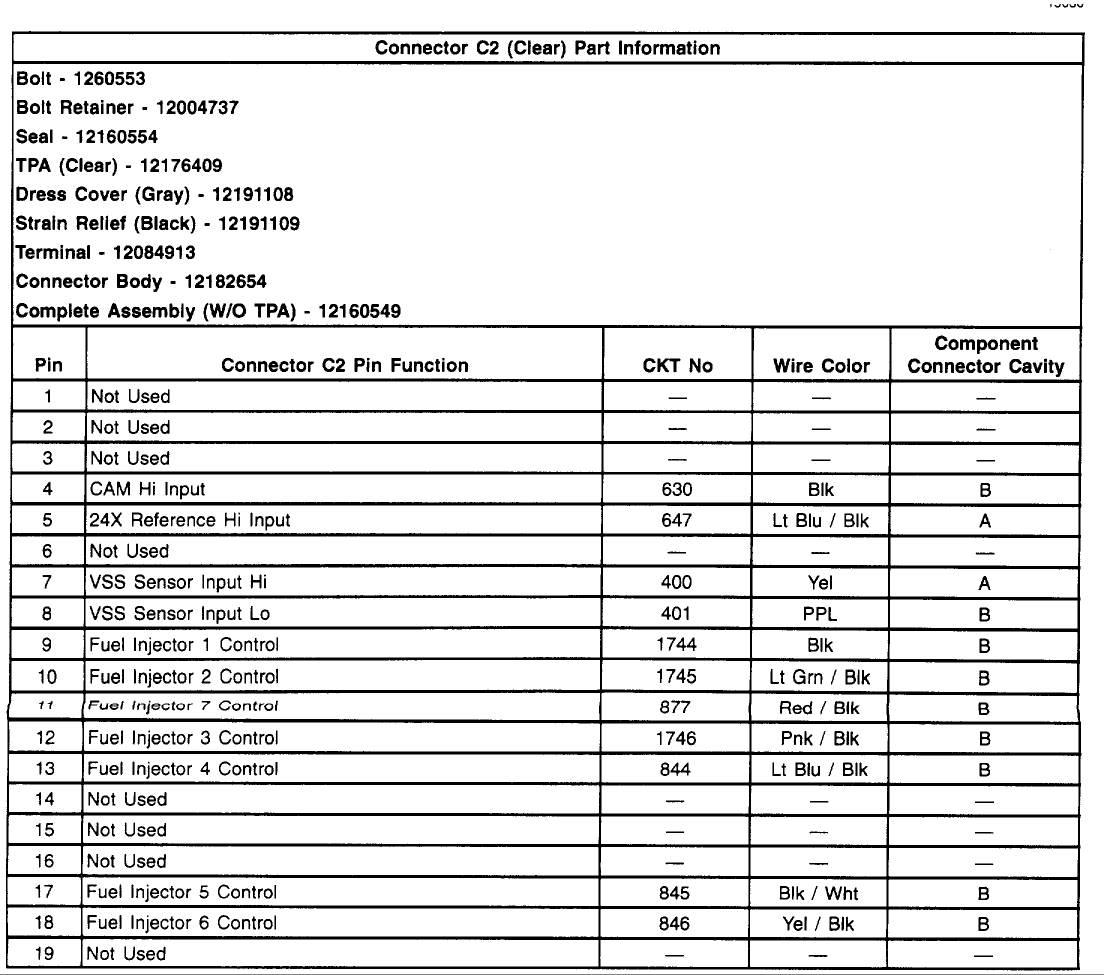

Here are the pin outs. Hope they help.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+1
Wednesday, October 11th, 2017 AT 9:26 PM
Tiny
MIKEBIDA
  • MEMBER
  • 2 POSTS
Yes it is exactly what I am was looking for. Thank you
Was this
answer
helpful?
Yes
No
Wednesday, October 11th, 2017 AT 10:41 PM
