Pcm connector diagram

Tiny
KENNY LAVEZZI
  • MEMBER
  • 1996 OLDSMOBILE AURORA
  • 4.0L
  • V8
  • 2WD
  • AUTOMATIC
  • 114,000 MILES
I need the pcm pinout diagram for both sides.
Saturday, November 7th, 2020 AT 10:57 AM

4 Replies

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS

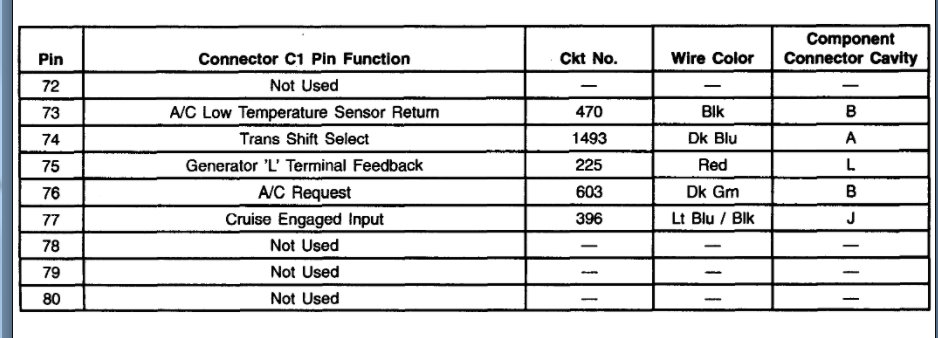

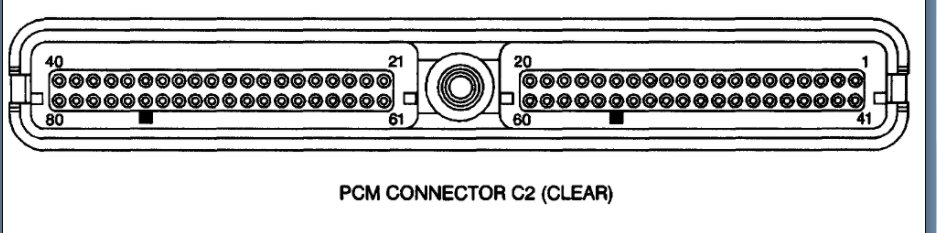

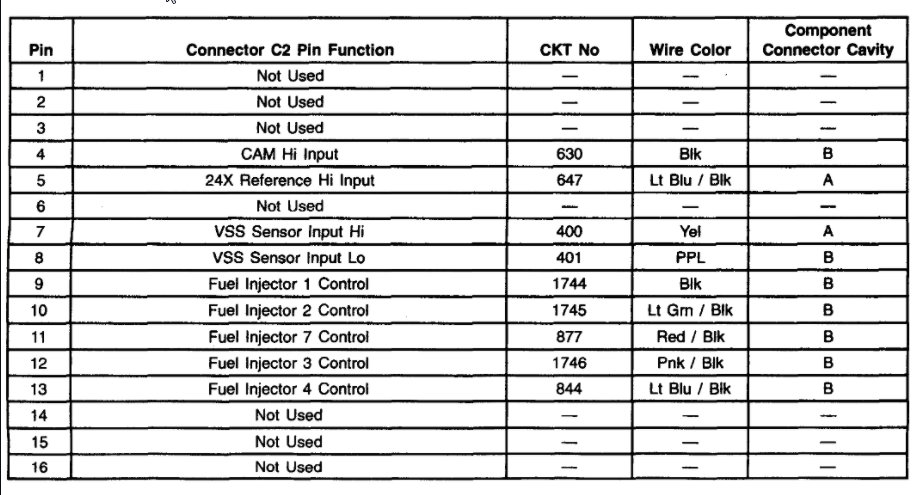

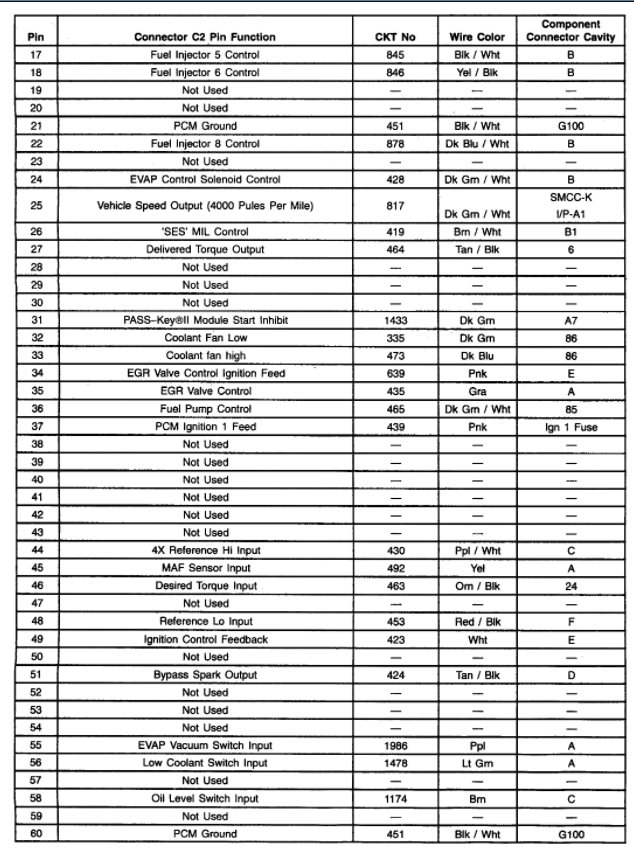

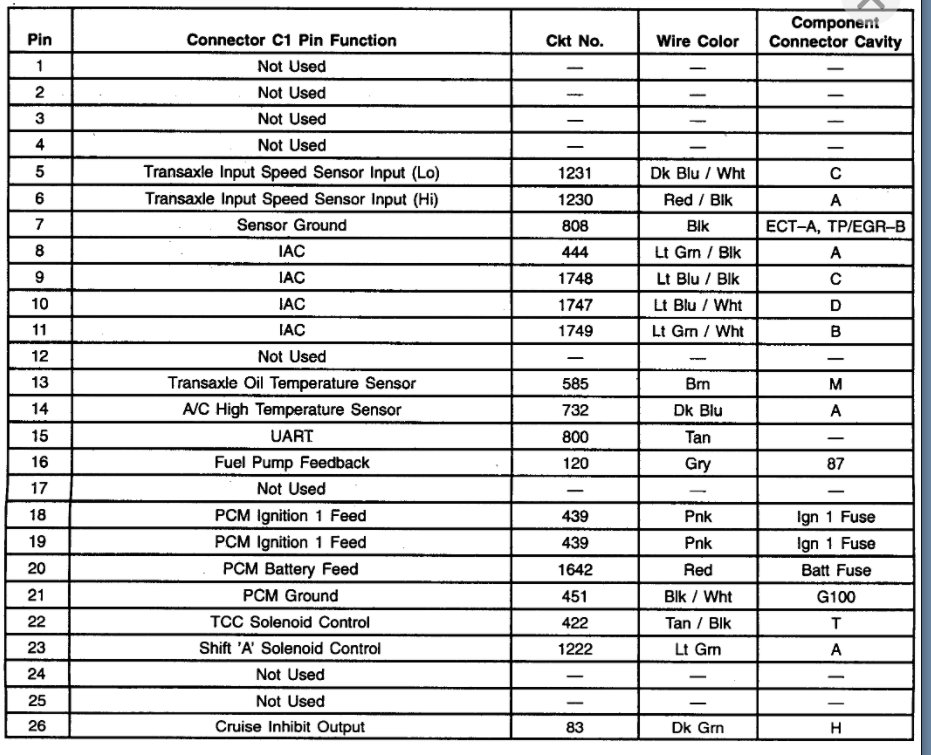

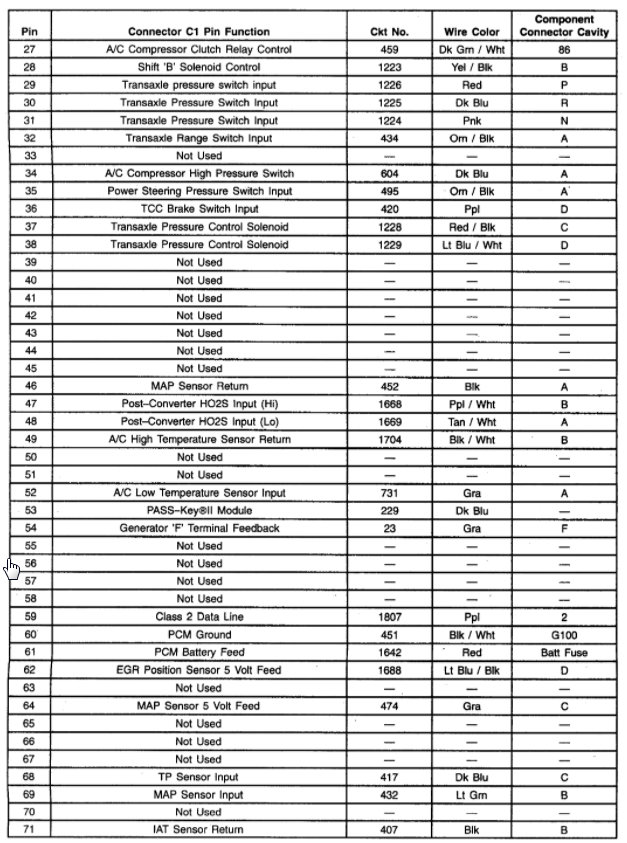

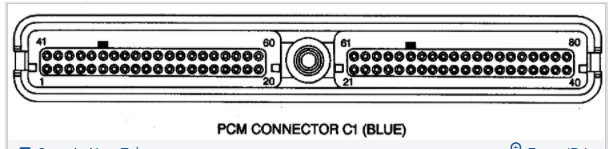

Attached are the pinouts for the PCM. Let us know if you need more info. Thanks
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Saturday, November 7th, 2020 AT 2:14 PM
Tiny
KENNY LAVEZZI
  • MEMBER
  • 3 POSTS
Thanks.
Was this
answer
helpful?
Yes
No
Sunday, November 8th, 2020 AT 7:44 AM
Tiny
KENNY LAVEZZI
  • MEMBER
  • 3 POSTS
Very helpful!
Was this
answer
helpful?
Yes
No
Sunday, November 8th, 2020 AT 7:48 AM
Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS
You are welcome. Please come back to 2CarPros next time you need some help. Thanks
Was this
answer
helpful?
Yes
No
Sunday, November 8th, 2020 AT 2:30 PM
