Can I get the wiring diagrams for both of the O2 sensors please?

2005 SUBARU BAJA
150,000 MILES • MANUAL
Avatar
DOLLABILL25
  • MEMBER
  • 46 POSTS
I just need to know the wiring diagram for both of the O2 sensors please. Because I know the 2 wires that are the same color are the heater side just need to know of the other 2 wires which is ground, and which is signal. Thank you
Nov 10, 2023 at 7:49 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

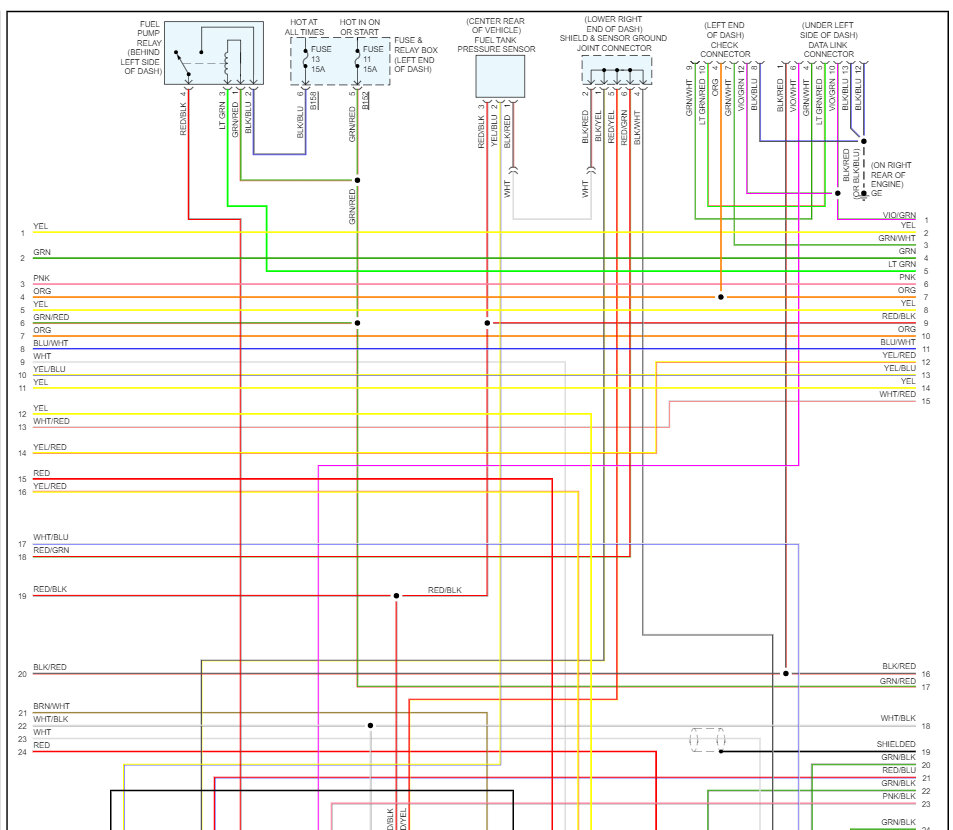

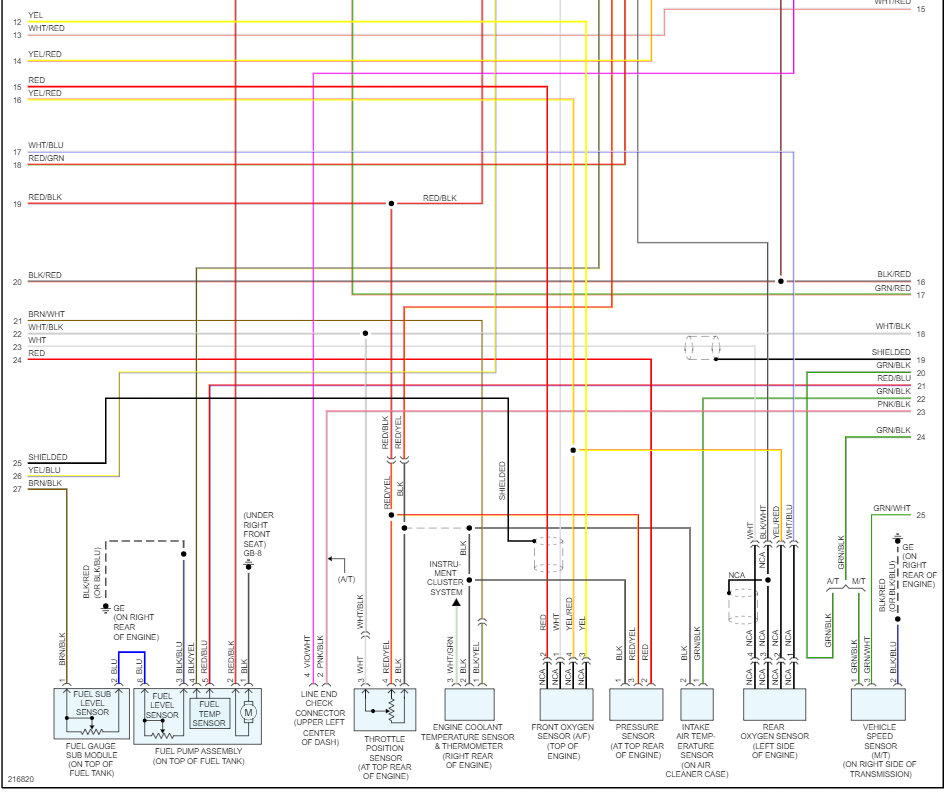

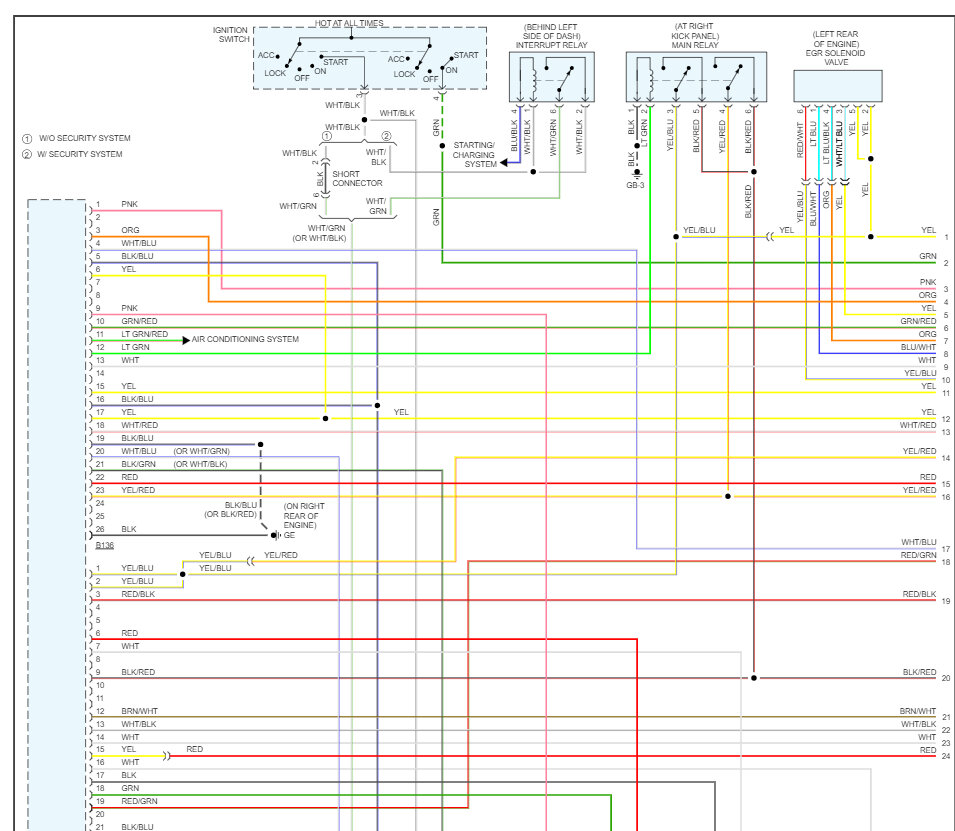

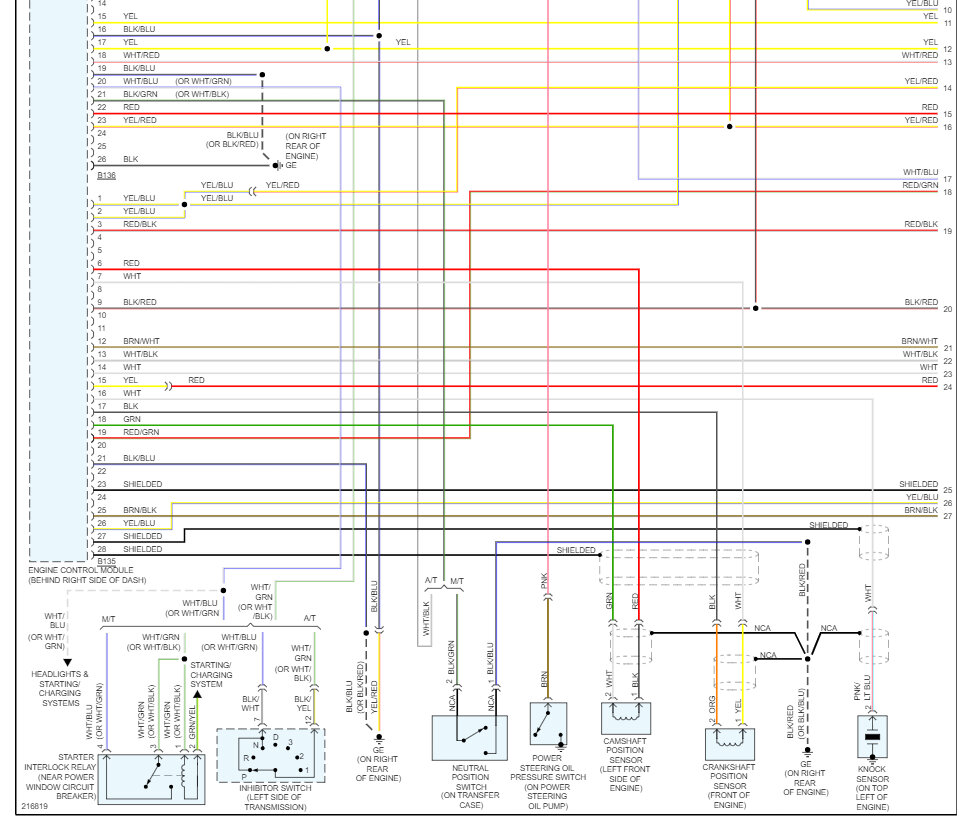

Sure, here are the wiring diagrams for both primary and secondary oxygen sensors. Check out the images below. Let us know if you need anything else, please.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
