ECU electrical diagram needed?

2004 MERCEDES BENZ C200
18,976 MILES
Avatar
ANDRIN ATEM
  • MEMBER
  • 406 POSTS
I have no current going into the ECU. Please can i have a chat diagram for the ECU pin out, electrical diagram to follow the ECU voltage. Thanks
Dec 29, 2020 at 6:02 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

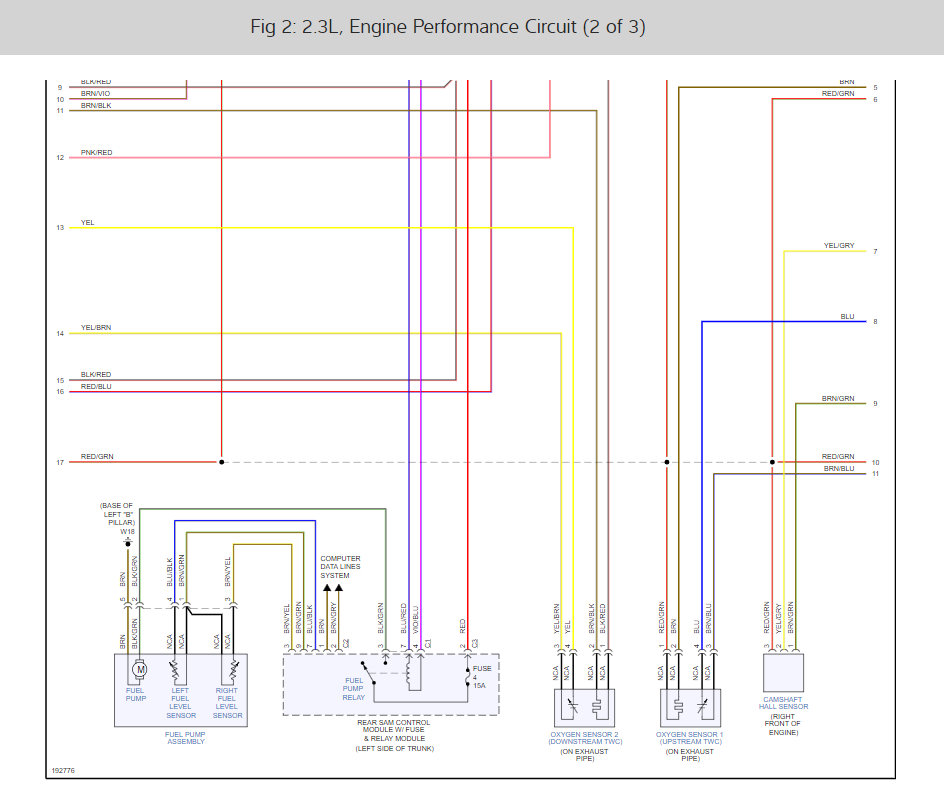

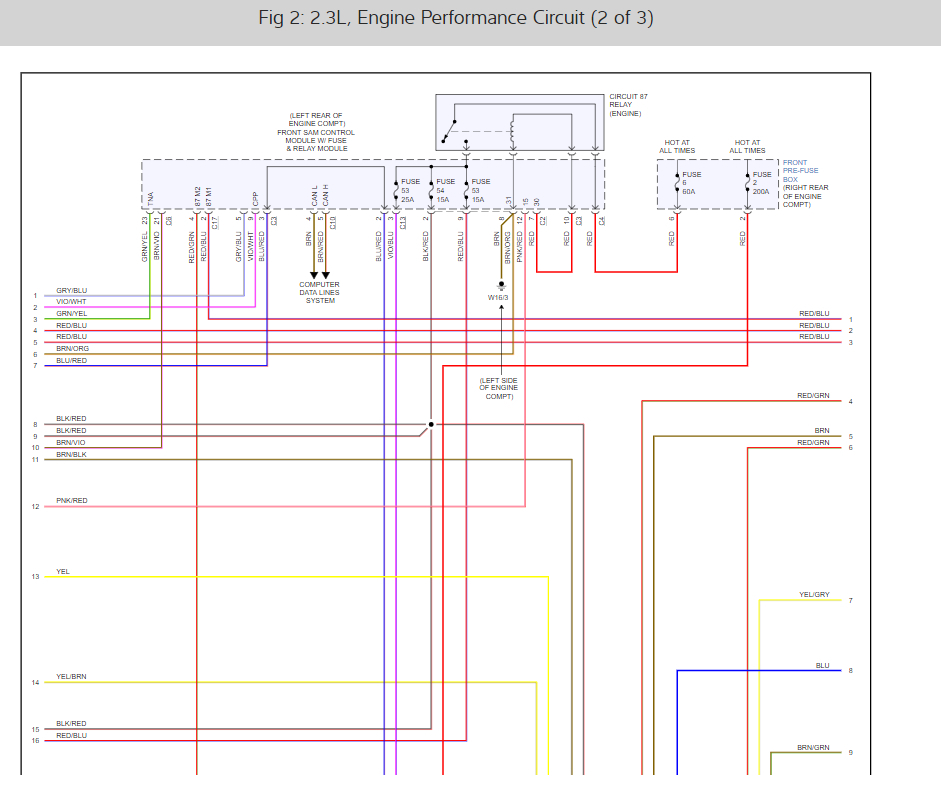

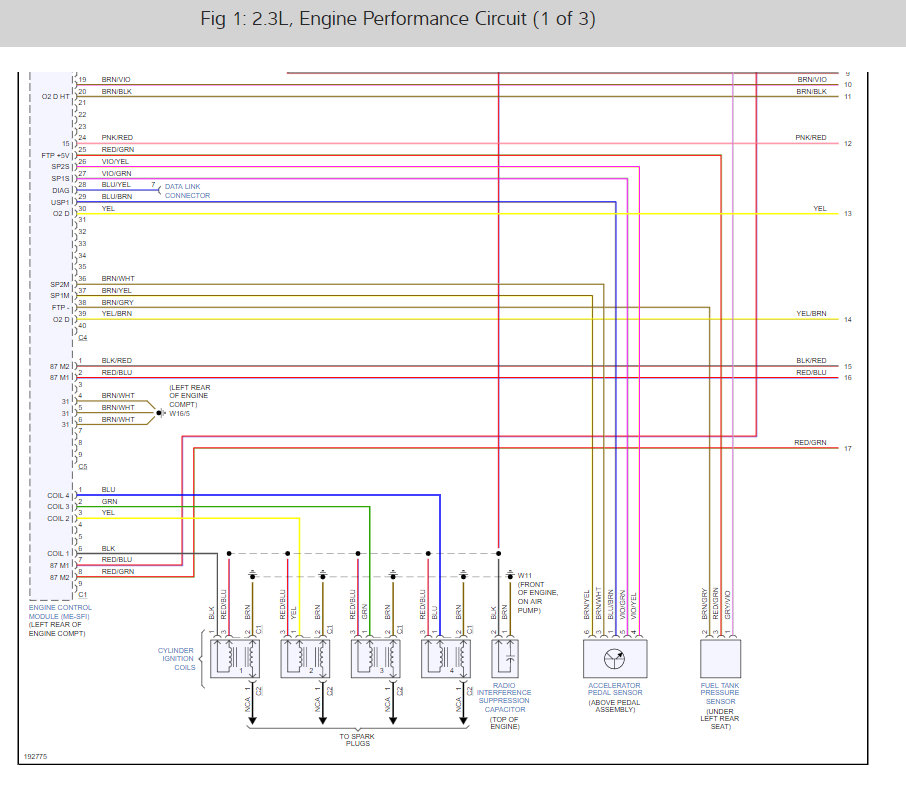

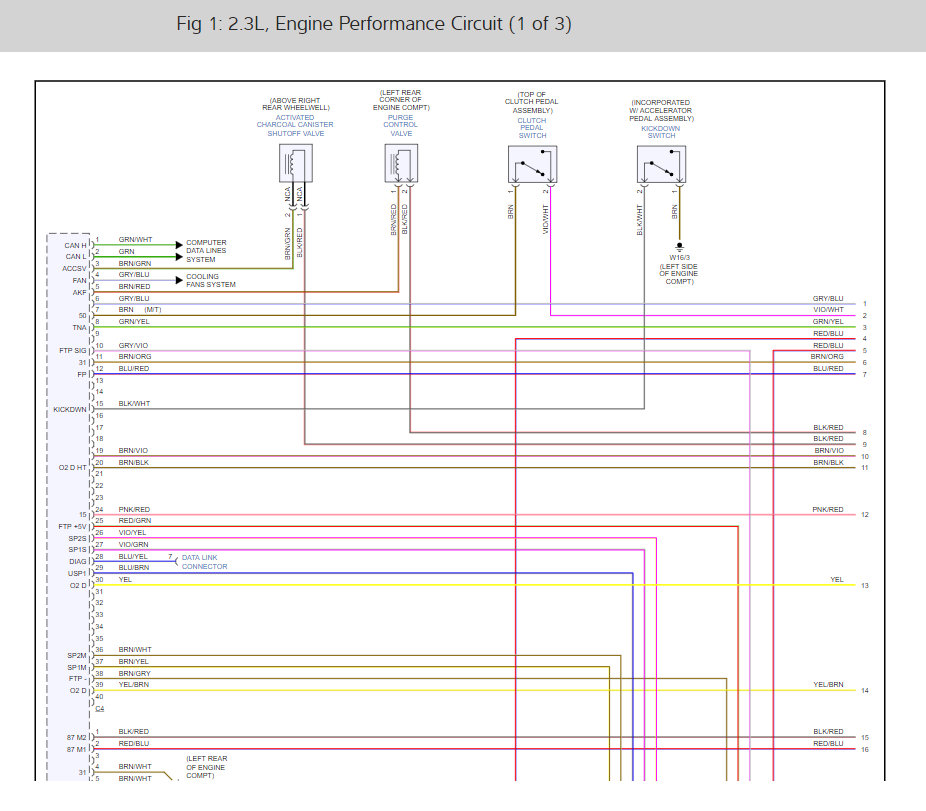

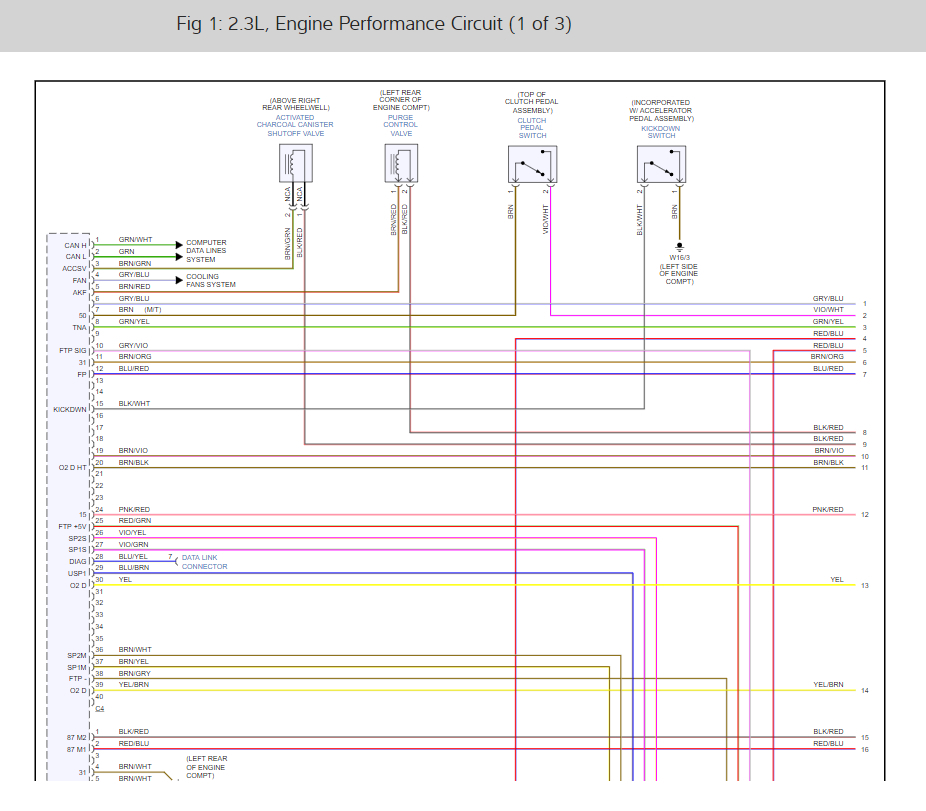

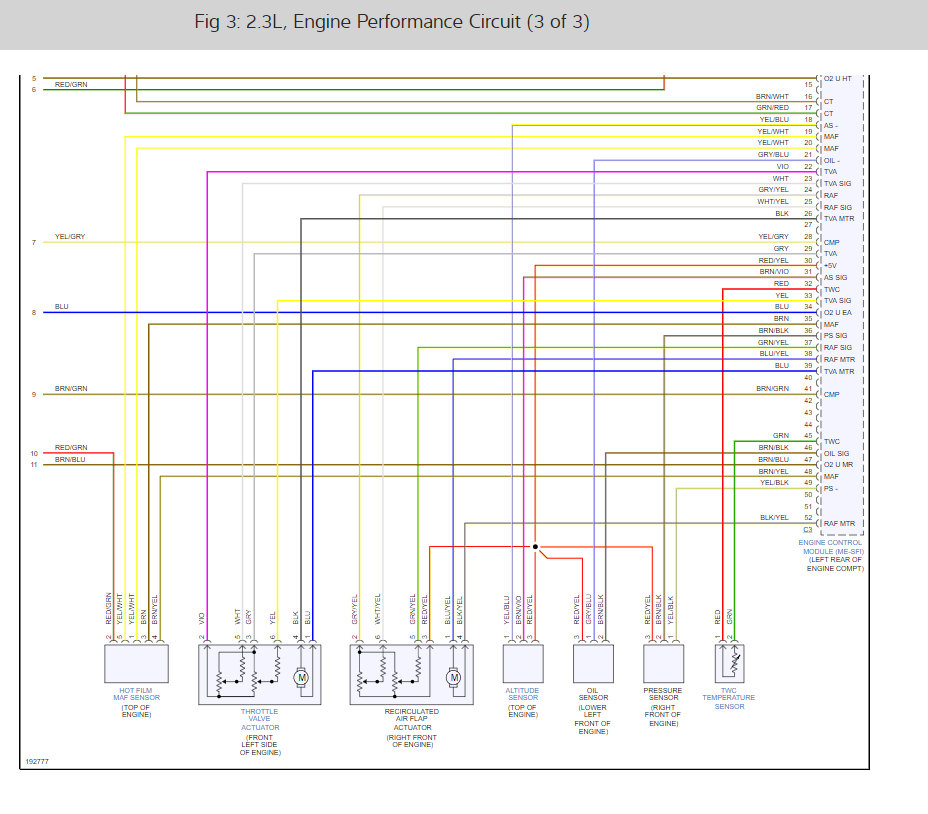

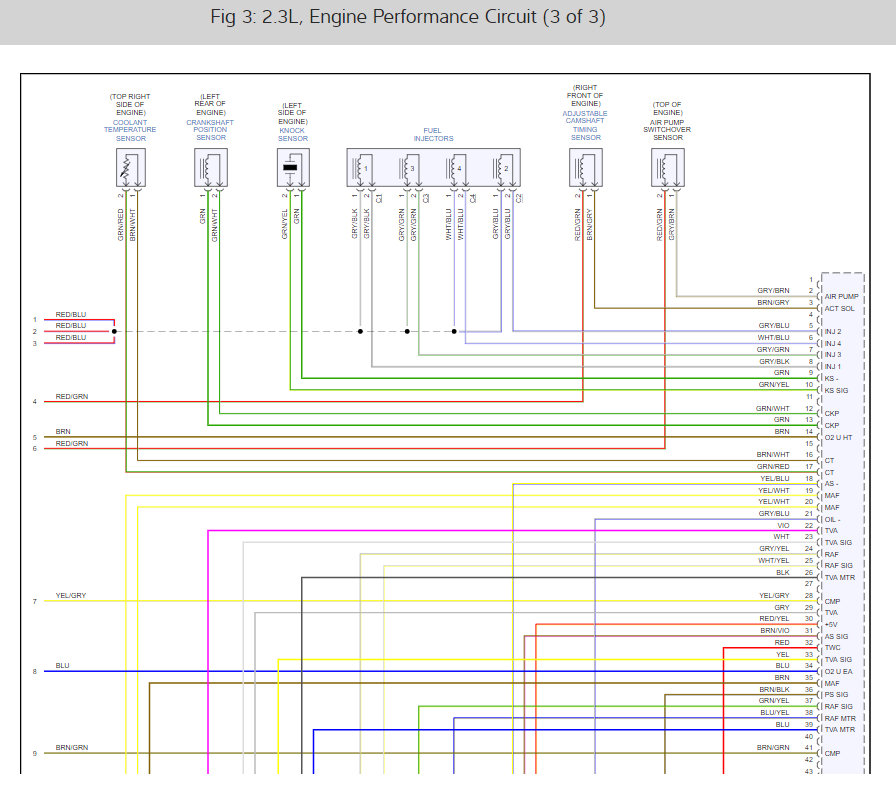

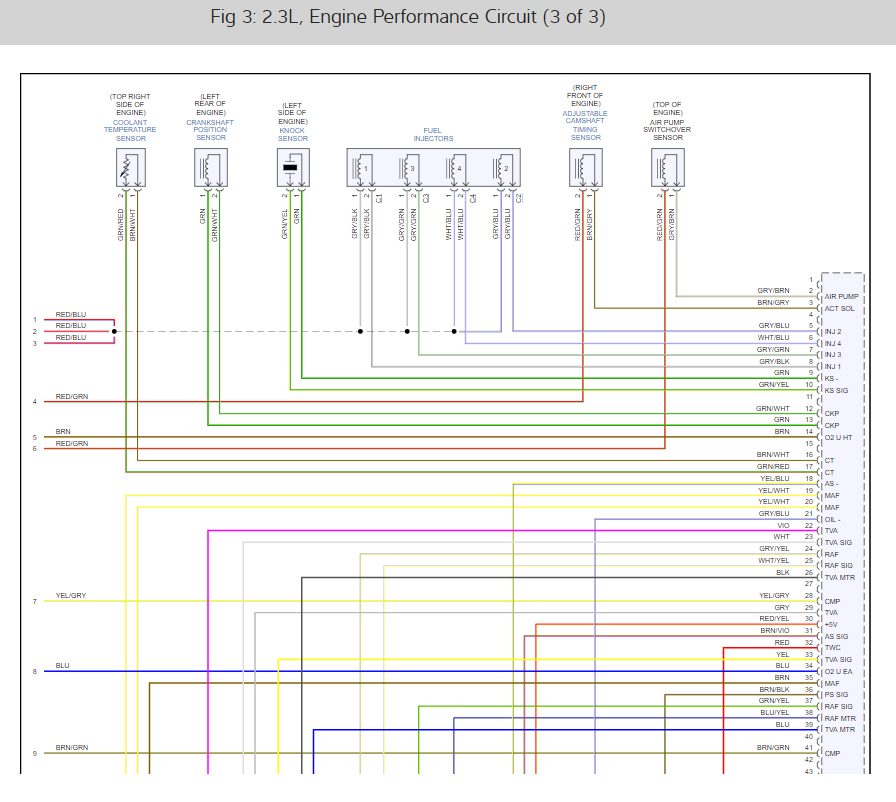

Here is the ECU and engine wiring diagrams which show the fuse and grounds to make sure the system is powered and grounded correctly with a guide to help you test the wiring as well.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
