No power to A/C

Tiny
DMOON45011
  • MEMBER
  • 2009 JEEP LIBERTY
  • 3.7L
  • 6 CYL
  • 4WD
  • AUTOMATIC
  • 156,000 MILES
I just bought this vehicle. Replaced a locked up A/C compressor. But no power through A/C system. I have checked fuses all good. No known relays though this model. And there is only the one fuse box under the hood. Am I missing something or does this mean I'm going rabbit hunting through wires?
Sunday, August 29th, 2021 AT 2:08 PM

1 Reply

Tiny
DANNY L
  • MECHANIC
  • 5,648 POSTS
Hello, I'm Danny.

Here are the wiring diagrams you requested for your air conditioning system. This is a tutorial showing how to test electrical wiring:

https://www.2carpros.com/articles/how-to-check-wiring

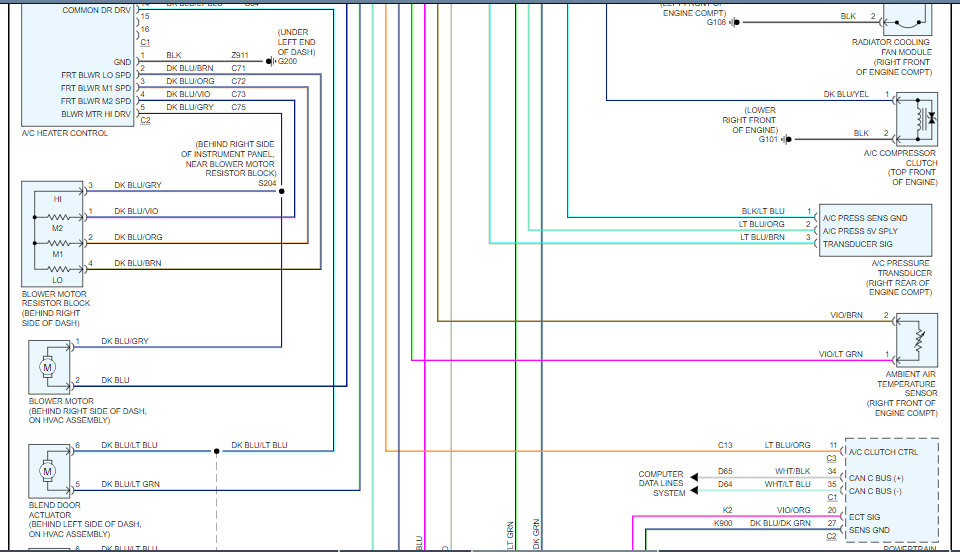

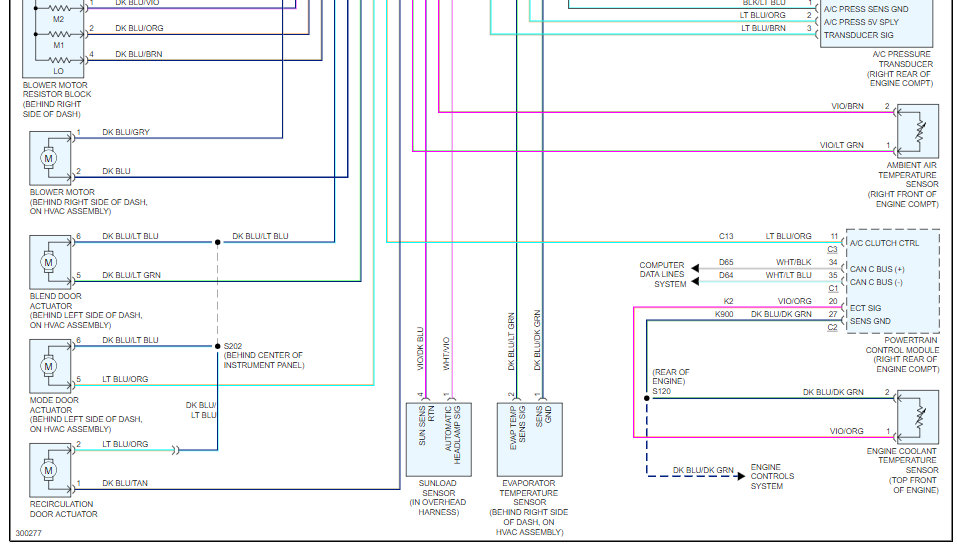

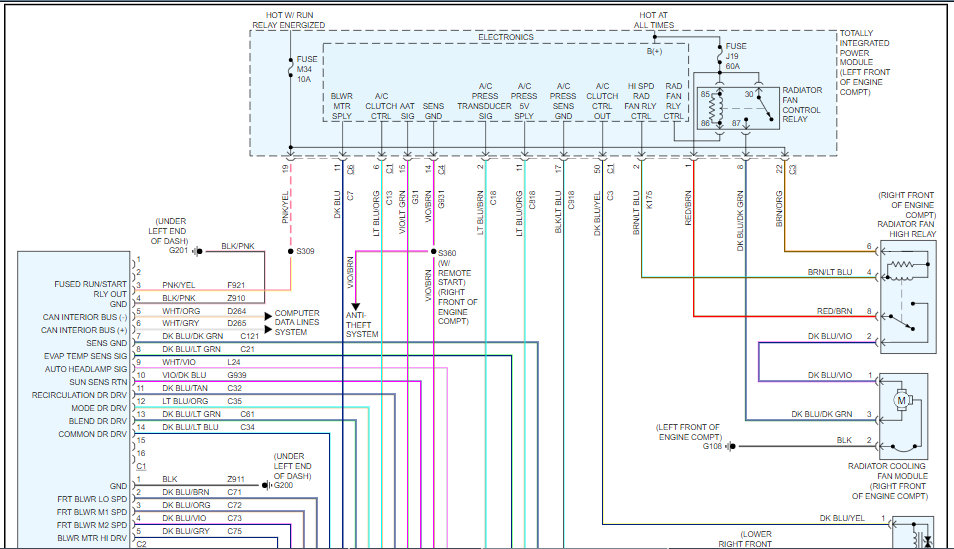

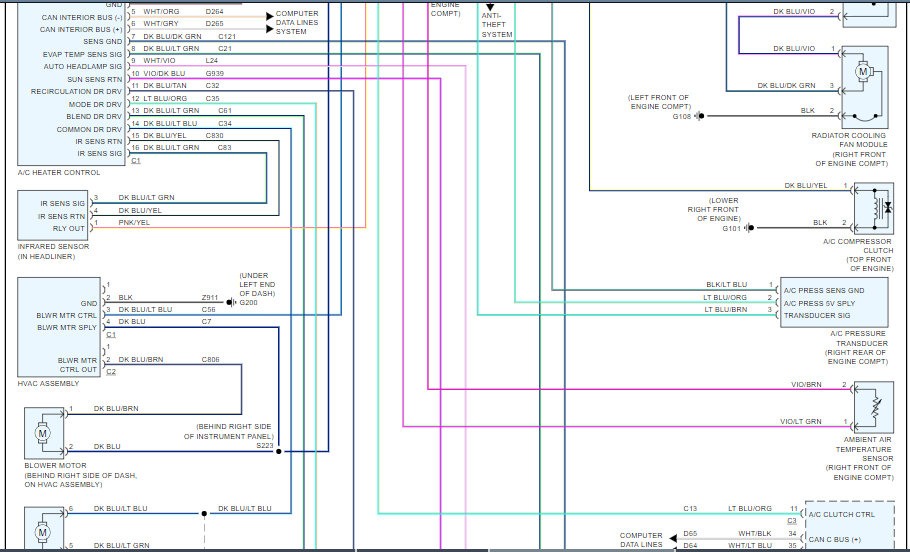

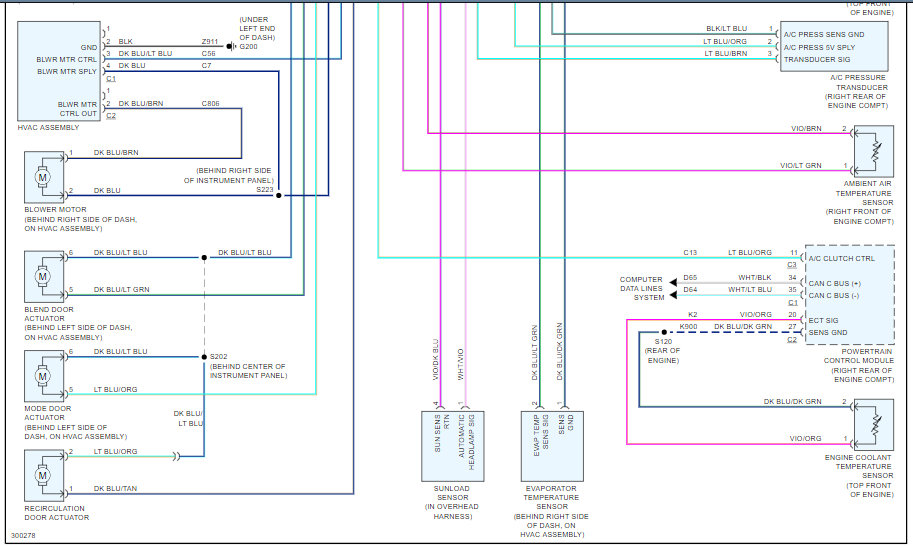

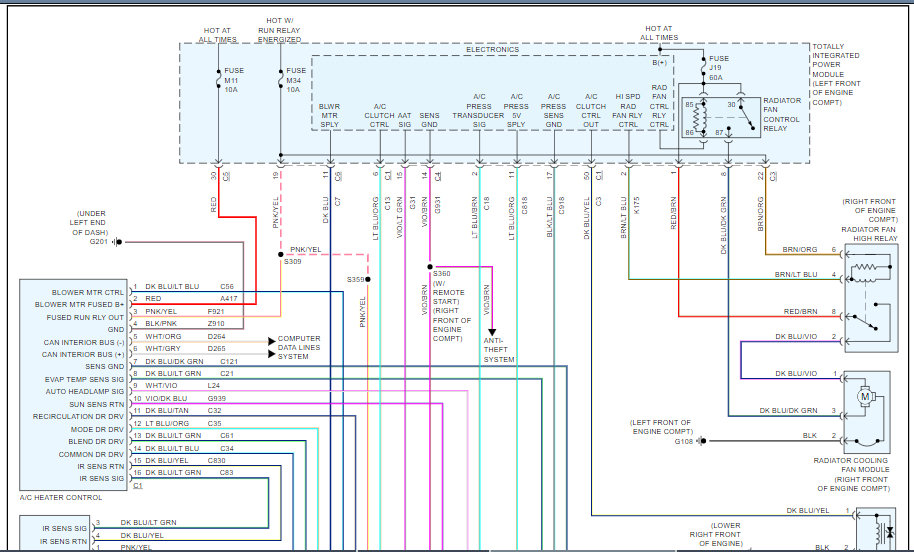

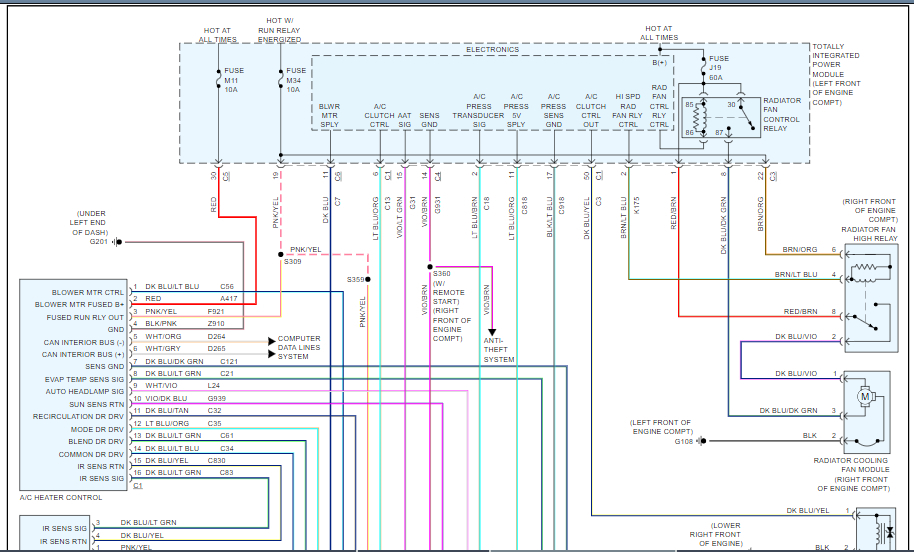

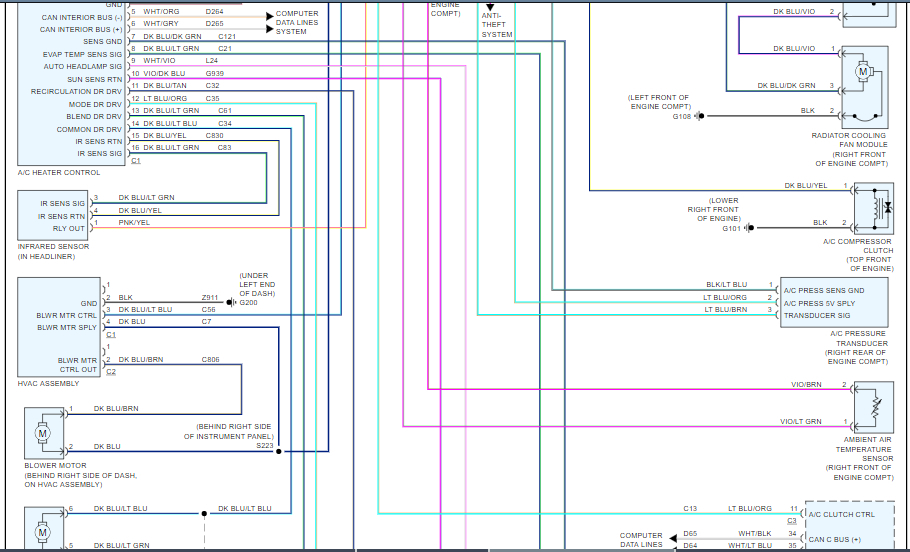

I've attached the wiring diagrams below for your Jeep. I've cut the pictures into 3 pieces each so you can view larger. The first 3 pictures are for an automatic system and the last 3 are for a manual system. Hope this helps and let us know if you have any further questions on this issue. Thanks for using 2CarPros.

Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Monday, August 30th, 2021 AT 3:26 AM
