No crank no start

Tiny
DANIEL NICHOLAS RAVESE JR
  • MEMBER
  • 2007 CHRYSLER SEBRING
  • 2.4L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 130,000 MILES
No power to starter signal wire, replaced broken ground terminal. Need wiring diagram, starter relay location if not part of TIPM itself. Thank you in advance.
Monday, November 11th, 2019 AT 5:25 PM

3 Replies

Tiny
DANNY L
  • MECHANIC
  • 5,648 POSTS
Hello, I'm Danny.

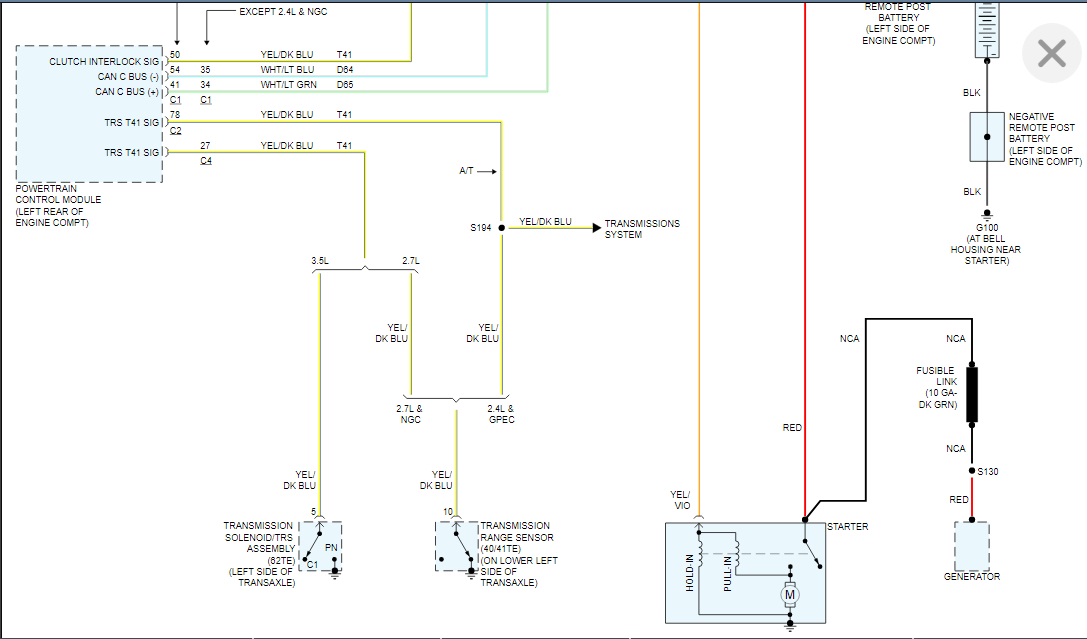

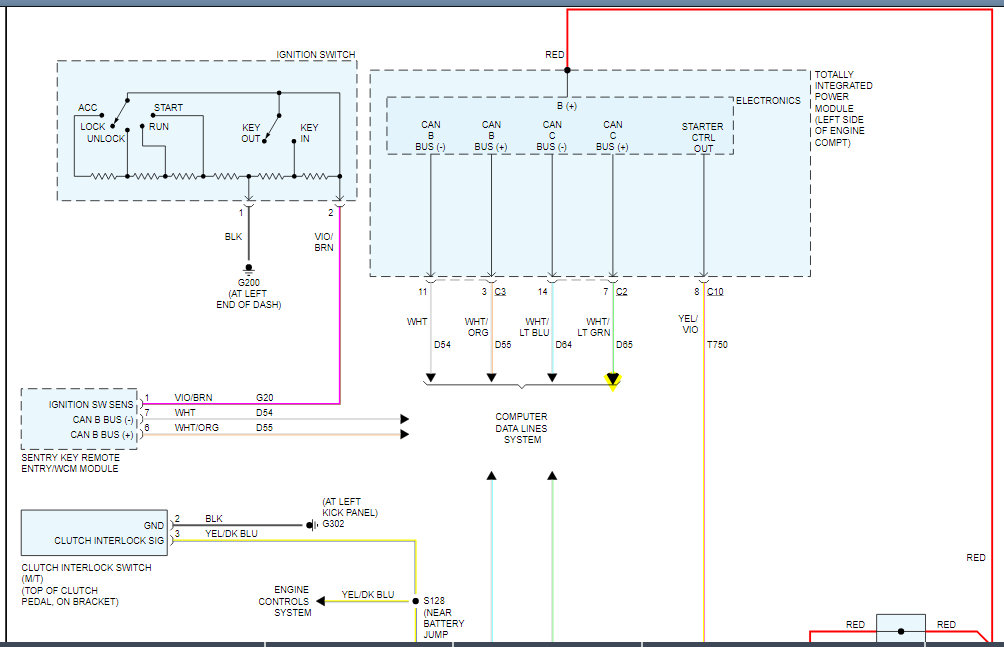

I've attached the wiring diagram you requested below.I cut it in 2 pieces to make larger. Hope this helps and thanks for using 2CarPros.
Images (Click to make bigger)
Thumb
Thumb
