No brake lights

2006 CHRYSLER 300
80,000 MILES • 5.7L • 2WD • AUTOMATIC
Avatar
BRUCE AMOS
  • MEMBER
  • 1 POST
Fuses good, replaced brake pedal switch, have 12v to switch, placed jumper to plug on harness brake lights came, connected everything together, no brake lights. Lost in space. help!
Jul 20, 2019 at 10:01 AM
Advertisement
Avatar
ASEMASTER6371
  • ✓ASE Certified Mechanic
  • 52,796 POSTS
  • ASE Certified Mechanic

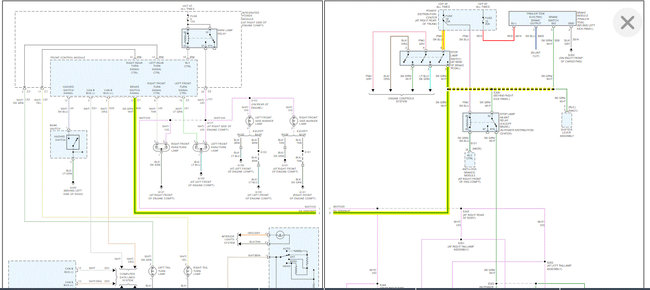

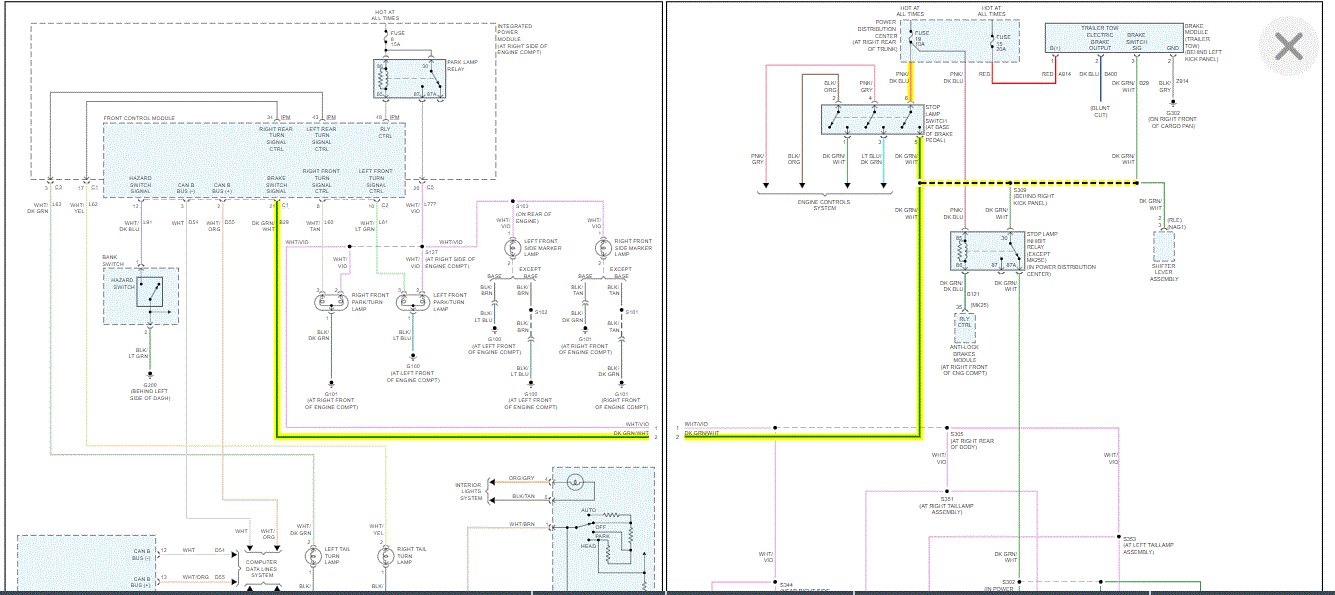

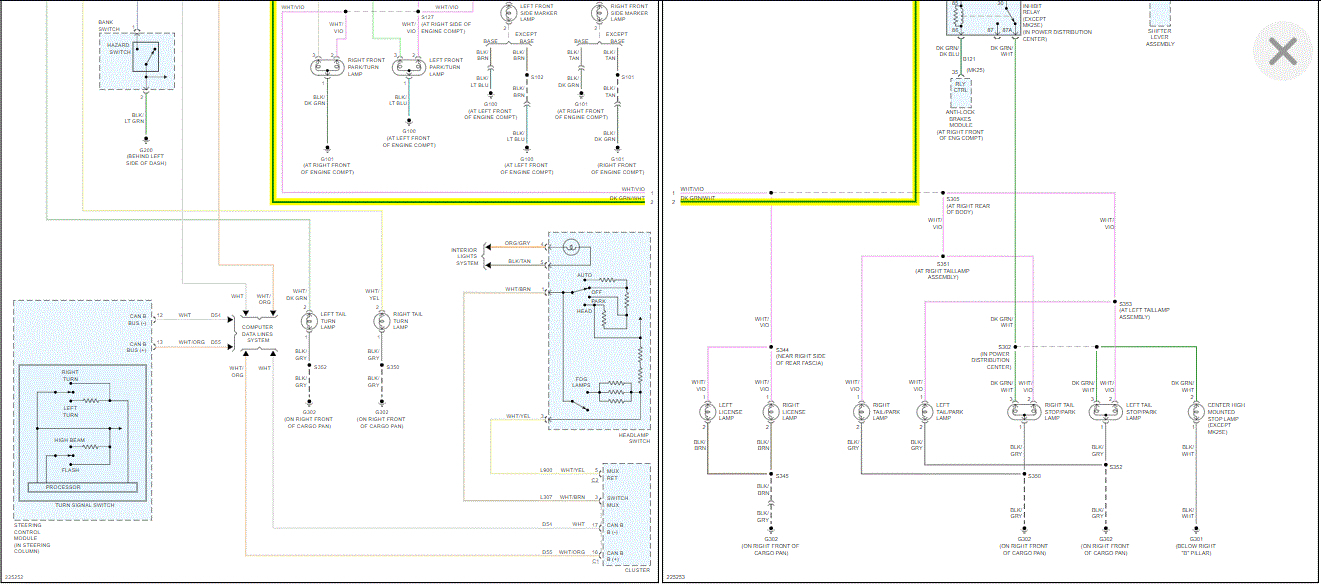

I attached larger diagrams for you to view.

Let me know when you want to do some testing. You need to verify power in and out of the switch.
