need wiring diagram for radiator cooling fan relay

1987 CHRYSLER LE BARON
245,251 MILES • 2.2L • 4 CYL • TURBO • 2WD • AUTOMATIC
Avatar
BONESMIKE
  • MEMBER
  • 21 POSTS
need to know where each wire on relay goes and what color
Jul 23, 2019 at 7:39 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Welcome to 2carpros.com

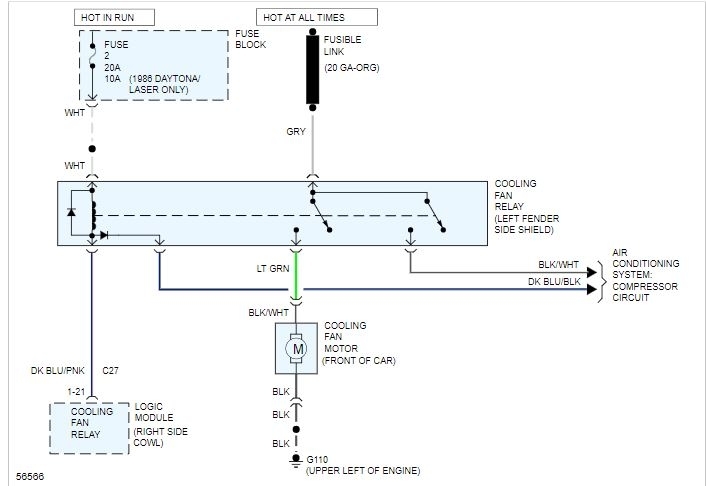

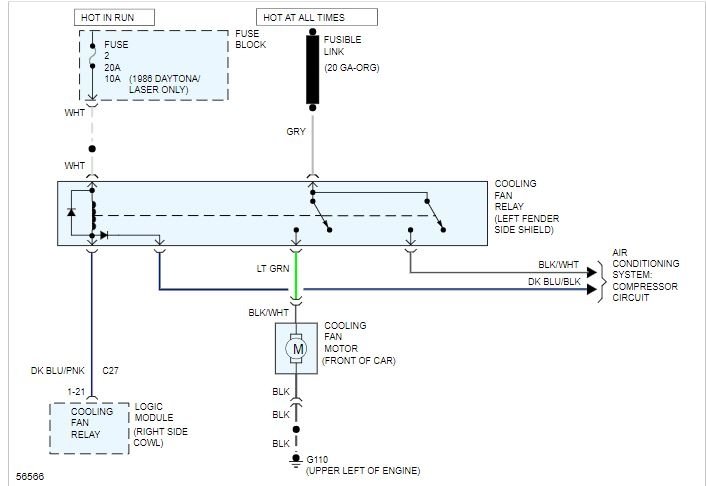

I attached the schematic for the 2 door coupe. If it is something different, let me know. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Take care,
Joe
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
