Need the belt diagram for the serpentine belt

Tiny
MARIMAR80
  • MEMBER
  • 2013 VOLKSWAGEN PASSAT
  • 2.5L
  • 5 CYL
  • 2WD
  • AUTOMATIC
  • 89,000 MILES
I replaced the alternator but do not remember the serpentine belt routing.
Thursday, November 3rd, 2016 AT 6:42 AM

1 Reply

Tiny
JIS001
  • MECHANIC
  • 3,411 POSTS
Hello,

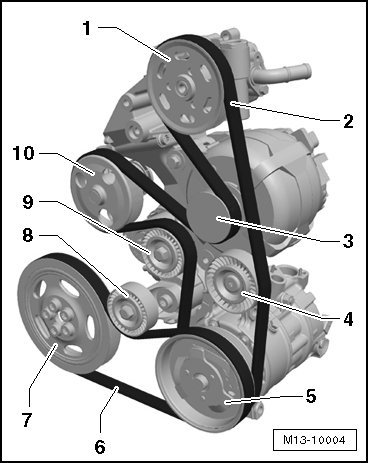

Here is a guide to help you get the belts changes with a belt routing diagrams so you can see how it goes below.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Image (Click to make bigger)
