Need PCM/UCM wiring diagrams please

Tiny
TENOR
  • MEMBER
  • 2004 CHRYSLER SEBRING
  • 2.7L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 186,000 MILES
Need PCM/UCM schematic. VIN:1C3EL55R34N160887 wiring diagrams please
Thursday, April 22nd, 2021 AT 9:45 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,665 POSTS
Here is a guide to help you test the wiring with the PCM wiring diagrams in the diagrams below:

https://www.2carpros.com/articles/how-to-check-wiring

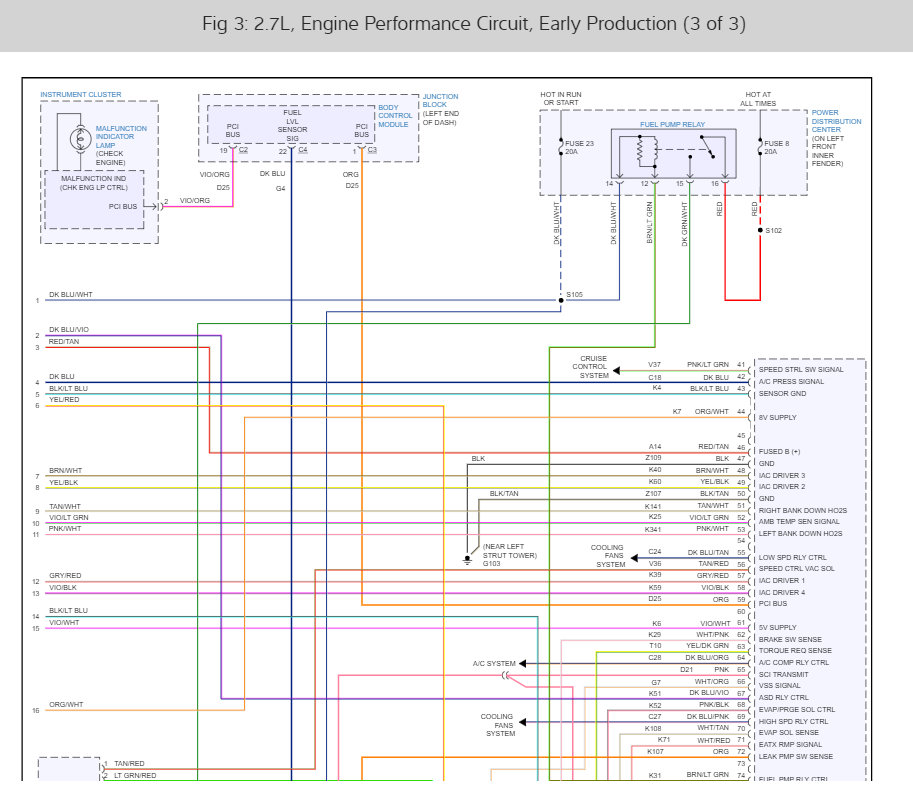

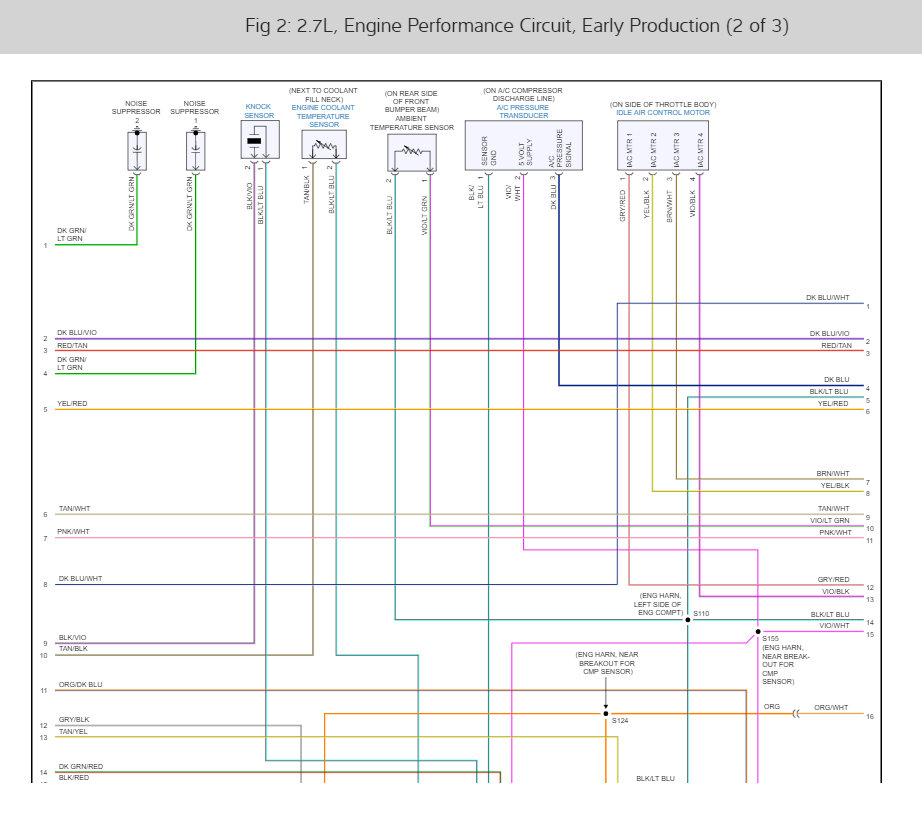

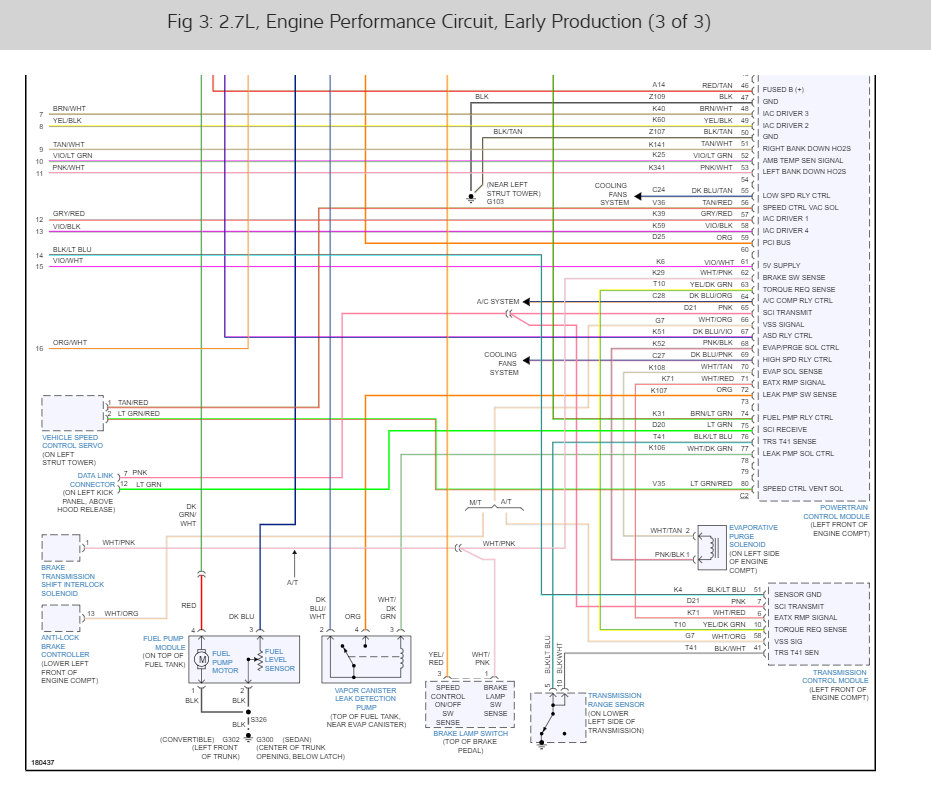

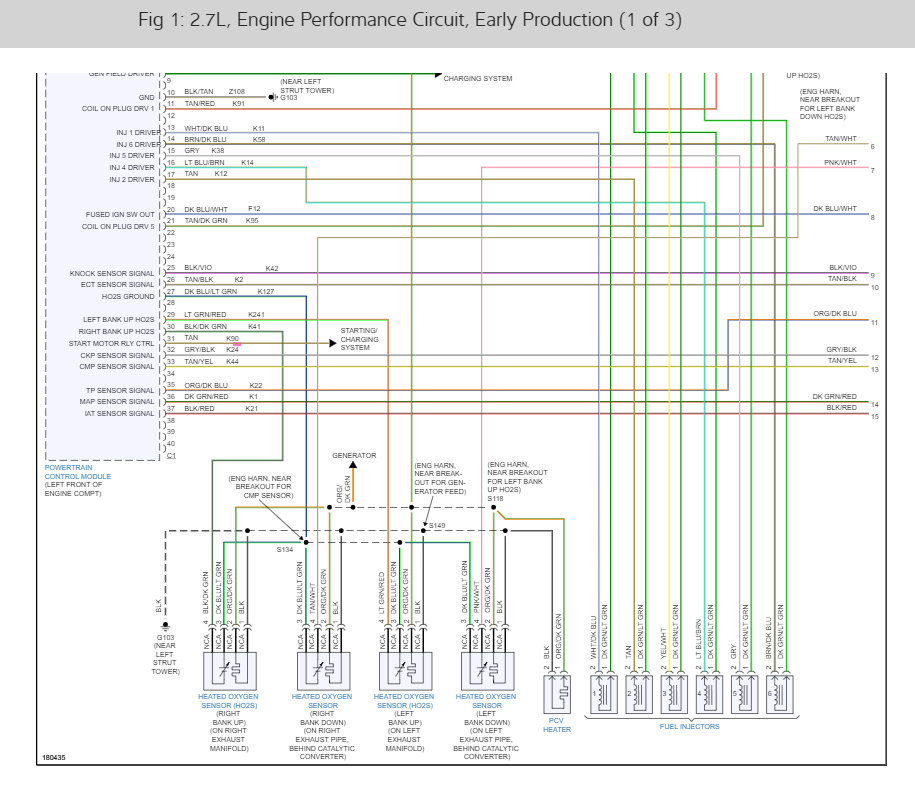

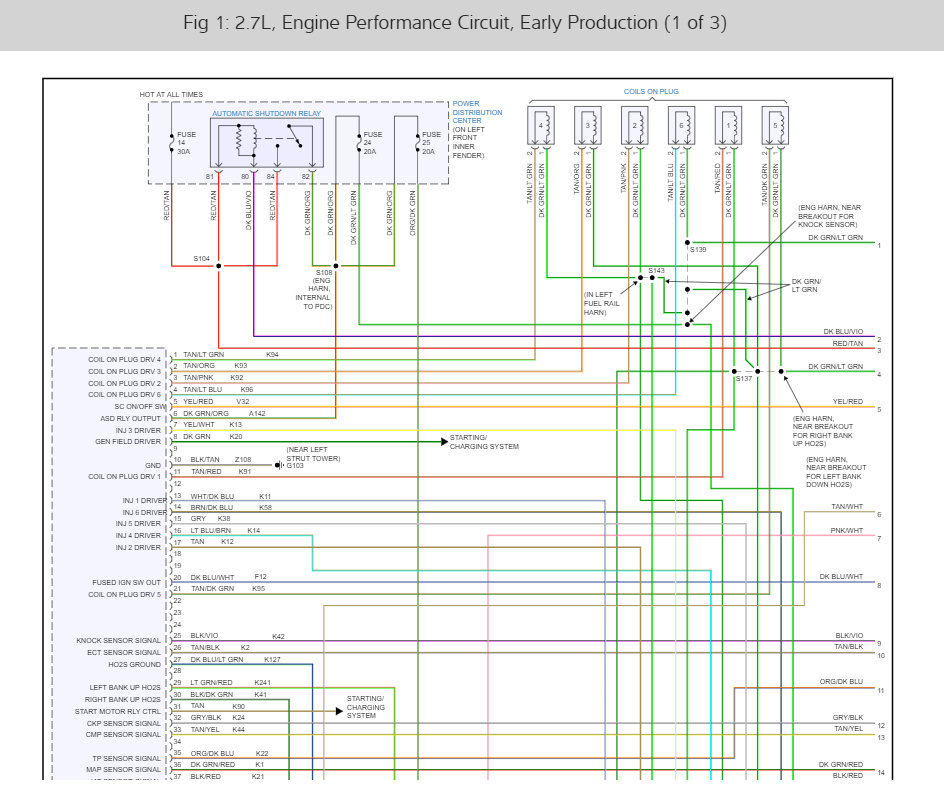

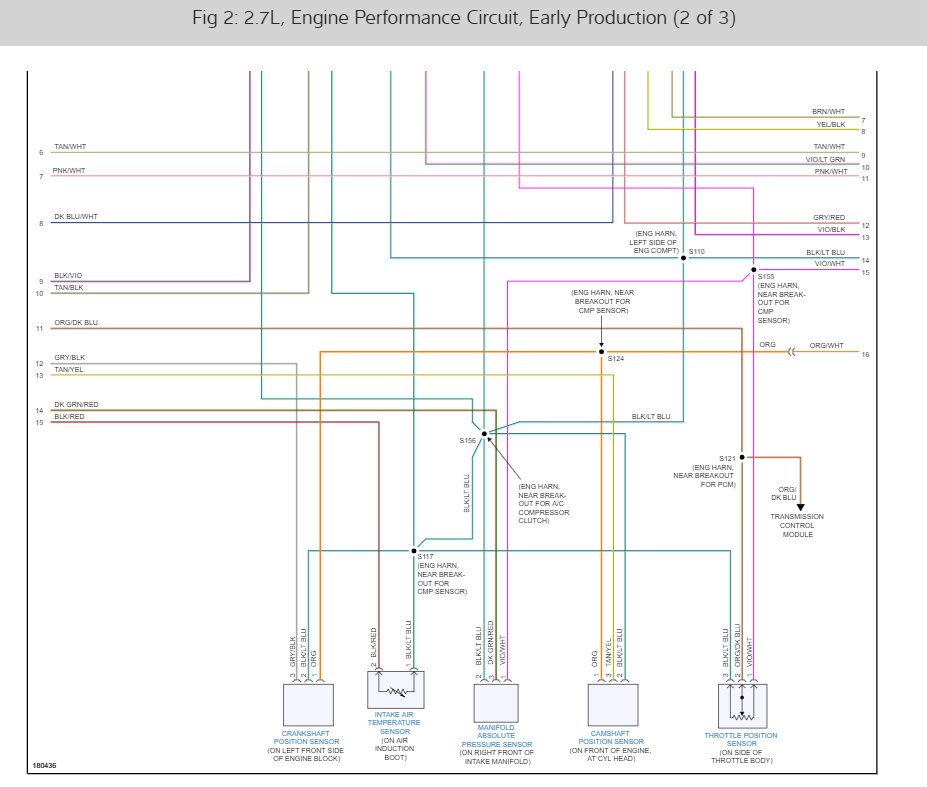

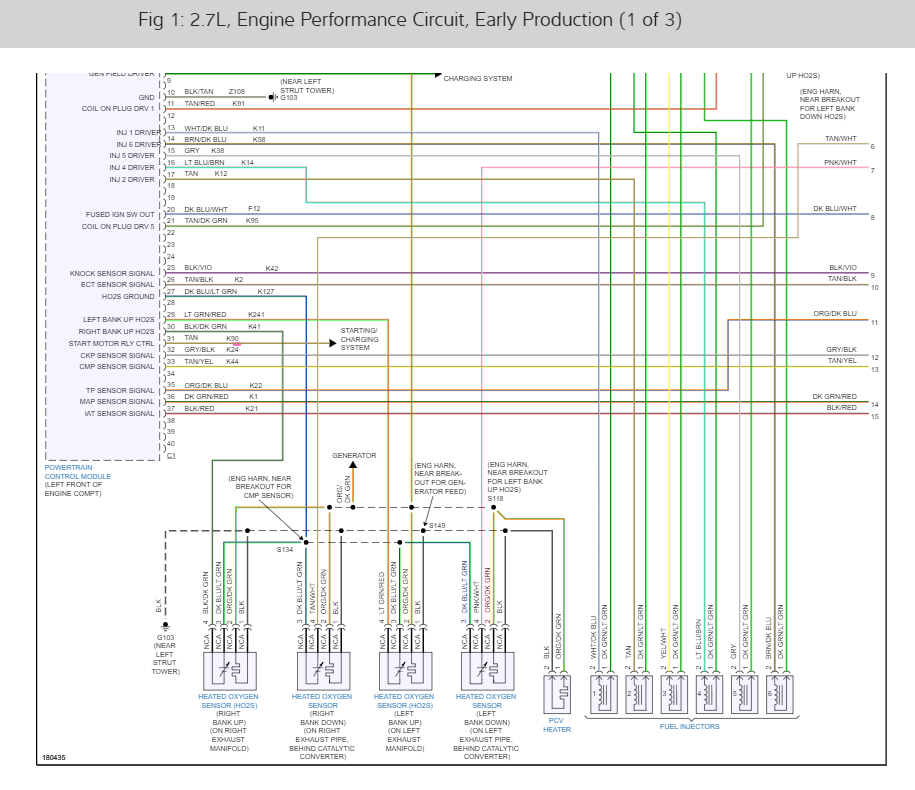

Check out the diagrams (below). Please let us know what happens.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
