Need Electrical diagram

2002 FORD RANGER
160,000 MILES • 4.0L • V6 • 4WD • AUTOMATIC
Avatar
JUAN PERKINS
  • MEMBER
  • 1 POST
Not charging did check on alternator alternator is good check the wiring to the alternator all voters are good except black and white wire in the middle stator it has a low voltage I need a wiring diagram of the electrical system
Mar 26, 2016 at 8:15 AM
Advertisement
Avatar
HMAC300
  • ✓ASE Certified Mechanic
  • 48,601 POSTS
  • ASE Certified Mechanic

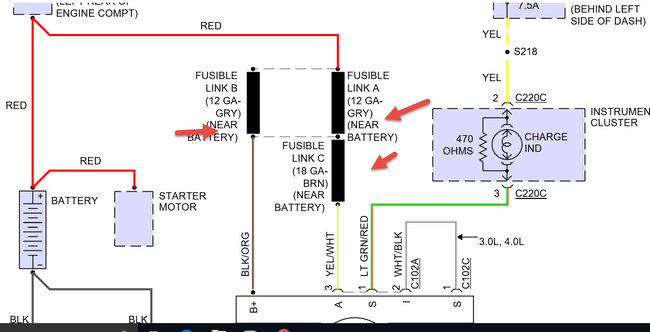

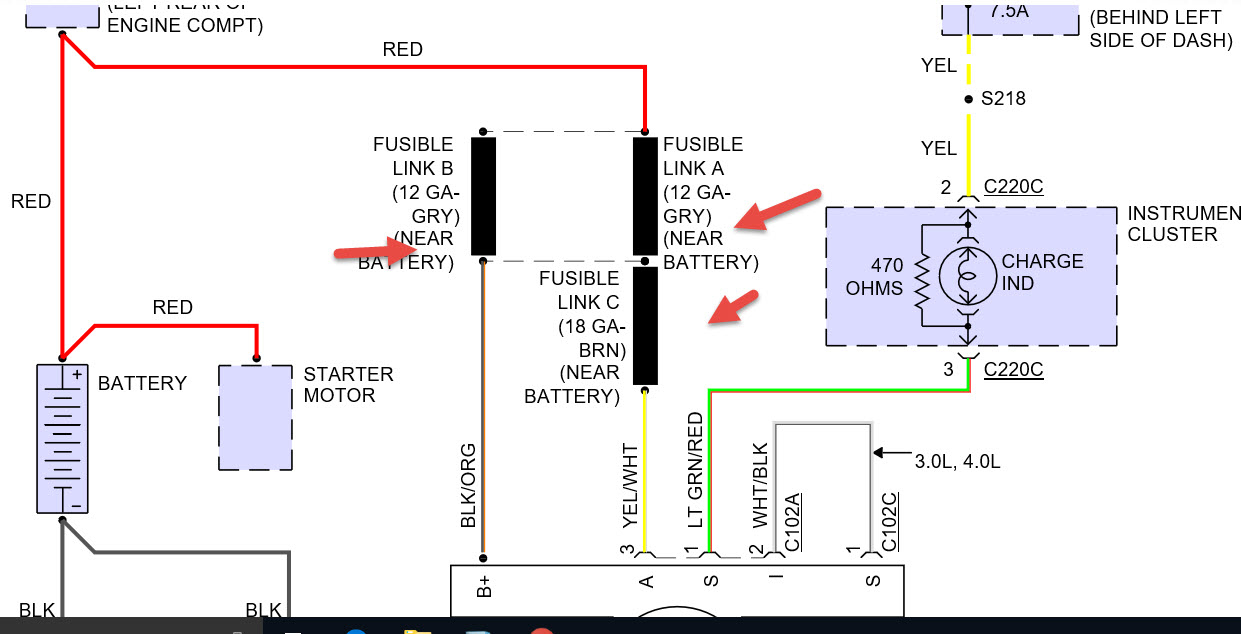

see pic and check fusible links as well as belt and tensioner both should be replaced at 60,000
Image (Click to enlarge)
