Need Diagram for timing Chain

2007 SUZUKI XL7
98,000 MILES • 3.6L • 6 CYL • FWD • AUTOMATIC
Avatar
BEAR55
  • MEMBER
  • 1 POST
Instructions on timing chain on the car listed above.
Aug 10, 2016 at 8:50 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,214 POSTS
Hey Bear,

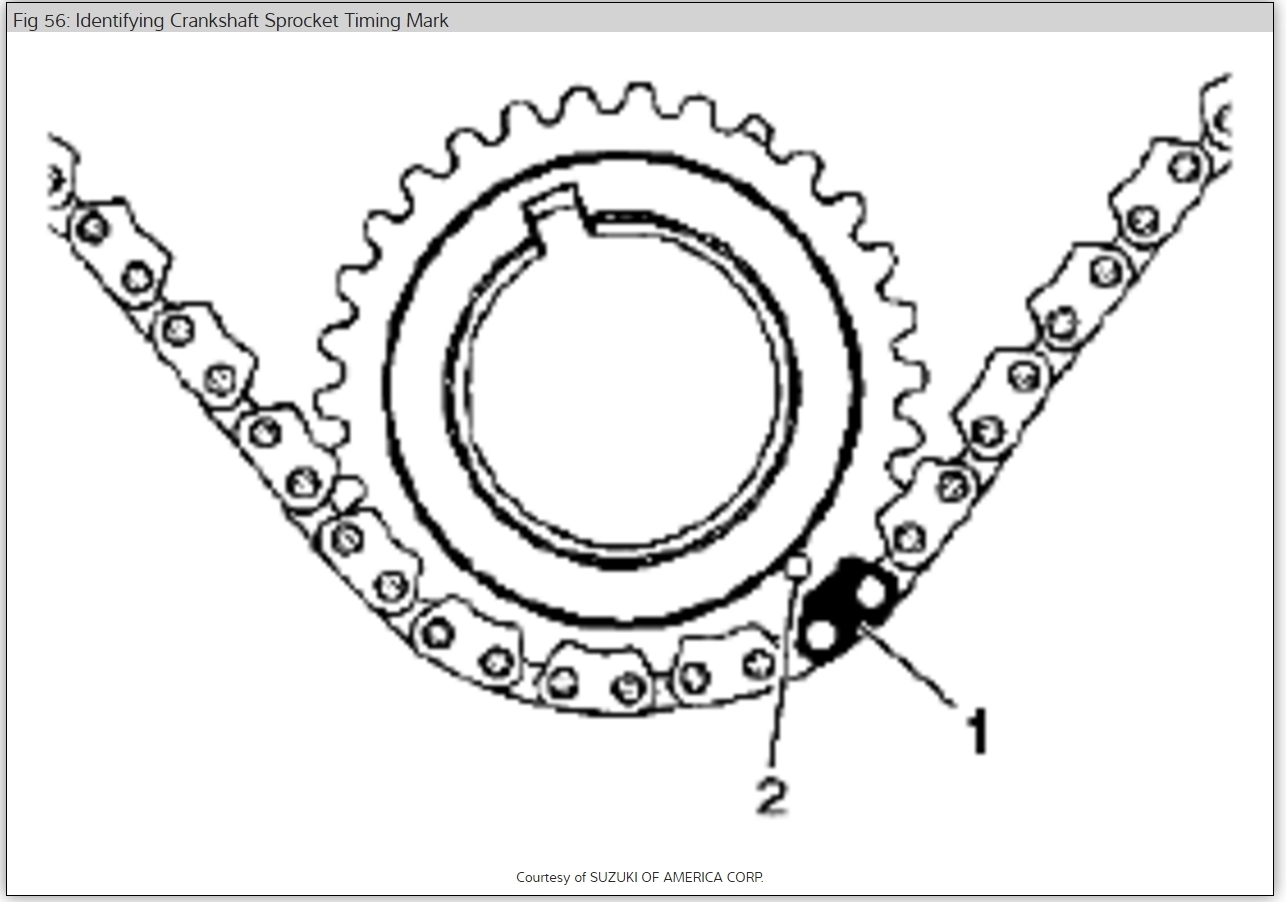

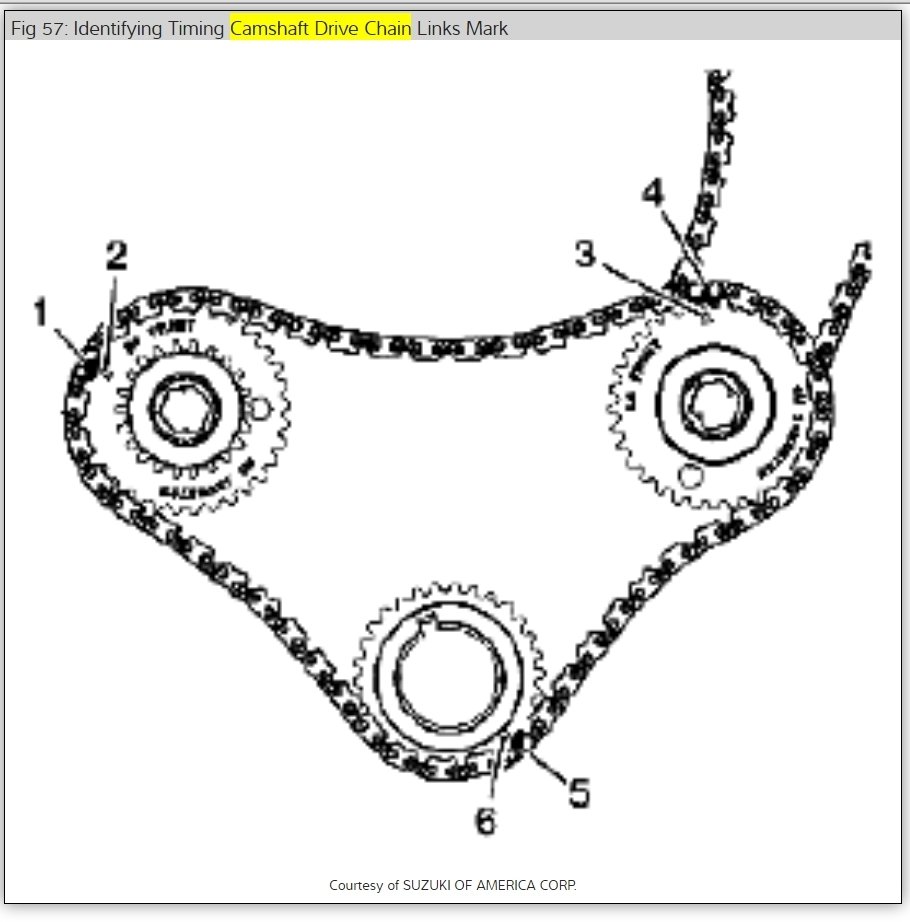

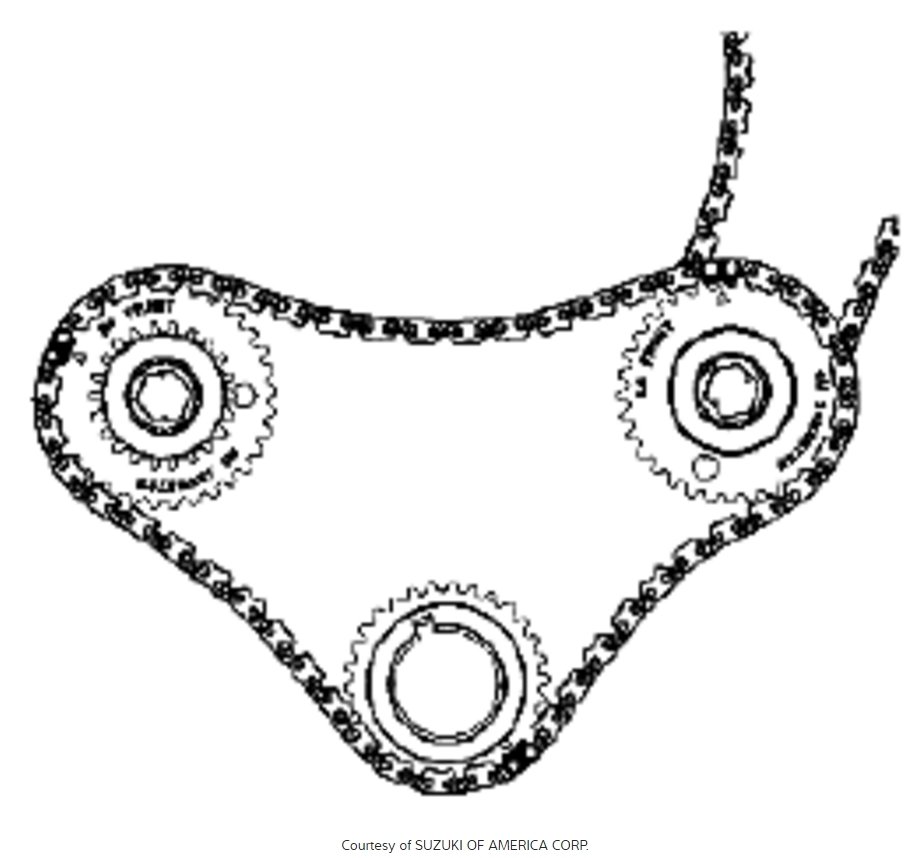

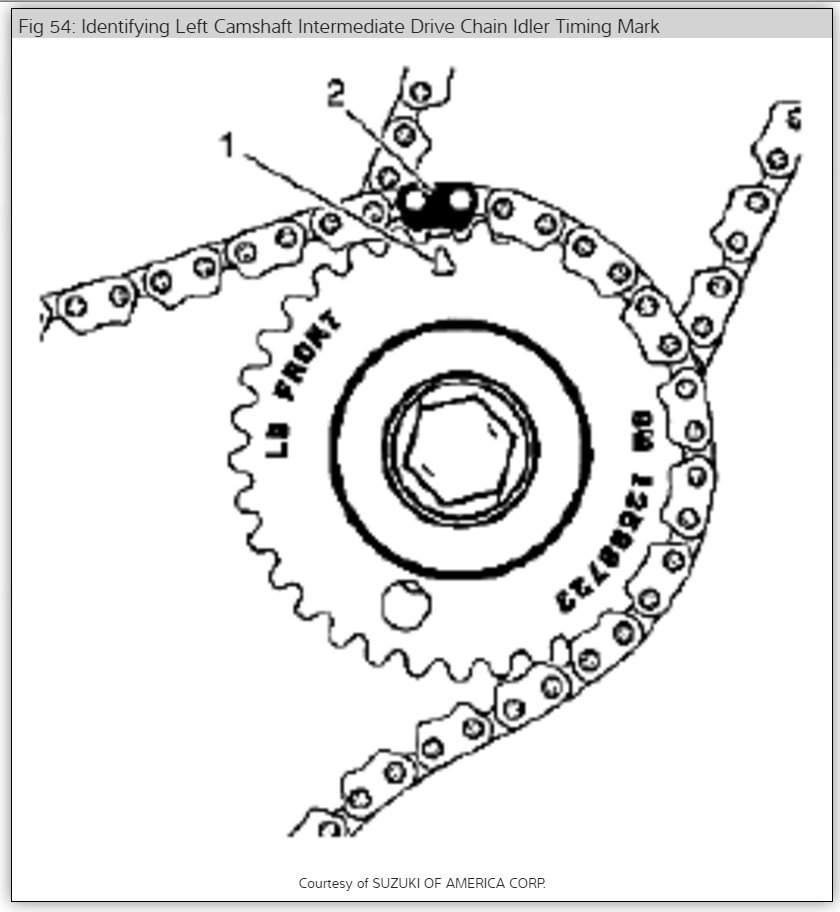

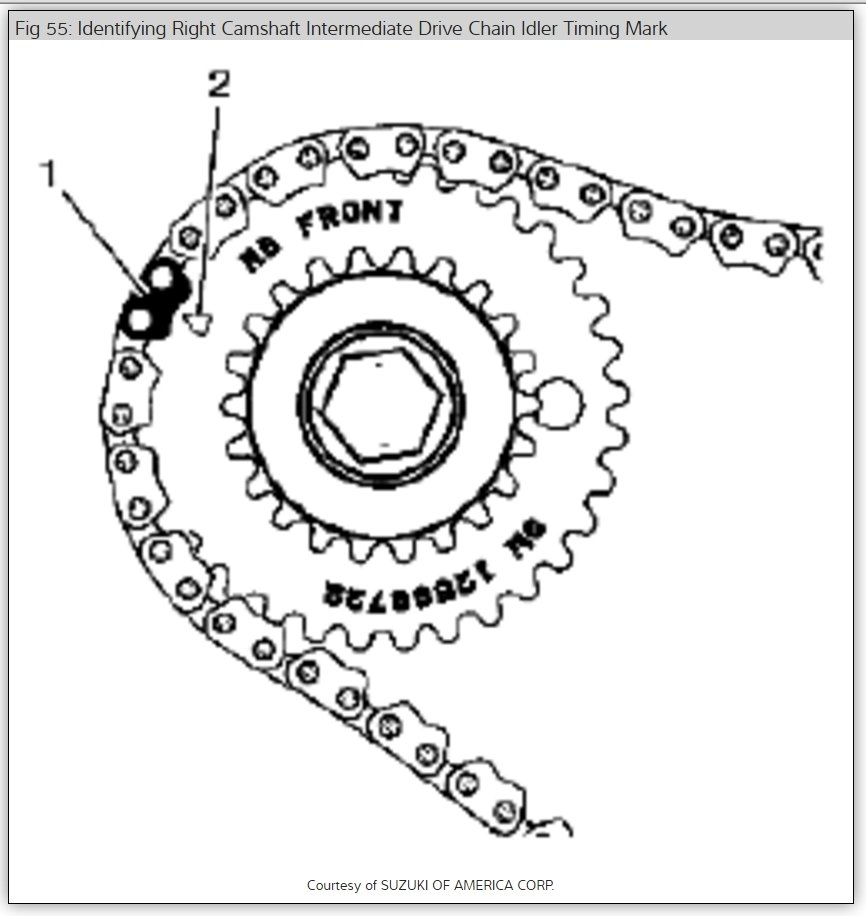

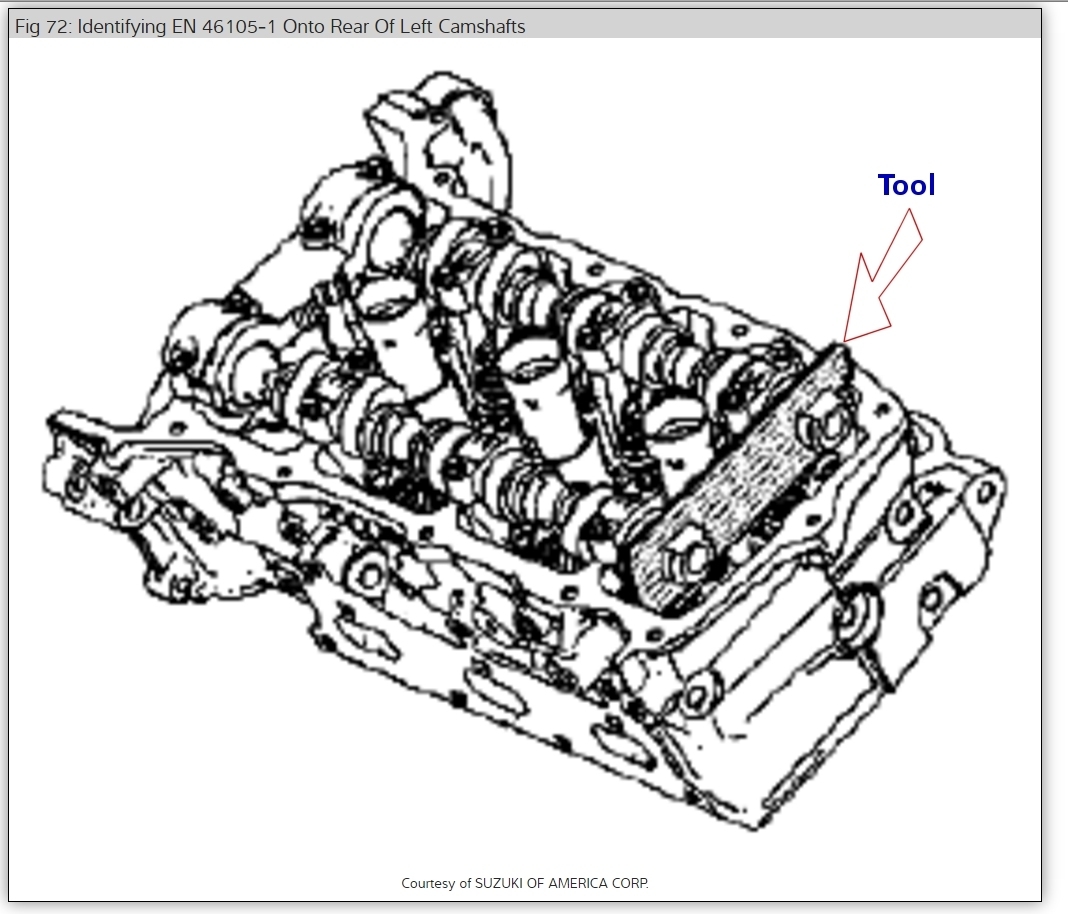

This is a big job, must be fun ! Here are the diagrams you need to make it happen, let us know if you need anything else, we are here to help

Best, Ken
