Can I get the Transfer Case Electrical Diagram?

2000 FORD EXPLORER
160,000 MILES • 4.0L • 6 CYL • 4WD • AUTOMATIC
Avatar
JOHNG1771
  • MEMBER
  • 7 POSTS
I have the vehicle listed above with a 4.0L SOHC with a Borg 4405-15 Transfer Case with Traction on Demand. It contains two speed sensors. One for the output shaft located by the fill plug with three wires (gray/red, blue, and green). The second sensor is located by the shift motor and also has three wires (gray/red, black/green, and green). I am looking for the full electrical diagram that includes the GEM, TOD Relay, shift relay, etc. Any help would be greatly appreciated.

Thanks
Mar 29, 2022 at 3:35 PM
Advertisement
Avatar
CARADIODOC
  • ✓ASE Certified Mechanic
  • 34,321 POSTS
  • ASE Certified Mechanic

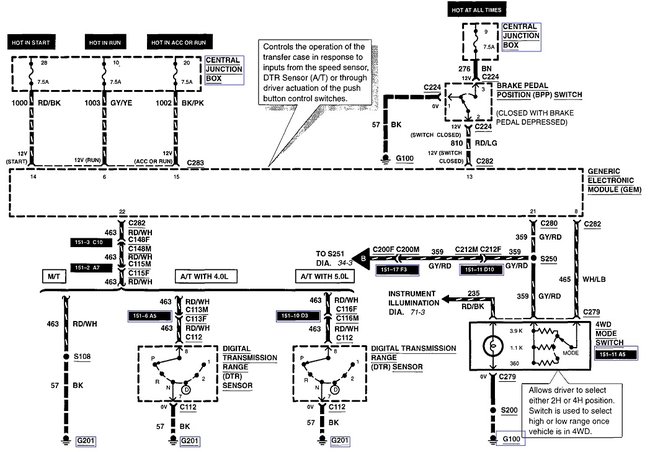

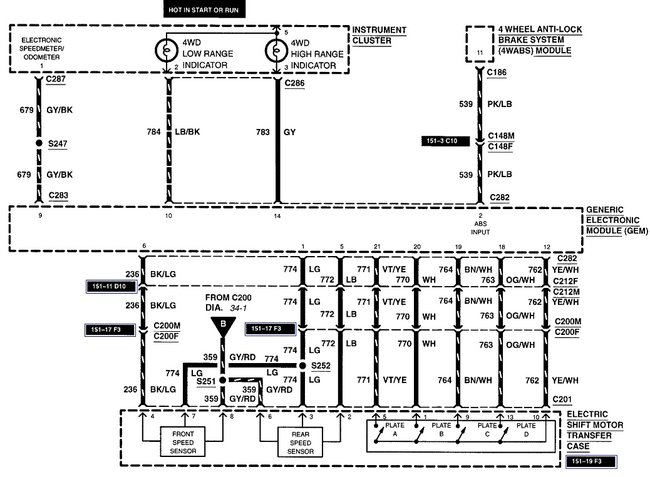

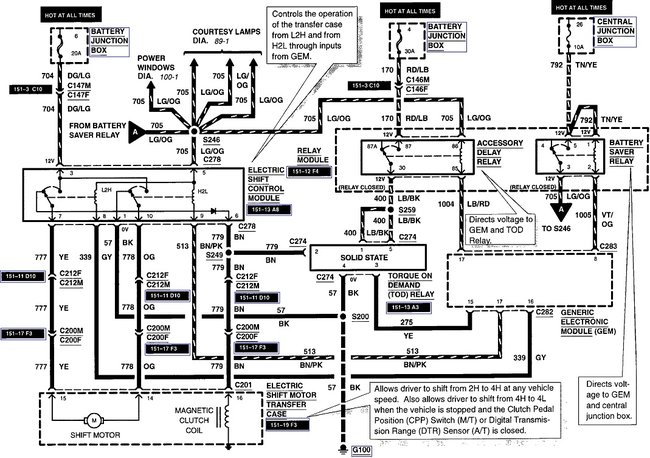

Here's what I found for the transfer case. The two speed sensors are at the bottom left of the third diagram.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 29, 2022 at 3:53 PM
Avatar
JOHNG1771
  • MEMBER
  • 7 POSTS
Thanks for the diagrams. I will use them this weekend to troubleshoot my 4wd system.
