Can you help me with transmission wiring?

Tiny
SENGA
  • MEMBER
  • 2000 NISSAN 180SX
  • 4 CYL
  • 4WD
  • AUTOMATIC
  • 150,000 MILES

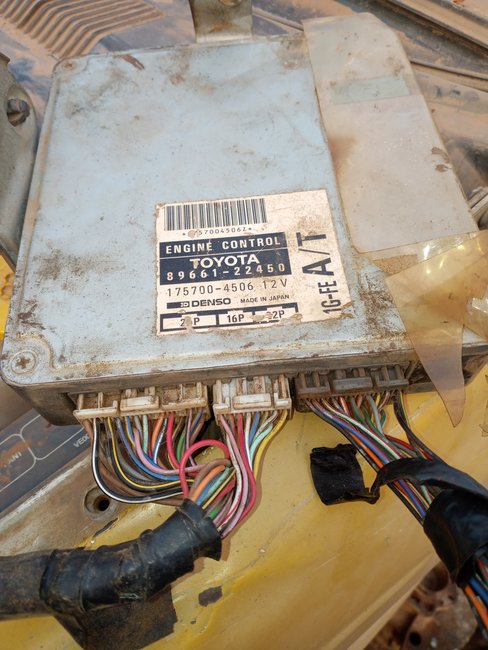

I have a serious problem with my other car. It is a long time to explain but I really need your help. My question is like this. I had a car "Nissan England". I removed its original engine and modified it with another engine "3s ipsum Noah 4 cylinder" and the electrician has installed or wires now the car can start on for its own. I also changed the automatic transmission and I put on ''1GE FE distributor' for which I am using the following Engine control. While the technician was wiring up the transmission, he disappeared without finishing up wiring transmission. Below are pictures of the installation he was performing which was stopped in half. There is also a connector he didn't wiring up. I would ask the terminals for those cables to the engine control. I have been studying how car electrical systems work and trying to make some installations because I have to an objective of finishing up my car myself, with your help, and put it on road. Now is 7 month my car is in garage. Please guide me on how I will continue this installation of my Automatic transmission and perform it successfully. I will be grateful. Here below are terminals for those connectors on my Automatic transmission.
Saturday, August 27th, 2022 AT 1:33 PM

14 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS

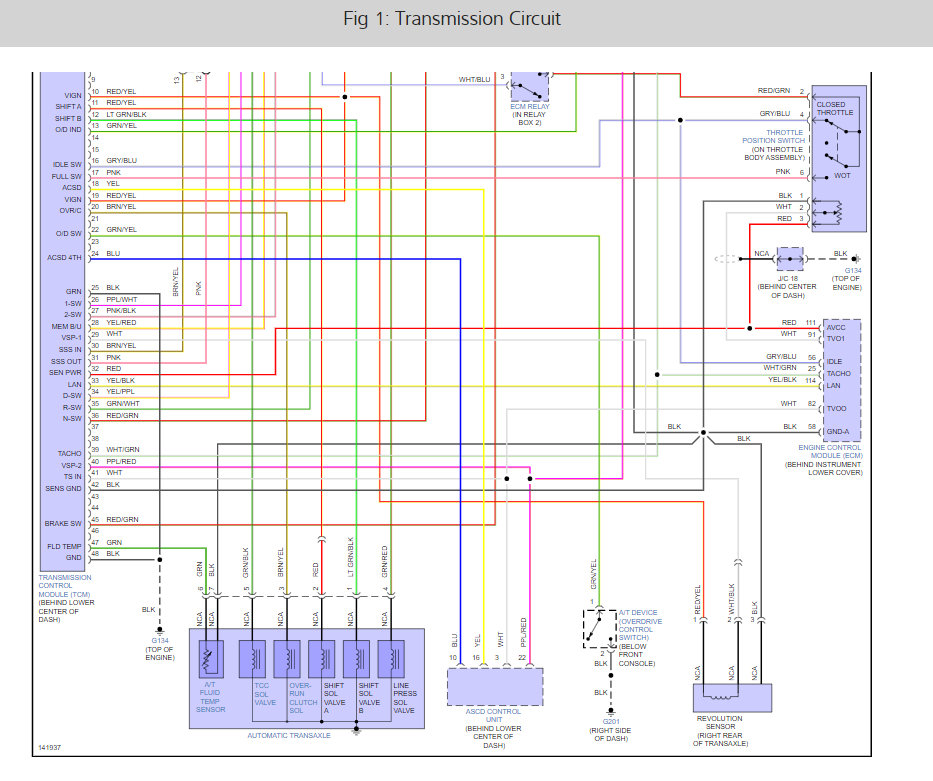

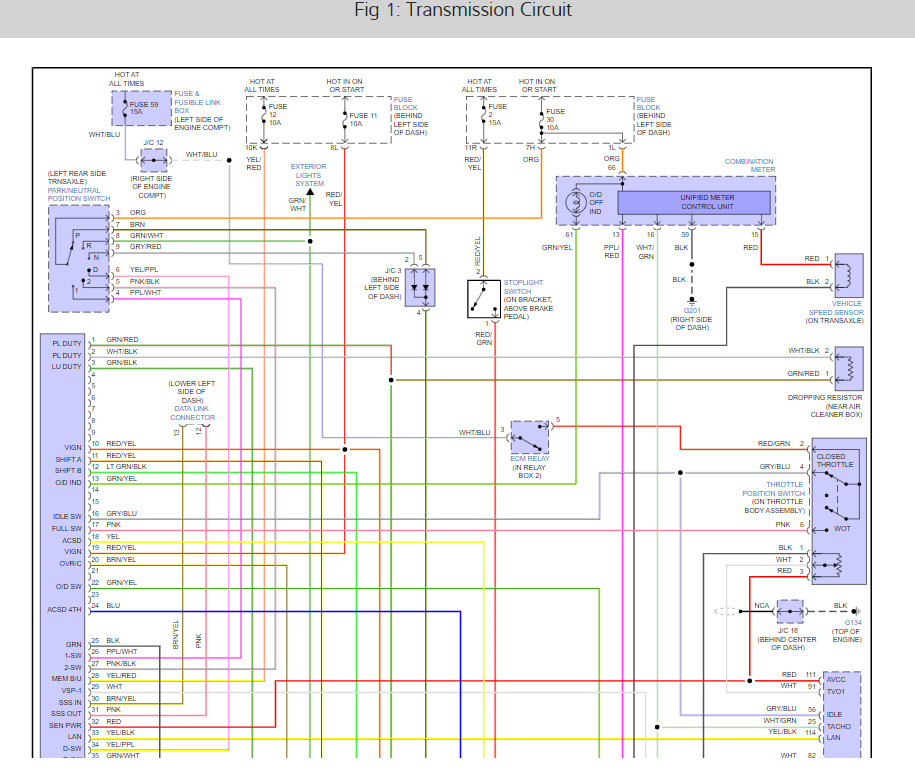

That looks like a transmission speed sensor. Here is a guide to help with the wiring testing and connections along with the transmission wiring diagrams in the images below:

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Was this
answer
helpful?
Yes
No
Sunday, August 28th, 2022 AT 10:35 AM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
Diagrams above don't show the terminal of wire at downside.
Was this
answer
helpful?
Yes
No
Sunday, August 28th, 2022 AT 1:08 PM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
I would like to ask for diagrams for below connectors.
Was this
answer
helpful?
Yes
No
Sunday, August 28th, 2022 AT 1:54 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
The one looks like the rear of the transmission. And where does the other connector go?
Was this
answer
helpful?
Yes
No
Monday, August 29th, 2022 AT 12:39 PM
Tiny
SENGA
  • MEMBER
  • 26 POSTS

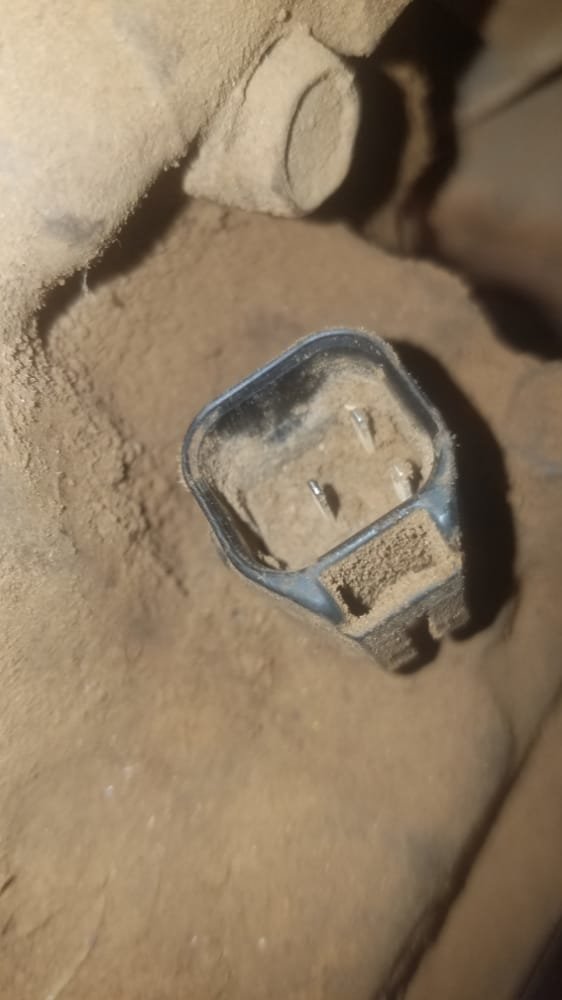

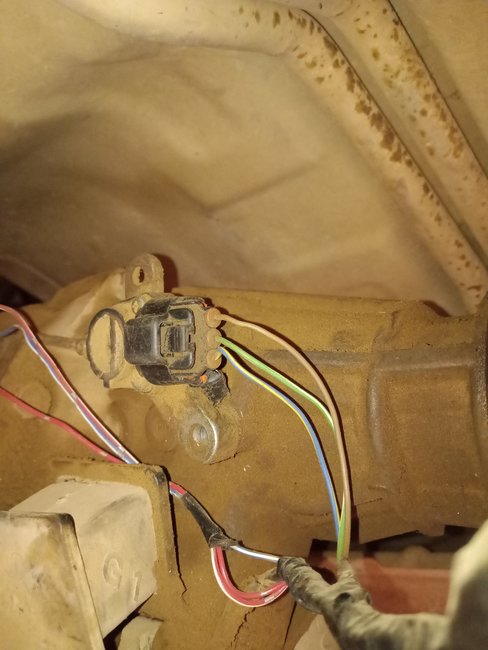

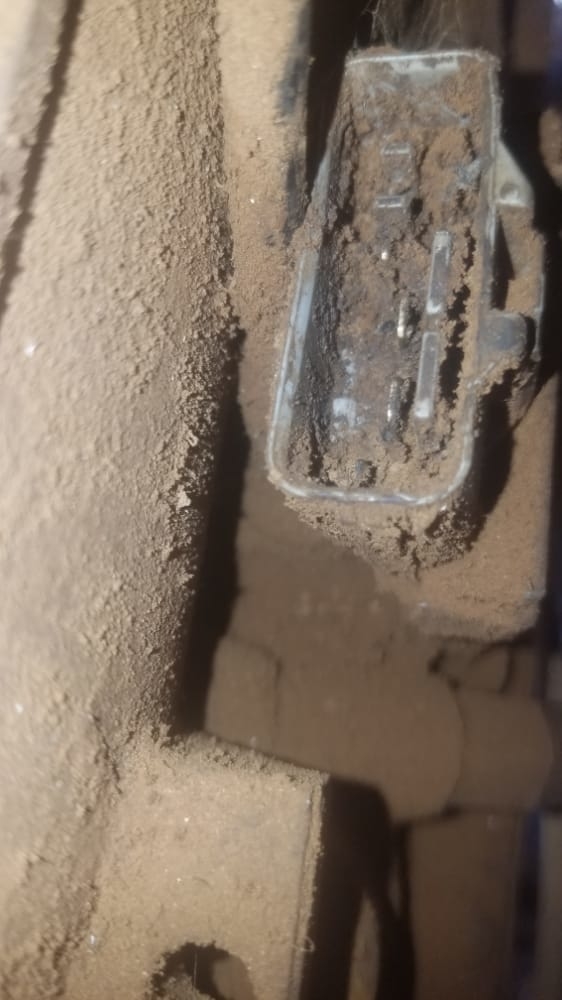

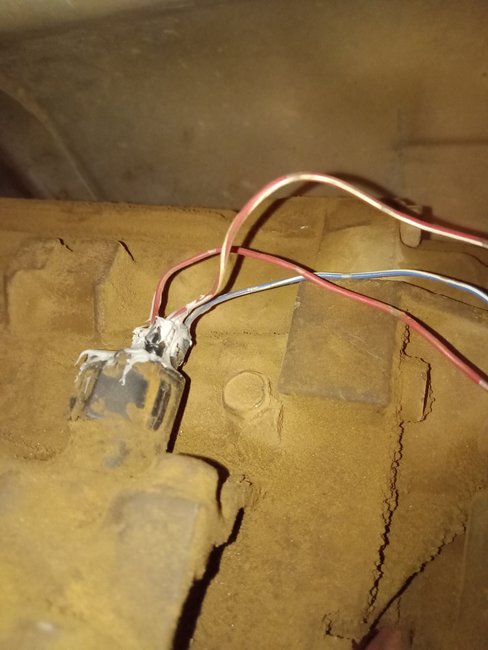

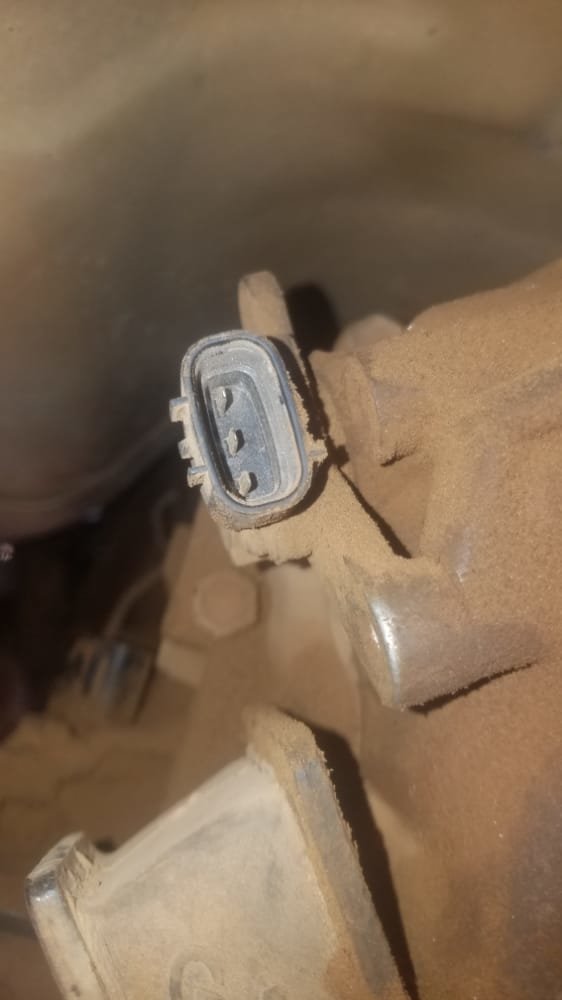

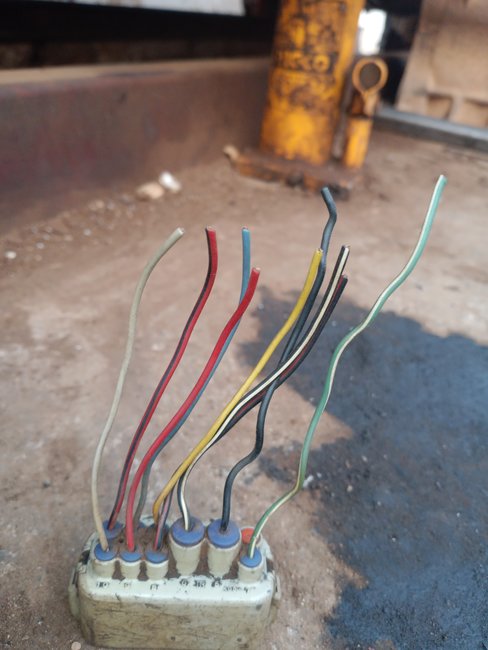

The wire of this connector is combined with the wires of transmission speed. I have provided you pictures of connectors and the wire that are coming from them I would ask if you can help me find their terminals to the engine control. Which is in the picture below.
Was this
answer
helpful?
Yes
No
Tuesday, August 30th, 2022 AT 4:21 AM
Tiny
SENGA
  • MEMBER
  • 26 POSTS

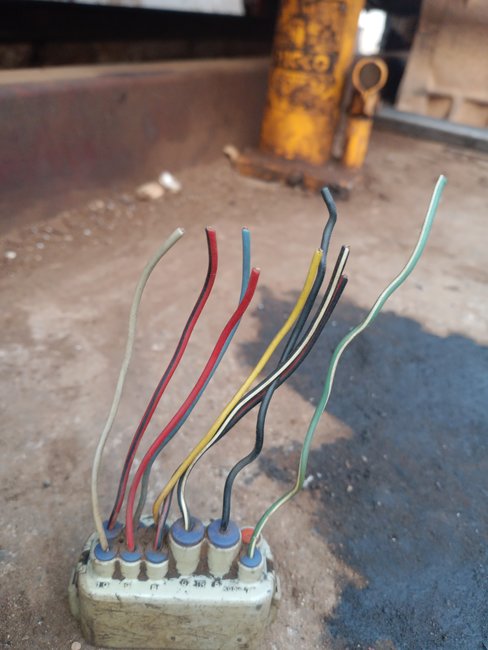

Below are the terminals to transmission of all connectors I have provided you.
Was this
answer
helpful?
Yes
No
Tuesday, August 30th, 2022 AT 4:26 AM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
Below are connectors y to their terminal on Transmission respectively.
Was this
answer
helpful?
Yes
No
Tuesday, August 30th, 2022 AT 4:32 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
Those connectors are very dirty please clean and connectors before you reassemble. Did you look at the transmission wiring diagrams from the above post, and do they seem to match up?
Was this
answer
helpful?
Yes
No
Tuesday, August 30th, 2022 AT 1:13 PM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
Still working on it.
Was this
answer
helpful?
Yes
No
Wednesday, August 31st, 2022 AT 2:46 AM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
They do seem to match up. I would like to ask if the diagram you provided me is for Nissan Elgrand E50.
Was this
answer
helpful?
Yes
No
Friday, September 2nd, 2022 AT 7:00 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
It's the only ones we have for this car sorry.
Was this
answer
helpful?
Yes
No
Friday, September 2nd, 2022 AT 11:52 AM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
Below is the picture for the vehicle I asked for the transmission circuit. The one you have gave me was not for this car.
Was this
answer
helpful?
Yes
No
Saturday, September 3rd, 2022 AT 12:51 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
Sorry again, we don't have this information.
Was this
answer
helpful?
Yes
No
Monday, September 5th, 2022 AT 8:50 AM
Tiny
SENGA
  • MEMBER
  • 26 POSTS
Okay, thanks.
Was this
answer
helpful?
Yes
No
Monday, September 5th, 2022 AT 11:02 PM
