1990 Mercedes Benz 300ce fan belt diagrahm

Tiny
ASALANKEY1
  • MEMBER
  • 1990 MERCEDES BENZ 300CE
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 113,000 MILES
I was wondering if I could get the fand belt diagram please and thank you
Friday, August 14th, 2009 AT 4:11 PM

1 Reply

Tiny
BLUELIGHTNIN6
  • MECHANIC
  • 16,542 POSTS

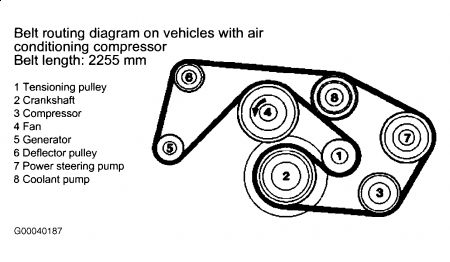

Your vehicle should be equipped with electronic fans, not belt driven. your serpentine belt diagram is below..


https://www.2carpros.com/forum/automotive_pictures/261618_Graphic_109.jpg
