1997 Mazda 626 Diagram for Vacuum System

1997 MAZDA 626
151,000 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
BZUMWALT
  • MEMBER
  • 1 POST
My son has a 1997 Mazda 626 and there is a hose that has come unplugged. We are not sure where it goes and are looking for some sort of diagram to troubleshoot where it belongs. He does have the EGR code showing. We are hoping this lose hose has something to do with it.

Does anyone know where I could find an online diagram?
Aug 5, 2010 at 5:23 PM
Advertisement
Avatar
BLUELIGHTNIN6
  • ✓ASE Certified Mechanic
  • 16,542 POSTS
  • ASE Certified Mechanic

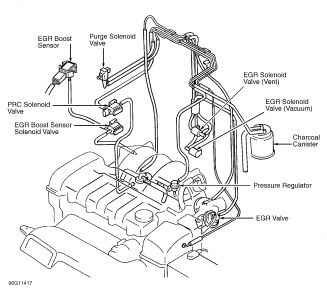

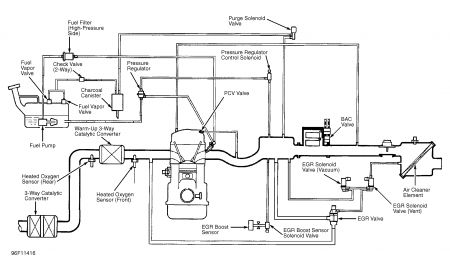

2.0L vacuum diagrams below


https://images.2carpros.com/forum/automotive_pictures/261618_Graphic_631.jpg


https://images.2carpros.com/forum/automotive_pictures/261618_Graphic2_88.jpg

Aug 5, 2010 at 5:50 PM
