Drive Belt Diagram

2008 MAZDA 3
8,000 MILES • 4 CYL • FWD • MANUAL
Avatar
RAMKING
  • MEMBER
  • 1 POST
I am rebuilding a Mazda 3 with the 2.3 turbo and the drive belt was missing. There is no diagram (hood was missing) and I am about to go crazy trying to figure out how to route the belt. Thanks for any help possible!
Dec 29, 2008 at 6:58 PM
Advertisement
Avatar
RACEFAN966
  • ✓ASE Certified Mechanic
  • 5,029 POSTS
  • ASE Certified Mechanic
Hello, here is what I found for you.

https://www.2carpros.com/articles/replace-serpentine-belt

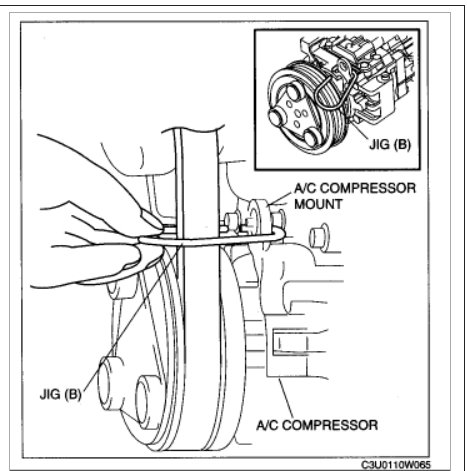

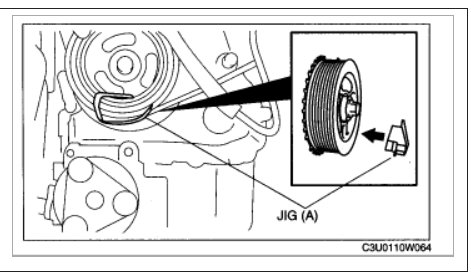

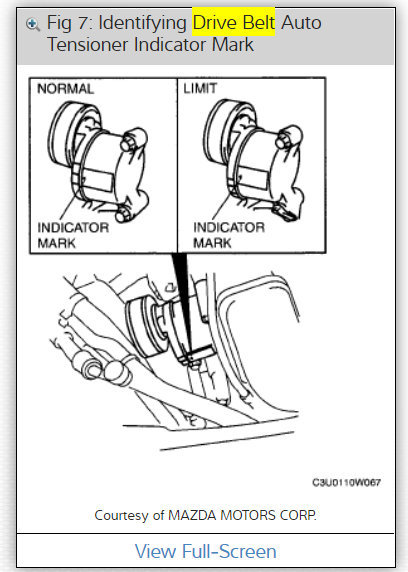

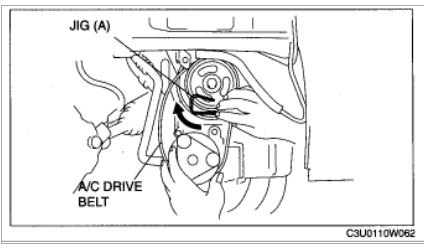

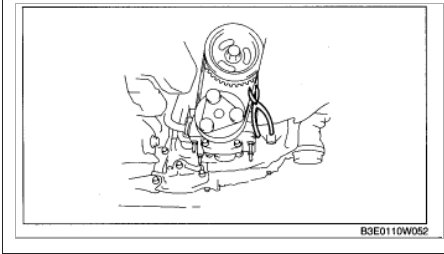

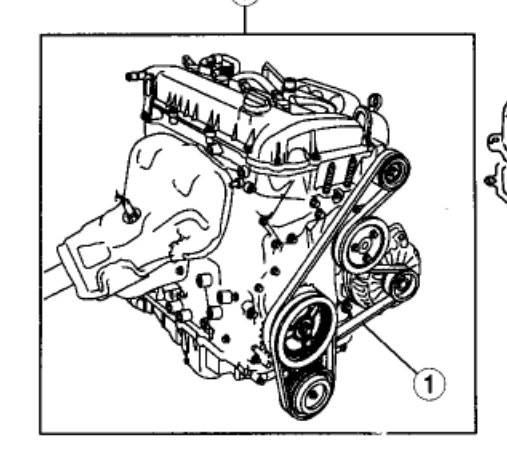

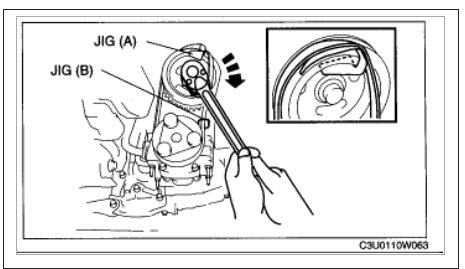

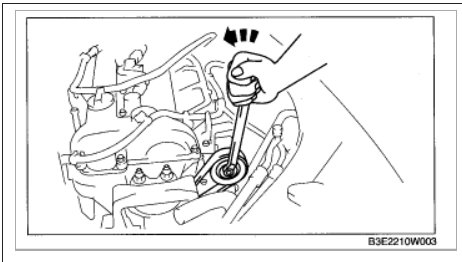

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers
