Looking for wiring schematic for prndl wiring

1997 CHEVROLET TAHOE

208,000 MILES • 5.7L • V8 • 4WD • AUTOMATIC

STUDCHIGGER

MEMBER
3 POSTS

The prndl fuse keeps blowing soon as key is turned on. the pink wire from inside the cab fuse box is melted the plastic off. trying to find out where it runs to.

Jul 29, 2019 at 1:18 PM

SCGRANTURISMO

✓ASE Certified Mechanic
4,897 POSTS

Hello,

Is your Malfunction Indicator Lamp (MIL) or "check engine" lamp illuminated?

Thanks,
Alex
2CarPros

Jul 29, 2019 at 3:00 PM

STUDCHIGGER

MEMBER
3 POSTS

Yes.

Jul 29, 2019 at 3:01 PM

SCGRANTURISMO

✓ASE Certified Mechanic
4,897 POSTS

Hello again,

Could you pull the Direct Trouble Code(s) for us. Here is a link for you to go to if you are unfamiliar with how to do this:

https://www.2carpros.com/articles/checking-a-service-engine-soon-or-check-engine-light-on-or-flashing

Please go through this guide and get back to us with what the DTC(s) are.

Thanks,
Alex
2CarPros

Jul 29, 2019 at 5:17 PM

STUDCHIGGER

MEMBER
3 POSTS

thanks.

Jul 29, 2019 at 6:14 PM

SCGRANTURISMO

✓ASE Certified Mechanic
4,897 POSTS

Hello again,

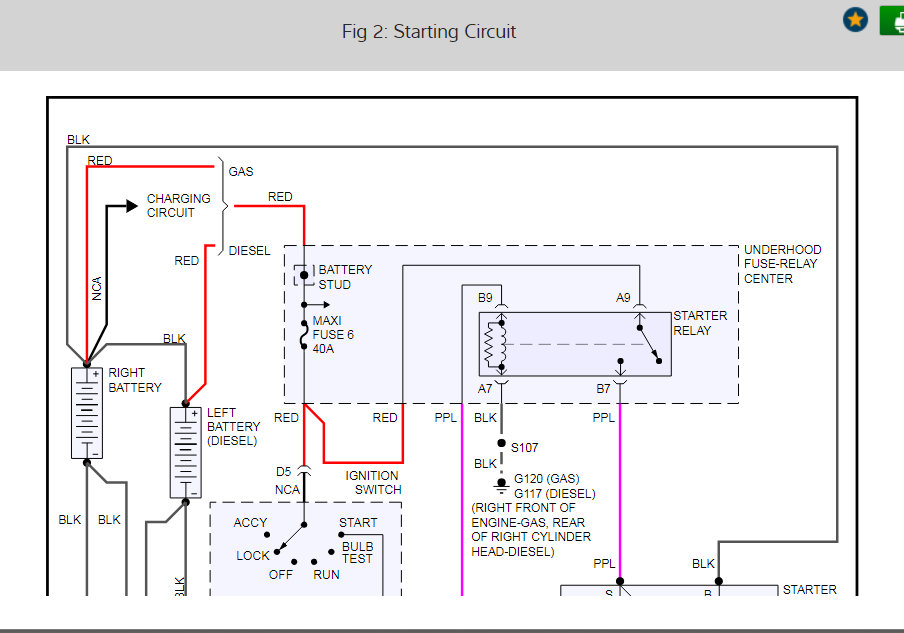

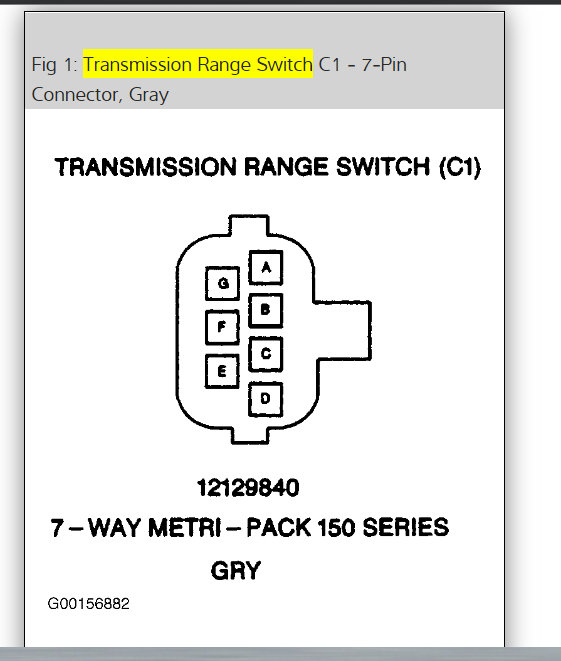

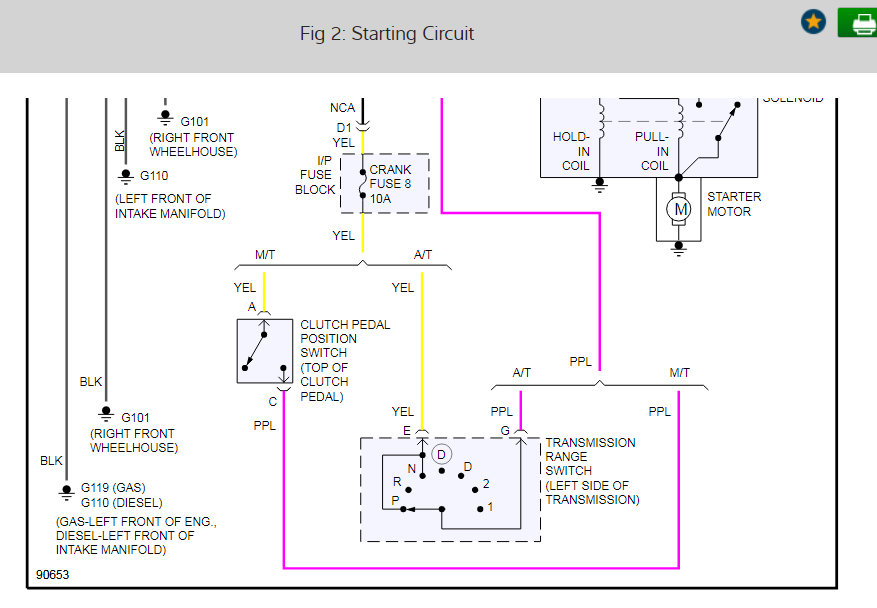

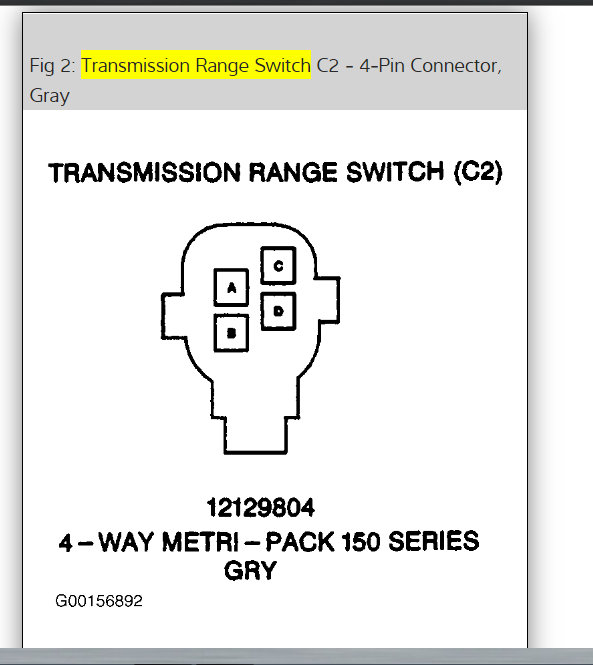

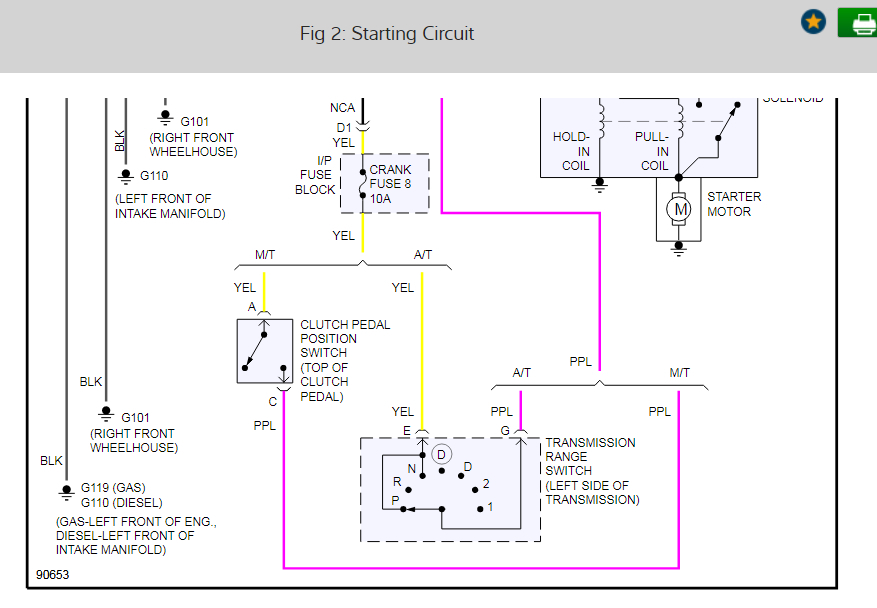

Here is what we have for a wiring diagram for the transmission selector switch. It is from your vehicle's Starting Circuit Wiring Diagram. I have included it in the diagrams down below. If you could get back to us with the DTC(s), we should be able to help you with your vehicle's problem. Please let us know.

Thanks,
Alex
2CarPros

Images (Click to enlarge)

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
