Wiring diagram for lift-gate motor.
Feb 21, 2020 at 4:24 AM
Lift-gate issue need wiring diagram
2012 MERCEDES BENZ ML350
HUSAM
- MEMBER
- 2 POSTS
- FOLLOW
Repair Safety Notice:
This information is for general instructional purposes only. Vehicle repair can be dangerous.
Verify all information, follow manufacturer service procedures, use proper tools and safety equipment,
and consult a qualified repair shop when needed.
Advertisement
Hi,

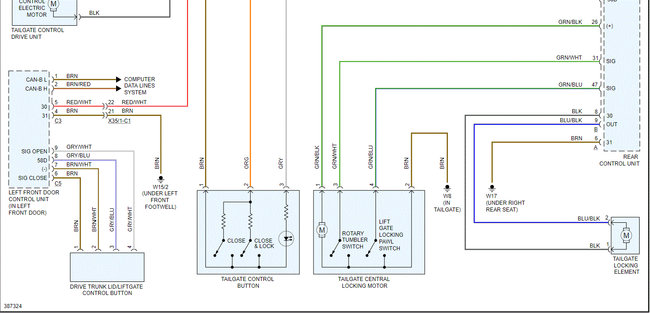

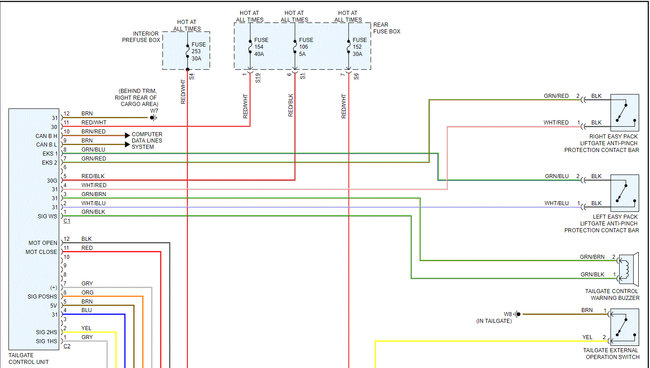

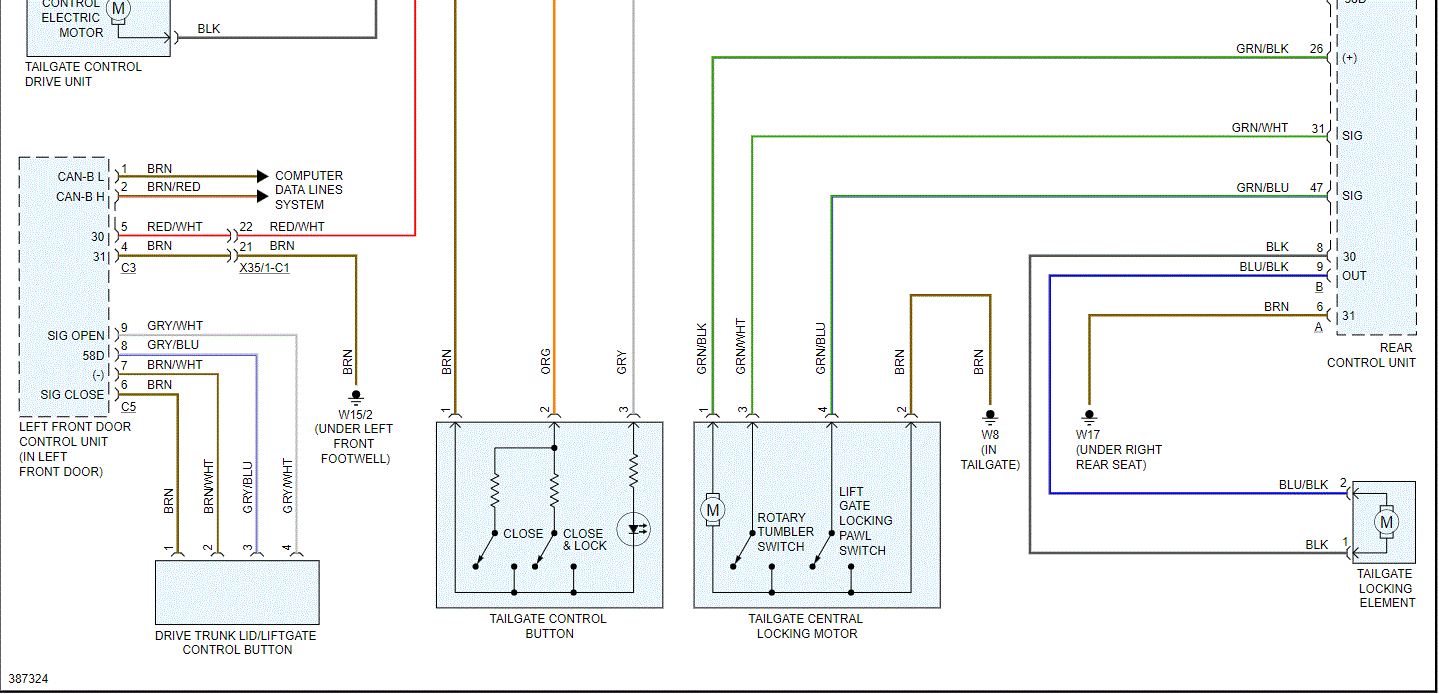

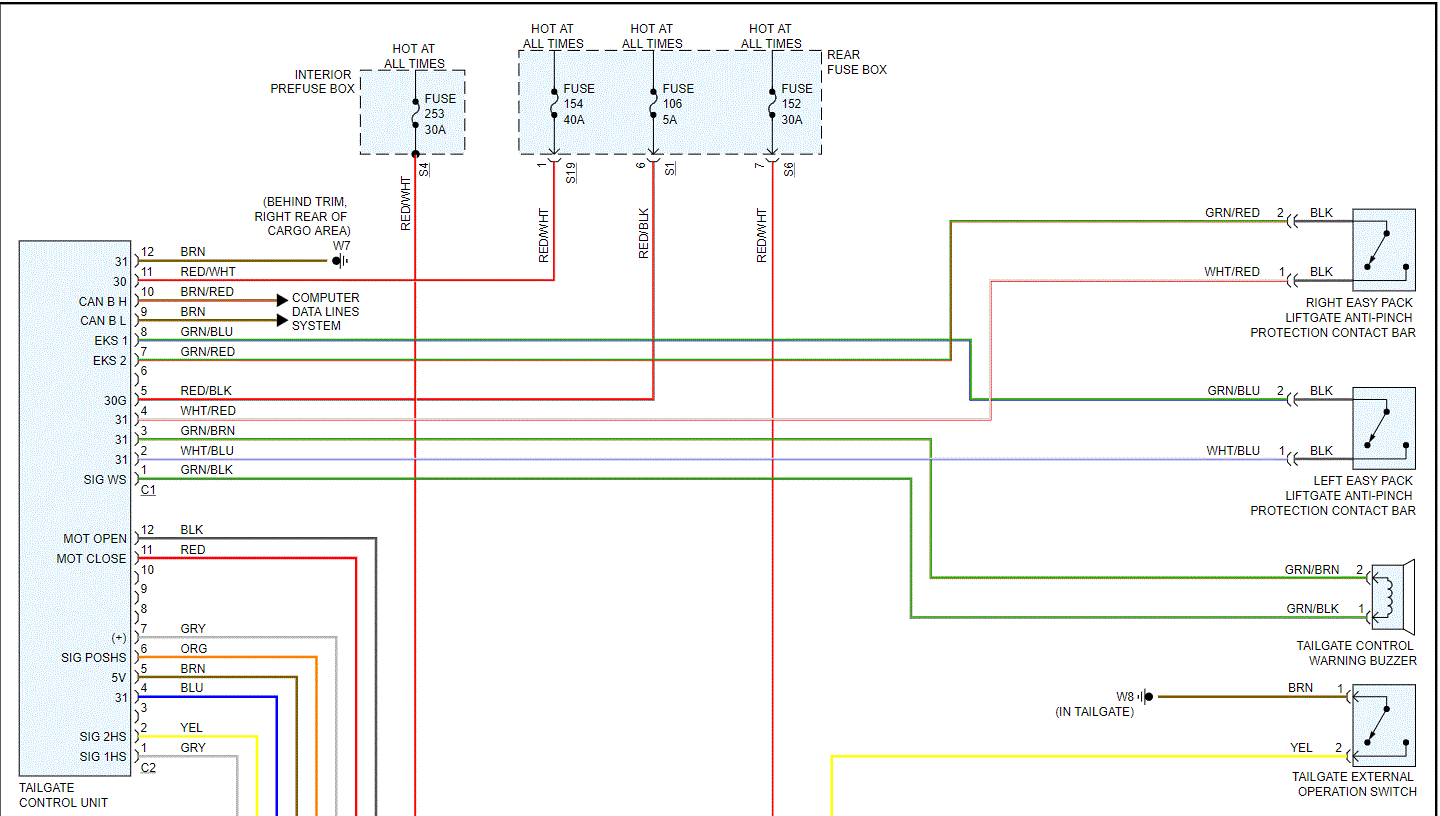

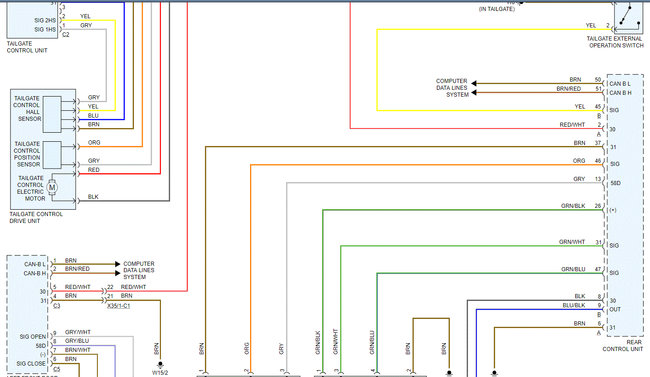

I attached the wiring schematics you requested. I had to break it into three pictures to make it readable. I did overlap the pictures so you could follow them.
Let me know if this helps.
Joe
I attached the wiring schematics you requested. I had to break it into three pictures to make it readable. I did overlap the pictures so you could follow them.
Let me know if this helps.
Joe
