I need a diagram for the timing chain and timing belt?
RAULEROSA
MEMBER
2005 KIA SPECTRA
4 CYL
FWD
MANUAL
128,000 MILES
I need a diagram for the timing chain and timing belt. Thanks
Tuesday, March 9th, 2010 AT 3:50 PM
3 Replies
DOCFIXIT
MECHANIC
18,828 POSTS
Your car shows a timing belt, not a chain
this

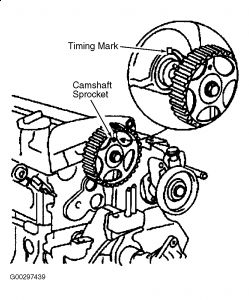

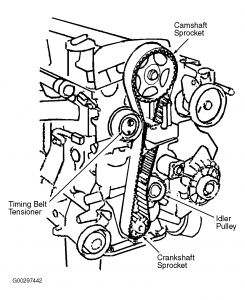

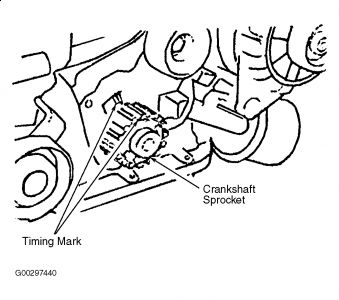

Check out this link for larger image's
https://www.2carpros.com/diagrams/kia/spectra/2005
Please let us know if you need anything else to get the problem fixed.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Tuesday, March 9th, 2010 AT 4:14 PM
RAULEROSA
MEMBER
2 POSTS
It does have a timing chain in back of head connecting the 2 cams
Was this
answer
helpful?
Yes
No
+1
Friday, September 16th, 2022 AT 4:54 PM
KEN L
MASTER CERTIFIED MECHANIC
47,867 POSTS

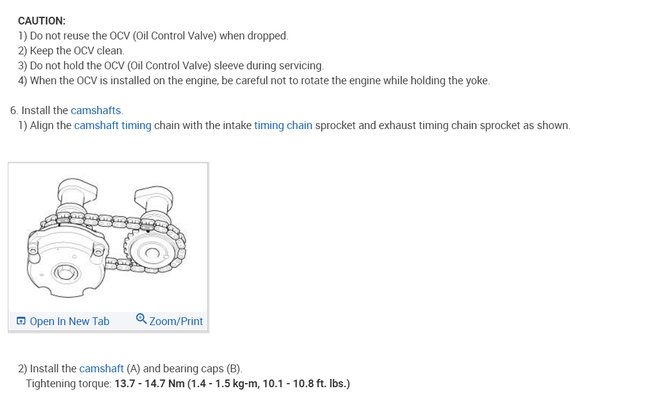

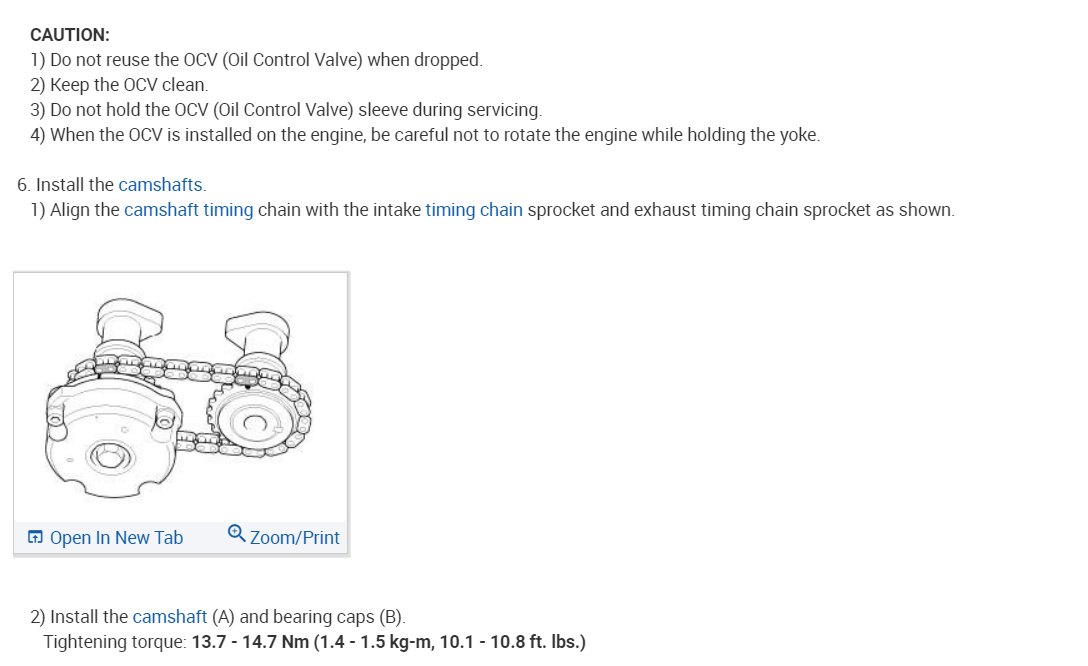

Here are the marks for the rear of the camshaft chain. Not the cam lobes.
Image (Click to make bigger)
Was this
answer
helpful?
Yes
No
+1
Friday, September 16th, 2022 AT 4:58 PM
Please
login
or
register
to post a reply.
