1987 Jaguar XJ6 need wiring diagram for the heater switch.

1987 JAGUAR XJ6
175,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
RICHARD CAIN
  • MEMBER
  • 2 POSTS
need wiring diagram to the 9 terminals switch 5@top and 4@ bottom or vice verse.the switch is sometime called the micro switch.I can send you a fax how the
switch looks if needed.
Jul 29, 2010 at 12:11 PM
Advertisement
Avatar
MHPAUTOS
  • ✓ASE Certified Mechanic
  • 31,937 POSTS
  • ASE Certified Mechanic

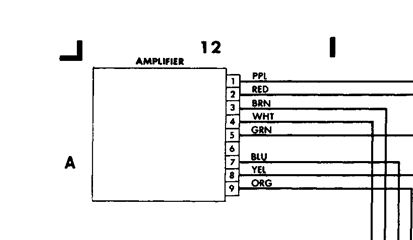

Hi there, Thank you for the donation, I think that this may be what your after, if not let me know and i will look further. mark (mhpautos)


https://images.2carpros.com/forum/automotive_pictures/61395_Capture_70.jpg

Aug 4, 2010 at 4:47 AM
