radio wiring diagrams please

2001 BUICK REGAL
120,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
MECHANICALGENIUS
  • MEMBER
  • 26 POSTS
I know how to repair odometer and shift indicator display. However none of the gauges including tach and speedo work, Some diagrams would help. Would like pin diagram for instrument cluster plug and possible diagram of printed circuit board, in case something is missing. Car is LS model. Everything else, except radio, seems to work ok. Oh yes, the turn signal indicator and the instrument panel lighting works ok. Currently looking for fuse.
Mar 26, 2021 at 6:15 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,561 POSTS

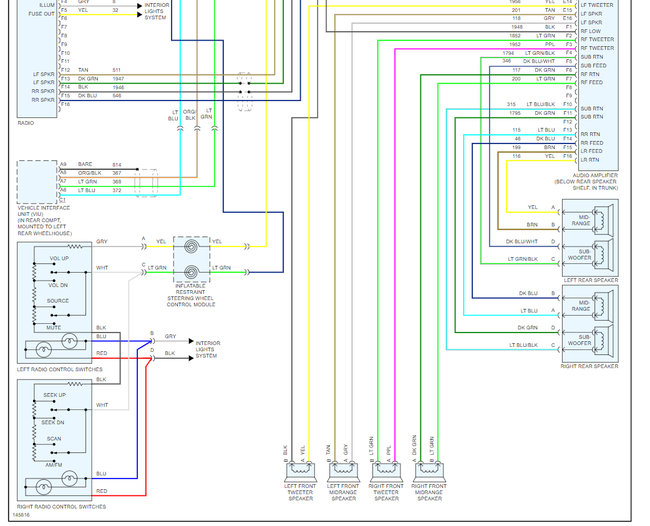

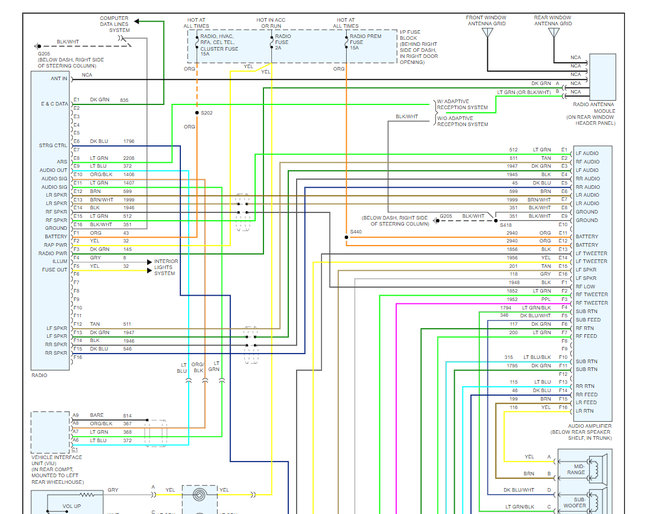

here are the radio wiring diagrams and a guides to help you do some testing. please create another post to get the info on the instrument cluster there is only one subject per thread.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Mar 29, 2021 at 1:33 AM
