instrument panel wiring?

2006 TOYOTA LANDCRUISER
230,000 MILES • 4.7L • V8
Avatar
JERRYWB
  • MEMBER
  • 3 POSTS
I'm trying to find the pin out of all 4 instrument panel connectors. each is a 20 position connector so 80 positions total.
I'm looking for the schematic of the whole thing.
I'm only able to define 47 positions so far.
Thank you
Oct 10, 2020 at 3:01 AM
Advertisement
Avatar
4DRTOM
  • ✓ASE Certified Mechanic
  • 467 POSTS
  • ASE Certified Mechanic
Hello,

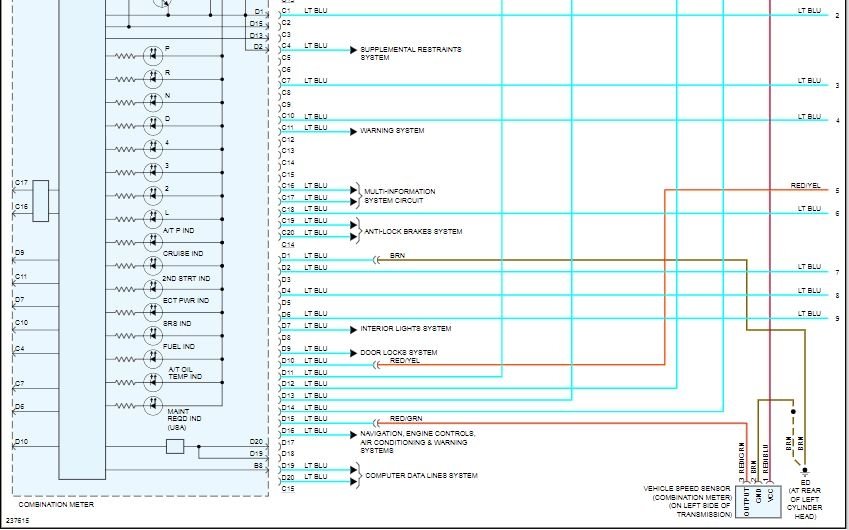

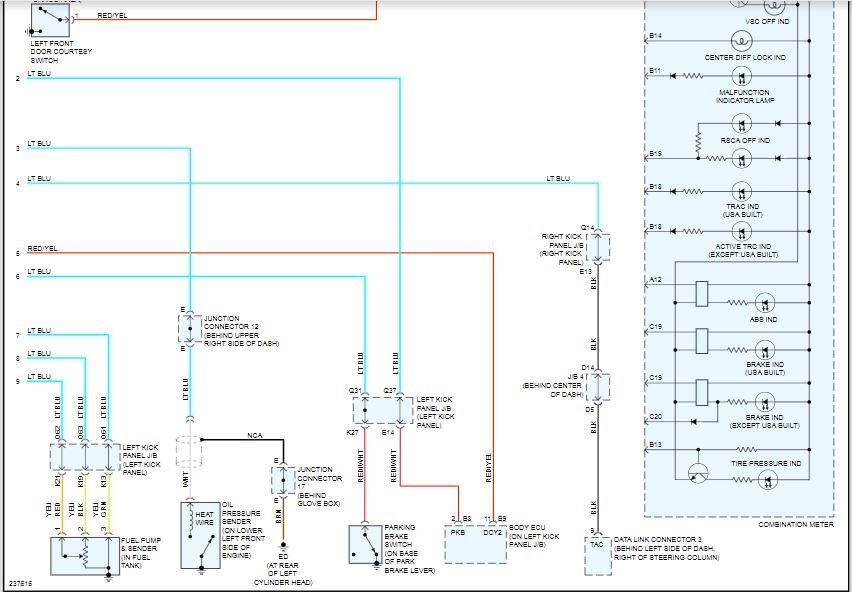

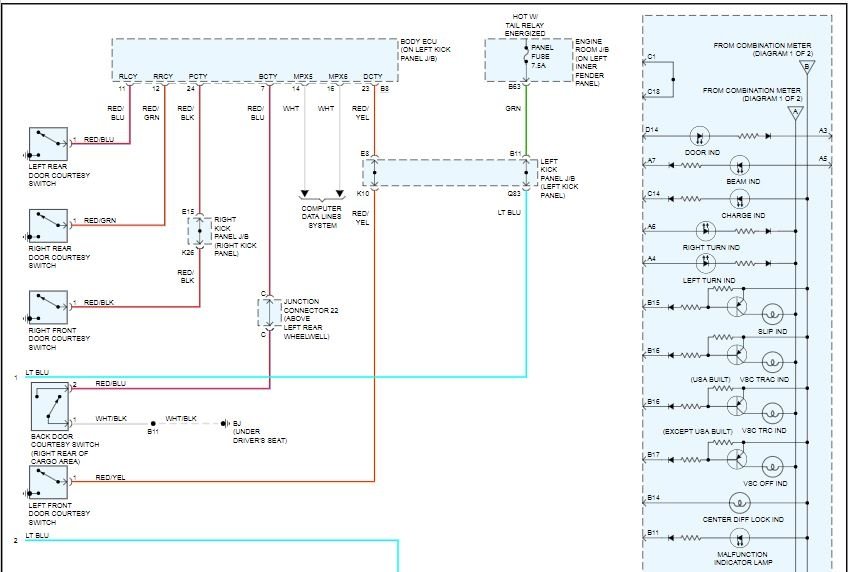

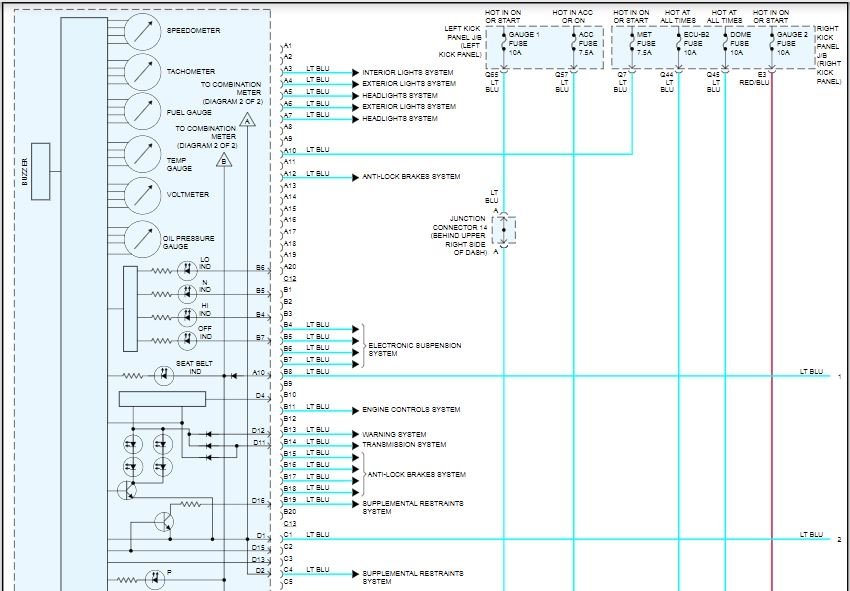

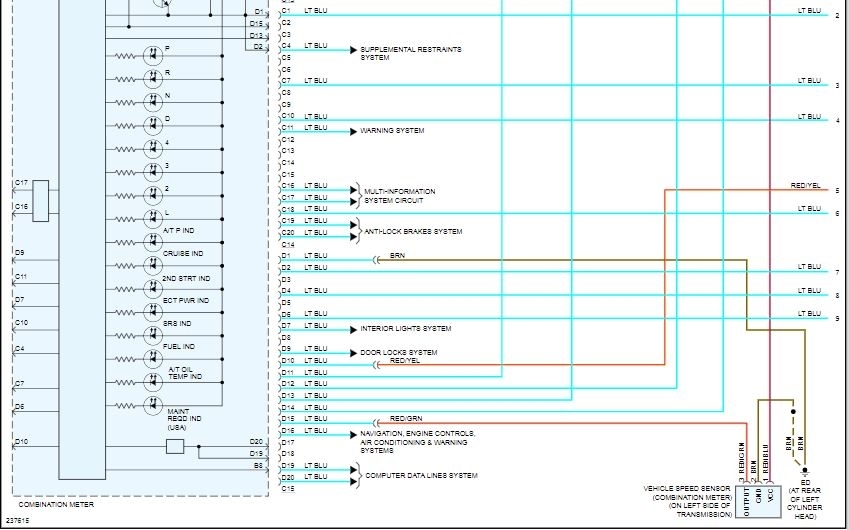

Here are the diagrams for your pins. Let me know if you need anything else on this. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Thanks,
Tom
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Oct 10, 2020 at 11:19 AM
