Instrument panel cluster connector wiring diagram or pinout needed

1988 CHEVROLET CAPRICE
150,000 MILES
Avatar
DSMAL
  • MEMBER
  • 1 POST
I am doing a digital dash install in the car listed above and I cannot find an accurate wiring diagram or pinout for the instrument panel cluster connector. I have to connect the new wires on the new dash to the old wires in the cluster.
Jun 10, 2021 at 5:37 PM
Advertisement
Avatar
KASEKENNY
  • ✓ASE Certified Mechanic
  • 18,907 POSTS
  • ASE Certified Mechanic

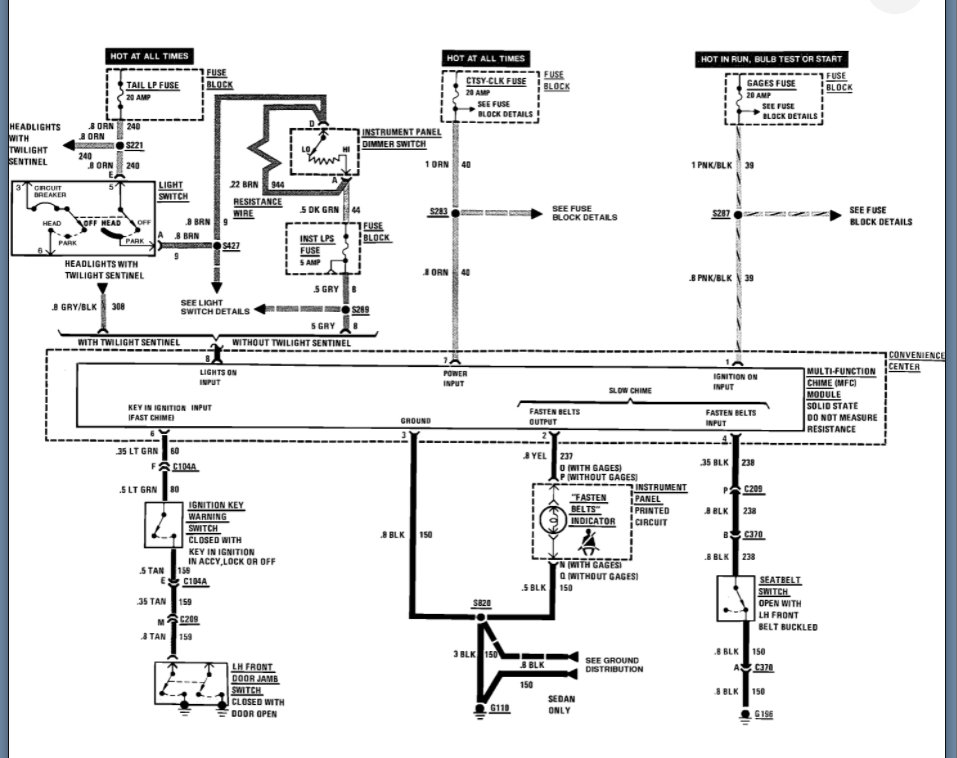

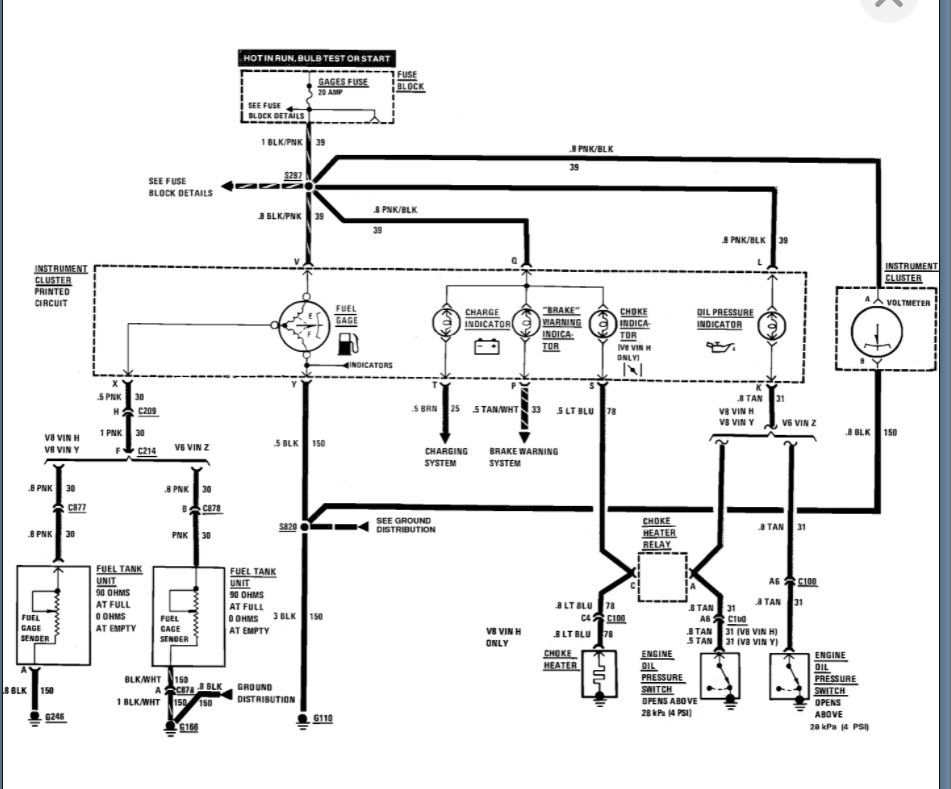

We do not have a connector view on this cluster just because GM didn't provide the actual connector views for anything other then the ECM back then. However, I am attaching the wiring diagrams for this cluster/dash.

Please review this and let us know if you have questions or need other info.

Thanks
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jun 11, 2021 at 7:16 PM
