In need of fuse diagrams needed

Tiny
OBTREV
  • MEMBER
  • 2007 VOLKSWAGEN EOS
  • 2.0L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 144,000 MILES

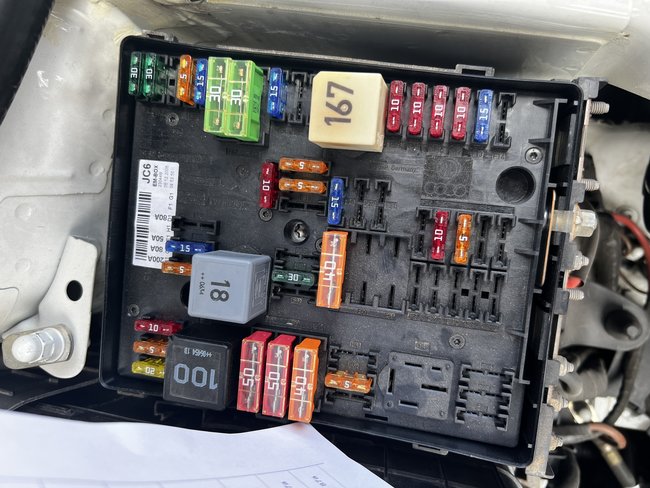

I was searching everywhere for different fuse diagrams for my model of vehicle but cannot find any of them that actually solve the issues that I am having. The car was working alright before any attempts to fuse changes were made. I looked into this and didn’t realize just how many different layouts there were for my car based on packages included. I need the fuse layouts for under the hood and inside the dash, please. The VIN for my vehicle is WVWDA71F07V030509.
SPONSORED LINKS
Thursday, March 31st, 2022 AT 12:26 PM

12 Replies

Tiny
SQM
  • MECHANIC
  • 6,383 POSTS
Hello,

I have attached the fuse diagram below for your reference.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Please let me know if you have any questions.
Thank you.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Thursday, March 31st, 2022 AT 11:02 PM
Tiny
OBTREV
  • MEMBER
  • 6 POSTS
The fuse diagram for the box in the engine bay is different from the layout in mine. Is there another diagram for me to follow? I’ve searched and seen many different diagrams for my car model and was looking to try and get something as close to the one for my VIN as possible. Thank you!
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, March 31st, 2022 AT 11:09 PM
Tiny
SQM
  • MECHANIC
  • 6,383 POSTS
What is the manufacture date on the door of the vehicle?
Was this
answer
helpful?
Yes
No
Saturday, April 2nd, 2022 AT 8:42 AM
Tiny
OBTREV
  • MEMBER
  • 6 POSTS

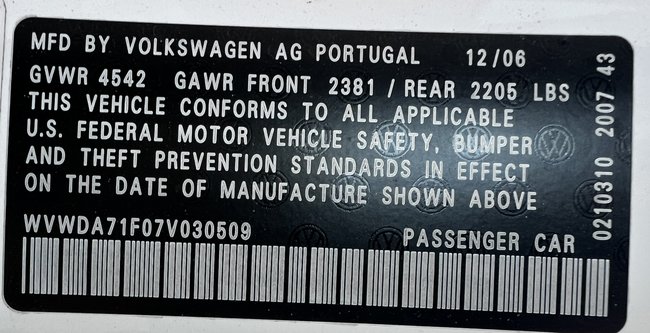

Here’s the information.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Saturday, April 2nd, 2022 AT 2:39 PM
Tiny
SQM
  • MECHANIC
  • 6,383 POSTS

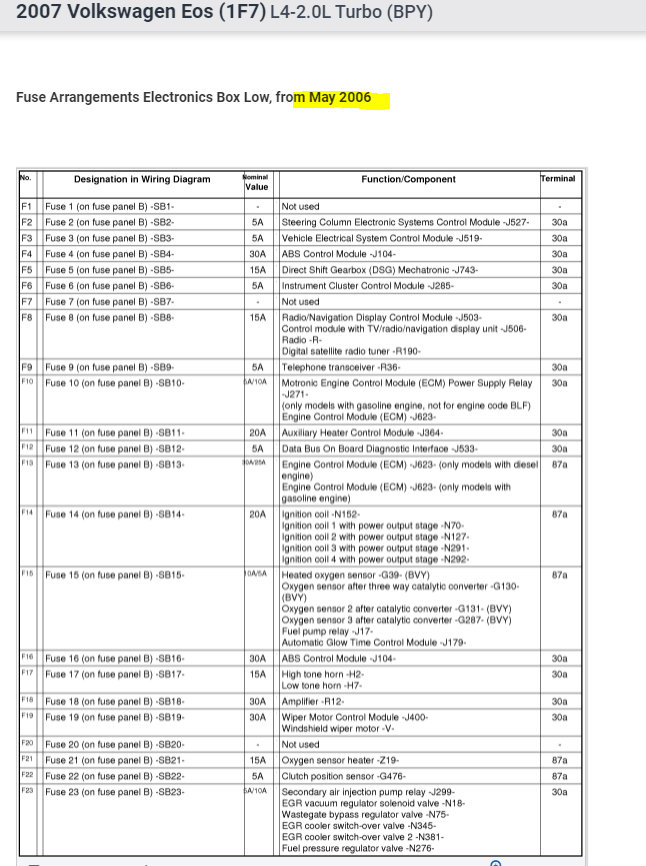

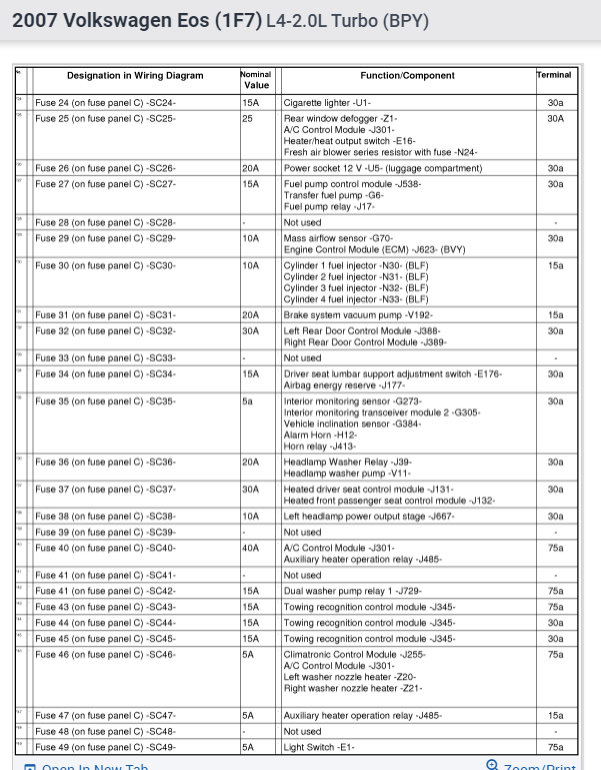

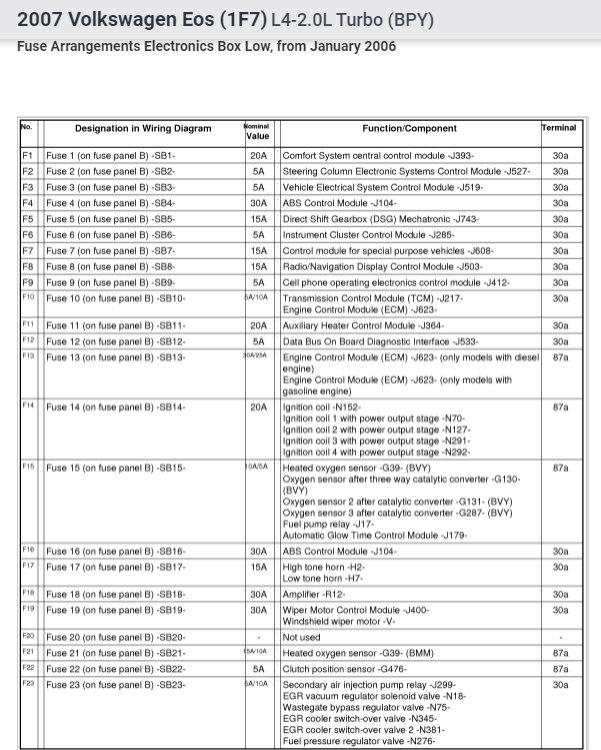

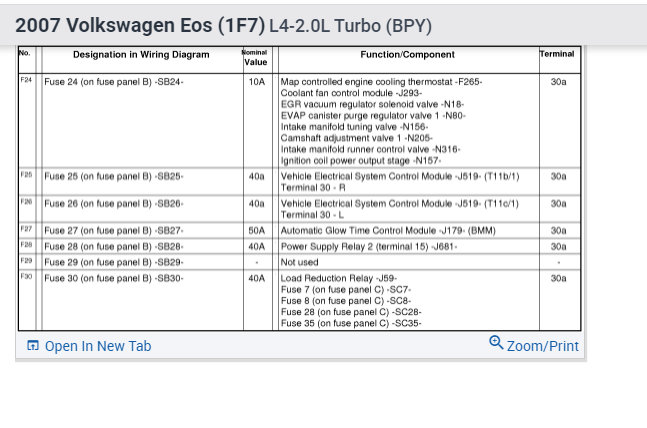

Take a look at the images below. First two show the fuse arrangements for under the hood fuse box and the second two inside the car.

Let me know if this helps.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Sunday, April 3rd, 2022 AT 10:56 PM
Tiny
OBTREV
  • MEMBER
  • 6 POSTS

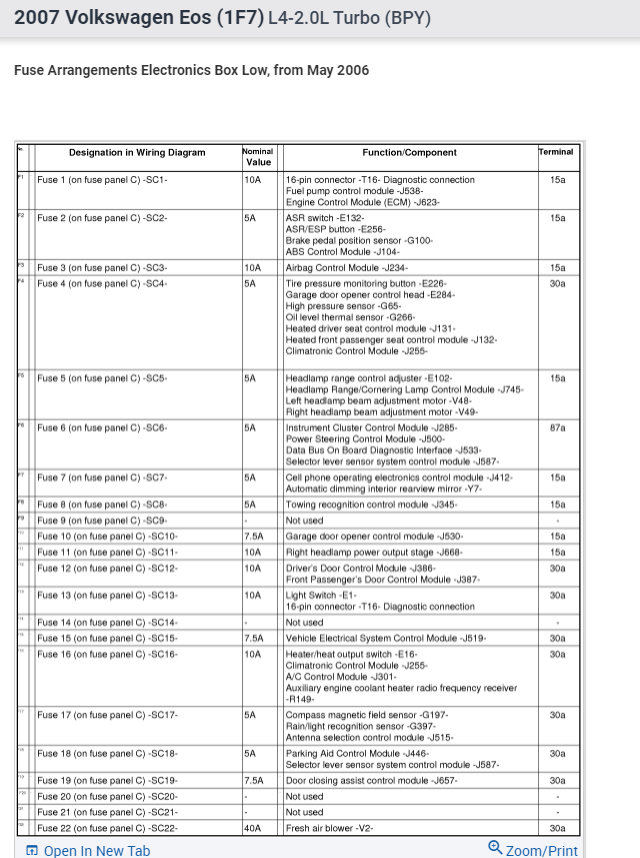

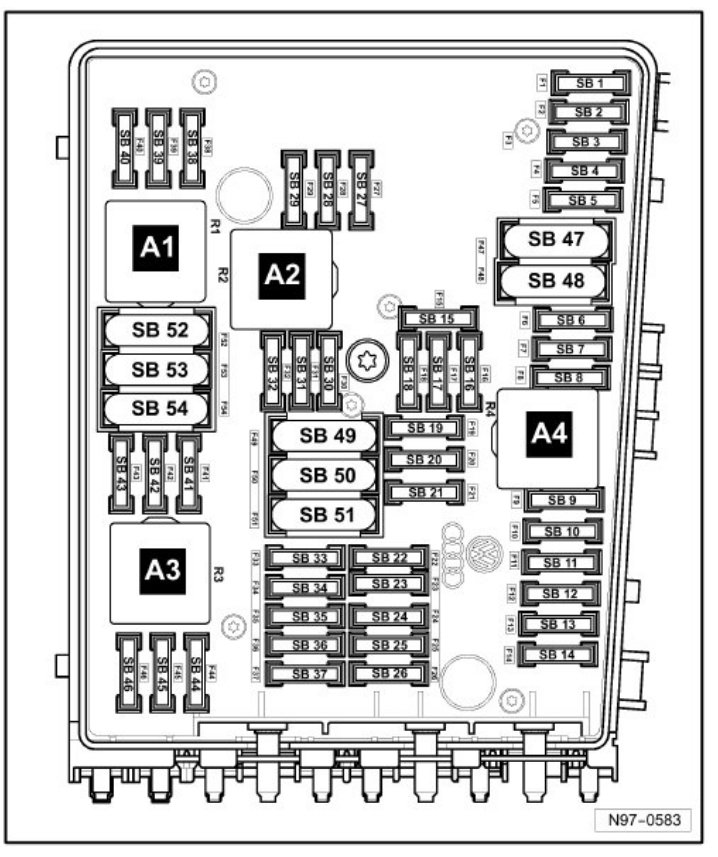

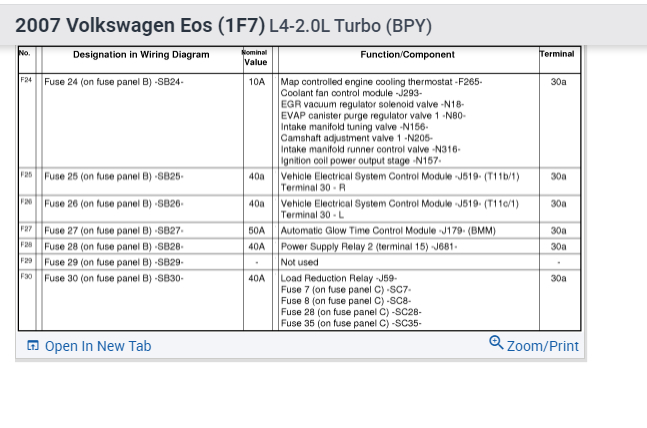

Looking at the diagrams you’ve sent, the arrangement for the one under the hood doesn’t match the one found in my vehicle.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Wednesday, April 6th, 2022 AT 4:00 PM
Tiny
SQM
  • MECHANIC
  • 6,383 POSTS
Is your vehicle US or Euro spec?
Was this
answer
helpful?
Yes
No
Friday, April 8th, 2022 AT 10:59 PM
Tiny
OBTREV
  • MEMBER
  • 6 POSTS
The vehicle is US spec.
Was this
answer
helpful?
Yes
No
Saturday, April 9th, 2022 AT 1:25 AM
Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi,

I noticed you haven't been contacted for a couple of days. Have you been able to make any progress?

Joe
Was this
answer
helpful?
Yes
No
Monday, April 11th, 2022 AT 9:01 PM
Tiny
SQM
  • MECHANIC
  • 6,383 POSTS

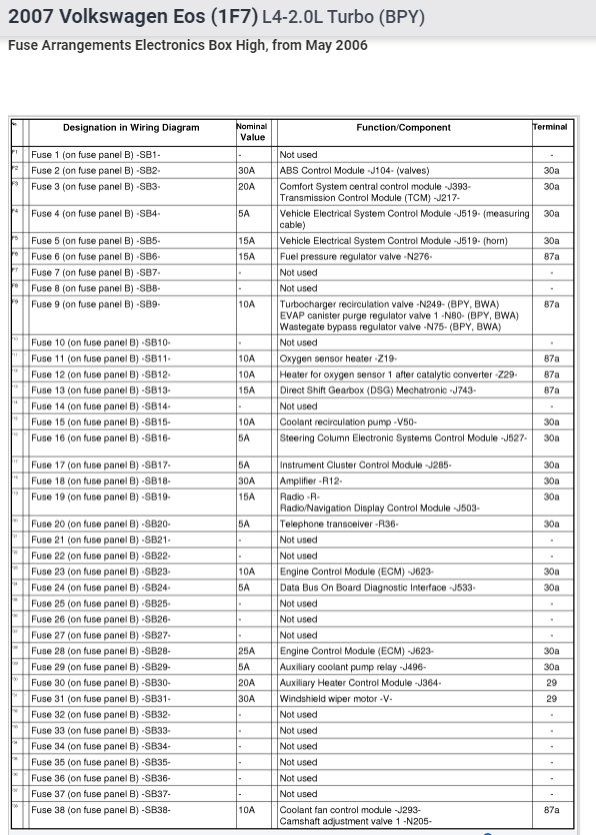

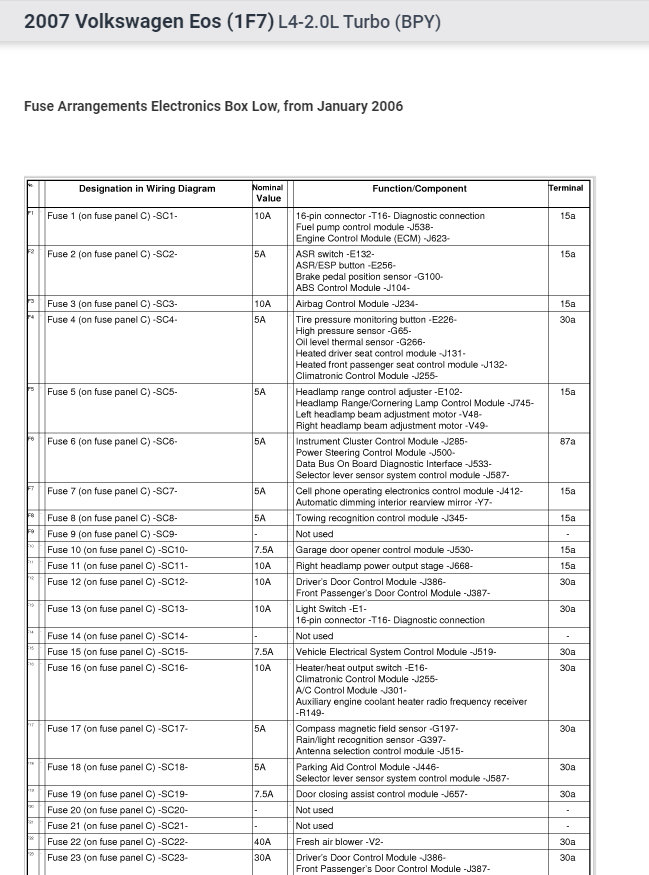

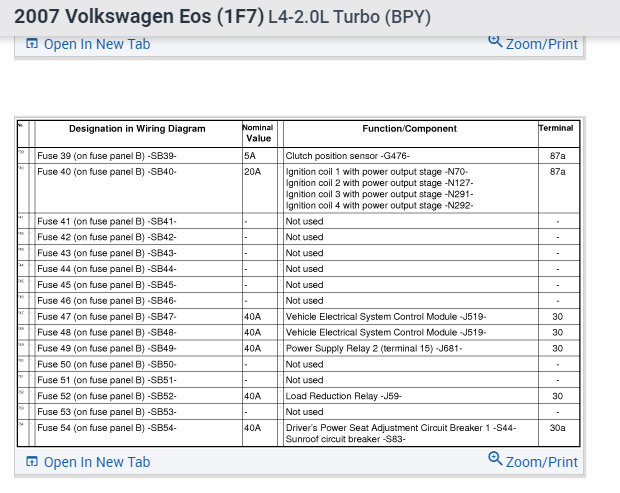

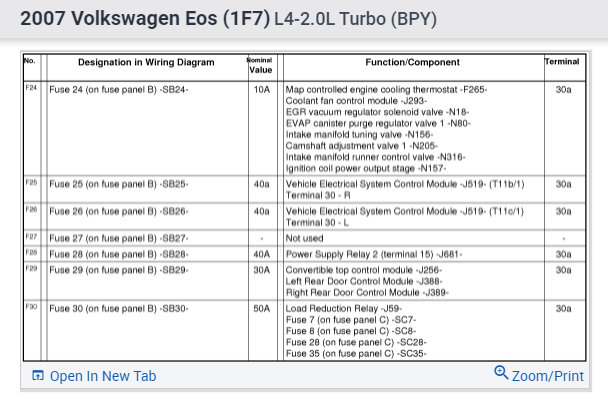

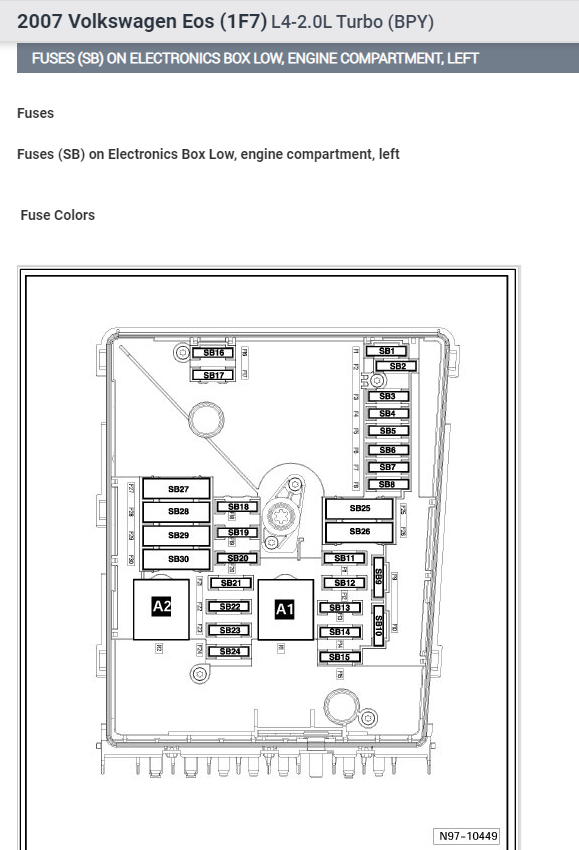

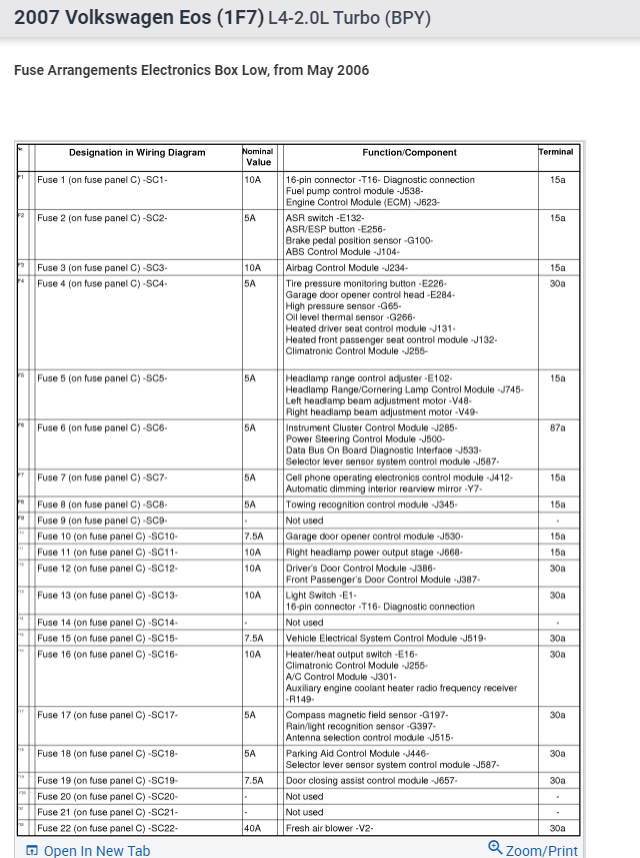

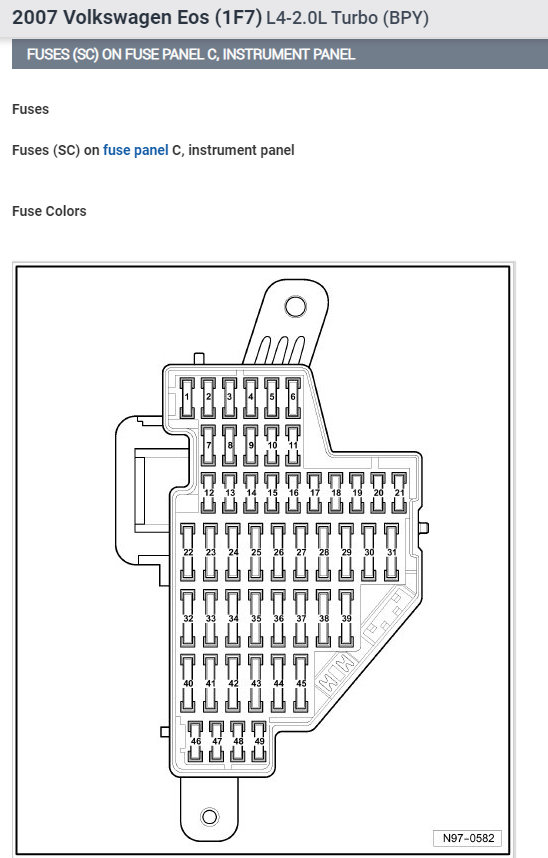

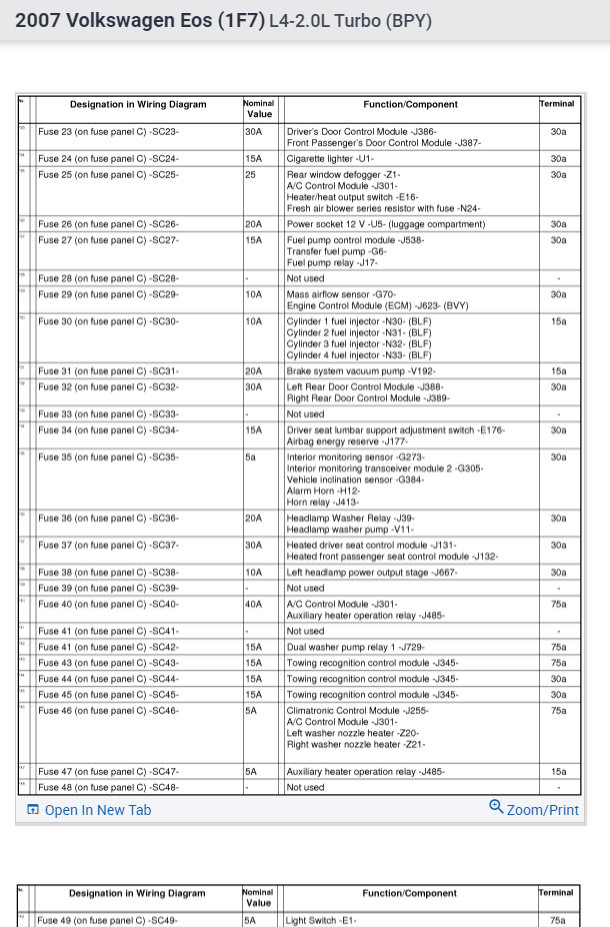

See the diagrams below.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Monday, April 11th, 2022 AT 9:10 PM
Tiny
OBTREV
  • MEMBER
  • 6 POSTS
Hello again! Thank you very much. After following the diagrams provided, I was finally able to locate and install the needed fuses. A quick jump and my car is back up and running again. Thank you again!
Was this
answer
helpful?
Yes
No
Wednesday, April 13th, 2022 AT 10:54 PM
Tiny
SQM
  • MECHANIC
  • 6,383 POSTS
That is great news!
Thank you for using 2CarPros.
