Ignition switch wiring diagram needed

2009 CHEVROLET MALIBU
190,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
JAB95
  • MEMBER
  • 2 POSTS
Got car from a buddy, the ignition was removed and where electrical connectors plug in where broke. I got a universal keyless remote start kit and was mostly wondering what each wire in the connectors does.
May 30, 2022 at 8:29 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,176 POSTS
Hello,

Here are the ignition switch wiring diagrams as you have requested, I have also included a guide that will help you test their connections please let us know if you need anything else.

https://www.2carpros.com/articles/how-to-check-wiring

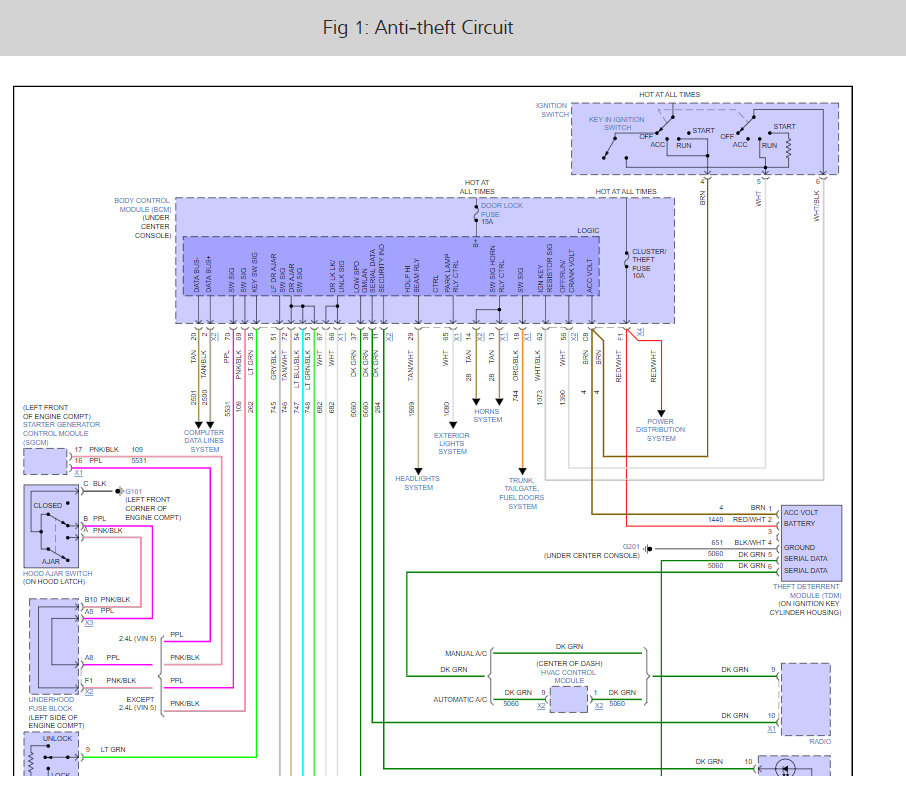

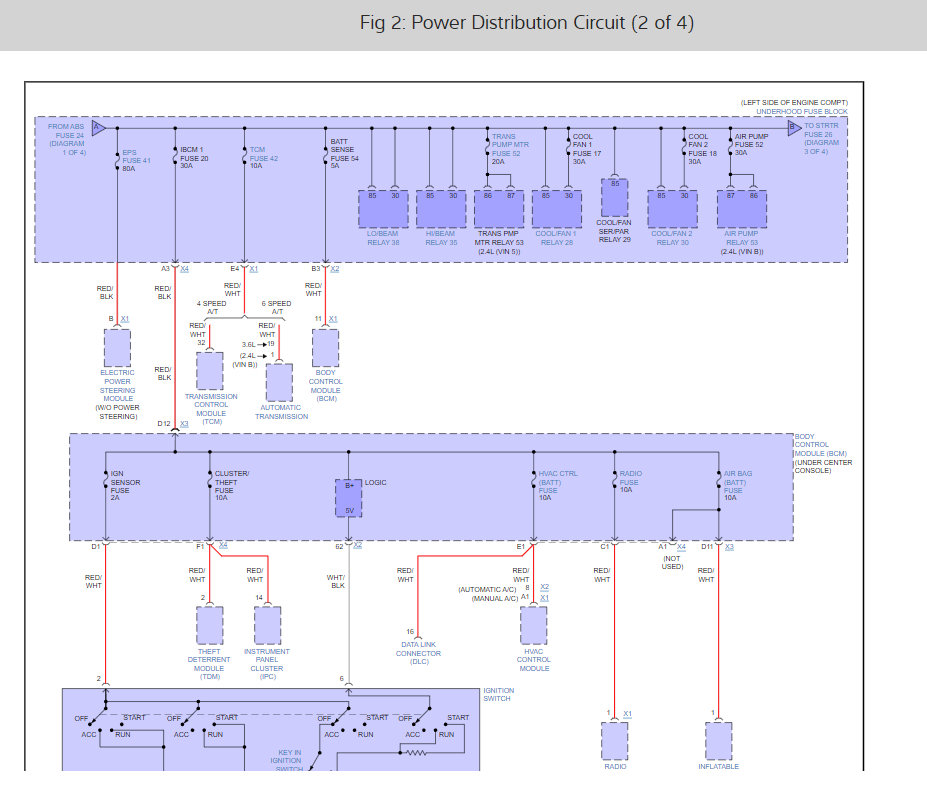

Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
Images (Click to enlarge)
Attached Media
Attached Media
May 31, 2022 at 11:04 AM
Advertisement
Avatar
JAB95
  • MEMBER
  • 2 POSTS
Thanks. would you have diagram for the pass lock 3 as well?
May 31, 2022 at 9:36 PM
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,176 POSTS

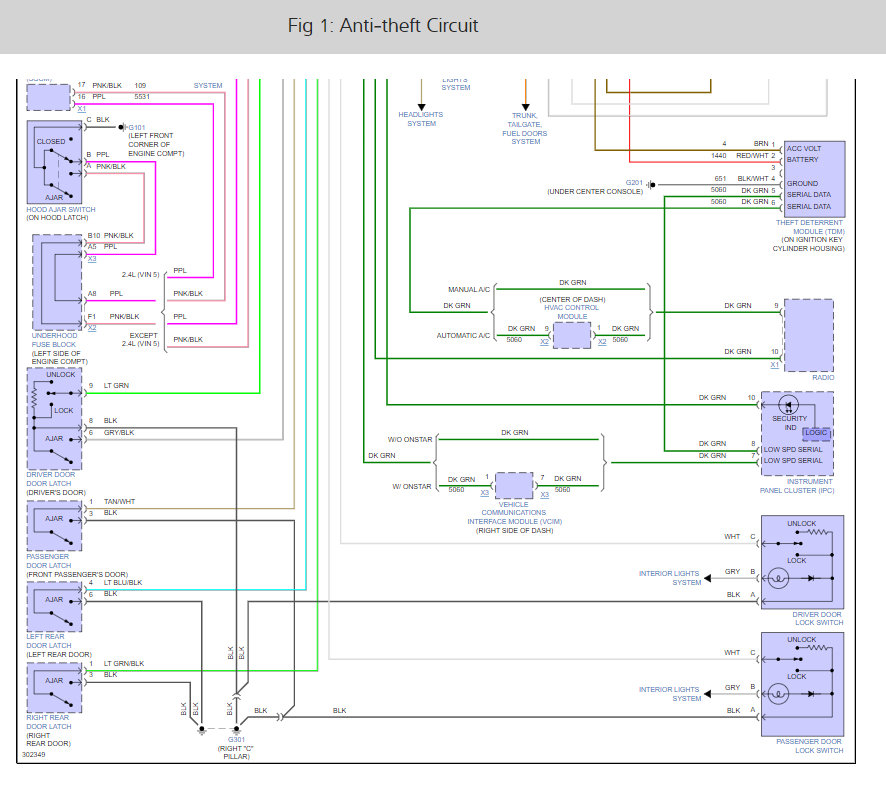

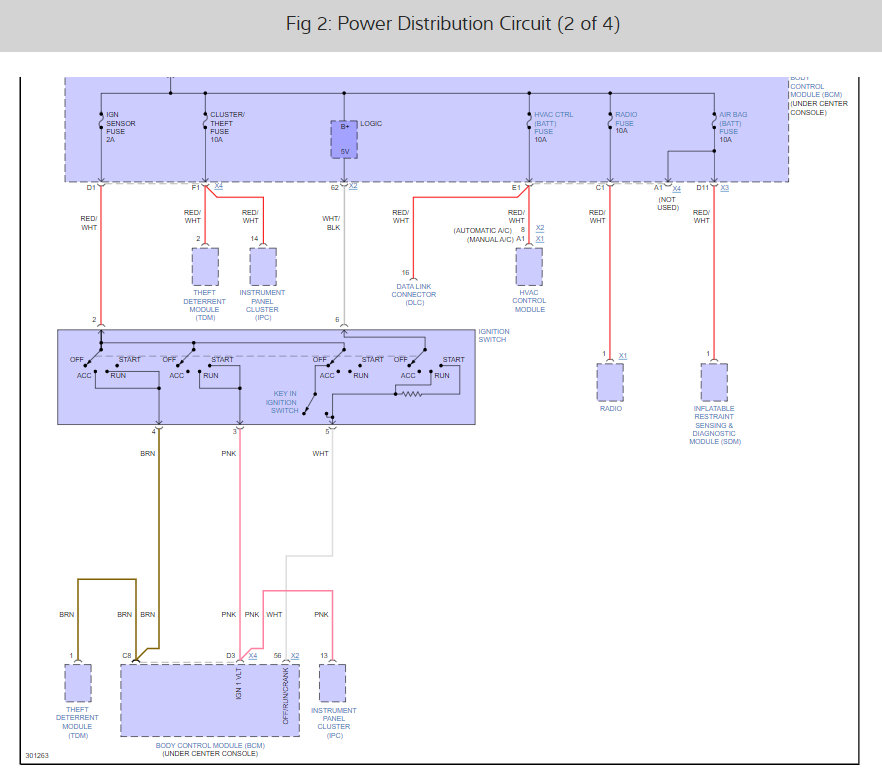

Sure, here are the wiring diagrams for the pass lock as you have requested. Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Jun 1, 2022 at 11:04 AM
