ignition switch wire harness diagram needed?

2004 NISSAN MAXIMA
170,000 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
BRANDY78
  • MEMBER
  • 1 POST
I'm having to replace the wiring on my ignition switch. The wires came loose from the harness connection. i don't know where what color wire goes back where in my harness.
Oct 1, 2022 at 8:32 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS

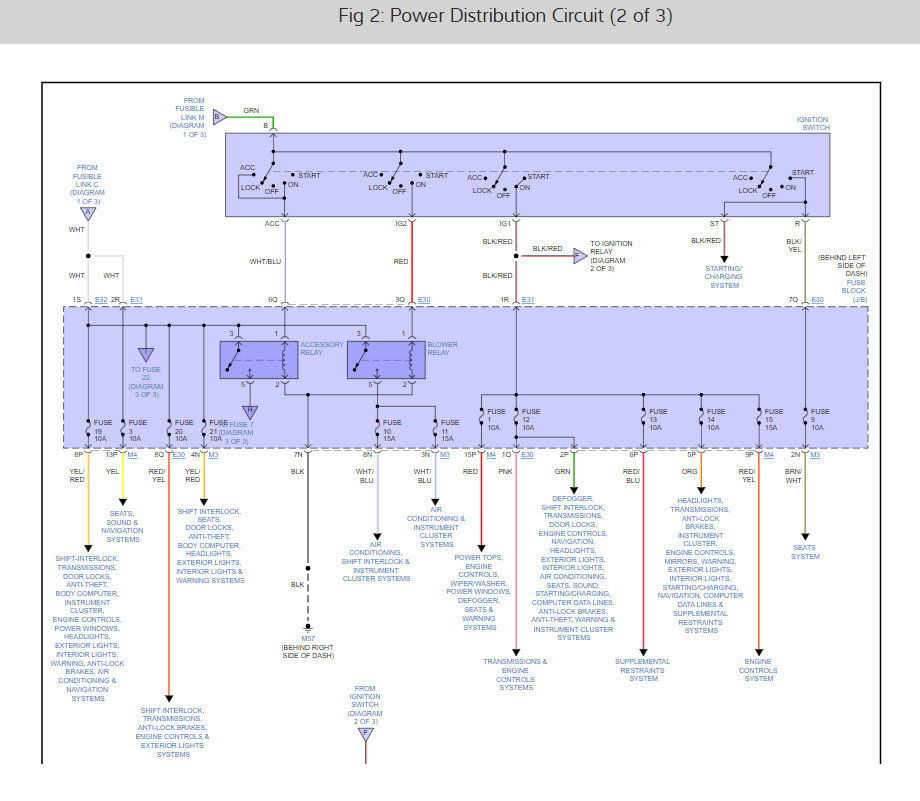

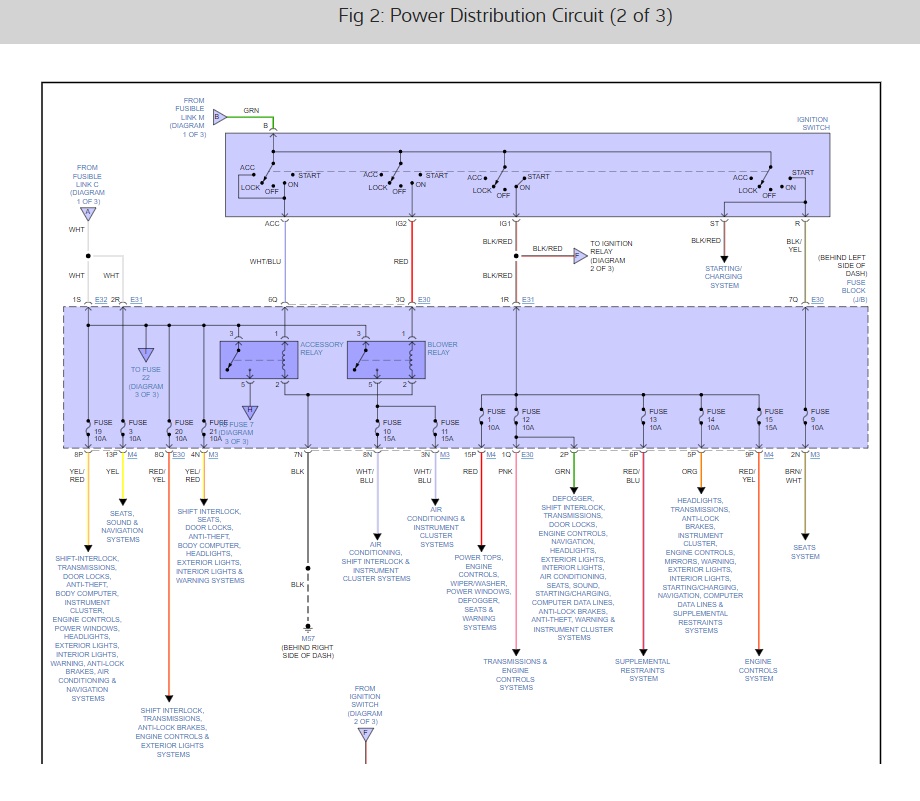

Yep, here are the ignition switch wiring diagrams as you have requested, and I have included a guide on how to test the wiring as well.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
