Ignition wiring diagram needed?

2012 NISSAN ALTIMA
200,000 MILES • 2.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
MARION YACTE
  • MEMBER
  • 1 POST
I need wiring diagram.
Aug 11, 2023 at 7:17 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,051 POSTS

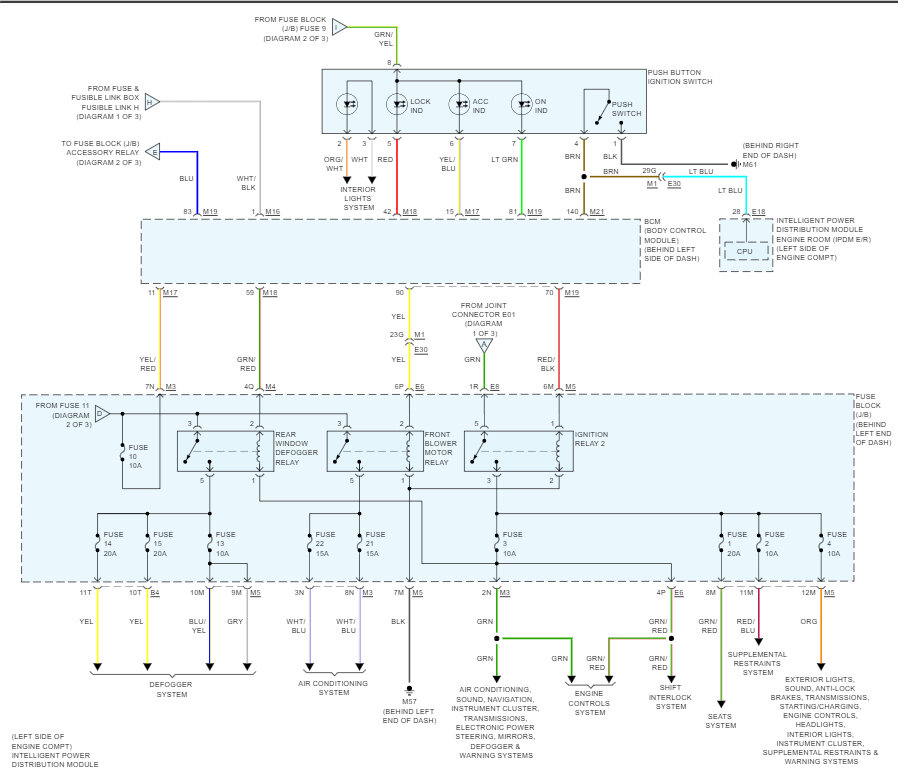

Sure, here are the ignition switch wiring diagrams and I have included a guide on how to test the connections:

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know how it goes.

Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Aug 12, 2023 at 8:30 AM
