Cluster pinout needed

2002 CHEVROLET LUMINA
120 MILES • 2WD • AUTOMATIC
Avatar
B_ALZUABI77
  • MEMBER
  • 25 POSTS
Hi all,
I am looking for cluster pinout for the car listed above.
I know its stop manufacturing it in US but it's continued in north Africa and Middle East.
Aug 31, 2020 at 1:19 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
KASEKENNY
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 18,907 POSTS

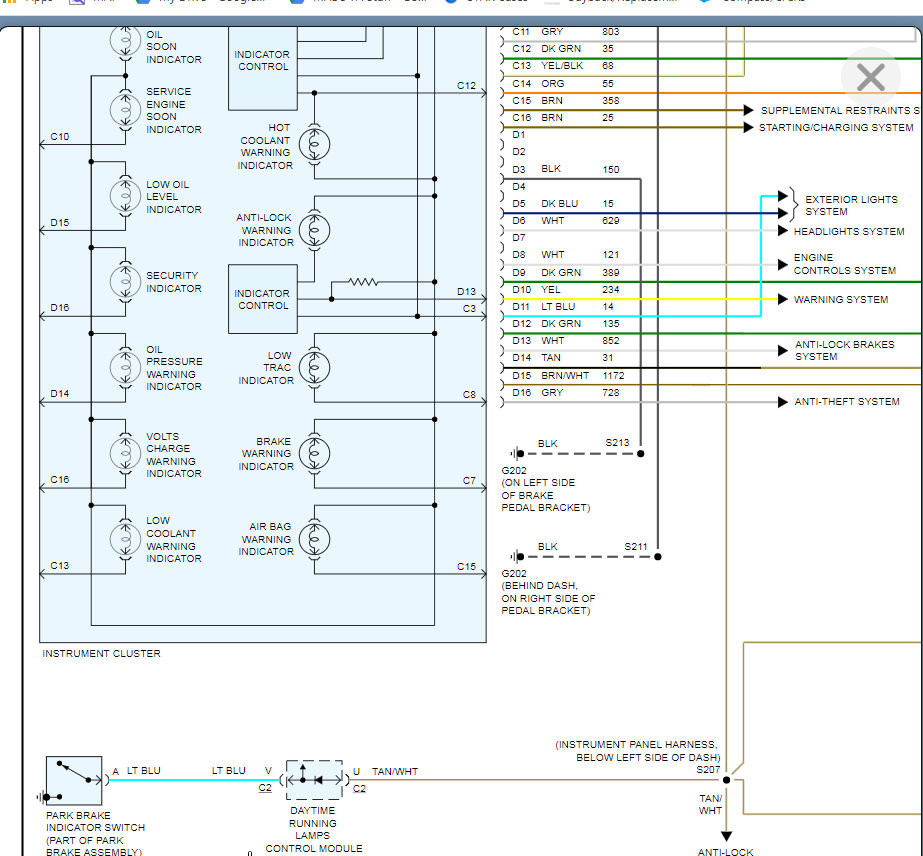

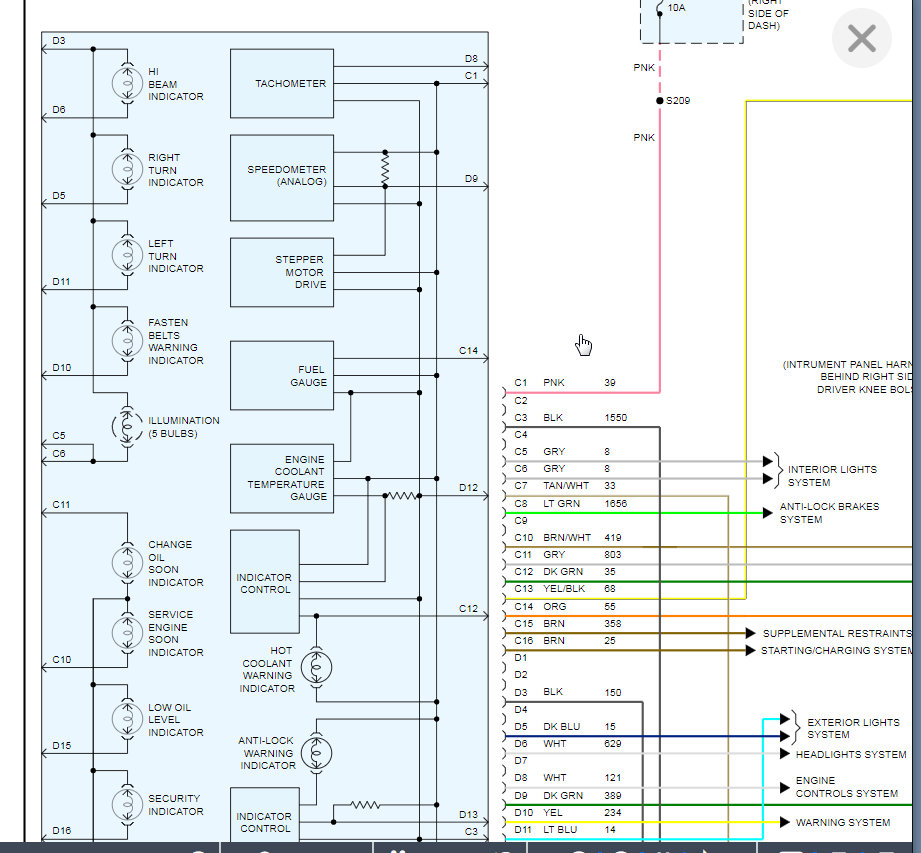

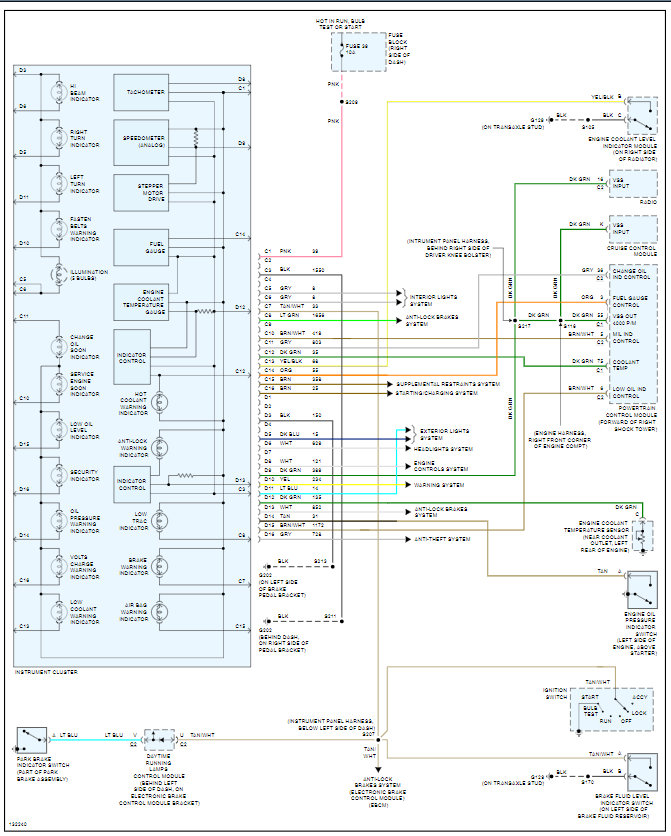

I don't have the diagram for the 2002 due to it not being offered in the USA as you stated and we only have manuals for USA vehicles. However, I attached the diagram for the 2001 as it is the same due to not making any changes.

Hopefully that helps. Let me know how you make out. Thanks
