Can I get the wiring harness diagram for under-hood fuse block connectors?

2007 GMC YUKON
175,000 MILES • 5.3L • V8 • 2WD • AUTOMATIC
Avatar
BALETA92
  • MEMBER
  • 1 POST
Can someone please help me with the diagrams I need for my wiring harness for my vehicle listed above? The connectors, the pins that hook up underneath the fuse block and also the ends that meet under that.
Aug 21, 2022 at 1:43 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,840 POSTS
  • ASE Certified Mechanic

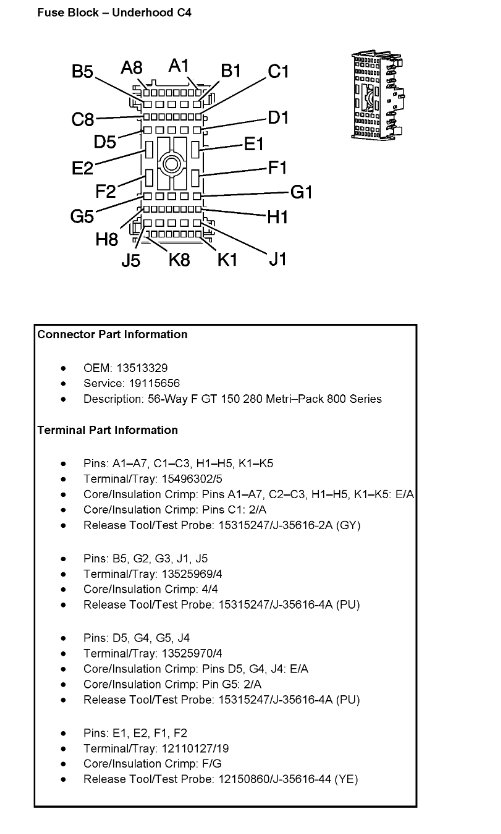

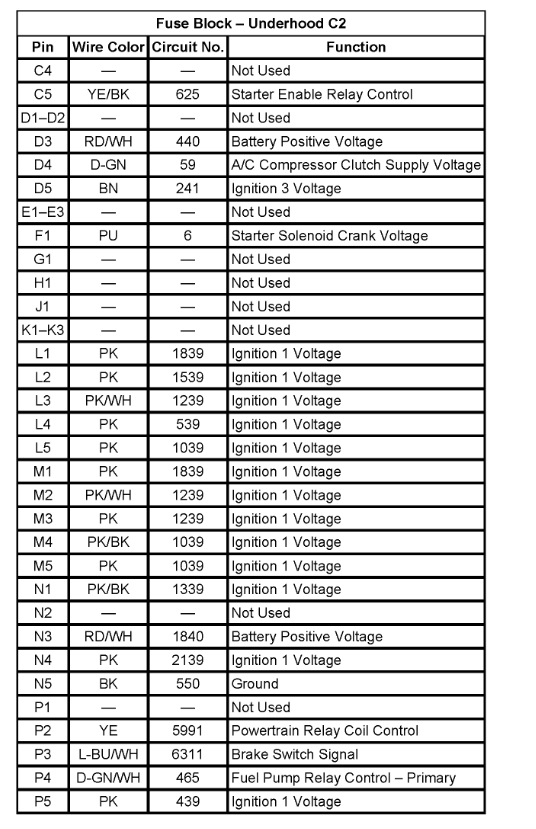

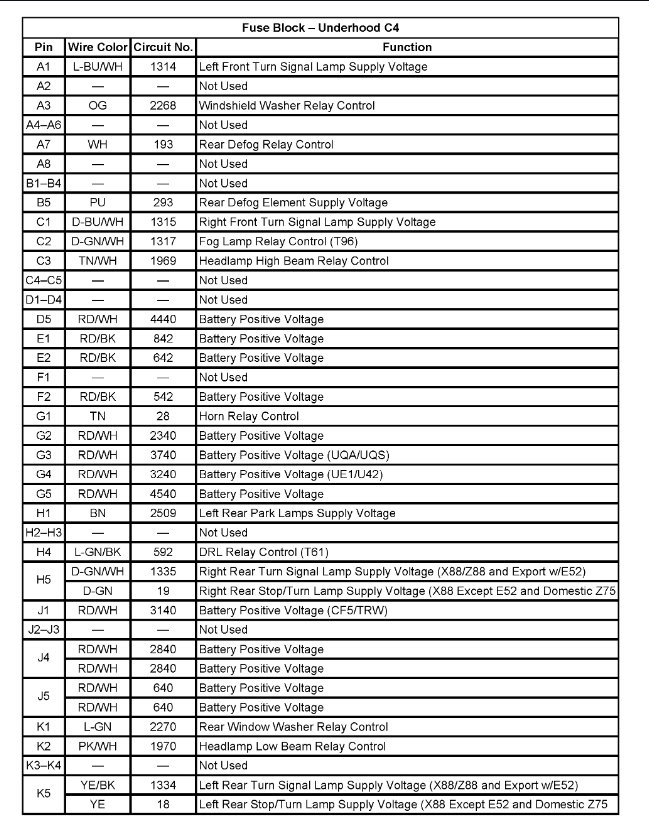

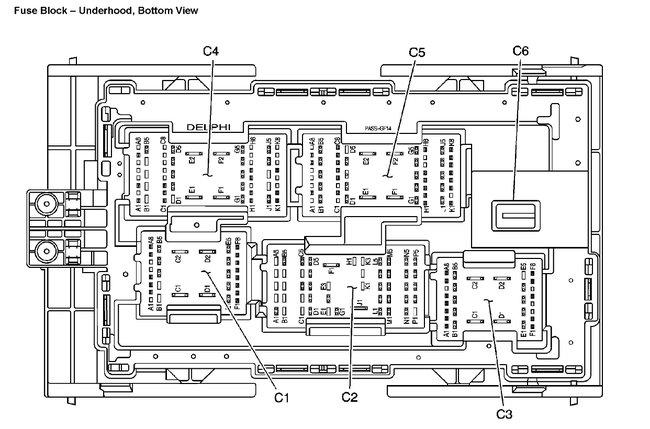

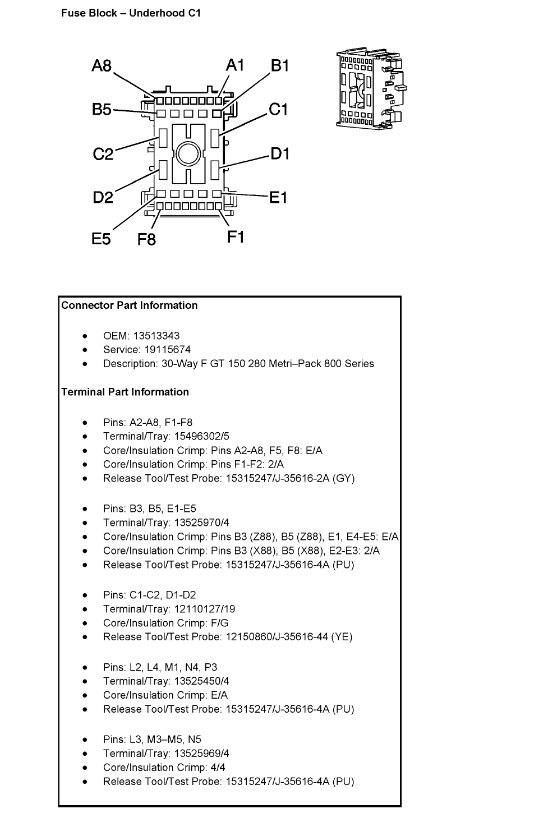

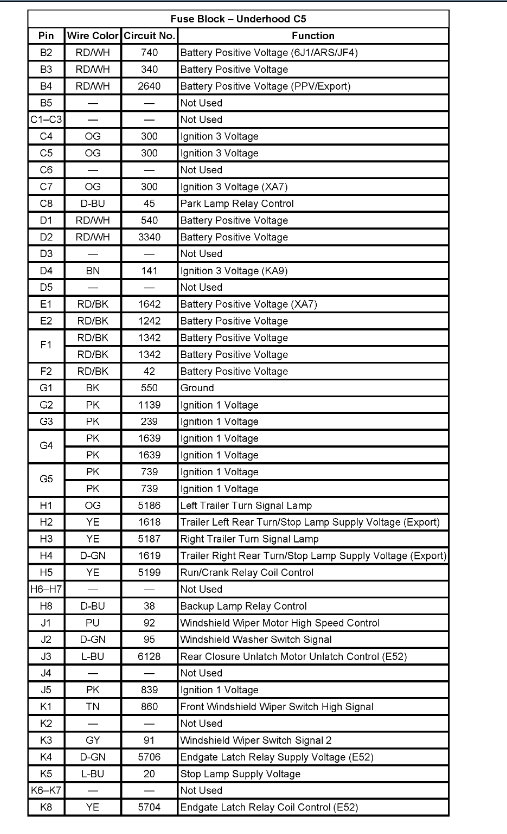

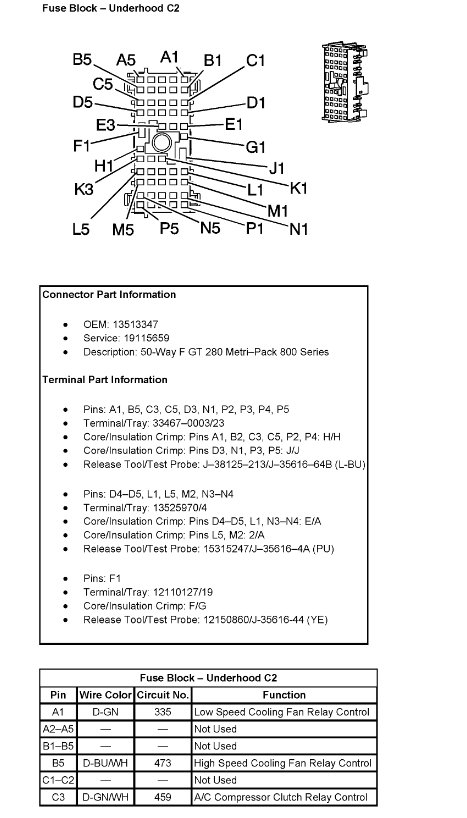

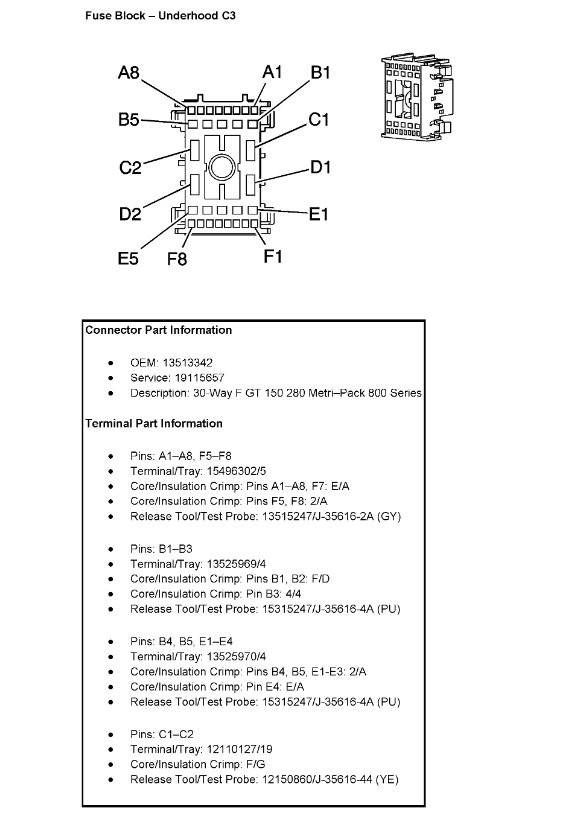

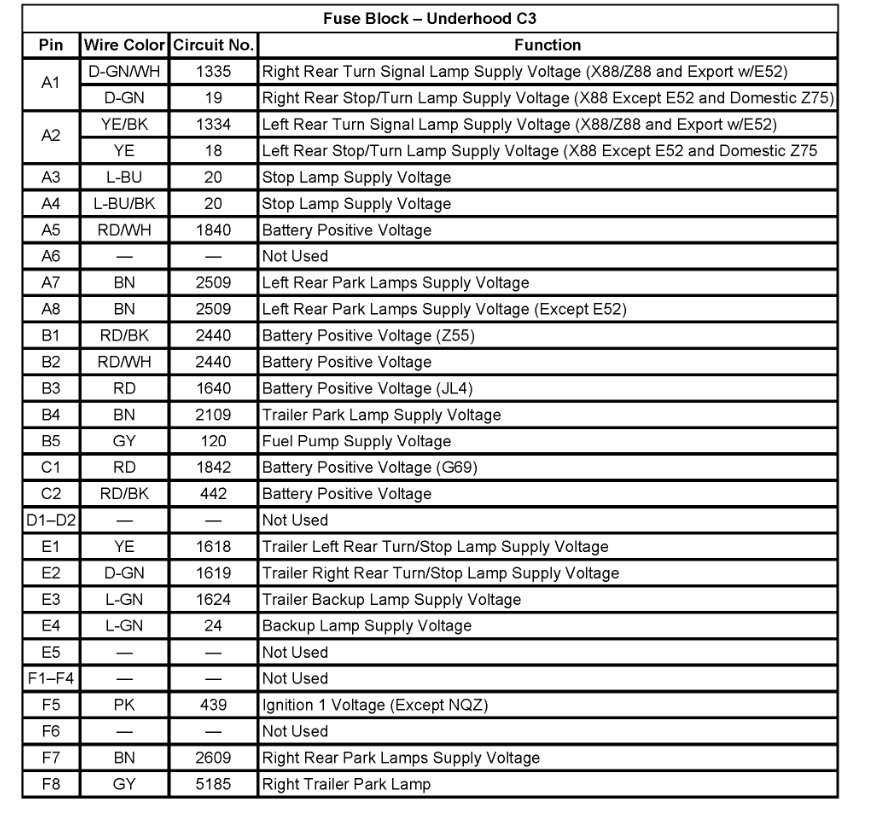

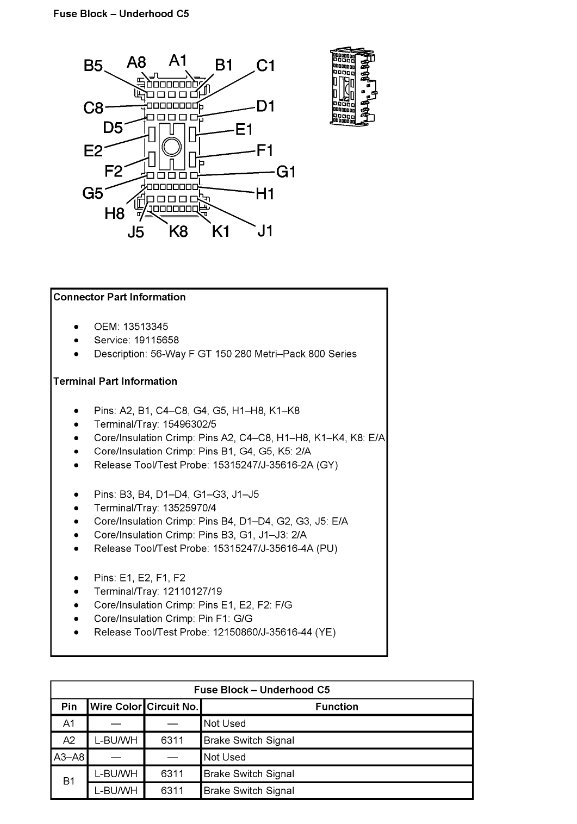

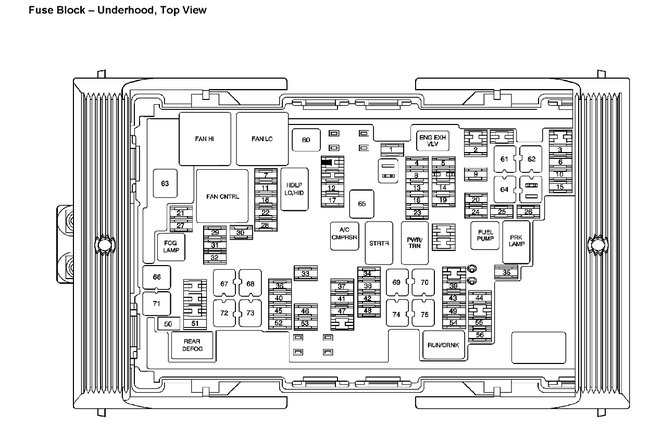

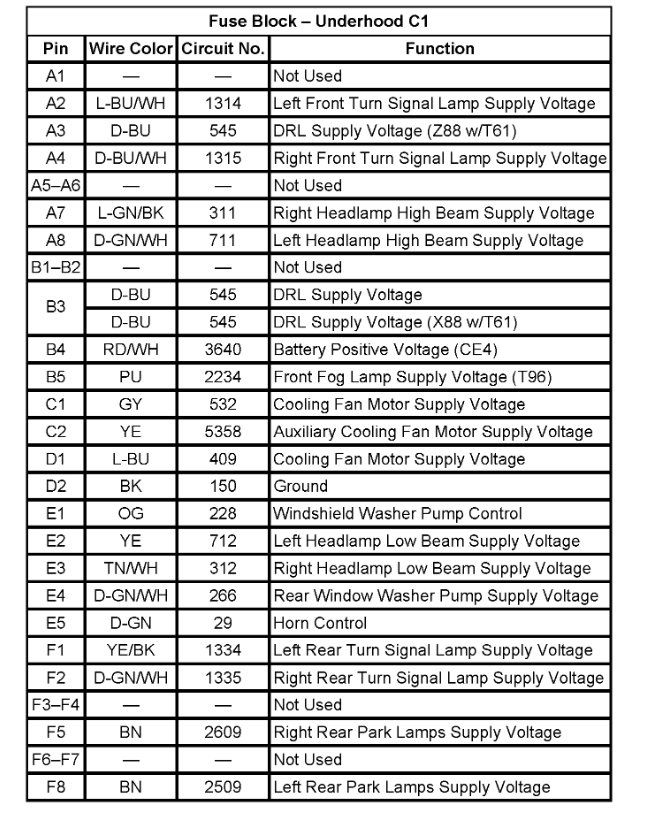

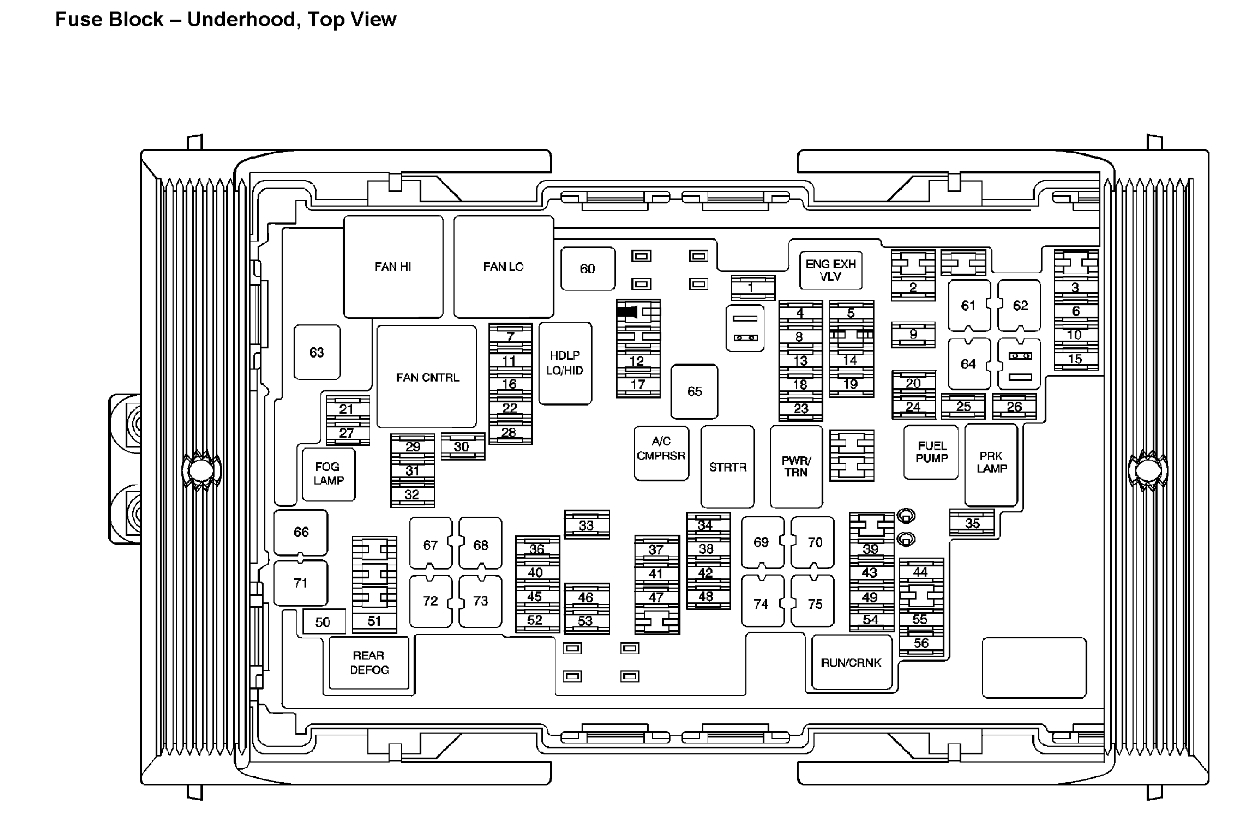

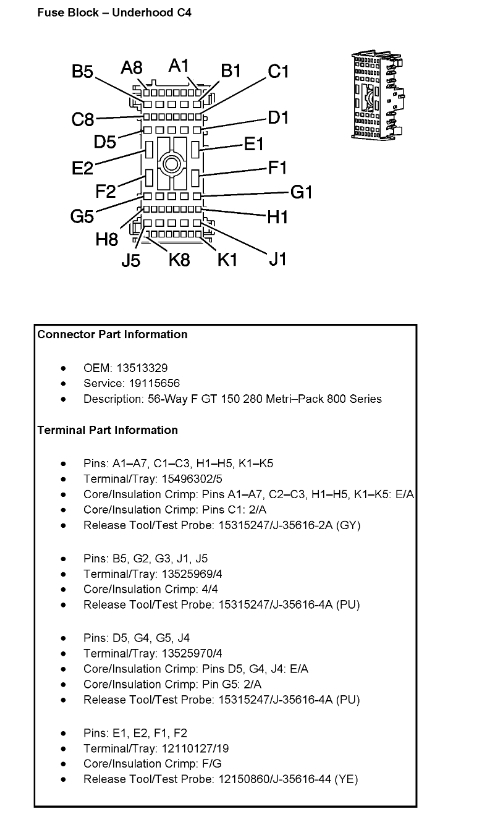

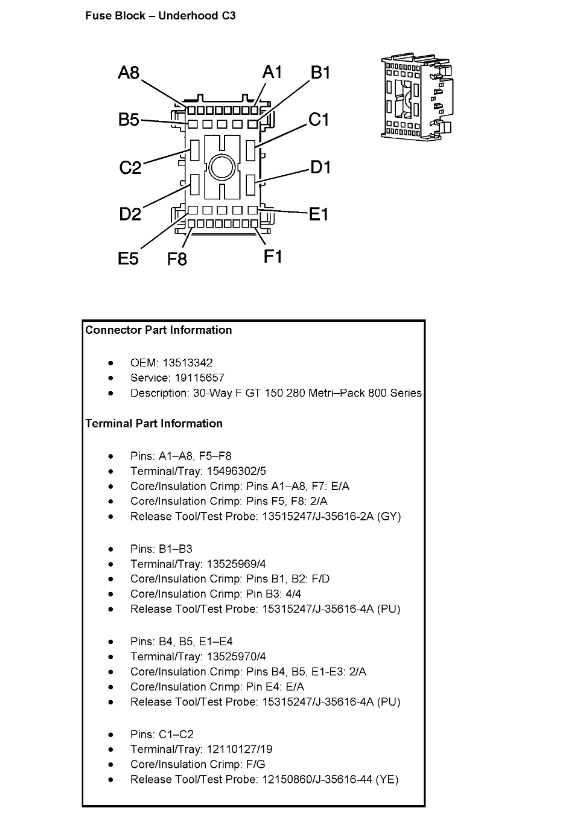

Sure, here are the under-hood fuse panel connector wiring colors and position diagrams in the images below. Let me know if you need anything else.
