Can I get the pin out schematic fuse box to the ECM?

Tiny
SNAKEMAN5888
  • MEMBER
  • 2007 CHEVROLET MONTE CARLO
  • 3.5L
  • V6
  • 2WD
  • AUTOMATIC
  • 180,000 MILES
I need the pin out schematic for the connector from the fuse box to the ECM I have looked all over for this connector pinout and can't seem to find it anywhere.
Saturday, December 28th, 2024 AT 5:33 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,687 POSTS

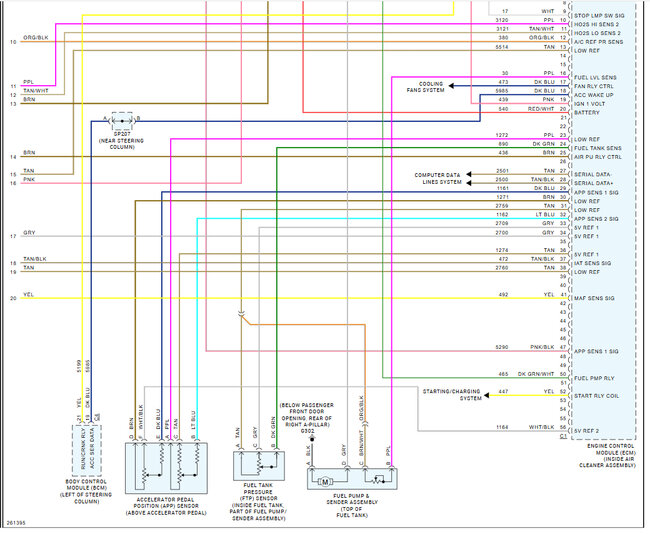

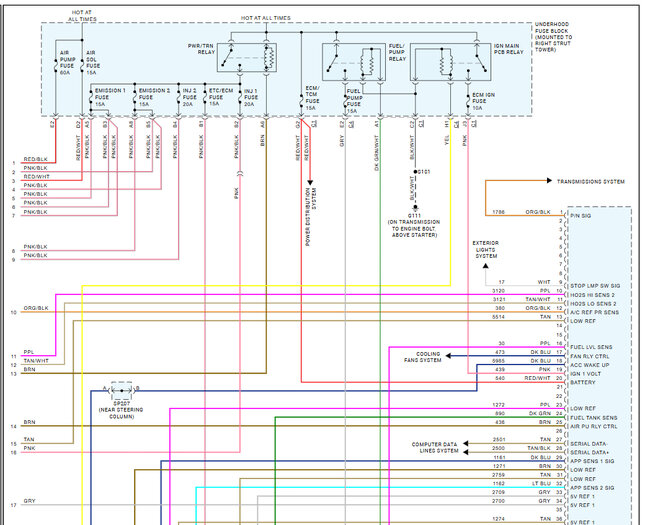

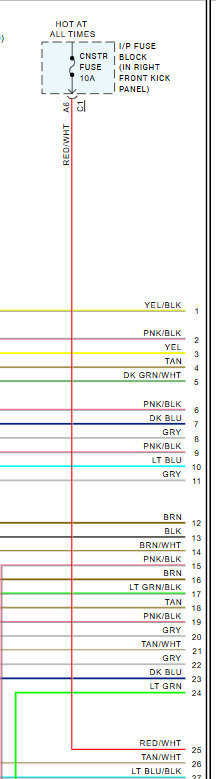

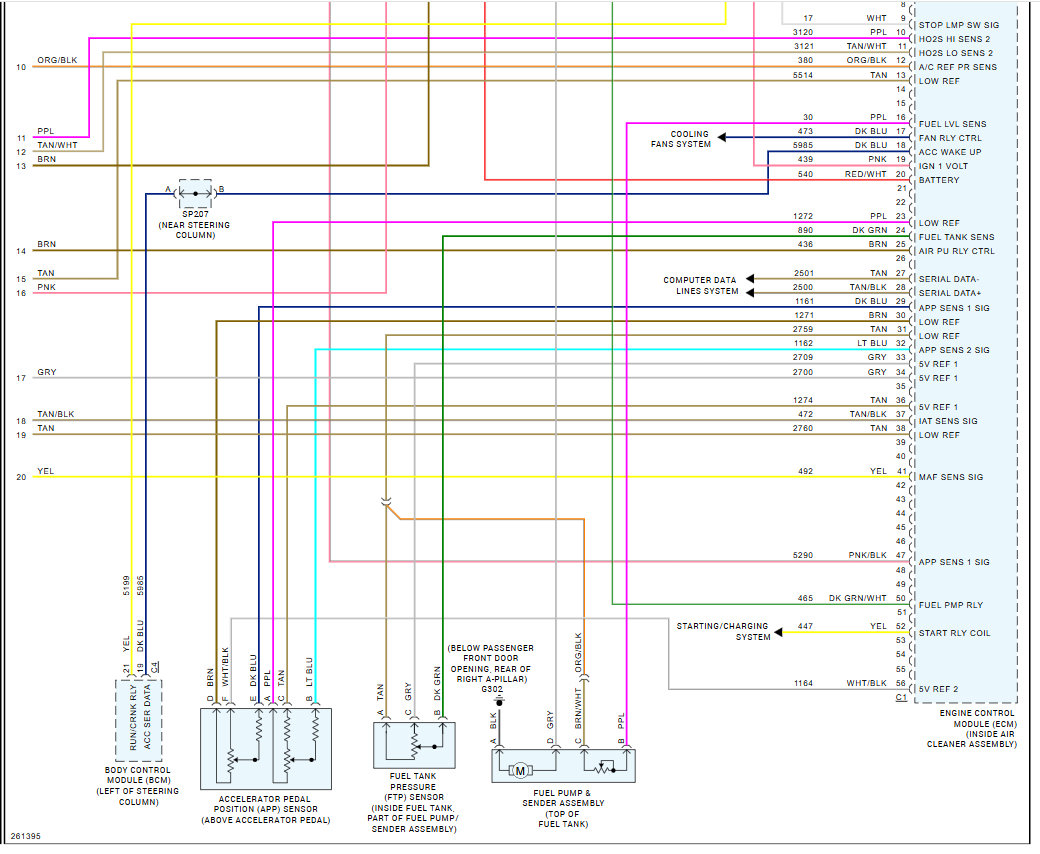

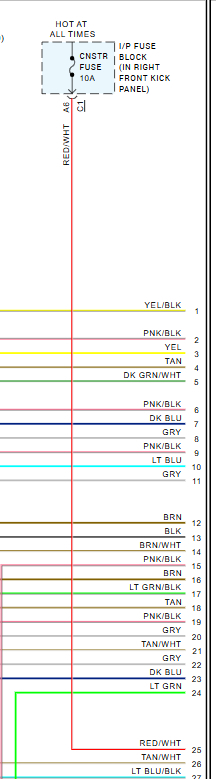

Is this what you are looking for? Here are the wiring diagrams for the fuse panel to the PCM. Check out the images (below). Let us know if you need anything else.
Images (Click to make bigger)
Thumb
Thumb
Thumb
