Can I get the serpentine belt diagram?

Tiny
CESARGABRIELJR
  • MEMBER
  • 2012 FORD FUSION
  • 3.0L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 128,000 MILES
I need a serpentine belt diagram for the 3.0 V6. Thank you
Friday, December 6th, 2024 AT 6:20 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,323 POSTS

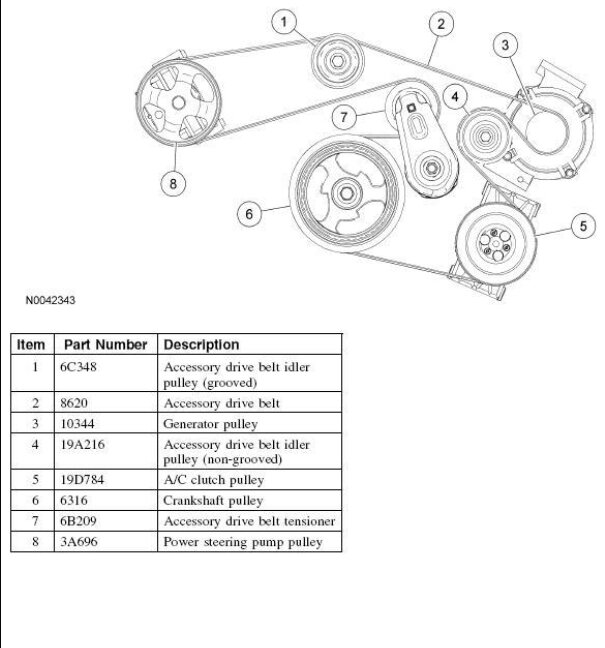

Sure, here you go, check out the images (below). Let us know if you need anything else.
