Diagram of the fuel replacement instructions

Tiny
ROBERTJ0929
  • MEMBER
  • 2004 HYUNDAI SANTA FE
Where can I get a diagram of the fuel replacement instructions please?
Sunday, July 11th, 2010 AT 9:54 AM

1 Reply

Tiny
MERLIN2021
  • MECHANIC
  • 17,250 POSTS

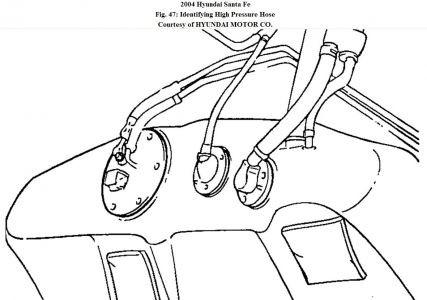

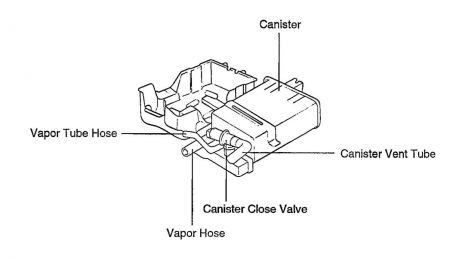

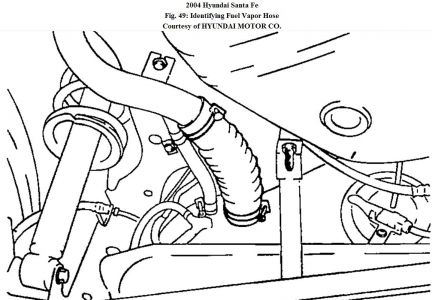

These are what I found for you, in addition there are injectors on the engine and fuel lines to attach to the tank.

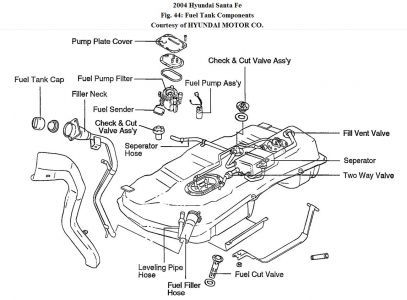

https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_a_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_b_1.jpg

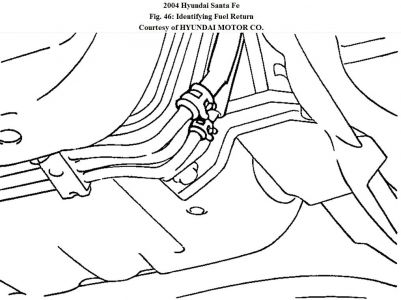

https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_c_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_d_1.jpg



https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_e_1.jpg

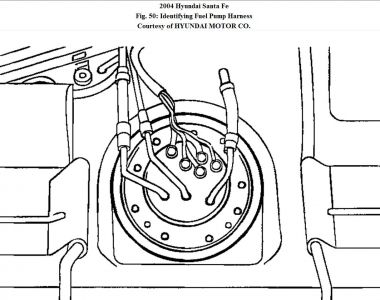

https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_f_1.jpg

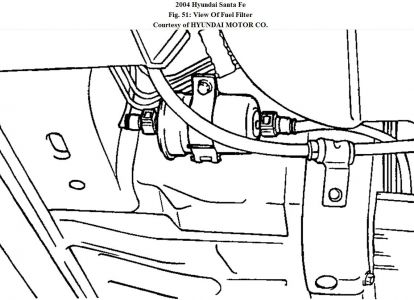

https://www.2carpros.com/forum/automotive_pictures/62217_fuel_sys_g_1.jpg

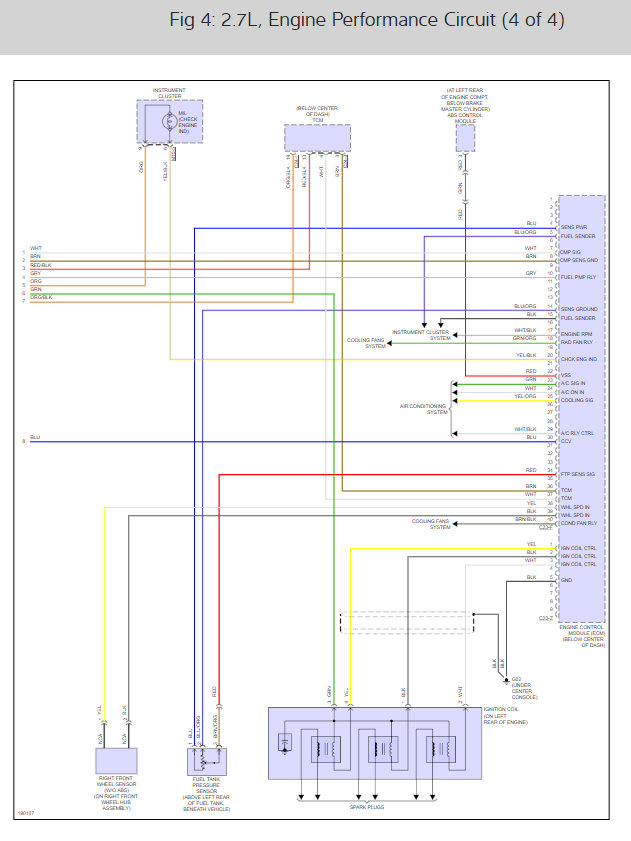

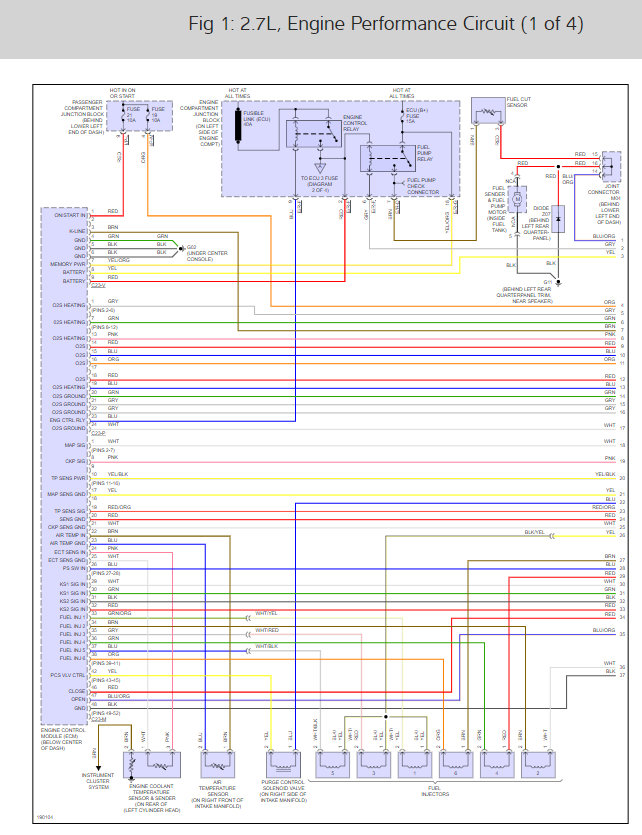

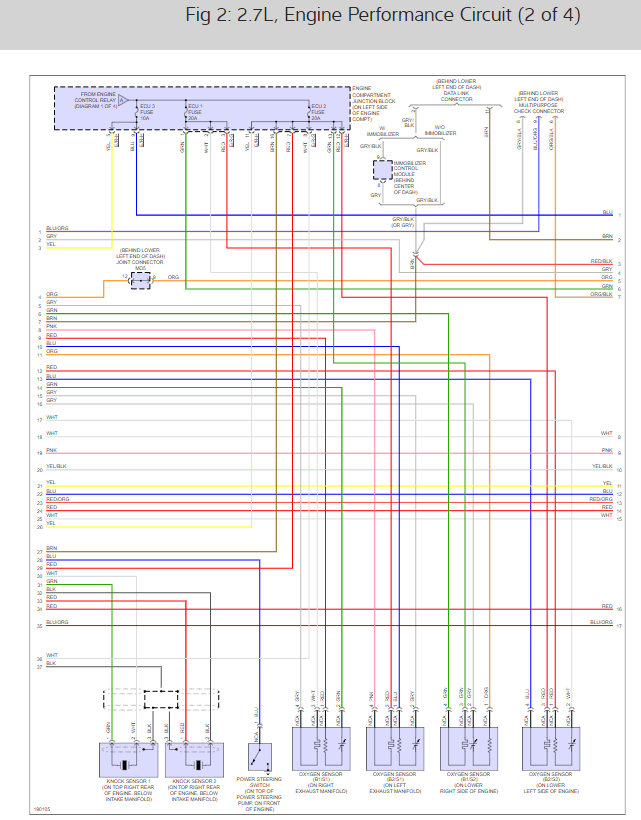

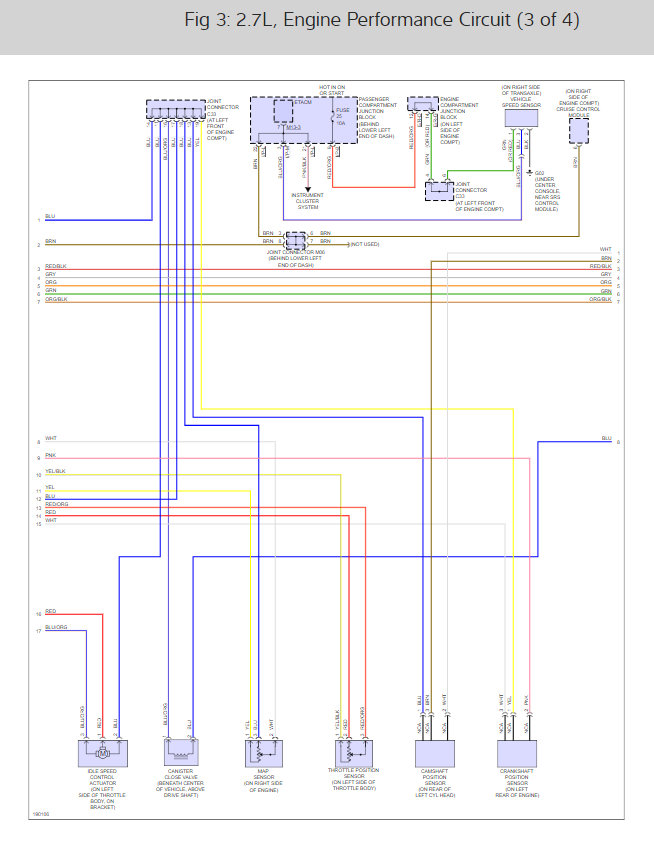

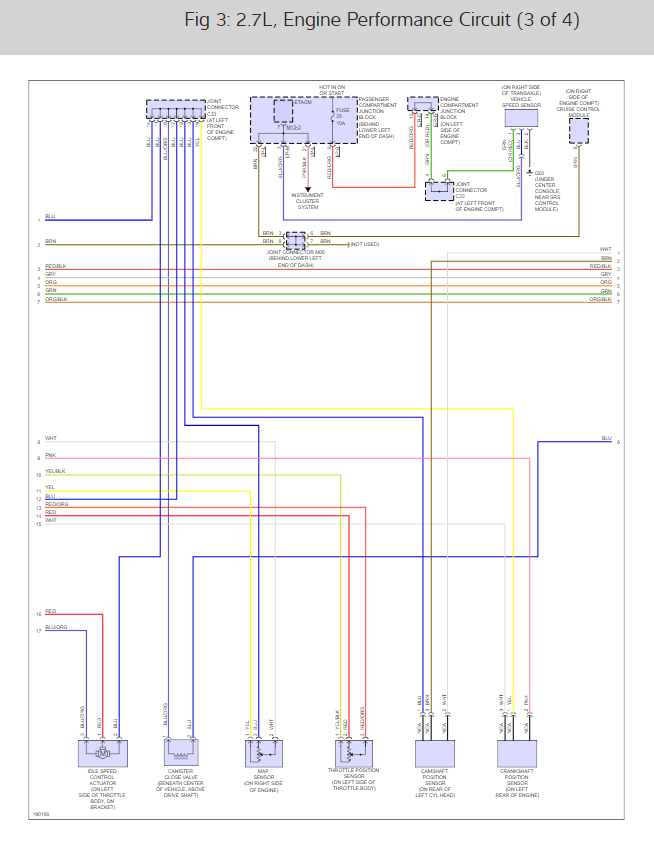

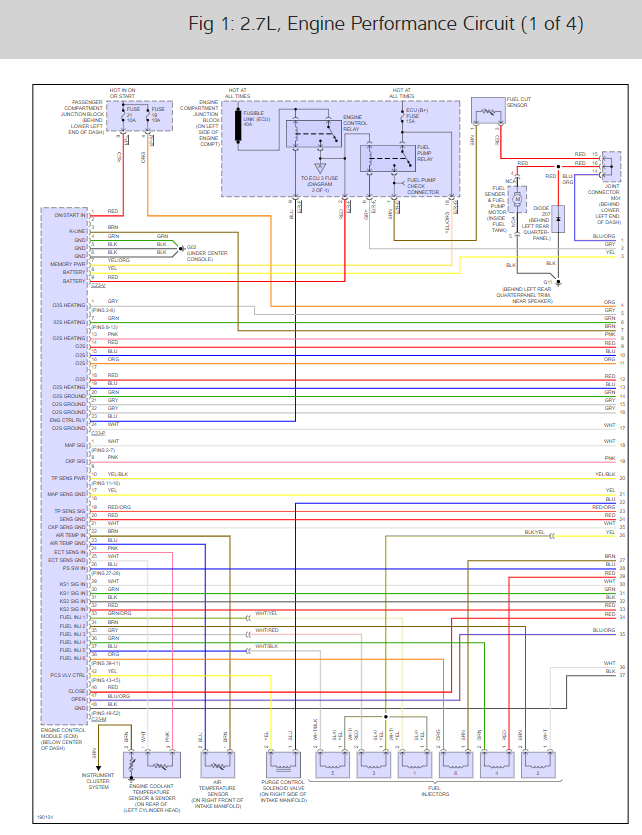

The fuel pump wiring diagrams or below with the engine wiring as well

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
