HVAC Control Module wiring pinout needed

Tiny
AKREAGER
  • MEMBER
  • 2008 CHEVROLET EQUINOX
  • 100 MILES

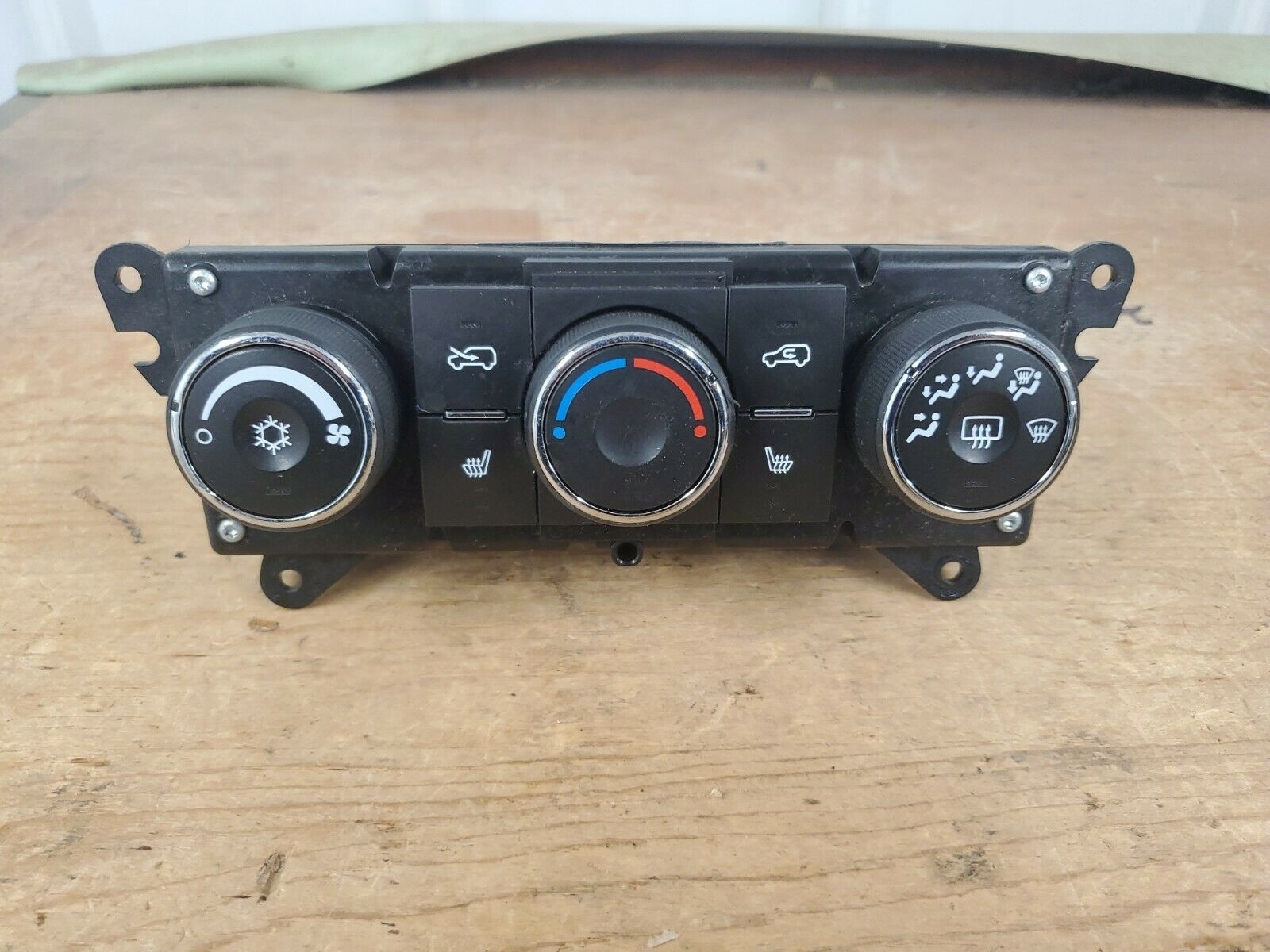

I am looking for a pinout diagram for the two connectors in the HVAC control module. Manual controls, single zone, with heated seat controls. I am trying to interface this module with an aftermarket A/C system for a different vehicle. A full wiring diagram for the HVAC control may be helpful as well. Similar control units were used in the 2007-2009 Silverado's.
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Thursday, February 10th, 2022 AT 7:45 AM

2 Replies

Tiny
BORIS K
  • MECHANIC
  • 799 POSTS
Hello,

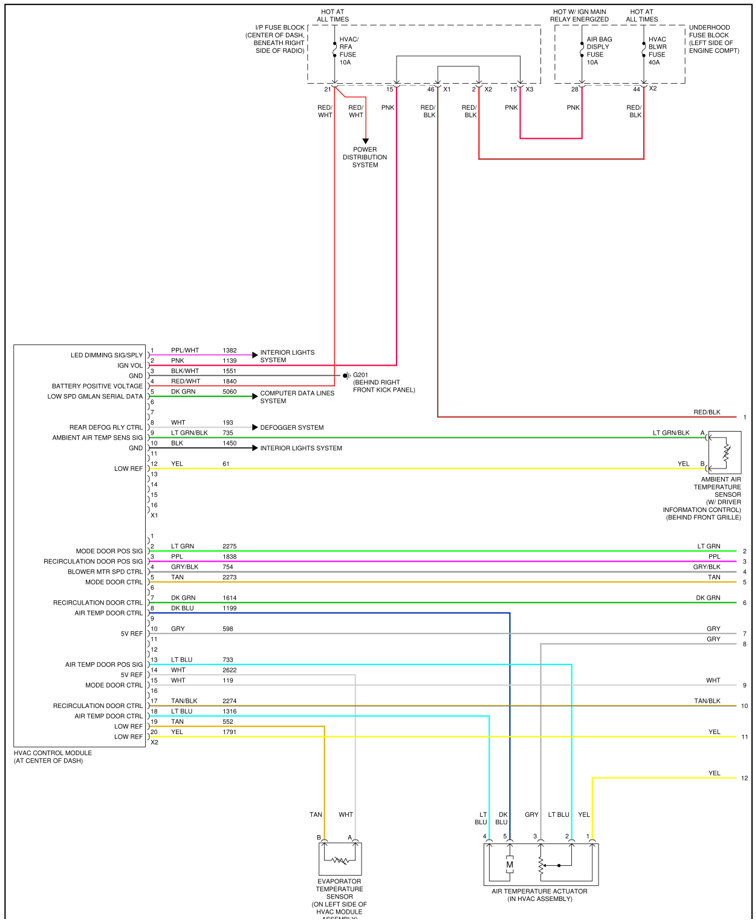

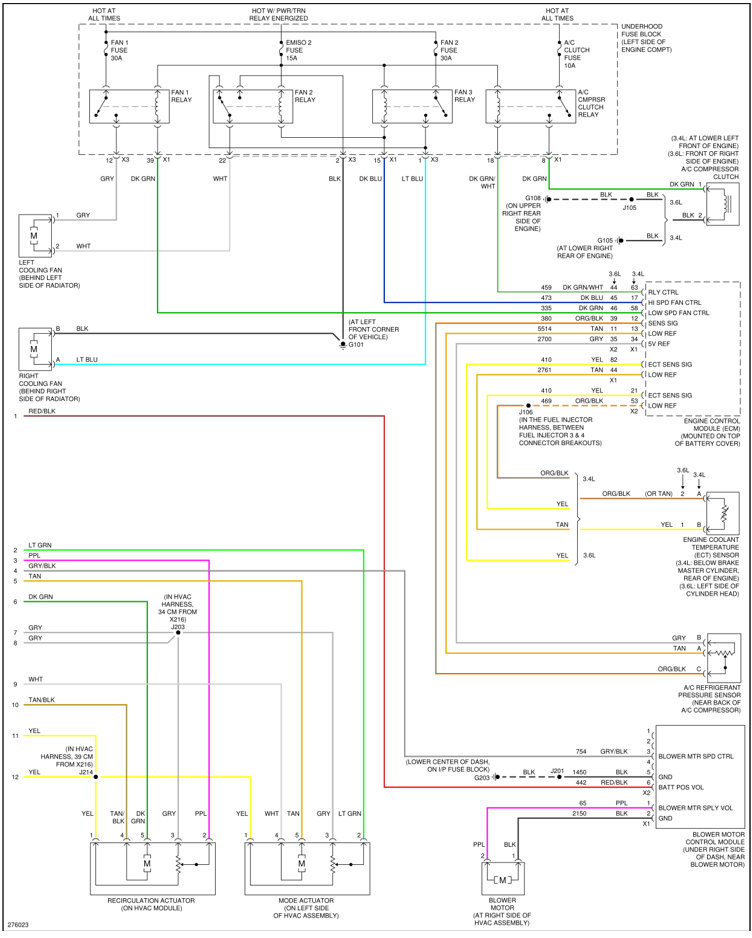

Please find the writing diagrams attached below
I hope they are big enough

Let us know how you get along.

Cheers, Boris
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+3
Thursday, February 10th, 2022 AT 8:34 AM
Tiny
AKREAGER
  • MEMBER
  • 4 POSTS
Thank you!
