HVAC actuator door location and replacement

2015 FORD FIESTA
48,000 MILES • 1.6L • 4 CYL • 2WD • AUTOMATIC
Avatar
DOUBLED25
  • MEMBER
  • 5 POSTS
I am having the same issue as described by most with the HVAC blend door actuator. I had the “clicking” sound several months back but it stopped happening with no issues until recently. Now I only have heat regardless of the temperature I have set. I’m unsure which actuator motor to change and I’m also unsure of the location. I have automatic climate control.
Feb 4, 2019 at 10:52 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,240 POSTS
Hi and thanks for using 2CarPros.

The actuator is under the dash and mounted on the heater/AC box. I attached a picture of its location. It is number 8 in the picture.

Here is a link that explains how one is replaced:

https://www.2carpros.com/articles/replace-blend-door-motor

Let me know if this helps or if you have other questions.

Joe
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 5, 2019 at 12:18 PM
Avatar
DOUBLED25
  • MEMBER
  • 5 POSTS
is that the recirculating actuator? I’m having trouble finding which one that actually is.
Feb 11, 2019 at 3:58 AM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,240 POSTS
Welcome back:

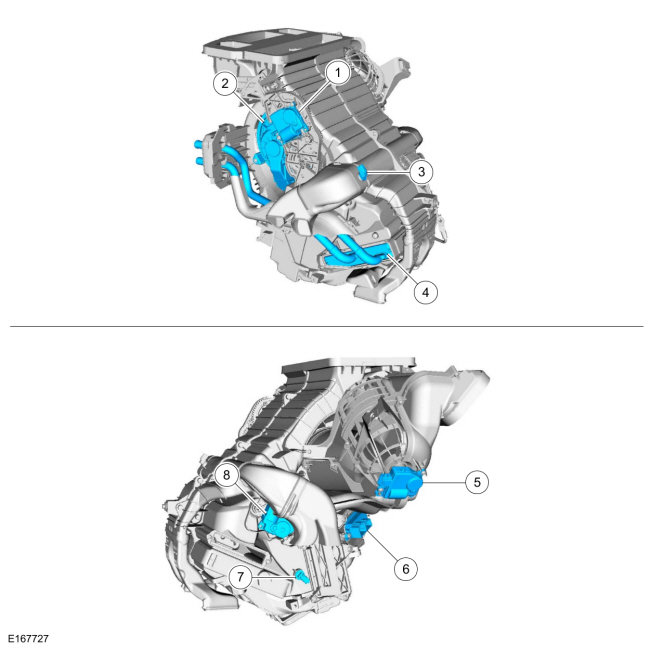

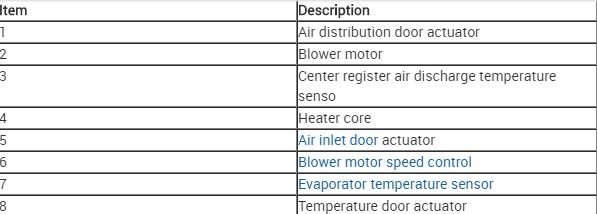

The attached picture shows all of the components. It is the picture I attached above. If you look at picture 2, it identifies the components by number. Number 5 is what determines if you get fresh air or recirculated air. Item 8 is responsible for air temperature.

Let me know if it helps.

Take care,
Joe
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 11, 2019 at 10:55 AM
Avatar
DOUBLED25
  • MEMBER
  • 5 POSTS

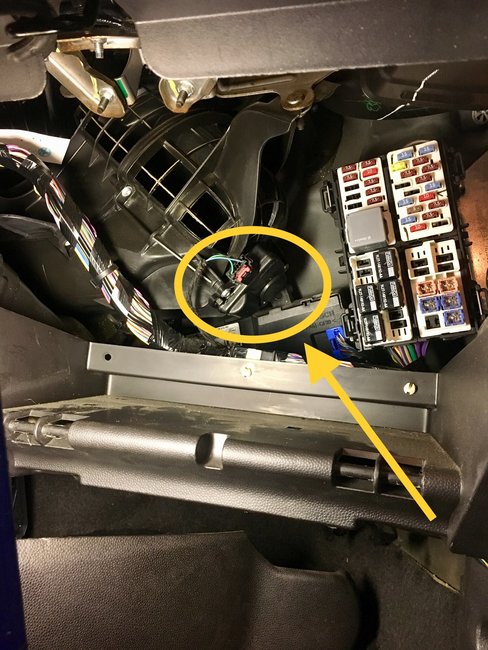

I can’t find it! With the glovebox removed I can see the recycle actuator but don’t see any others. I included a picture of the recycle actuator. Any reference from this point would be greatly appreciated.
Images (Click to enlarge)
Attached Media
Attached Media
Feb 14, 2019 at 1:16 AM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,240 POSTS
Welcome back:
Based on the schematic, it should be more toward the center. You are looking at component number 5. Look at the schematic and locate number 8.
Feb 14, 2019 at 10:33 AM
Avatar
DOUBLED25
  • MEMBER
  • 5 POSTS
Yep, found it behind the floor vent. I had to remove the vent to be able to see it. The schematics were very helpful after I got oriented on how I was actually looking at them. Thanks for all the help!
Feb 18, 2019 at 3:42 AM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,240 POSTS
Welcome back:

I'm glad it helped. Sometimes I feel the manufacturers try to hide things on purpose. Regardless, I'm glad you found it.

Take care and let us know if you have questions in the future.

Joe
Feb 18, 2019 at 9:16 AM
