How do I wire a universal fuel pump motor?

Tiny
UHSNOEBIRD
  • MEMBER
  • 2005 TOYOTA CAMRY
  • 2.4L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 333,000 MILES
The car listed above is the LE model. I am needing to know how to wire the fuel pump motor to the wiring on the fuel pump module.
I'm afraid that when I join the wires together that it might short out being in the gasoline.
Watch the video and see if you think this work for me safely.

https://www.youtube.com/watch?v=-Qi9c8I4GxM
SPONSORED LINKS
Saturday, July 17th, 2021 AT 2:59 PM

12 Replies

Tiny
SQM
  • MECHANIC
  • 6,383 POSTS
Hello,

So the pump you got does it supposed to work on your vehicle?
This procedure on the video will work but it will only work if the pump you got is exactly as the one that came out of your vehicle. Which has the same rate of fuel flow, uses same amount of power (amp/volt) etc.
Any variance on any of the specifications could have unexpected results.

https://youtu.be/peh7-pFycyc

https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator

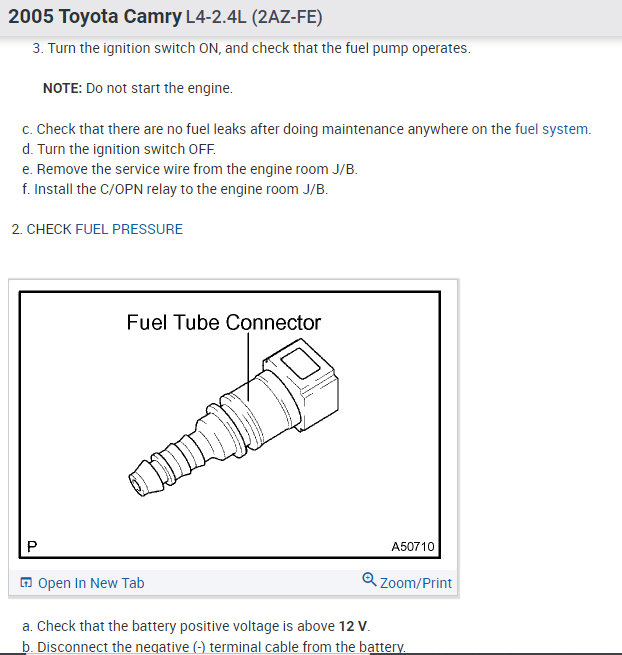

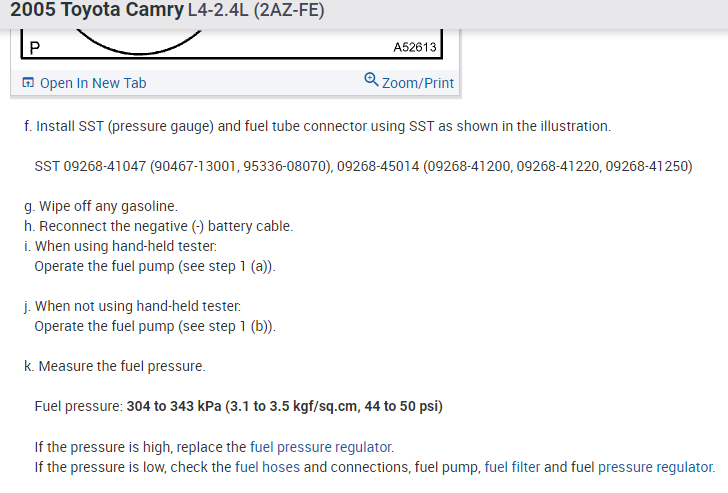

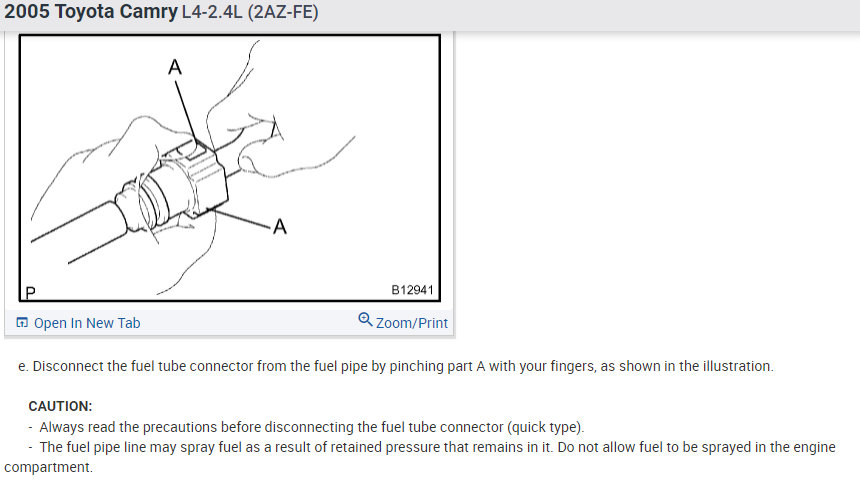

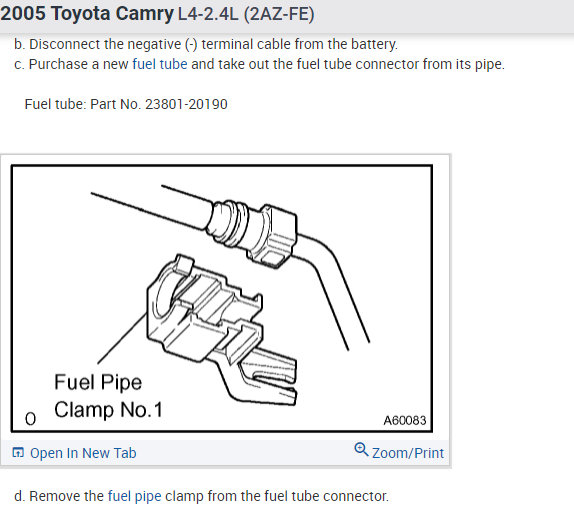

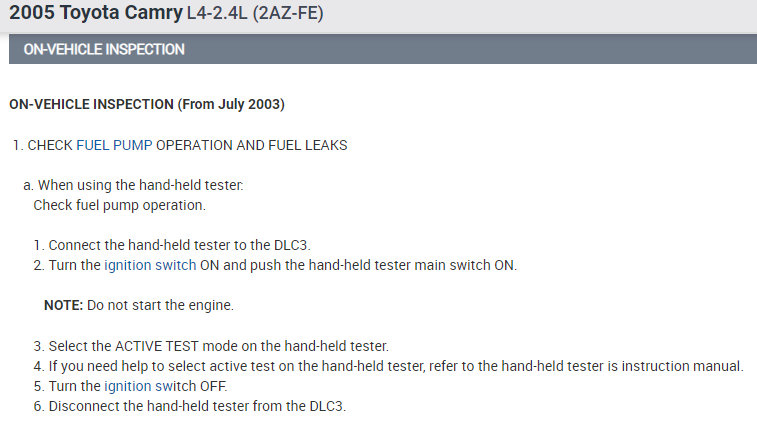

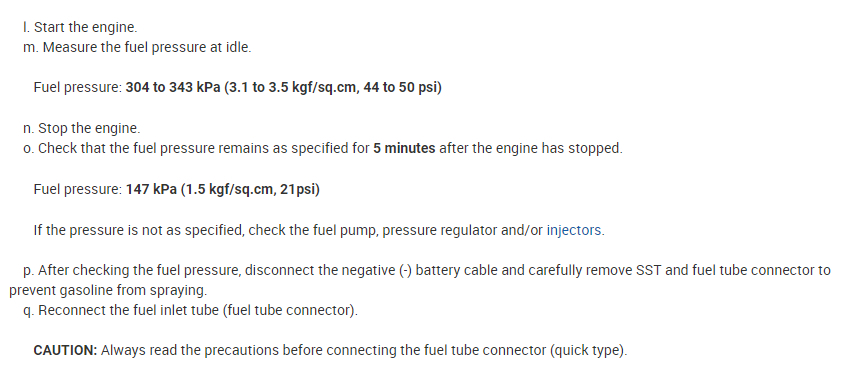

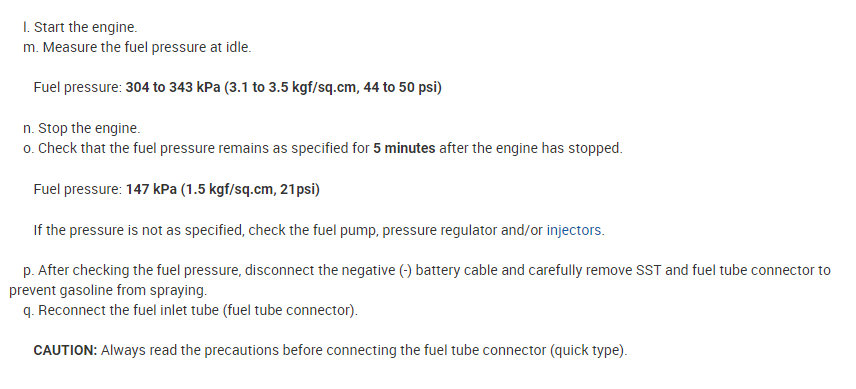

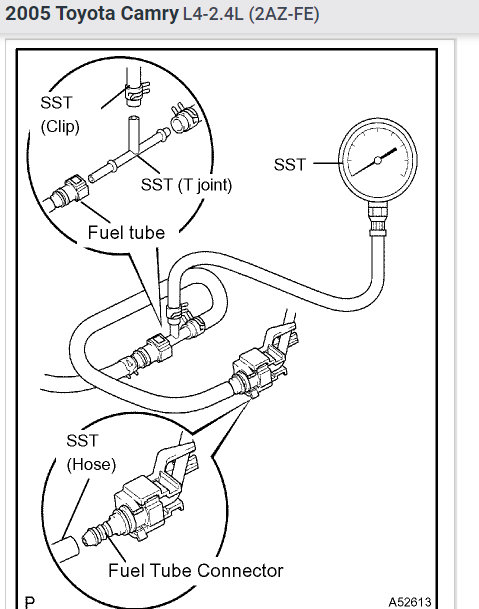

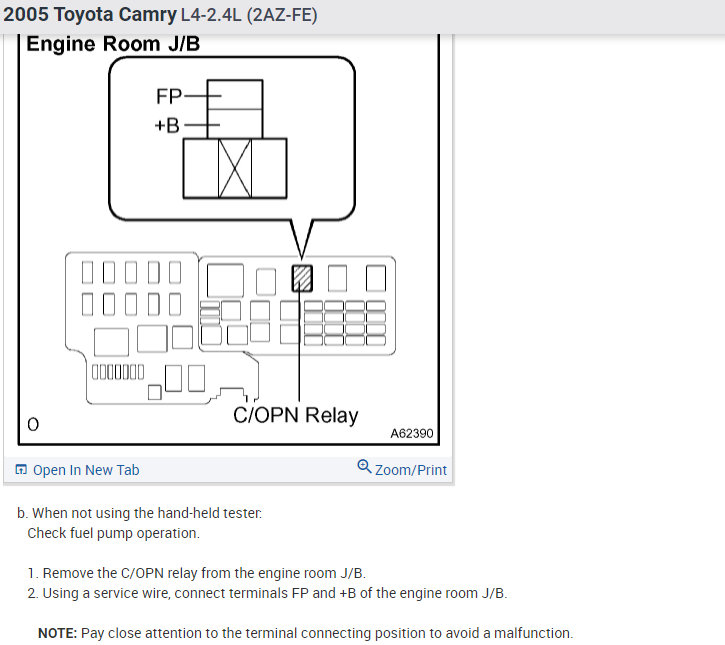

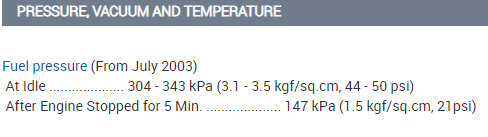

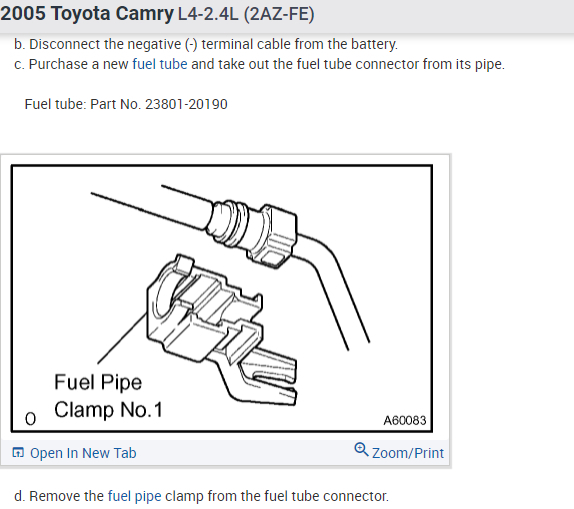

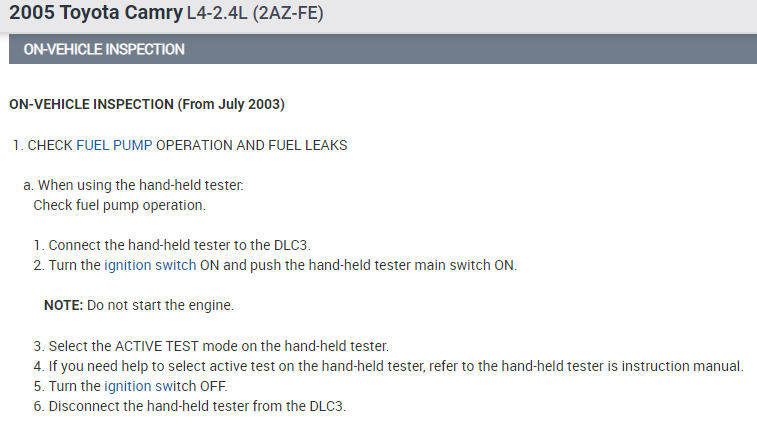

I have attached the fuel system diagnostics for your reference.
